CC 500

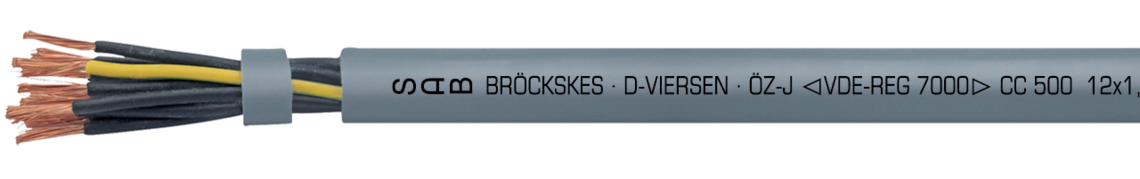

PVC control cable with numbered cores

Marking for CC 500 02005005: SAB BRÖCKSKES · D-VIERSEN · ÖZ-J VDE-Reg.-Nr. 7000 CC 500 50 x 0,5 mm² CE

Application

CC 500 is a PVC control cable with numbered cores and a small bending radius which is also flexible. It is recommended for use in control devices like in the construction of service cabinets, electrical technology, installation and packaging techniques, construction of textile machines, wood working machines, and machine tools.

Outstanding features

flexible
numbered cores
small bending radius

Additional information

Also available as hybrid cable without reg. no. for example:
3G1,0 + 16 x 0,34 mm2
3G1,0 + 08 x 0,34 mm2
1G0,5 + 04 x 0,34 mm2
Peak operating voltage of data conductors: max. 500 V

Construction

Conductor	bare copper strands acc. to IEC 60228, VDE 0295, class 5
Insulation	PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-31
Colour code	black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores
Stranding	in layers
Sheath material	PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1
Sheath colour	grey (RAL 7000)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-31

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores

Stranding

in layers

Sheath material

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

grey (RAL 7000)

Technical data

Nominal voltage	Uo/U 300/500 V
Testing voltage	core/core 3000 V
Min. bending radius	fixed laying: 4 x d flexible application: 6 x d
Radiation resistance	8 x 10^7 cJ/kg
Temperature range	fixed laying: -40/+70°C flexible application: +5/+70°C
Fire performance	flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
Oil resistance	acc. to internal standard
Chem. resistance	see "Technical Data" - Chemical resistance
Absence of harmful substances	acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 3000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+70°C

flexible application: +5/+70°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Oil resistance

acc. to internal standard

Chem. resistance

see "Technical Data" - Chemical resistance

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	No. of cores x cross section	Largest single wire-ø	Outer-ø ± 5%	Copper figure	Cable weight ≈
L02000205	2 x 0,50 mm²	0,21 mm	5,1 mm	9,6 kg/km	37 kg/km	Send inquiry
L02000305	3 x 0,50 mm²	0,21 mm	5,4 mm	14,4 kg/km	43 kg/km	Send inquiry
L02000405	4 x 0,50 mm²	0,21 mm	5,8 mm	19,2 kg/km	52 kg/km	Send inquiry
L02000505	5 x 0,50 mm²	0,21 mm	6,5 mm	24 kg/km	64 kg/km	Send inquiry
L02000705	7 x 0,50 mm²	0,21 mm	7,1 mm	33,6 kg/km	80 kg/km	Send inquiry
L02000805	8 x 0,50 mm²	0,21 mm	8,3 mm	38,4 kg/km	99 kg/km	Send inquiry
L02000905	9 x 0,50 mm²	0,21 mm	8,8 mm	43,2 kg/km	110 kg/km	Send inquiry
L02001005	10 x 0,50 mm²	0,21 mm	9,2 mm	48 kg/km	117 kg/km	Send inquiry
L02001205	12 x 0,50 mm²	0,21 mm	9,5 mm	57,6 kg/km	132 kg/km	Send inquiry
L02001405	14 x 0,50 mm²	0,21 mm	9,9 mm	67,2 kg/km	148 kg/km	Send inquiry
L02001605	16 x 0,50 mm²	0,21 mm	10,6 mm	76,8 kg/km	171 kg/km	Send inquiry
L02001805	18 x 0,50 mm²	0,21 mm	11,2 mm	86,4 kg/km	189 kg/km	Send inquiry
L02002105	21 x 0,50 mm²	0,21 mm	12,4 mm	100,8 kg/km	225 kg/km	Send inquiry
L02002505	25 x 0,50 mm²	0,21 mm	13,6 mm	120 kg/km	260 kg/km	Send inquiry
L02003005	30 x 0,50 mm²	0,21 mm	14 mm	144 kg/km	298 kg/km	Send inquiry
L02003405	34 x 0,50 mm²	0,21 mm	15,3 mm	163,2 kg/km	341 kg/km	Send inquiry
L02004005	40 x 0,50 mm²	0,21 mm	16,5 mm	192 kg/km	399 kg/km	Send inquiry
L02004205	42 x 0,50 mm²	0,21 mm	16,5 mm	201,6 kg/km	414 kg/km	Send inquiry
L02005005	50 x 0,50 mm²	0,21 mm	18,1 mm	240 kg/km	485 kg/km	Send inquiry
L02006105	61 x 0,50 mm²	0,21 mm	19,4 mm	292,8 kg/km	529 kg/km	Send inquiry
L02006505	65 x 0,50 mm²	0,21 mm	20,4 mm	312 kg/km	619 kg/km	Send inquiry
L02008005	80 x 0,50 mm²	0,21 mm	22,2 mm	384 kg/km	752 kg/km	Send inquiry
L02000207	2 x 0,75 mm²	0,21 mm	5,7 mm	14,4 kg/km	47 kg/km	Send inquiry
L02000307	3 x 0,75 mm²	0,21 mm	6,2 mm	21,6 kg/km	59 kg/km	Send inquiry
L02000407	4 x 0,75 mm²	0,21 mm	6,7 mm	28,8 kg/km	71 kg/km	Send inquiry
L02000507	5 x 0,75 mm²	0,21 mm	7,3 mm	36 kg/km	84 kg/km	Send inquiry
L02000707	7 x 0,75 mm²	0,21 mm	8,2 mm	50,4 kg/km	110 kg/km	Send inquiry
L02000807	8 x 0,75 mm²	0,21 mm	9,6 mm	57,6 kg/km	136 kg/km	Send inquiry
L02000907	9 x 0,75 mm²	0,21 mm	10,2 mm	64,8 kg/km	152 kg/km	Send inquiry
L02001007	10 x 0,75 mm²	0,21 mm	10,6 mm	72 kg/km	159 kg/km	Send inquiry
L02001207	12 x 0,75 mm²	0,21 mm	10,9 mm	86,4 kg/km	181 kg/km	Send inquiry
L02001407	14 x 0,75 mm²	0,21 mm	11,4 mm	100,8 kg/km	203 kg/km	Send inquiry
L02001607	16 x 0,75 mm²	0,21 mm	12,2 mm	115,2 kg/km	234 kg/km	Send inquiry
L02001807	18 x 0,75 mm²	0,21 mm	12,9 mm	129,6 kg/km	258 kg/km	Send inquiry
L02002107	21 x 0,75 mm²	0,21 mm	14,3 mm	151,2 kg/km	305 kg/km	Send inquiry
L02002507	25 x 0,75 mm²	0,21 mm	15,6 mm	180 kg/km	354 kg/km	Send inquiry
L02003007	30 x 0,75 mm²	0,21 mm	16,3 mm	216 kg/km	417 kg/km	Send inquiry
L02003407	34 x 0,75 mm²	0,21 mm	17,8 mm	244,8 kg/km	473 kg/km	Send inquiry
L02004007	40 x 0,75 mm²	0,21 mm	19 mm	288 kg/km	546 kg/km	Send inquiry
L02004207	42 x 0,75 mm²	0,21 mm	19 mm	302,4 kg/km	565 kg/km	Send inquiry
L02005007	50 x 0,75 mm²	0,21 mm	21 mm	360 kg/km	672 kg/km	Send inquiry
L02006107	61 x 0,75 mm²	0,21 mm	22,5 mm	439,2 kg/km	803 kg/km	Send inquiry
L02006507	65 x 0,75 mm²	0,21 mm	23,9 mm	468 kg/km	869 kg/km	Send inquiry
L02008007	80 x 0,75 mm²	0,21 mm	25,7 mm	576 kg/km	1040 kg/km	Send inquiry
L02000210	2 x 1,00 mm²	0,21 mm	5,9 mm	19,2 kg/km	53 kg/km	Send inquiry
L02000310	3 x 1,00 mm²	0,21 mm	6,4 mm	28,8 kg/km	67 kg/km	Send inquiry
L02000410	4 x 1,00 mm²	0,21 mm	7 mm	38,4 kg/km	82 kg/km	Send inquiry
L02000510	5 x 1,00 mm²	0,21 mm	7,8 mm	48 kg/km	101 kg/km	Send inquiry
L02000710	7 x 1,00 mm²	0,21 mm	8,5 mm	67,2 kg/km	128 kg/km	Send inquiry
L02000810	8 x 1,00 mm²	0,21 mm	9,9 mm	76,8 kg/km	157 kg/km	Send inquiry
L02000910	9 x 1,00 mm²	0,21 mm	10,8 mm	86,4 kg/km	181 kg/km	Send inquiry
L02001010	10 x 1,00 mm²	0,21 mm	11 mm	96 kg/km	189 kg/km	Send inquiry
L02001210	12 x 1,00 mm²	0,21 mm	11,3 mm	115,2 kg/km	211 kg/km	Send inquiry
L02001410	14 x 1,00 mm²	0,21 mm	12,1 mm	134,4 kg/km	244 kg/km	Send inquiry
L02001610	16 x 1,00 mm²	0,21 mm	12,7 mm	153,6 kg/km	273 kg/km	Send inquiry
L02001810	18 x 1,00 mm²	0,21 mm	13,6 mm	172,8 kg/km	309 kg/km	Send inquiry
L02002110	21 x 1,00 mm²	0,21 mm	15 mm	201,6 kg/km	363 kg/km	Send inquiry
L02002510	25 x 1,00 mm²	0,21 mm	16,4 mm	240 kg/km	422 kg/km	Send inquiry
L02003010	30 x 1,00 mm²	0,21 mm	17 mm	288 kg/km	488 kg/km	Send inquiry
L02003410	34 x 1,00 mm²	0,21 mm	18,5 mm	326,4 kg/km	556 kg/km	Send inquiry
L02004010	40 x 1,00 mm²	0,21 mm	19,9 mm	384 kg/km	651 kg/km	Send inquiry
L02004210	42 x 1,00 mm²	0,21 mm	19,9 mm	403,2 kg/km	677 kg/km	Send inquiry
L02005010	50 x 1,00 mm²	0,21 mm	21,9 mm	480 kg/km	792 kg/km	Send inquiry
L02006110	61 x 1,00 mm²	0,21 mm	23,6 mm	585,6 kg/km	959 kg/km	Send inquiry
L02006510	65 x 1,00 mm²	0,21 mm	24,8 mm	624 kg/km	1024 kg/km	Send inquiry
L02008010	80 x 1,00 mm²	0,21 mm	27 mm	768 kg/km	1243 kg/km	Send inquiry
L02000215	2 x 1,50 mm²	0,26 mm	6,7 mm	28,8 kg/km	71 kg/km	Send inquiry
L02000315	3 x 1,50 mm²	0,26 mm	7,1 mm	43,2 kg/km	87 kg/km	Send inquiry
L02000415	4 x 1,50 mm²	0,26 mm	7,9 mm	57,6 kg/km	109 kg/km	Send inquiry
L02000515	5 x 1,50 mm²	0,26 mm	8,6 mm	72 kg/km	130 kg/km	Send inquiry
L02000715	7 x 1,50 mm²	0,26 mm	9,6 mm	100,8 kg/km	172 kg/km	Send inquiry
L02000815	8 x 1,50 mm²	0,26 mm	11,2 mm	115,2 kg/km	210 kg/km	Send inquiry
L02000915	9 x 1,50 mm²	0,26 mm	12,2 mm	129,6 kg/km	234 kg/km	Send inquiry
L02001015	10 x 1,50 mm²	0,26 mm	12,4 mm	144 kg/km	246 kg/km	Send inquiry
L02001215	12 x 1,50 mm²	0,26 mm	12,8 mm	172,8 kg/km	282 kg/km	Send inquiry
L02001415	14 x 1,50 mm²	0,26 mm	13,6 mm	201,6 kg/km	325 kg/km	Send inquiry
L02001615	16 x 1,50 mm²	0,26 mm	14,3 mm	230,4 kg/km	365 kg/km	Send inquiry
L02001815	18 x 1,50 mm²	0,26 mm	15,3 mm	259,2 kg/km	413 kg/km	Send inquiry
L02002115	21 x 1,50 mm²	0,26 mm	16,9 mm	302,4 kg/km	486 kg/km	Send inquiry
L02002515	25 x 1,50 mm²	0,26 mm	18,5 mm	360 kg/km	570 kg/km	Send inquiry
L02003015	30 x 1,50 mm²	0,26 mm	19,3 mm	432 kg/km	669 kg/km	Send inquiry
L02003415	34 x 1,50 mm²	0,26 mm	21 mm	489,6 kg/km	760 kg/km	Send inquiry
L02004015	40 x 1,50 mm²	0,26 mm	22,6 mm	576 kg/km	891 kg/km	Send inquiry
L02004215	42 x 1,50 mm²	0,26 mm	22,6 mm	604,8 kg/km	926 kg/km	Send inquiry
L02005015	50 x 1,50 mm²	0,26 mm	24,8 mm	720 kg/km	1089 kg/km	Send inquiry
L02006115	61 x 1,50 mm²	0,26 mm	26,7 mm	878,4 kg/km	1315 kg/km	Send inquiry
L02006515	65 x 1,50 mm²	0,26 mm	28,3 mm	936 kg/km	1419 kg/km	Send inquiry
L02008015	80 x 1,50 mm²	0,26 mm	30,5 mm	1152 kg/km	1709 kg/km	Send inquiry
L02000225	2 x 2,50 mm²	0,26 mm	8,1 mm	48 kg/km	107 kg/km	Send inquiry
L02000325	3 x 2,50 mm²	0,26 mm	8,6 mm	72 kg/km	133 kg/km	Send inquiry
L02000425	4 x 2,50 mm²	0,26 mm	9,5 mm	96 kg/km	166 kg/km	Send inquiry
L02000525	5 x 2,50 mm²	0,26 mm	10,6 mm	120 kg/km	205 kg/km	Send inquiry
L02000725	7 x 2,50 mm²	0,26 mm	11,6 mm	168 kg/km	264 kg/km	Send inquiry
L02000825	8 x 2,50 mm²	0,26 mm	13,8 mm	192 kg/km	327 kg/km	Send inquiry
L02000925	9 x 2,50 mm²	0,26 mm	14,9 mm	216 kg/km	368 kg/km	Send inquiry
L02001025	10 x 2,50 mm²	0,26 mm	15,2 mm	240 kg/km	384 kg/km	Send inquiry
L02001225	12 x 2,50 mm²	0,26 mm	15,7 mm	288 kg/km	441 kg/km	Send inquiry
L02001425	14 x 2,50 mm²	0,26 mm	16,6 mm	336 kg/km	508 kg/km	Send inquiry
L02001625	16 x 2,50 mm²	0,26 mm	17,5 mm	384 kg/km	572 kg/km	Send inquiry
L02001825	18 x 2,50 mm²	0,26 mm	18,7 mm	432 kg/km	641 kg/km	Send inquiry
L02002125	21 x 2,50 mm²	0,26 mm	20,9 mm	504 kg/km	766 kg/km	Send inquiry
L02002525	25 x 2,50 mm²	0,26 mm	22,8 mm	600 kg/km	888 kg/km	Send inquiry
L02000340	3 x 4,00 mm²	0,31 mm	10,2 mm	115,2 kg/km	196 kg/km	Send inquiry
L02000440	4 x 4,00 mm²	0,31 mm	11,3 mm	153,6 kg/km	247 kg/km	Send inquiry
L02000540	5 x 4,00 mm²	0,31 mm	12,6 mm	192 kg/km	305 kg/km	Send inquiry
L02000740	7 x 4,00 mm²	0,31 mm	13,9 mm	268,8 kg/km	400 kg/km	Send inquiry
L02000360	3 x 6,00 mm²	0,31 mm	12,1 mm	172,8 kg/km	286 kg/km	Send inquiry
L02000460	4 x 6,00 mm²	0,31 mm	13,2 mm	230,4 kg/km	353 kg/km	Send inquiry
L02000560	5 x 6,00 mm²	0,31 mm	14,9 mm	288 kg/km	443 kg/km	Send inquiry
L02000760	7 x 6,00 mm²	0,31 mm	16,4 mm	403,2 kg/km	580 kg/km	Send inquiry
L02000461	4 x 10,0 mm²	0,41 mm	17,1 mm	384 kg/km	600 kg/km	Send inquiry
L02000561	5 x 10,0 mm²	0,41 mm	19,3 mm	480 kg/km	750 kg/km	Send inquiry
L02000761	7 x 10,0 mm²	0,41 mm	21,2 mm	672 kg/km	981 kg/km	Send inquiry
L02000462	4 x 16,0 mm²	0,41 mm	21,1 mm	614,4 kg/km	918 kg/km	Send inquiry
L02000562	5 x 16,0 mm²	0,41 mm	23,6 mm	768 kg/km	1138 kg/km	Send inquiry
L02000762	7 x 16,0 mm²	0,41 mm	26 mm	1075,2 kg/km	1494 kg/km	Send inquiry
L02000463	4 x 25,0 mm²	0,41 mm	25,5 mm	960 kg/km	1438 kg/km	Send inquiry
L02000563	5 x 25,0 mm²	0,41 mm	28,6 mm	1200 kg/km	1803 kg/km	Send inquiry
L02000763	7 x 25,0 mm²	0,41 mm	31,6 mm	1680 kg/km	2362 kg/km	Send inquiry
L02000464	4 x 35,0 mm²	0,41 mm	29,5 mm	1344 kg/km	1985 kg/km	Send inquiry
L02000564	5 x 35,0 mm²	0,41 mm	32,9 mm	1680 kg/km	2483 kg/km	Send inquiry
L02000764	7 x 35,0 mm²	0,41 mm	36,4 mm	2352 kg/km	3259 kg/km	Send inquiry
L02000465	4 x 50,0 mm²	0,41 mm	33,9 mm	1920 kg/km	2714 kg/km	Send inquiry
