CC 510 CY

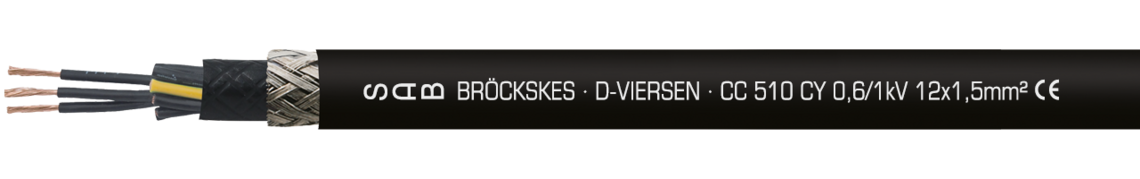

PVC control cable with numbered cores, inner sheath, and overall copper 0,6/1 kV

Marking for CC 510 CY 32020415: SAB BRÖCKSKES · D-VIERSEN · CC 510 CY 0,6/1 kV 4 x 1,5 mm² CE

Marking for CC 510 CY 32020415: SAB BRÖCKSKES · D-VIERSEN · CC 510 CY 0,6/1 kV 4 x 1,5 mm² CE

Application

CC 510 CY is a PVC control cable with sunlight resistance, numbered cores, inner sheath, and overall copper screen. Furthermore, it has good EMC characteristics, high mechanical loading capacity as well as high flexibility. It is recommended for use in car manufacturing industry, automation technologies, press and form engineering, machine tools, textile, printing and paper machine construction, and iron and steel industries.

Outstanding features

  • flexible
  • good EMV characteristics
  • numbered cores
  • small bending radius
  • sunlight resistant

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores

Stranding

in layers

Inner sheath

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Screen

tinned copper braiding

Sheath material

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

black (RAL 9005)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores

Stranding

in layers

Inner sheath

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Screen

tinned copper braiding

Sheath material

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

black (RAL 9005)

Technical data

Nominal voltage

Uo/U 0,6/1 kV

Testing voltage

core/core 4000 V

core/screen 4000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+70°C

flexible application: +5/+70°C

Fire performance

flame retardant and self-extinguishing

acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Oil resistance

acc. to internal standard

Chem. resistance

see Technical Data

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 0,6/1 kV

Testing voltage

core/core 4000 V

core/screen 4000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+70°C

flexible application: +5/+70°C

Fire performance

flame retardant and self-extinguishing

acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Chem. resistance

Dimensions

item no.

no. of cores x
cross section

largest single
wire-ø

outer-ø ± 5%

copper figure

cable weight ca.

320202102 x 1,00 mm²0,21 mm9,4 mm45,4 kg/km130 kg/km Send inquiry
320203103 x 1,00 mm²0,21 mm9,8 mm55,1 kg/km145 kg/km Send inquiry
320204104 x 1,00 mm²0,21 mm10,4 mm67,6 kg/km167 kg/km Send inquiry
320205105 x 1,00 mm²0,21 mm11,6 mm95,9 kg/km211 kg/km Send inquiry
320207107 x 1,00 mm²0,21 mm12,7 mm121,6 kg/km260 kg/km Send inquiry
3202121012 x 1,00 mm²0,21 mm16,2 mm212,9 kg/km411 kg/km Send inquiry
3202191019 x 1,00 mm²0,21 mm18,9 mm293,9 kg/km574 kg/km Send inquiry
320203153 x 1,50 mm²0,26 mm11,3 mm90,9 kg/km200 kg/km Send inquiry
320204154 x 1,50 mm²0,26 mm12,2 mm111,7 kg/km237 kg/km Send inquiry
320205155 x 1,50 mm²0,26 mm13,3 mm131,6 kg/km280 kg/km Send inquiry
320207157 x 1,50 mm²0,26 mm14,6 mm186,4 kg/km355 kg/km Send inquiry
320208158 x 1,50 mm²0,26 mm16,8 mm213,3 kg/km427 kg/km Send inquiry
3202121512 x 1,50 mm²0,26 mm18,9 mm284,3 kg/km553 kg/km Send inquiry
3202191519 x 1,50 mm²0,26 mm21,8 mm411,7 kg/km771 kg/km Send inquiry
320203253 x 2,50 mm²0,26 mm12,9 mm126,6 kg/km269 kg/km Send inquiry
320208258 x 2,50 mm²0,26 mm19,6 mm315,4 kg/km596 kg/km Send inquiry
item no.
no. of cores x
cross section
largest single
wire-ø
outer-ø ± 5%
copper figure
cable weight ca.
32020210
2 x 1,00 mm²
0,21 mm
9,4 mm
45,4 kg/km
130 kg/km
32020310
3 x 1,00 mm²
0,21 mm
9,8 mm
55,1 kg/km
145 kg/km
32020410
4 x 1,00 mm²
0,21 mm
10,4 mm
67,6 kg/km
167 kg/km
32020510
5 x 1,00 mm²
0,21 mm
11,6 mm
95,9 kg/km
211 kg/km
32020710
7 x 1,00 mm²
0,21 mm
12,7 mm
121,6 kg/km
260 kg/km
32021210
12 x 1,00 mm²
0,21 mm
16,2 mm
212,9 kg/km
411 kg/km
32021910
19 x 1,00 mm²
0,21 mm
18,9 mm
293,9 kg/km
574 kg/km
32020315
3 x 1,50 mm²
0,26 mm
11,3 mm
90,9 kg/km
200 kg/km
32020415
4 x 1,50 mm²
0,26 mm
12,2 mm
111,7 kg/km
237 kg/km
32020515
5 x 1,50 mm²
0,26 mm
13,3 mm
131,6 kg/km
280 kg/km
32020715
7 x 1,50 mm²
0,26 mm
14,6 mm
186,4 kg/km
355 kg/km
32020815
8 x 1,50 mm²
0,26 mm
16,8 mm
213,3 kg/km
427 kg/km
32021215
12 x 1,50 mm²
0,26 mm
18,9 mm
284,3 kg/km
553 kg/km
32021915
19 x 1,50 mm²
0,26 mm
21,8 mm
411,7 kg/km
771 kg/km
32020325
3 x 2,50 mm²
0,26 mm
12,9 mm
126,6 kg/km
269 kg/km
32020825
8 x 2,50 mm²
0,26 mm
19,6 mm
315,4 kg/km
596 kg/km

Other dimensions and colours are possible on request.
