SAB Kabel

CC 510

PVC connection cable with numbered cores 0,6/1 kV

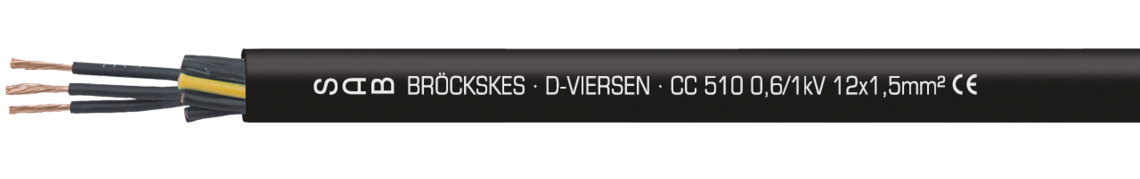

Marking for CC 510 32010415: SAB BRÖCKSKES · D-VIERSEN · CC 510 0,6/1 kV 4 x 1,5 mm² CE

Marking for CC 510 32010415: SAB BRÖCKSKES · D-VIERSEN · CC 510 0,6/1 kV 4 x 1,5 mm² CE

Application

CC 510 is a PVC control cable with numbered cores and a small bending radius which is also flexible. It is recommended for use in control devices like in the construction of service cabinets, electrical technology, installation and packaging techniques, construction of textile machines, wood working machines, and machine tools.

Outstanding features

  • flexible
  • numbered cores
  • small bending radius
  • sunlight resistant

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores

Stranding

in layers

Sheath material

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

black (RAL 9005)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores

Stranding

in layers

Sheath material

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

black (RAL 9005)

Technical data

Nominal voltage

Uo/U 0,6/1 kV

Testing voltage

core/core 4000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+70°C

flexible application: +5/+70°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Oil resistance

acc. to internal standard

Chem. resistance

see Technical Data

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 0,6/1 kV

Testing voltage

core/core 4000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+70°C

flexible application: +5/+70°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Chem. resistance

Dimensions

item no.

no. of cores x
cross section

largest single
wire-ø

outer-ø ± 5%

copper figure

cable weight ca.

320102102 x 1,00 mm²0,21 mm7,4 mm19,2 kg/km78 kg/km Send inquiry
320103103 x 1,00 mm²0,21 mm7,8 mm28,8 kg/km92 kg/km Send inquiry
320104104 x 1,00 mm²0,21 mm8,4 mm38,4 kg/km109 kg/km Send inquiry
320105105 x 1,00 mm²0,21 mm9,2 mm48 kg/km130 kg/km Send inquiry
320107107 x 1,00 mm²0,21 mm9,9 mm67,2 kg/km161 kg/km Send inquiry
320108108 x 1,00 mm²0,21 mm11,8 mm76,8 kg/km202 kg/km Send inquiry
320109109 x 1,00 mm²0,21 mm12,6 mm86,4 kg/km224 kg/km Send inquiry
3201101010 x 1,00 mm²0,21 mm12,8 mm96 kg/km232 kg/km Send inquiry
3201121012 x 1,00 mm²0,21 mm13,2 mm115,2 kg/km263 kg/km Send inquiry
3201141014 x 1,00 mm²0,21 mm13,8 mm134,4 kg/km296 kg/km Send inquiry
3201161016 x 1,00 mm²0,21 mm14,6 mm153,6 kg/km332 kg/km Send inquiry
3201181018 x 1,00 mm²0,21 mm15,7 mm172,8 kg/km382 kg/km Send inquiry
3201211021 x 1,00 mm²0,21 mm17,2 mm201,6 kg/km439 kg/km Send inquiry
320102152 x 1,50 mm²0,26 mm8,4 mm28,8 kg/km103 kg/km Send inquiry
320103153 x 1,50 mm²0,26 mm8,9 mm43,2 kg/km122 kg/km Send inquiry
320104154 x 1,50 mm²0,26 mm9,6 mm57,6 kg/km146 kg/km Send inquiry
320105155 x 1,50 mm²0,26 mm10,5 mm72 kg/km172 kg/km Send inquiry
320107157 x 1,50 mm²0,26 mm11,8 mm100,8 kg/km230 kg/km Send inquiry
320108158 x 1,50 mm²0,26 mm13,6 mm115,2 kg/km271 kg/km Send inquiry
320109159 x 1,50 mm²0,26 mm14,5 mm129,6 kg/km299 kg/km Send inquiry
3201101510 x 1,50 mm²0,26 mm14,8 mm144 kg/km313 kg/km Send inquiry
3201121512 x 1,50 mm²0,26 mm15,7 mm172,8 kg/km373 kg/km Send inquiry
3201141514 x 1,50 mm²0,26 mm16,4 mm201,6 kg/km420 kg/km Send inquiry
3201161516 x 1,50 mm²0,26 mm17,3 mm230,4 kg/km471 kg/km Send inquiry
3201181518 x 1,50 mm²0,26 mm18,2 mm259,2 kg/km521 kg/km Send inquiry
3201211521 x 1,50 mm²0,26 mm20,4 mm302,4 kg/km620 kg/km Send inquiry
320102252 x 2,50 mm²0,26 mm9,6 mm48 kg/km140 kg/km Send inquiry
320103253 x 2,50 mm²0,26 mm10,1 mm72 kg/km169 kg/km Send inquiry
320104254 x 2,50 mm²0,26 mm11,4 mm96 kg/km215 kg/km Send inquiry
320105255 x 2,50 mm²0,26 mm12,5 mm120 kg/km258 kg/km Send inquiry
320107257 x 2,50 mm²0,26 mm13,6 mm168 kg/km326 kg/km Send inquiry
320108258 x 2,50 mm²0,26 mm16,2 mm192 kg/km403 kg/km Send inquiry
320109259 x 2,50 mm²0,26 mm17,2 mm216 kg/km507 kg/km Send inquiry
3201102510 x 2,50 mm²0,26 mm17,6 mm240 kg/km464 kg/km Send inquiry
3201122512 x 2,50 mm²0,26 mm18,1 mm288 kg/km532 kg/km Send inquiry
320103403 x 4,00 mm²0,31 mm12,2 mm115,2 kg/km252 kg/km Send inquiry
320104404 x 4,00 mm²0,31 mm12,9 mm153,6 kg/km294 kg/km Send inquiry
320105405 x 4,00 mm²0,31 mm14,1 mm192 kg/km349 kg/km Send inquiry
320107407 x 4,00 mm²0,31 mm15,8 mm268,8 kg/km468 kg/km Send inquiry
320103603 x 6,00 mm²0,31 mm12,9 mm172,8 kg/km311 kg/km Send inquiry
320104604 x 6,00 mm²0,31 mm14,1 mm230,4 kg/km383 kg/km Send inquiry
320105605 x 6,00 mm²0,31 mm15,9 mm288 kg/km478 kg/km Send inquiry
320107607 x 6,00 mm²0,31 mm19,1 mm403,2 kg/km660 kg/km Send inquiry
320104614 x 10,0 mm²0,41 mm18,7 mm384 kg/km596 kg/km Send inquiry
320105615 x 10,0 mm²0,41 mm20,6 mm480 kg/km732 kg/km Send inquiry
320104624 x 16,0 mm²0,41 mm22,5 mm614,4 kg/km876 kg/km Send inquiry
320105625 x 16,0 mm²0,41 mm25,2 mm768 kg/km1100 kg/km Send inquiry
320104634 x 25,0 mm²0,41 mm29,2 mm960 kg/km1448 kg/km Send inquiry
320105635 x 25,0 mm²0,41 mm32,1 mm1200 kg/km1964 kg/km Send inquiry
320104644 x 35,0 mm²0,41 mm32,6 mm1344 kg/km2104 kg/km Send inquiry
item no.
no. of cores x
cross section
largest single
wire-ø
outer-ø ± 5%
copper figure
cable weight ca.
32010210
2 x 1,00 mm²
0,21 mm
7,4 mm
19,2 kg/km
78 kg/km
32010310
3 x 1,00 mm²
0,21 mm
7,8 mm
28,8 kg/km
92 kg/km
32010410
4 x 1,00 mm²
0,21 mm
8,4 mm
38,4 kg/km
109 kg/km
32010510
5 x 1,00 mm²
0,21 mm
9,2 mm
48 kg/km
130 kg/km
32010710
7 x 1,00 mm²
0,21 mm
9,9 mm
67,2 kg/km
161 kg/km
32010810
8 x 1,00 mm²
0,21 mm
11,8 mm
76,8 kg/km
202 kg/km
32010910
9 x 1,00 mm²
0,21 mm
12,6 mm
86,4 kg/km
224 kg/km
32011010
10 x 1,00 mm²
0,21 mm
12,8 mm
96 kg/km
232 kg/km
32011210
12 x 1,00 mm²
0,21 mm
13,2 mm
115,2 kg/km
263 kg/km
32011410
14 x 1,00 mm²
0,21 mm
13,8 mm
134,4 kg/km
296 kg/km
32011610
16 x 1,00 mm²
0,21 mm
14,6 mm
153,6 kg/km
332 kg/km
32011810
18 x 1,00 mm²
0,21 mm
15,7 mm
172,8 kg/km
382 kg/km
32012110
21 x 1,00 mm²
0,21 mm
17,2 mm
201,6 kg/km
439 kg/km
32010215
2 x 1,50 mm²
0,26 mm
8,4 mm
28,8 kg/km
103 kg/km
32010315
3 x 1,50 mm²
0,26 mm
8,9 mm
43,2 kg/km
122 kg/km
32010415
4 x 1,50 mm²
0,26 mm
9,6 mm
57,6 kg/km
146 kg/km
32010515
5 x 1,50 mm²
0,26 mm
10,5 mm
72 kg/km
172 kg/km
32010715
7 x 1,50 mm²
0,26 mm
11,8 mm
100,8 kg/km
230 kg/km
32010815
8 x 1,50 mm²
0,26 mm
13,6 mm
115,2 kg/km
271 kg/km
32010915
9 x 1,50 mm²
0,26 mm
14,5 mm
129,6 kg/km
299 kg/km
32011015
10 x 1,50 mm²
0,26 mm
14,8 mm
144 kg/km
313 kg/km
32011215
12 x 1,50 mm²
0,26 mm
15,7 mm
172,8 kg/km
373 kg/km
32011415
14 x 1,50 mm²
0,26 mm
16,4 mm
201,6 kg/km
420 kg/km
32011615
16 x 1,50 mm²
0,26 mm
17,3 mm
230,4 kg/km
471 kg/km
32011815
18 x 1,50 mm²
0,26 mm
18,2 mm
259,2 kg/km
521 kg/km
32012115
21 x 1,50 mm²
0,26 mm
20,4 mm
302,4 kg/km
620 kg/km
32010225
2 x 2,50 mm²
0,26 mm
9,6 mm
48 kg/km
140 kg/km
32010325
3 x 2,50 mm²
0,26 mm
10,1 mm
72 kg/km
169 kg/km
32010425
4 x 2,50 mm²
0,26 mm
11,4 mm
96 kg/km
215 kg/km
32010525
5 x 2,50 mm²
0,26 mm
12,5 mm
120 kg/km
258 kg/km
32010725
7 x 2,50 mm²
0,26 mm
13,6 mm
168 kg/km
326 kg/km
32010825
8 x 2,50 mm²
0,26 mm
16,2 mm
192 kg/km
403 kg/km
32010925
9 x 2,50 mm²
0,26 mm
17,2 mm
216 kg/km
507 kg/km
32011025
10 x 2,50 mm²
0,26 mm
17,6 mm
240 kg/km
464 kg/km
32011225
12 x 2,50 mm²
0,26 mm
18,1 mm
288 kg/km
532 kg/km
32010340
3 x 4,00 mm²
0,31 mm
12,2 mm
115,2 kg/km
252 kg/km
32010440
4 x 4,00 mm²
0,31 mm
12,9 mm
153,6 kg/km
294 kg/km
32010540
5 x 4,00 mm²
0,31 mm
14,1 mm
192 kg/km
349 kg/km
32010740
7 x 4,00 mm²
0,31 mm
15,8 mm
268,8 kg/km
468 kg/km
32010360
3 x 6,00 mm²
0,31 mm
12,9 mm
172,8 kg/km
311 kg/km
32010460
4 x 6,00 mm²
0,31 mm
14,1 mm
230,4 kg/km
383 kg/km
32010560
5 x 6,00 mm²
0,31 mm
15,9 mm
288 kg/km
478 kg/km
32010760
7 x 6,00 mm²
0,31 mm
19,1 mm
403,2 kg/km
660 kg/km
32010461
4 x 10,0 mm²
0,41 mm
18,7 mm
384 kg/km
596 kg/km
32010561
5 x 10,0 mm²
0,41 mm
20,6 mm
480 kg/km
732 kg/km
32010462
4 x 16,0 mm²
0,41 mm
22,5 mm
614,4 kg/km
876 kg/km
32010562
5 x 16,0 mm²
0,41 mm
25,2 mm
768 kg/km
1100 kg/km
32010463
4 x 25,0 mm²
0,41 mm
29,2 mm
960 kg/km
1448 kg/km
32010563
5 x 25,0 mm²
0,41 mm
32,1 mm
1200 kg/km
1964 kg/km
32010464
4 x 35,0 mm²
0,41 mm
32,6 mm
1344 kg/km
2104 kg/km

Other dimensions and colours are possible on request.
