SAB Kabel

CC 540 P

PUR control cable with coloured cores, halogen-free and oil resistant

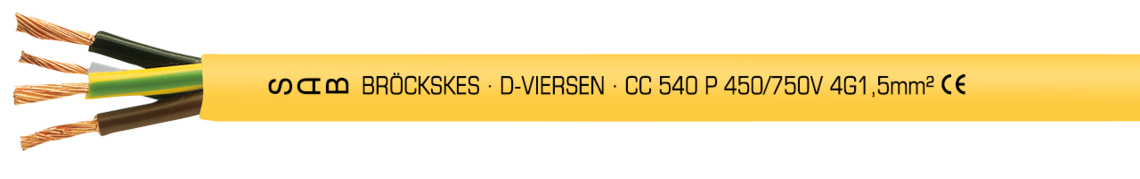

Marking for CC 540 P 52690415: SAB BRÖCKSKES · D-VIERSEN · CC 540 P 450/750V 4 G 1,5 mm² CE

Marking for CC 540 P 52690415: SAB BRÖCKSKES · D-VIERSEN · CC 540 P 450/750V 4 G 1,5 mm² CE

Application

CC 540 P is a PUR control cable with coloured cores, it is halogen-free and oil resistant. Due to the PUR outer sheath the cable is recommended for machine and industrial plant construction, material handling techniques, car manufacturing industry, handling and automation technologies, iron, steel, and chemical industries.

Outstanding features

  • oil resistant
  • abrasion resistant
  • notch resistant
  • good chemical resistance

Additional information

Sheath also possible in black or orange

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

SABIX®

Colour code

coloured acc. to HD 308 (VDE 0293-308); green-yellow earth wire from 3 cores

Stranding

in layers

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

yellow (RAL 1021)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

SABIX®

Colour code

coloured acc. to HD 308 (VDE 0293-308); green-yellow earth wire from 3 cores

Stranding

in layers

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

yellow (RAL 1021)

Technical data

Nominal voltage

Uo/U 300/500 V from 0,75 mm² to 1,0 mm²

Uo/U 450/750 V from 1,0 mm² to 16,0 mm²

Testing voltage

300/500V: core/core 2000 V

450/750 V: core/core 2500 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Radiation resistance

5 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+90 °C

flexible appliication: -30/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Flexibility

very good

Weather resistance

good

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V from 0,75 mm² to 1,0 mm²

Uo/U 450/750 V from 1,0 mm² to 16,0 mm²

Testing voltage

300/500V: core/core 2000 V

450/750 V: core/core 2500 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Radiation resistance

5 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+90 °C

flexible appliication: -30/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Flexibility

very good

Weather resistance

good

Dimensions

item no.

no. of cores x
cross section

largest single
wire-ø

outer-ø ± 5%

copper figure

cable weight ca.

526902072 x 0,75 mm²0,21 mm6,2 mm14,4 kg/km48 kg/km Send inquiry
526903073 x 0,75 mm²0,21 mm6,7 mm21,6 kg/km61 kg/km Send inquiry
526904074 x 0,75 mm²0,21 mm7,3 mm28,8 kg/km75 kg/km Send inquiry
526905075 x 0,75 mm²0,21 mm8,2 mm36 kg/km95 kg/km Send inquiry
526902112 x 1,00 mm²0,21 mm6,7 mm19,2 kg/km58 kg/km Send inquiry
526903113 x 1,00 mm²0,21 mm7,1 mm28,8 kg/km71 kg/km Send inquiry
526904114 x 1,00 mm²0,21 mm7,7 mm38,4 kg/km87 kg/km Send inquiry
526905115 x 1,00 mm²0,21 mm8,6 mm48 kg/km110 kg/km Send inquiry
526902102 x 1,00 mm²0,21 mm7,5 mm19,2 kg/km69 kg/km Send inquiry
526903103 x 1,00 mm²0,21 mm7,9 mm28,8 kg/km84 kg/km Send inquiry
526904104 x 1,00 mm²0,21 mm8,8 mm38,4 kg/km106 kg/km Send inquiry
526905105 x 1,00 mm²0,21 mm9,9 mm48 kg/km135 kg/km Send inquiry
526902152 x 1,50 mm²0,26 mm8,3 mm28,8 kg/km87 kg/km Send inquiry
526903153 x 1,50 mm²0,26 mm8,8 mm43,2 kg/km106 kg/km Send inquiry
526904154 x 1,50 mm²0,26 mm9,8 mm57,6 kg/km134 kg/km Send inquiry
526905155 x 1,50 mm²0,26 mm10,7 mm72 kg/km167 kg/km Send inquiry
526902252 x 2,50 mm²0,26 mm9,8 mm48 kg/km127 kg/km Send inquiry
526903253 x 2,50 mm²0,26 mm10,4 mm72 kg/km158 kg/km Send inquiry
526904254 x 2,50 mm²0,26 mm11,5 mm96 kg/km198 kg/km Send inquiry
526905255 x 2,50 mm²0,26 mm12,9 mm120 kg/km252 kg/km Send inquiry
526902402 x 4,00 mm²0,31 mm11,4 mm76,8 kg/km182 kg/km Send inquiry
526903403 x 4,00 mm²0,31 mm12,1 mm115,2 kg/km229 kg/km Send inquiry
526904404 x 4,00 mm²0,31 mm13,4 mm153,6 kg/km289 kg/km Send inquiry
526905405 x 4,00 mm²0,31 mm15 mm192 kg/km365 kg/km Send inquiry
526902602 x 6,00 mm²0,31 mm12,8 mm115,2 kg/km242 kg/km Send inquiry
526903603 x 6,00 mm²0,31 mm13,8 mm172,8 kg/km312 kg/km Send inquiry
526904604 x 6,00 mm²0,31 mm15,2 mm230,4 kg/km393 kg/km Send inquiry
526905605 x 6,00 mm²0,31 mm17 mm288 kg/km496 kg/km Send inquiry
526902612 x 10,00 mm²0,41 mm17,1 mm192 kg/km428 kg/km Send inquiry
526903613 x 10,00 mm²0,41 mm18,3 mm288 kg/km546 kg/km Send inquiry
526904614 x 10,00 mm²0,41 mm20,1 mm384 kg/km684 kg/km Send inquiry
526905615 x 10,00 mm²0,41 mm22,3 mm480 kg/km856 kg/km Send inquiry
526902622 x 16,00 mm²0,41 mm19,8 mm307,2 kg/km608 kg/km Send inquiry
526903623 x 16,00 mm²0,41 mm21,4 mm460,8 kg/km792 kg/km Send inquiry
526904624 x 16,00 mm²0,41 mm23,3 mm614,4 kg/km988 kg/km Send inquiry
526905625 x 16,00 mm²0,41 mm26,1 mm768 kg/km1248 kg/km Send inquiry
item no.
no. of cores x
cross section
largest single
wire-ø
outer-ø ± 5%
copper figure
cable weight ca.
52690207
2 x 0,75 mm²
0,21 mm
6,2 mm
14,4 kg/km
48 kg/km
52690307
3 x 0,75 mm²
0,21 mm
6,7 mm
21,6 kg/km
61 kg/km
52690407
4 x 0,75 mm²
0,21 mm
7,3 mm
28,8 kg/km
75 kg/km
52690507
5 x 0,75 mm²
0,21 mm
8,2 mm
36 kg/km
95 kg/km
52690211
2 x 1,00 mm²
0,21 mm
6,7 mm
19,2 kg/km
58 kg/km
52690311
3 x 1,00 mm²
0,21 mm
7,1 mm
28,8 kg/km
71 kg/km
52690411
4 x 1,00 mm²
0,21 mm
7,7 mm
38,4 kg/km
87 kg/km
52690511
5 x 1,00 mm²
0,21 mm
8,6 mm
48 kg/km
110 kg/km
52690210
2 x 1,00 mm²
0,21 mm
7,5 mm
19,2 kg/km
69 kg/km
52690310
3 x 1,00 mm²
0,21 mm
7,9 mm
28,8 kg/km
84 kg/km
52690410
4 x 1,00 mm²
0,21 mm
8,8 mm
38,4 kg/km
106 kg/km
52690510
5 x 1,00 mm²
0,21 mm
9,9 mm
48 kg/km
135 kg/km
52690215
2 x 1,50 mm²
0,26 mm
8,3 mm
28,8 kg/km
87 kg/km
52690315
3 x 1,50 mm²
0,26 mm
8,8 mm
43,2 kg/km
106 kg/km
52690415
4 x 1,50 mm²
0,26 mm
9,8 mm
57,6 kg/km
134 kg/km
52690515
5 x 1,50 mm²
0,26 mm
10,7 mm
72 kg/km
167 kg/km
52690225
2 x 2,50 mm²
0,26 mm
9,8 mm
48 kg/km
127 kg/km
52690325
3 x 2,50 mm²
0,26 mm
10,4 mm
72 kg/km
158 kg/km
52690425
4 x 2,50 mm²
0,26 mm
11,5 mm
96 kg/km
198 kg/km
52690525
5 x 2,50 mm²
0,26 mm
12,9 mm
120 kg/km
252 kg/km
52690240
2 x 4,00 mm²
0,31 mm
11,4 mm
76,8 kg/km
182 kg/km
52690340
3 x 4,00 mm²
0,31 mm
12,1 mm
115,2 kg/km
229 kg/km
52690440
4 x 4,00 mm²
0,31 mm
13,4 mm
153,6 kg/km
289 kg/km
52690540
5 x 4,00 mm²
0,31 mm
15 mm
192 kg/km
365 kg/km
52690260
2 x 6,00 mm²
0,31 mm
12,8 mm
115,2 kg/km
242 kg/km
52690360
3 x 6,00 mm²
0,31 mm
13,8 mm
172,8 kg/km
312 kg/km
52690460
4 x 6,00 mm²
0,31 mm
15,2 mm
230,4 kg/km
393 kg/km
52690560
5 x 6,00 mm²
0,31 mm
17 mm
288 kg/km
496 kg/km
52690261
2 x 10,00 mm²
0,41 mm
17,1 mm
192 kg/km
428 kg/km
52690361
3 x 10,00 mm²
0,41 mm
18,3 mm
288 kg/km
546 kg/km
52690461
4 x 10,00 mm²
0,41 mm
20,1 mm
384 kg/km
684 kg/km
52690561
5 x 10,00 mm²
0,41 mm
22,3 mm
480 kg/km
856 kg/km
52690262
2 x 16,00 mm²
0,41 mm
19,8 mm
307,2 kg/km
608 kg/km
52690362
3 x 16,00 mm²
0,41 mm
21,4 mm
460,8 kg/km
792 kg/km
52690462
4 x 16,00 mm²
0,41 mm
23,3 mm
614,4 kg/km
988 kg/km
52690562
5 x 16,00 mm²
0,41 mm
26,1 mm
768 kg/km
1248 kg/km

Other dimensions and colours are possible on request.
