CC 600 MTW CY Typ MTW

PVC control cable and Machine-Tool Cable with numbered cores Type MTW and overall copper screen acc. to NFPA 79 for industrial machinery acc. to UL/(UL)/CSA

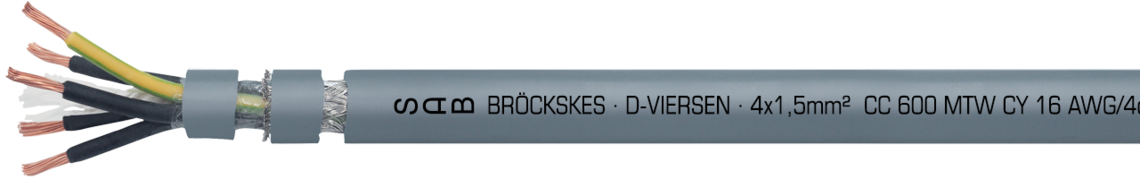

Marking for CC 600 MTW CY 35601404: SAB BRÖCKSKES · D-VIERSEN · 4 x 2,50 mm² CC 600 MTW CY 14 AWG/4c 35601404 (UL) Type MTW 600V AWM Style 21216 90°C Oil 60°C 600V CSA AWM I/II A/B 90°C 1000V FT1 FT2 CE

Marking for CC 600 MTW CY 35601404: SAB BRÖCKSKES · D-VIERSEN · 4 x 2,50 mm² CC 600 MTW CY 14 AWG/4c 35601404 (UL) Type MTW 600V AWM Style 21216 90°C Oil 60°C 600V CSA AWM I/II A/B 90°C 1000V FT1 FT2 CE

Application

CC 600 MTW CY Typ MTW is an approved PVC control and Machine-Tool cable with numbered cores and overall copper screen. Additionally, it is oil resistant and it has a NFPA 79 certification for industrial machinery. This cable is recommended for use in car manufacturing industry, automation technologies, press and form engineering, machine tools, textile, printing and paper machine construction, iron and steel industry.

Outstanding features

  • UL, (UL) and CSA approved
  • flexible cable for cable tray use
  • oil resistant
  • NFPA 79 for industrial machinery

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, classe 5,

UL standard 758 table 5.1, UL 1581 table 20.1

Insulation

special PVC/Nylon

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

in layers

Wrapping

non-woven tapes

Screen

tinned copper braiding

Sheath material

special oil resistant PVC

Sheath colour

grey (RAL 7000)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, classe 5,

UL standard 758 table 5.1, UL 1581 table 20.1

Insulation

special PVC/Nylon

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

in layers

Wrapping

non-woven tapes

Screen

tinned copper braiding

Sheath material

special oil resistant PVC

Sheath colour

grey (RAL 7000)

Technical data

Voltage

UL-AWM/(UL): 600 V

CSA: 1000 V

Testing voltage

core/core 4000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

(UL)/CSA: -25/+90°C

storage ambient: -40/+90 °C

Fire performance

CSA FT1 and FT2

Oil resistance

very good - TM5 acc. to EN 50363-4-1 + VDE 0207-363-4-1,

Oil 60 °C acc. to UL 758, Fuel Oil acc. to CSA-C 22.2 No. 210

Impact and Crushing test

acc. to UL 1277

Machinery Area

yes

Absence of harmful substances

acc. to RoHS directive of the European Union

Voltage

UL-AWM/(UL): 600 V

CSA: 1000 V

Testing voltage

core/core 4000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

(UL)/CSA: -25/+90°C

storage ambient: -40/+90 °C

Fire performance

CSA FT1 and FT2

Oil resistance

very good - TM5 acc. to EN 50363-4-1 + VDE 0207-363-4-1,

Oil 60 °C acc. to UL 758, Fuel Oil acc. to CSA-C 22.2 No. 210

Impact and Crushing test

acc. to UL 1277

Machinery Area

yes

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5% Copper figure Cable weight ≈
L356018033 x 18 AWG0,21 mm8,5 mm50,3 kg/km97 kg/km Send inquiry
L356018044 x 18 AWG0,21 mm9,2 mm62,2 kg/km116 kg/km Send inquiry
L356018055 x 18 AWG0,21 mm9,9 mm74,3 kg/km142 kg/km Send inquiry
L356018077 x 18 AWG0,21 mm10,6 mm96,4 kg/km167 kg/km Send inquiry
L356018099 x 18 AWG0,21 mm13 mm146 kg/km244 kg/km Send inquiry
L3560181212 x 18 AWG0,21 mm14,3 mm175,1 kg/km293 kg/km Send inquiry
L3560181616 x 18 AWG0,21 mm15,9 mm251 kg/km397 kg/km Send inquiry
L3560181818 x 18 AWG0,21 mm16,6 mm270,9 kg/km431 kg/km Send inquiry
L3560181919 x 18 AWG0,21 mm17,4 mm292,4 kg/km460 kg/km Send inquiry
L3560182525 x 18 AWG0,21 mm19,4 mm364 kg/km560 kg/km Send inquiry
L3560182727 x 18 AWG0,21 mm19,4 mm383,2 kg/km586 kg/km Send inquiry
L3560183737 x 18 AWG0,21 mm22,6 mm494,2 kg/km802 kg/km Send inquiry
L3560185050 x 18 AWG0,21 mm26 mm650 kg/km1029 kg/km Send inquiry
L356016033 x 16 AWG0,26 mm9,2 mm67 kg/km117 kg/km Send inquiry
L356016044 x 16 AWG0,26 mm9,9 mm83,9 kg/km140 kg/km Send inquiry
L356016055 x 16 AWG0,26 mm10,5 mm101,2 kg/km178 kg/km Send inquiry
L356016077 x 16 AWG0,26 mm11,7 mm154,8 kg/km222 kg/km Send inquiry
L356016088 x 16 AWG0,26 mm14,1 mm175 kg/km300 kg/km Send inquiry
L356016099 x 16 AWG0,26 mm15,1 mm215,5 kg/km347 kg/km Send inquiry
L3560161212 x 16 AWG0,26 mm15,9 mm270,2 kg/km401 kg/km Send inquiry
L3560161616 x 16 AWG0,26 mm17,3 mm340,3 kg/km495 kg/km Send inquiry
L3560161818 x 16 AWG0,26 mm18,1 mm370,1 kg/km539 kg/km Send inquiry
L3560161919 x 16 AWG0,26 mm18,1 mm384,5 kg/km553 kg/km Send inquiry
L3560162525 x 16 AWG0,26 mm22,4 mm498,6 kg/km766 kg/km Send inquiry
L3560162727 x 16 AWG0,26 mm22,4 mm527,4 kg/km802 kg/km Send inquiry
L3560164141 x 16 AWG0,26 mm26,3 mm761,2 kg/km1125 kg/km Send inquiry
L3560165050 x 16 AWG0,26 mm28,5 mm896,4 kg/km1309 kg/km Send inquiry
L3560166161 x 16 AWG0,26 mm30,2 mm1075,7 kg/km1540 kg/km Send inquiry
L356014033 x 14 AWG0,26 mm10,1 mm101 kg/km169 kg/km Send inquiry
L356014044 x 14 AWG0,26 mm11 mm143,6 kg/km200 kg/km Send inquiry
L356014055 x 14 AWG0,26 mm12 mm174,2 kg/km236 kg/km Send inquiry
L356014077 x 14 AWG0,26 mm12,9 mm227,5 kg/km295 kg/km Send inquiry
L356014099 x 14 AWG0,26 mm16,6 mm314,1 kg/km451 kg/km Send inquiry
L3560141212 x 14 AWG0,26 mm17,4 mm398 kg/km532 kg/km Send inquiry
L3560141818 x 14 AWG0,26 mm20,1 mm557,1 kg/km731 kg/km Send inquiry
L3560142525 x 14 AWG0,26 mm24,8 mm767,1 kg/km1031 kg/km Send inquiry
L356012033 x 12 AWG0,31 mm11,5 mm163,1 kg/km239 kg/km Send inquiry
L356012044 x 12 AWG0,31 mm12,5 mm208,1 kg/km289 kg/km Send inquiry
L356012055 x 12 AWG0,31 mm14,3 mm251,9 kg/km367 kg/km Send inquiry
L356012077 x 12 AWG0,31 mm15,6 mm365,9 kg/km481 kg/km Send inquiry
L356010033 x 10 AWG0,31 mm14,1 mm232,6 kg/km356 kg/km Send inquiry
L356010044 x 10 AWG0,31 mm15,5 mm327,4 kg/km453 kg/km Send inquiry
L356010055 x 10 AWG0,31 mm16,8 mm386,4 kg/km530 kg/km Send inquiry
L356010077 x 10 AWG0,31 mm18,2 mm514,3 kg/km670 kg/km Send inquiry
L356008044 x 8 AWG0,41 mm19,3 mm461,8 kg/km682 kg/km Send inquiry
L356008055 x 8 AWG0,41 mm22,2 mm560,6 kg/km870 kg/km Send inquiry
L356006044 x 6 AWG0,41 mm24 mm683,1 kg/km1030 kg/km Send inquiry
L356006055 x 6 AWG0,41 mm25,9 mm846,6 kg/km1237 kg/km Send inquiry
L356004044 x 4 AWG0,41 mm28,6 mm1021,4 kg/km1521 kg/km Send inquiry
L356004055 x 4 AWG0,41 mm31,5 mm1258,3 kg/km1838 kg/km Send inquiry
L356002044 x 2 AWG0,41 mm33 mm1552,1 kg/km2134 kg/km Send inquiry
L356002055 x 2 AWG0,41 mm36,4 mm1914,1 kg/km2574 kg/km Send inquiry
L356001044 x 1 AWG0,41 mm35,5 mm1881,2 kg/km2345 kg/km Send inquiry
item no.
No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5%
Copper figure
Cable weight ≈
L35601803
3 x 18 AWG
0,21 mm
8,5 mm
50,3 kg/km
97 kg/km
L35601804
4 x 18 AWG
0,21 mm
9,2 mm
62,2 kg/km
116 kg/km
L35601805
5 x 18 AWG
0,21 mm
9,9 mm
74,3 kg/km
142 kg/km
L35601807
7 x 18 AWG
0,21 mm
10,6 mm
96,4 kg/km
167 kg/km
L35601809
9 x 18 AWG
0,21 mm
13 mm
146 kg/km
244 kg/km
L35601812
12 x 18 AWG
0,21 mm
14,3 mm
175,1 kg/km
293 kg/km
L35601816
16 x 18 AWG
0,21 mm
15,9 mm
251 kg/km
397 kg/km
L35601818
18 x 18 AWG
0,21 mm
16,6 mm
270,9 kg/km
431 kg/km
L35601819
19 x 18 AWG
0,21 mm
17,4 mm
292,4 kg/km
460 kg/km
L35601825
25 x 18 AWG
0,21 mm
19,4 mm
364 kg/km
560 kg/km
L35601827
27 x 18 AWG
0,21 mm
19,4 mm
383,2 kg/km
586 kg/km
L35601837
37 x 18 AWG
0,21 mm
22,6 mm
494,2 kg/km
802 kg/km
L35601850
50 x 18 AWG
0,21 mm
26 mm
650 kg/km
1029 kg/km
L35601603
3 x 16 AWG
0,26 mm
9,2 mm
67 kg/km
117 kg/km
L35601604
4 x 16 AWG
0,26 mm
9,9 mm
83,9 kg/km
140 kg/km
L35601605
5 x 16 AWG
0,26 mm
10,5 mm
101,2 kg/km
178 kg/km
L35601607
7 x 16 AWG
0,26 mm
11,7 mm
154,8 kg/km
222 kg/km
L35601608
8 x 16 AWG
0,26 mm
14,1 mm
175 kg/km
300 kg/km
L35601609
9 x 16 AWG
0,26 mm
15,1 mm
215,5 kg/km
347 kg/km
L35601612
12 x 16 AWG
0,26 mm
15,9 mm
270,2 kg/km
401 kg/km
L35601616
16 x 16 AWG
0,26 mm
17,3 mm
340,3 kg/km
495 kg/km
L35601618
18 x 16 AWG
0,26 mm
18,1 mm
370,1 kg/km
539 kg/km
L35601619
19 x 16 AWG
0,26 mm
18,1 mm
384,5 kg/km
553 kg/km
L35601625
25 x 16 AWG
0,26 mm
22,4 mm
498,6 kg/km
766 kg/km
L35601627
27 x 16 AWG
0,26 mm
22,4 mm
527,4 kg/km
802 kg/km
L35601641
41 x 16 AWG
0,26 mm
26,3 mm
761,2 kg/km
1125 kg/km
L35601650
50 x 16 AWG
0,26 mm
28,5 mm
896,4 kg/km
1309 kg/km
L35601661
61 x 16 AWG
0,26 mm
30,2 mm
1075,7 kg/km
1540 kg/km
L35601403
3 x 14 AWG
0,26 mm
10,1 mm
101 kg/km
169 kg/km
L35601404
4 x 14 AWG
0,26 mm
11 mm
143,6 kg/km
200 kg/km
L35601405
5 x 14 AWG
0,26 mm
12 mm
174,2 kg/km
236 kg/km
L35601407
7 x 14 AWG
0,26 mm
12,9 mm
227,5 kg/km
295 kg/km
L35601409
9 x 14 AWG
0,26 mm
16,6 mm
314,1 kg/km
451 kg/km
L35601412
12 x 14 AWG
0,26 mm
17,4 mm
398 kg/km
532 kg/km
L35601418
18 x 14 AWG
0,26 mm
20,1 mm
557,1 kg/km
731 kg/km
L35601425
25 x 14 AWG
0,26 mm
24,8 mm
767,1 kg/km
1031 kg/km
L35601203
3 x 12 AWG
0,31 mm
11,5 mm
163,1 kg/km
239 kg/km
L35601204
4 x 12 AWG
0,31 mm
12,5 mm
208,1 kg/km
289 kg/km
L35601205
5 x 12 AWG
0,31 mm
14,3 mm
251,9 kg/km
367 kg/km
L35601207
7 x 12 AWG
0,31 mm
15,6 mm
365,9 kg/km
481 kg/km
L35601003
3 x 10 AWG
0,31 mm
14,1 mm
232,6 kg/km
356 kg/km
L35601004
4 x 10 AWG
0,31 mm
15,5 mm
327,4 kg/km
453 kg/km
L35601005
5 x 10 AWG
0,31 mm
16,8 mm
386,4 kg/km
530 kg/km
L35601007
7 x 10 AWG
0,31 mm
18,2 mm
514,3 kg/km
670 kg/km
L35600804
4 x 8 AWG
0,41 mm
19,3 mm
461,8 kg/km
682 kg/km
L35600805
5 x 8 AWG
0,41 mm
22,2 mm
560,6 kg/km
870 kg/km
L35600604
4 x 6 AWG
0,41 mm
24 mm
683,1 kg/km
1030 kg/km
L35600605
5 x 6 AWG
0,41 mm
25,9 mm
846,6 kg/km
1237 kg/km
L35600404
4 x 4 AWG
0,41 mm
28,6 mm
1021,4 kg/km
1521 kg/km
L35600405
5 x 4 AWG
0,41 mm
31,5 mm
1258,3 kg/km
1838 kg/km
L35600204
4 x 2 AWG
0,41 mm
33 mm
1552,1 kg/km
2134 kg/km
L35600205
5 x 2 AWG
0,41 mm
36,4 mm
1914,1 kg/km
2574 kg/km
L35600104
4 x 1 AWG
0,41 mm
35,5 mm
1881,2 kg/km
2345 kg/km

Other dimensions and colours are possible on request.
