CC 600 MTW Typ MTW

PVC control cable and Machine-Tool Cable with numbered cores acc. to NFPA 79 for industrial machinery acc. to UL/(UL)/CSA

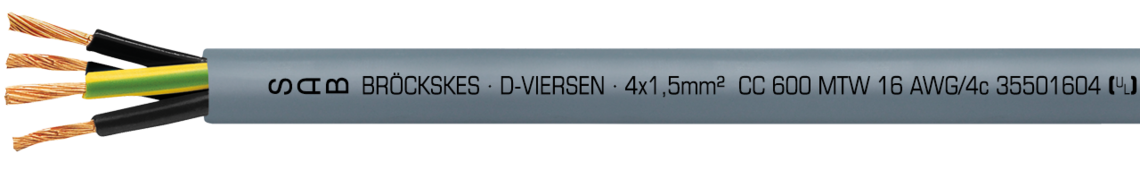

Marking for CC 600 MTW 35501805: SAB BRÖCKSKES · D-VIERSEN · 5 x 1,0 mm² CC 600 MTW 18 AWG/5c 35501805 (UL) Type MTW 600V AWM Style 21216 90°C Oil 60°C 600V CSA AWM I/II A/B 90°C 1000V FT1 FT2 CE

Marking for CC 600 MTW 35501805: SAB BRÖCKSKES · D-VIERSEN · 5 x 1,0 mm² CC 600 MTW 18 AWG/5c 35501805 (UL) Type MTW 600V AWM Style 21216 90°C Oil 60°C 600V CSA AWM I/II A/B 90°C 1000V FT1 FT2 CE

Application

CC 600 MTW Typ MTW is an approved PVC control and Machine-Tool cable with numbered cores. Additionally, it is a flexible cable for tray use and it has a NFPA 79 certification for industrial machinery. This cable is recommended for use in construction of service cabinets and control devices, electrical technology, installation and packaging techniques, construction f textile machines, wood working machines and machine tools.

Outstanding features

  • UL, (UL) and CSA approved
  • flexible cable for cable tray use
  • oil resistant
  • NFPA 79 for industrial machinery

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, classe 5,

UL standard 758 table 5.1, UL 1581 table 20.1

Insulation

special PVC/Nylon

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

in layers

Sheath material

special oil resistant PVC

Sheath colour

grey (RAL 7000)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, classe 5,

UL standard 758 table 5.1, UL 1581 table 20.1

Insulation

special PVC/Nylon

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

in layers

Sheath material

special oil resistant PVC

Sheath colour

grey (RAL 7000)

Technical data

Voltage

UL-AWM/(UL): 600 V

CSA: 1000 V

Testing voltage

core/core 4000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

(UL)/CSA: -25/+90°C

storage ambient: -40/+90 °C

Fire performance

CSA FT1 and FT2

Oil resistance

very good - TM5 acc. to EN 50363-4-1 + VDE 0207-363-4-1,

Oil 60 °C acc. to UL 758, Fuel Oil acc. to CSA-C 22.2 No. 210

Impact and Crushing test

acc. to UL 1277

Machinery Area

yes

Absence of harmful substances

acc. to RoHS directive of the European Union

Voltage

UL-AWM/(UL): 600 V

CSA: 1000 V

Testing voltage

core/core 4000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

(UL)/CSA: -25/+90°C

storage ambient: -40/+90 °C

Fire performance

CSA FT1 and FT2

Oil resistance

very good - TM5 acc. to EN 50363-4-1 + VDE 0207-363-4-1,

Oil 60 °C acc. to UL 758, Fuel Oil acc. to CSA-C 22.2 No. 210

Impact and Crushing test

acc. to UL 1277

Machinery Area

yes

Dimensions

item no.

no. of cores x
cross section

largest single
wire-ø

outer-ø ± 5%

copper figure

cable weight ca.

355018033 x 18 AWG0,21 mm7,7 mm28,8 kg/km86 kg/km Send inquiry
355018044 x 18 AWG0,21 mm8,3 mm38,4 kg/km103 kg/km Send inquiry
355018055 x 18 AWG0,21 mm9,1 mm48 kg/km123 kg/km Send inquiry
355018077 x 18 AWG0,21 mm9,8 mm67,2 kg/km151 kg/km Send inquiry
355018099 x 18 AWG0,21 mm12 mm86,4 kg/km196 kg/km Send inquiry
3550181212 x 18 AWG0,21 mm12,6 mm115,2 kg/km235 kg/km Send inquiry
3550181616 x 18 AWG0,21 mm14,7 mm153,6 kg/km320 kg/km Send inquiry
3550181818 x 18 AWG0,21 mm15,4 mm172,8 kg/km354 kg/km Send inquiry
3550181919 x 18 AWG0,21 mm16,2 mm182,4 kg/km374 kg/km Send inquiry
3550182525 x 18 AWG0,21 mm18,2 mm240 kg/km465 kg/km Send inquiry
3550182727 x 18 AWG0,21 mm18,2 mm259,2 kg/km491 kg/km Send inquiry
3550183737 x 18 AWG0,21 mm20,3 mm355,2 kg/km639 kg/km Send inquiry
3550185050 x 18 AWG0,21 mm24,8 mm480 kg/km898 kg/km Send inquiry
355016033 x 16 AWG0,26 mm8,4 mm43,2 kg/km107 kg/km Send inquiry
355016044 x 16 AWG0,26 mm9,1 mm57,6 kg/km128 kg/km Send inquiry
355016055 x 16 AWG0,26 mm9,8 mm72 kg/km153 kg/km Send inquiry
355016077 x 16 AWG0,26 mm10,7 mm100,8 kg/km191 kg/km Send inquiry
355016088 x 16 AWG0,26 mm12,3 mm115,2 kg/km229 kg/km Send inquiry
355016099 x 16 AWG0,26 mm13,2 mm129,6 kg/km255 kg/km Send inquiry
3550161212 x 16 AWG0,26 mm14,5 mm172,8 kg/km323 kg/km Send inquiry
3550161616 x 16 AWG0,26 mm16,1 mm230,4 kg/km409 kg/km Send inquiry
3550161818 x 16 AWG0,26 mm16,8 mm259,2 kg/km452 kg/km Send inquiry
3550161919 x 16 AWG0,26 mm16,8 mm273,6 kg/km466 kg/km Send inquiry
3550162525 x 16 AWG0,26 mm20,1 mm360 kg/km604 kg/km Send inquiry
3550162727 x 16 AWG0,26 mm20,1 mm388,8 kg/km641 kg/km Send inquiry
3550164141 x 16 AWG0,26 mm25,1 mm590,4 kg/km993 kg/km Send inquiry
3550165050 x 16 AWG0,26 mm27,3 mm720 kg/km1174 kg/km Send inquiry
3550166161 x 16 AWG0,26 mm29 mm878,4 kg/km1390 kg/km Send inquiry
355014033 x 14 AWG0,26 mm9,3 mm72 kg/km143 kg/km Send inquiry
355014044 x 14 AWG0,26 mm10 mm96 kg/km173 kg/km Send inquiry
355014055 x 14 AWG0,26 mm11 mm120 kg/km209 kg/km Send inquiry
355014077 x 14 AWG0,26 mm11,9 mm168 kg/km265 kg/km Send inquiry
355014099 x 14 AWG0,26 mm15,4 mm216 kg/km373 kg/km Send inquiry
3550141212 x 14 AWG0,26 mm16,1 mm288 kg/km446 kg/km Send inquiry
3550141818 x 14 AWG0,26 mm18,8 mm432 kg/km633 kg/km Send inquiry
3550142525 x 14 AWG0,26 mm23,5 mm600 kg/km902 kg/km Send inquiry
355012033 x 12 AWG0,31 mm10,5 mm115,2 kg/km199 kg/km Send inquiry
355012044 x 12 AWG0,31 mm11,4 mm153,6 kg/km244 kg/km Send inquiry
355012055 x 12 AWG0,31 mm12,5 mm192 kg/km296 kg/km Send inquiry
355012077 x 12 AWG0,31 mm14,4 mm268,8 kg/km404 kg/km Send inquiry
355010033 x 10 AWG0,31 mm12,4 mm172,8 kg/km285 kg/km Send inquiry
355010044 x 10 AWG0,31 mm14,3 mm230,4 kg/km377 kg/km Send inquiry
355010055 x 10 AWG0,31 mm15,6 mm288 kg/km453 kg/km Send inquiry
355010077 x 10 AWG0,31 mm17 mm403,2 kg/km584 kg/km Send inquiry
355008044 x 8 AWG0,41 mm18,1 mm337,9 kg/km590 kg/km Send inquiry
355008055 x 8 AWG0,41 mm19,9 mm422,4 kg/km709 kg/km Send inquiry
355006044 x 6 AWG0,41 mm22,8 mm541,4 kg/km919 kg/km Send inquiry
355006055 x 6 AWG0,41 mm25,1 mm676,8 kg/km1110 kg/km Send inquiry
355004044 x 4 AWG0,41 mm27,4 mm844,8 kg/km1393 kg/km Send inquiry
355004055 x 4 AWG0,41 mm30,3 mm1056 kg/km1684 kg/km Send inquiry
355002044 x 2 AWG0,41 mm31,8 mm1344 kg/km1769 kg/km Send inquiry
355002055 x 2 AWG0,41 mm35,2 mm1680 kg/km2398 kg/km Send inquiry
355001044 x 1 AWG0,41 mm34,3 mm1651,2 kg/km2428 kg/km Send inquiry
item no.
no. of cores x
cross section
largest single
wire-ø
outer-ø ± 5%
copper figure
cable weight ca.
35501803
3 x 18 AWG
0,21 mm
7,7 mm
28,8 kg/km
86 kg/km
35501804
4 x 18 AWG
0,21 mm
8,3 mm
38,4 kg/km
103 kg/km
35501805
5 x 18 AWG
0,21 mm
9,1 mm
48 kg/km
123 kg/km
35501807
7 x 18 AWG
0,21 mm
9,8 mm
67,2 kg/km
151 kg/km
35501809
9 x 18 AWG
0,21 mm
12 mm
86,4 kg/km
196 kg/km
35501812
12 x 18 AWG
0,21 mm
12,6 mm
115,2 kg/km
235 kg/km
35501816
16 x 18 AWG
0,21 mm
14,7 mm
153,6 kg/km
320 kg/km
35501818
18 x 18 AWG
0,21 mm
15,4 mm
172,8 kg/km
354 kg/km
35501819
19 x 18 AWG
0,21 mm
16,2 mm
182,4 kg/km
374 kg/km
35501825
25 x 18 AWG
0,21 mm
18,2 mm
240 kg/km
465 kg/km
35501827
27 x 18 AWG
0,21 mm
18,2 mm
259,2 kg/km
491 kg/km
35501837
37 x 18 AWG
0,21 mm
20,3 mm
355,2 kg/km
639 kg/km
35501850
50 x 18 AWG
0,21 mm
24,8 mm
480 kg/km
898 kg/km
35501603
3 x 16 AWG
0,26 mm
8,4 mm
43,2 kg/km
107 kg/km
35501604
4 x 16 AWG
0,26 mm
9,1 mm
57,6 kg/km
128 kg/km
35501605
5 x 16 AWG
0,26 mm
9,8 mm
72 kg/km
153 kg/km
35501607
7 x 16 AWG
0,26 mm
10,7 mm
100,8 kg/km
191 kg/km
35501608
8 x 16 AWG
0,26 mm
12,3 mm
115,2 kg/km
229 kg/km
35501609
9 x 16 AWG
0,26 mm
13,2 mm
129,6 kg/km
255 kg/km
35501612
12 x 16 AWG
0,26 mm
14,5 mm
172,8 kg/km
323 kg/km
35501616
16 x 16 AWG
0,26 mm
16,1 mm
230,4 kg/km
409 kg/km
35501618
18 x 16 AWG
0,26 mm
16,8 mm
259,2 kg/km
452 kg/km
35501619
19 x 16 AWG
0,26 mm
16,8 mm
273,6 kg/km
466 kg/km
35501625
25 x 16 AWG
0,26 mm
20,1 mm
360 kg/km
604 kg/km
35501627
27 x 16 AWG
0,26 mm
20,1 mm
388,8 kg/km
641 kg/km
35501641
41 x 16 AWG
0,26 mm
25,1 mm
590,4 kg/km
993 kg/km
35501650
50 x 16 AWG
0,26 mm
27,3 mm
720 kg/km
1174 kg/km
35501661
61 x 16 AWG
0,26 mm
29 mm
878,4 kg/km
1390 kg/km
35501403
3 x 14 AWG
0,26 mm
9,3 mm
72 kg/km
143 kg/km
35501404
4 x 14 AWG
0,26 mm
10 mm
96 kg/km
173 kg/km
35501405
5 x 14 AWG
0,26 mm
11 mm
120 kg/km
209 kg/km
35501407
7 x 14 AWG
0,26 mm
11,9 mm
168 kg/km
265 kg/km
35501409
9 x 14 AWG
0,26 mm
15,4 mm
216 kg/km
373 kg/km
35501412
12 x 14 AWG
0,26 mm
16,1 mm
288 kg/km
446 kg/km
35501418
18 x 14 AWG
0,26 mm
18,8 mm
432 kg/km
633 kg/km
35501425
25 x 14 AWG
0,26 mm
23,5 mm
600 kg/km
902 kg/km
35501203
3 x 12 AWG
0,31 mm
10,5 mm
115,2 kg/km
199 kg/km
35501204
4 x 12 AWG
0,31 mm
11,4 mm
153,6 kg/km
244 kg/km
35501205
5 x 12 AWG
0,31 mm
12,5 mm
192 kg/km
296 kg/km
35501207
7 x 12 AWG
0,31 mm
14,4 mm
268,8 kg/km
404 kg/km
35501003
3 x 10 AWG
0,31 mm
12,4 mm
172,8 kg/km
285 kg/km
35501004
4 x 10 AWG
0,31 mm
14,3 mm
230,4 kg/km
377 kg/km
35501005
5 x 10 AWG
0,31 mm
15,6 mm
288 kg/km
453 kg/km
35501007
7 x 10 AWG
0,31 mm
17 mm
403,2 kg/km
584 kg/km
35500804
4 x 8 AWG
0,41 mm
18,1 mm
337,9 kg/km
590 kg/km
35500805
5 x 8 AWG
0,41 mm
19,9 mm
422,4 kg/km
709 kg/km
35500604
4 x 6 AWG
0,41 mm
22,8 mm
541,4 kg/km
919 kg/km
35500605
5 x 6 AWG
0,41 mm
25,1 mm
676,8 kg/km
1110 kg/km
35500404
4 x 4 AWG
0,41 mm
27,4 mm
844,8 kg/km
1393 kg/km
35500405
5 x 4 AWG
0,41 mm
30,3 mm
1056 kg/km
1684 kg/km
35500204
4 x 2 AWG
0,41 mm
31,8 mm
1344 kg/km
1769 kg/km
35500205
5 x 2 AWG
0,41 mm
35,2 mm
1680 kg/km
2398 kg/km
35500104
4 x 1 AWG
0,41 mm
34,3 mm
1651,2 kg/km
2428 kg/km

Other dimensions and colours are possible on request.
