H05VV5-F

PVC control cable with numbered cores

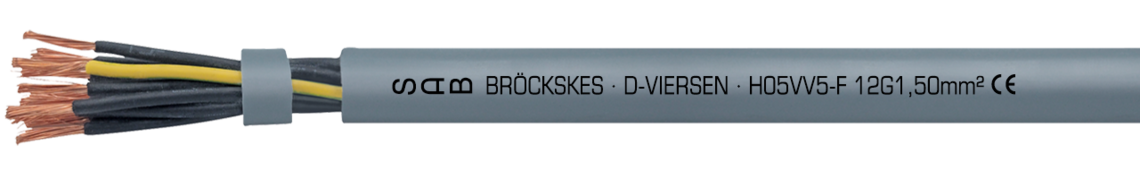

Marking for H05VV5-F 02502515: SAB BRÖCKSKES · D-VIERSEN · H05VV5-F 25 G 1,50 mm² CE

Download data sheet for H05VV5-F

Questions about our products?

Application

H05VV/5-F is a PVC control cable with numbered cores and DIN VDE resp. HAR standardized. It is recommended for use in machine tool and packaging machine construction, material handling and automation technologies, car manufacturing industry, and CNC-machines.

Outstanding features

flexible
oil resistant
VDE resp. HAR standardized

Construction

Conductor	bare copper strands acc. to IEC 60228, VDE 0295, class 5
Insulation	PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3
Colour code	black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores
Stranding	in layers
Sheath material	PVC, TM5 acc. to EN 50363-4-1 + VDE 0207-363-4-1
Sheath colour	grey (RAL 7000)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbers

acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

in layers

Sheath material

PVC, TM5 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

grey (RAL 7000)

Technical data

Nominal voltage	Uo/U 300/500 V
Testing voltage	core/core 3000 V
Min. bending radius	fixed laying: 4 x d flexible application: 6 x d
Radiation resistance	8 x 10^7 cJ/kg
Temperature range	fixed laying: -40/+70 °C flexible application: +5/+70°C
Fire performance	flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
Oil resistance	very good - TM5 acc. to EN 50363-4-1 + VDE 0207-363-4-1
Chem. resistance	see "Technical Data" - Chemical resistance
Absence of harmful substances	acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 3000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+70 °C

flexible application: +5/+70°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Oil resistance

very good - TM5 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Chem. resistance

see "Technical Data" - Chemical resistance

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	No. of cores x cross section	Largest single wire-ø	Outer-ø ± 5%	Copper figure	Cable weight ≈
L02500305	3 x 0,50 mm²	0,21 mm	6,2 mm	14,4 kg/km	54 kg/km	Send inquiry
L02500405	4 x 0,50 mm²	0,21 mm	6,8 mm	19,2 kg/km	67 kg/km	Send inquiry
L02500505	5 x 0,50 mm²	0,21 mm	7,6 mm	24,0 kg/km	82 kg/km	Send inquiry
L02500705	7 x 0,50 mm²	0,21 mm	9,1 mm	33,6 kg/km	116 kg/km	Send inquiry
L02501205	12 x 0,50 mm²	0,21 mm	11,3 mm	57,6 kg/km	170 kg/km	Send inquiry
L02501805	18 x 0,50 mm²	0,21 mm	13,4 mm	86,4 kg/km	245 kg/km	Send inquiry
L02502505	25 x 0,50 mm²	0,21 mm	16,7 mm	120,0 kg/km	340 kg/km	Send inquiry
L02503205	32 x 0,50 mm²	0,21 mm	17,8 mm	153,6 kg/km	418 kg/km	Send inquiry
L02503405	34 x 0,50 mm²	0,21 mm	18,5 mm	163,2 kg/km	444 kg/km	Send inquiry
L02504205	42 x 0,50 mm²	0,21 mm	19,9 mm	201,6 kg/km	540 kg/km	Send inquiry
L02505005	50 x 0,50 mm²	0,21 mm	21,9 mm	240,0 kg/km	622 kg/km	Send inquiry
L02506005	60 x 0,50 mm²	0,21 mm	23,2 mm	288,0 kg/km	727 kg/km	Send inquiry
L02500307	3 x 0,75 mm²	0,21 mm	7,1 mm	21,6 kg/km	72 kg/km	Send inquiry
L02500407	4 x 0,75 mm²	0,21 mm	7,7 mm	28,8 kg/km	86 kg/km	Send inquiry
L02500507	5 x 0,75 mm²	0,21 mm	8,6 mm	36,0 kg/km	109 kg/km	Send inquiry
L02500707	7 x 0,75 mm²	0,21 mm	10,3 mm	50,4 kg/km	153 kg/km	Send inquiry
L02501207	12 x 0,75 mm²	0,21 mm	12,6 mm	86,4 kg/km	218 kg/km	Send inquiry
L02501807	18 x 0,75 mm²	0,21 mm	15,1 mm	129,6 kg/km	323 kg/km	Send inquiry
L02502507	25 x 0,75 mm²	0,21 mm	18,5 mm	180,0 kg/km	442 kg/km	Send inquiry
L02503207	32 x 0,75 mm²	0,21 mm	20,0 mm	230,4 kg/km	549 kg/km	Send inquiry
L02503407	34 x 0,75 mm²	0,21 mm	21,0 mm	244,8 kg/km	592 kg/km	Send inquiry
L02504207	42 x 0,75 mm²	0,21 mm	22,6 mm	302,4 kg/km	722 kg/km	Send inquiry
L02505007	50 x 0,75 mm²	0,21 mm	24,8 mm	360,0 kg/km	829 kg/km	Send inquiry
L02506007	60 x 0,75 mm²	0,21 mm	26,3 mm	432,0 kg/km	970 kg/km	Send inquiry
L02500310	3 x 1,00 mm²	0,21 mm	7,4 mm	28,8 kg/km	81 kg/km	Send inquiry
L02500410	4 x 1,00 mm²	0,21 mm	7,9 mm	38,4 kg/km	97 kg/km	Send inquiry
L02500510	5 x 1,00 mm²	0,21 mm	8,9 mm	48,0 kg/km	123 kg/km	Send inquiry
L02500710	7 x 1,00 mm²	0,21 mm	10,6 mm	67,2 kg/km	173 kg/km	Send inquiry
L02501210	12 x 1,00 mm²	0,21 mm	13,2 mm	115,2 kg/km	255 kg/km	Send inquiry
L02501810	18 x 1,00 mm²	0,21 mm	15,6 mm	172,8 kg/km	369 kg/km	Send inquiry
L02502510	25 x 1,00 mm²	0,21 mm	19,3 mm	240,0 kg/km	514 kg/km	Send inquiry
L02503210	32 x 1,00 mm²	0,21 mm	20,9 mm	307,2 kg/km	640 kg/km	Send inquiry
L02503410	34 x 1,00 mm²	0,21 mm	21,7 mm	326,4 kg/km	678 kg/km	Send inquiry
L02504210	42 x 1,00 mm²	0,21 mm	23,6 mm	403,2 kg/km	839 kg/km	Send inquiry
L02505010	50 x 1,00 mm²	0,21 mm	25,8 mm	480,0 kg/km	965 kg/km	Send inquiry
L02506010	60 x 1,00 mm²	0,21 mm	27,4 mm	576,0 kg/km	1132 kg/km	Send inquiry
L02500315	3 x 1,50 mm²	0,26 mm	8,6 mm	43,2 kg/km	113 kg/km	Send inquiry
L02500415	4 x 1,50 mm²	0,26 mm	9,3 mm	57,6 kg/km	136 kg/km	Send inquiry
L02500515	5 x 1,50 mm²	0,26 mm	10,4 mm	72,0 kg/km	167 kg/km	Send inquiry
L02500715	7 x 1,50 mm²	0,26 mm	12,7 mm	100,8 kg/km	237 kg/km	Send inquiry
L02501215	12 x 1,50 mm²	0,26 mm	15,5 mm	172,8 kg/km	355 kg/km	Send inquiry
L02501815	18 x 1,50 mm²	0,26 mm	18,5 mm	259,2 kg/km	523 kg/km	Send inquiry
L02502515	25 x 1,50 mm²	0,26 mm	22,8 mm	360,0 kg/km	729 kg/km	Send inquiry
L02503215	32 x 1,50 mm²	0,26 mm	24,6 mm	460,8 kg/km	904 kg/km	Send inquiry
L02503415	34 x 1,50 mm²	0,26 mm	25,8 mm	489,6 kg/km	973 kg/km	Send inquiry
L02504215	42 x 1,50 mm²	0,26 mm	28,0 mm	604,8 kg/km	1201 kg/km	Send inquiry
L02505015	50 x 1,50 mm²	0,26 mm	30,6 mm	720,0 kg/km	1384 kg/km	Send inquiry
L02506015	60 x 1,50 mm²	0,26 mm	32,5 mm	864,0 kg/km	1605 kg/km	Send inquiry
L02500325	3 x 2,50 mm²	0,26 mm	10,0 mm	72,0 kg/km	163 kg/km	Send inquiry
L02500425	4 x 2,50 mm²	0,26 mm	11,2 mm	96,0 kg/km	204 kg/km	Send inquiry
L02500525	5 x 2,50 mm²	0,26 mm	12,3 mm	120,0 kg/km	250 kg/km	Send inquiry
L02500725	7 x 2,50 mm²	0,26 mm	14,8 mm	168,0 kg/km	357 kg/km	Send inquiry
L02501225	12 x 2,50 mm²	0,26 mm	18,3 mm	288,0 kg/km	528 kg/km	Send inquiry
L02501825	18 x 2,50 mm²	0,26 mm	22,1 mm	432,0 kg/km	786 kg/km	Send inquiry
L02502525	25 x 2,50 mm²	0,26 mm	27,0 mm	600,0 kg/km	1078 kg/km	Send inquiry
L02503225	32 x 2,50 mm²	0,26 mm	29,5 mm	768,0 kg/km	1357 kg/km	Send inquiry
L02503425	34 x 2,50 mm²	0,26 mm	30,6 mm	816,0 kg/km	1439 kg/km	Send inquiry
L02504225	42 x 2,50 mm²	0,26 mm	32,9 mm	1008,0 kg/km	1743 kg/km	Send inquiry
L02505025	50 x 2,50 mm²	0,26 mm	35,7 mm	1200,0 kg/km	1991 kg/km	Send inquiry
L02506025	60 x 2,50 mm²	0,26 mm	37,9 mm	1440,0 kg/km	2347 kg/km	Send inquiry
