H07V-K/MTW/TEW

PVC insulated single conductor acc. to NFPA 79 for industrial machinery acc. to HAR/VDE/CSA/UL/BS

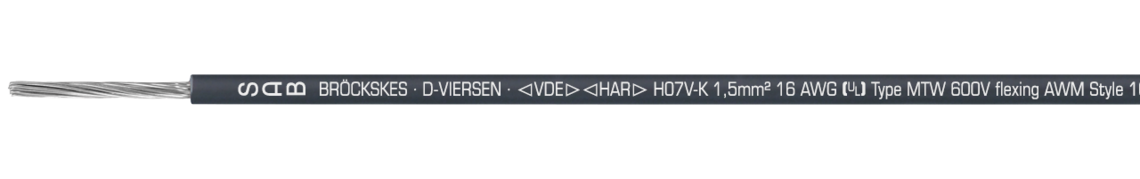

Marking for H07V-K/MTW/TEW 31670182: SAB BRÖCKSKES · D-VIERSEN · < VDE > < HAR > H07V-K 1,5 mm² 16 AWG (UL) Type MTW 600V flexing AWM Style 1015/10519 105°C 600V VW1 CSA Type TEW 105°C 600V FT1 CE

Download data sheet for H07V-K/MTW/TEW

Questions about our products?

Application

H07V-K/MTW/TEW is a PVC insulated single conductor that has a NFPA 79 certification. It is recommendes for use in construction of control cabinets, appliances and devices for communication technologies, household appliances, generator, transformer and machine construction.

Outstanding features

450/750 V
flexible conductor
harmonised acc. to European standard
MTW (Machine Tool Wire)
TEW (Thermoplastic Equipment Wire)
NFPA 79 for industrial machinery
with reference to BS 6231 Type BK

Construction

Conductor	acc. to IEC 60228, VDE 0295, class 5
Insulation	PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3
Sheath colour	black (RAL 9005)

Conductor

acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Sheath colour

black (RAL 9005)

Technical data

Nominal voltage	DIN VDE: Uo/U 450/750 V UL/CSA: 600 V
Testing voltage	2500 V
Min. bending radius	4 x d
Temperature range	UL-AWM/CSA: up to +105 °C (UL) MTW: up to +90 °C DIN VDE fixed laying: -40/+70°C DIN VDE flexible application: +5/+70°C
Fire performance	flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, UL VW-1, CSA FT1
Absence of harmful substances	acc. to RoHS directive of the European Union

Nominal voltage

DIN VDE: Uo/U 450/750 V

UL/CSA: 600 V

Testing voltage

2500 V

Min. bending radius

4 x d

Temperature range

UL-AWM/CSA: up to +105 °C

(UL) MTW: up to +90 °C

DIN VDE fixed laying: -40/+70°C

DIN VDE flexible application: +5/+70°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL VW-1, CSA FT1

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	nominal cross section	largest single wire-ø	approx. outer-ø	copper figure	cable weight ca.
31670182	1,50 mm²	0,26 mm	3,1 mm	14,4 kg/km	20 kg/km	Send inquiry
31670184	2,50 mm²	0,26 mm	3,7 mm	24 kg/km	32 kg/km	Send inquiry
31670186	4,00 mm²	0,31 mm	4,3 mm	38,4 kg/km	50 kg/km	Send inquiry
31670187	6,00 mm²	0,31 mm	4,8 mm	57,6 kg/km	66 kg/km	Send inquiry
31670188	10,00 mm²	0,41 mm	6,8 mm	96 kg/km	121 kg/km	Send inquiry
31670189	16,00 mm²	0,41 mm	9,1 mm	153,6 kg/km	211 kg/km	Send inquiry
31670190	25,00 mm²	0,41 mm	10,6 mm	240 kg/km	303 kg/km	Send inquiry
31670191	35,00 mm²	0,41 mm	11,8 mm	336 kg/km	407 kg/km	Send inquiry
31670192	50,00 mm²	0,41 mm	15,2 mm	480 kg/km	600 kg/km	Send inquiry
31670193	70,00 mm²	0,41 mm	16,2 mm	672 kg/km	790 kg/km	Send inquiry
31670194	95,00 mm²	0,51 mm	19,3 mm	912 kg/km	1067 kg/km	Send inquiry
31670195	120,00 mm²	0,51 mm	20,8 mm	1152 kg/km	1277 kg/km	Send inquiry

item no.

nominal cross
section

largest single
wire-ø

approx. outer-ø

copper figure

cable weight ca.

31670182

1,50 mm²

0,26 mm

3,1 mm

14,4 kg/km

20 kg/km

Send inquiry

31670184

2,50 mm²

0,26 mm

3,7 mm

24 kg/km

32 kg/km

Send inquiry

31670186

4,00 mm²

0,31 mm

4,3 mm

38,4 kg/km

50 kg/km

Send inquiry

31670187

6,00 mm²

0,31 mm

4,8 mm

57,6 kg/km

66 kg/km

Send inquiry

31670188

10,00 mm²

0,41 mm

6,8 mm

96 kg/km

121 kg/km

Send inquiry

31670189

16,00 mm²

0,41 mm

9,1 mm

153,6 kg/km

211 kg/km

Send inquiry

31670190

25,00 mm²

0,41 mm

10,6 mm

240 kg/km

303 kg/km

Send inquiry

31670191

35,00 mm²

0,41 mm

11,8 mm

336 kg/km

407 kg/km

Send inquiry

31670192

50,00 mm²

0,41 mm

15,2 mm

480 kg/km

600 kg/km

Send inquiry

31670193

70,00 mm²

0,41 mm

16,2 mm

672 kg/km

790 kg/km

Send inquiry

31670194

95,00 mm²

0,51 mm

19,3 mm

912 kg/km

1067 kg/km

Send inquiry

31670195

120,00 mm²

0,51 mm

20,8 mm

1152 kg/km

1277 kg/km

Send inquiry

Other dimensions and colours are possible on request.

H07V-K/MTW/TEW

PVC insulated single conductor acc. to NFPA 79 for industrial machinery acc. to HAR/VDE/CSA/UL/BS

Application

Outstanding features

Construction

Technical data

Dimensions
