MEGA 157 H07V2-K H07V-K

PVC insulated single conductor acc. to HA R/UL/VDE/CSA

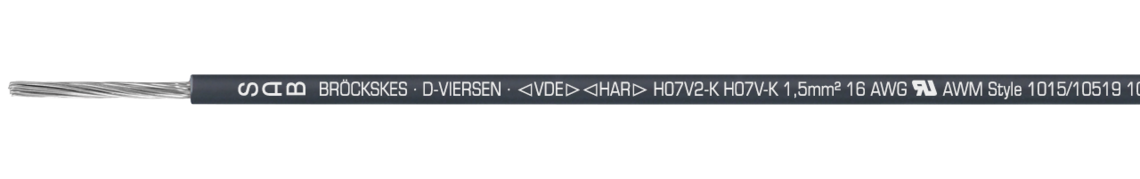

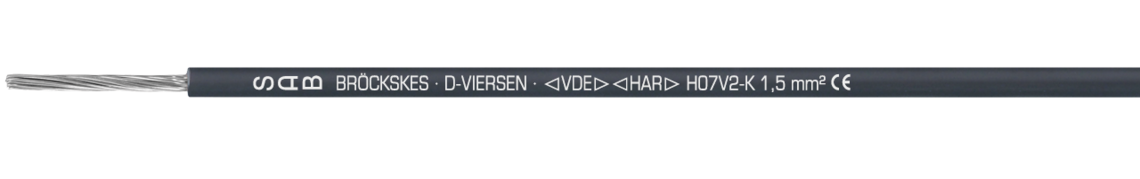

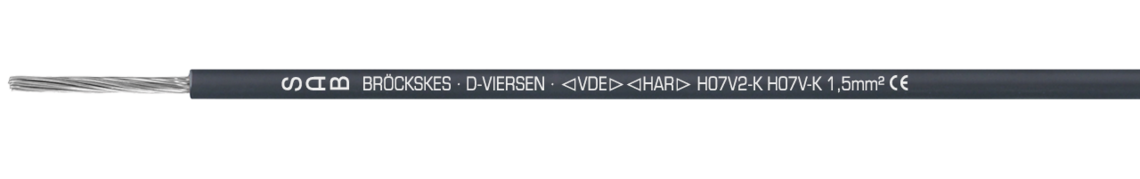

Marking for H07V2-K 31570182: SAB BRÖCKSKES · D-VIERSEN · < VDE > < HAR > H07V2-K H07V-K 1,5 mm² 16 AWG UL AWM Style 1015/10519 105°C 600V VW1 E172204 CSA Type TEW 105°C 600V FT1 LL104758 CE

Download data sheet for MEGA 157 H07V2-K H07V-K

Questions about our products?

Application

MEGA 157 H07V2-K/H07V-K is a PVC insulated single conductor that is harmonized acc- to European standards. It is recommended for use in construction of control cabinets, appliances and devices for communication technologies, household appliances, generator, transformer and machine construction.

Outstanding features

450/750 V
flexible conductor
harmonised acc. to European standard

Construction

Conductor	tinned copper strands acc. to IEC 60228, acc. to IEC 60228, VDE 0295, class 5
Insulation	PVC, TI3 acc. to EN 50363-3 + VDE 0207-363-3
Sheath colour	black (RAL 9005)

Conductor

tinned copper strands acc. to IEC 60228,

acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI3 acc. to EN 50363-3 + VDE 0207-363-3

Sheath colour

black (RAL 9005)

Technical data

Nominal voltage	DIN VDE: Uo/U 450/750 V UL/CSA: 600 V
Testing voltage	2500 V
Min. bending radius	fixed laying: 4 x d flexible application: 6 x d
Temperature range	UL/CSA: up to +105 °C DIN VDE fixed laying: -40/+90°C DIN VDE flexible application: +5/+90°C
Fire performance	flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, UL VW-1, CSA FT1
Absence of harmful substances	acc. to RoHS directive of the European Union

Nominal voltage

DIN VDE: Uo/U 450/750 V

UL/CSA: 600 V

Testing voltage

2500 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Temperature range

UL/CSA: up to +105 °C

DIN VDE fixed laying: -40/+90°C

DIN VDE flexible application: +5/+90°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL VW-1, CSA FT1

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	nominal cross section	largest single wire-ø	approx. outer-ø	copper figure	cable weight ca.
31570182	1,5 mm²	0,26 mm	3,1 mm	14,4 kg/km	20 kg/km	Send inquiry
31570184	2,5 mm²	0,26 mm	3,7 mm	24 kg/km	32 kg/km	Send inquiry
31570186	4 mm²	0,31 mm	4,3 mm	38,4 kg/km	50 kg/km	Send inquiry
31570187	6 mm²	0,31 mm	4,8 mm	57,6 kg/km	66 kg/km	Send inquiry
31570188	10 mm²	0,41 mm	6,8 mm	96 kg/km	121 kg/km	Send inquiry
31570189	16 mm²	0,41 mm	9,1 mm	153,6 kg/km	211 kg/km	Send inquiry
31570190	25 mm²	0,41 mm	10,6 mm	240 kg/km	303 kg/km	Send inquiry
31570191	35 mm²	0,41 mm	11,8 mm	336 kg/km	407 kg/km	Send inquiry
31570192	50 mm²	0,41 mm	15,2 mm	480 kg/km	600 kg/km	Send inquiry
31570193	70 mm²	0,41 mm	16,2 mm	672 kg/km	790 kg/km	Send inquiry
31570194	95 mm²	0,51 mm	19,3 mm	912 kg/km	1067 kg/km	Send inquiry
31570195	120 mm²	0,51 mm	20,8 mm	1152 kg/km	1277 kg/km	Send inquiry

item no.

nominal cross
section

largest single
wire-ø

approx. outer-ø

copper figure

cable weight ca.

31570182

1,5 mm²

0,26 mm

3,1 mm

14,4 kg/km

20 kg/km

Send inquiry

31570184

2,5 mm²

0,26 mm

3,7 mm

24 kg/km

32 kg/km

Send inquiry

31570186

4 mm²

0,31 mm

4,3 mm

38,4 kg/km

50 kg/km

Send inquiry

31570187

6 mm²

0,31 mm

4,8 mm

57,6 kg/km

66 kg/km

Send inquiry

31570188

10 mm²

0,41 mm

6,8 mm

96 kg/km

121 kg/km

Send inquiry

31570189

16 mm²

0,41 mm

9,1 mm

153,6 kg/km

211 kg/km

Send inquiry

31570190

25 mm²

0,41 mm

10,6 mm

240 kg/km

303 kg/km

Send inquiry

31570191

35 mm²

0,41 mm

11,8 mm

336 kg/km

407 kg/km

Send inquiry

31570192

50 mm²

0,41 mm

15,2 mm

480 kg/km

600 kg/km

Send inquiry

31570193

70 mm²

0,41 mm

16,2 mm

672 kg/km

790 kg/km

Send inquiry

31570194

95 mm²

0,51 mm

19,3 mm

912 kg/km

1067 kg/km

Send inquiry

31570195

120 mm²

0,51 mm

20,8 mm

1152 kg/km

1277 kg/km

Send inquiry

Other dimensions and colours are possible on request.
