ÖZ-0 (E)

PVC control cable with numbered cores and blue outer sheath

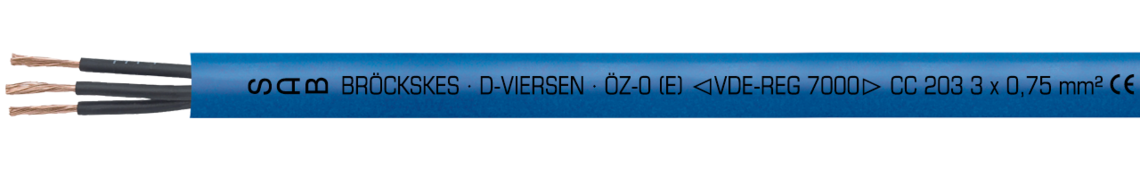

Marking for ÖZ-0 (E) 02030307: SAB BRÖCKSKES · D-VIERSEN · ÖZ-0 (E) VDE-Reg.-Nr. 7000 CC 203 3 x 0,75 mm² CE

Application

ÖZ-0 (E) is a PVC control cable with numbered cores and a blue outer sheath. Furthermore, it has a high flexibility. It is recommended for use in chemical industry, for intrinsically safe circuits, and on control panels in hazardous locations. Marking meets the requirements acc. to DIN VDE 0165 section 6.1.3.3.1.

Outstanding features

flexible
for intrinsically safe circuits

Construction

Conductor	bare copper strands acc. to IEC 60228, VDE 0295, class 5
Insulation	PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3
Colour code	black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334
Stranding	in layers
Sheath material	PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1
Sheath colour	blue (RAL 5015)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334

Stranding

in layers

Sheath material

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

blue (RAL 5015)

Technical data

Nominal voltage	Uo/U 300/500 V
Testing voltage	core/core 3000 V
Min. bending radius	fixed laying: 4 x d flexible application: 6 x d
Radiation resistance	8 x 10^7 cJ/kg
Temperature range	fixed laying: -40/+70°C flexible application: +5/+70°C
Fire performance	flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
Oil resistance	acc. to internal standard
Chem. resistance	see "Technical Data" - Chemical resistance
Absence of harmful substances	acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 3000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+70°C

flexible application: +5/+70°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Oil resistance

acc. to internal standard

Chem. resistance

see "Technical Data" - Chemical resistance

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	No. of cores x cross section	Largest single wire-ø	Outer-ø ± 5%	Copper figure	Cable weight ≈
L02030207	2 x 0,75 mm²	0,21 mm	5,7 mm	14,4 kg/km	47 kg/km	Send inquiry
L02030307	3 x 0,75 mm²	0,21 mm	6,1 mm	21,6 kg/km	58 kg/km	Send inquiry
L02030407	4 x 0,75 mm²	0,21 mm	6,7 mm	28,8 kg/km	71 kg/km	Send inquiry
L02030507	5 x 0,75 mm²	0,21 mm	7,3 mm	36 kg/km	86 kg/km	Send inquiry
L02030707	7 x 0,75 mm²	0,21 mm	8,1 mm	50,4 kg/km	108 kg/km	Send inquiry
L02030210	2 x 1,00 mm²	0,21 mm	6 mm	19,2 kg/km	55 kg/km	Send inquiry
L02030310	3 x 1,00 mm²	0,21 mm	6,4 mm	28,8 kg/km	67 kg/km	Send inquiry
L02030410	4 x 1,00 mm²	0,21 mm	7 mm	38,4 kg/km	82 kg/km	Send inquiry
L02030510	5 x 1,00 mm²	0,21 mm	7,7 mm	48 kg/km	101 kg/km	Send inquiry
L02030710	7 x 1,00 mm²	0,21 mm	8,6 mm	67,2 kg/km	130 kg/km	Send inquiry
L02030215	2 x 1,50 mm²	0,26 mm	6,6 mm	28,8 kg/km	69 kg/km	Send inquiry
L02030315	3 x 1,50 mm²	0,26 mm	7 mm	43,2 kg/km	84 kg/km	Send inquiry
L02030415	4 x 1,50 mm²	0,26 mm	7,7 mm	57,6 kg/km	104 kg/km	Send inquiry
L02030515	5 x 1,50 mm²	0,26 mm	8,7 mm	72 kg/km	135 kg/km	Send inquiry
L02030715	7 x 1,50 mm²	0,26 mm	9,6 mm	100,8 kg/km	172 kg/km	Send inquiry

item no.

No. of cores x
cross section

Largest single
wire-ø

Outer-ø ± 5%

Copper figure

Cable weight ≈

L02030207

2 x 0,75 mm²

0,21 mm

5,7 mm

14,4 kg/km

47 kg/km
