S 180 C HT

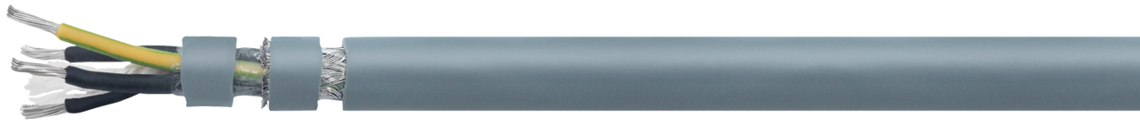

Continuously flexible high temperature control cable with numbered cores, overall copper screen and Besilen® outer sheath

Application

Heat resistant flexible cable with overall copper screen and Besilen outer sheath for use in conveyor systems in steel production and steel processing industries or at feeding lines for blast furnaces. Exemplary application: for use in cable tracks with extremely high ambient temperatures like in steel industry.

Outstanding features

  • very good EMC characteristics
  • extreme temperature resistance
  • high notch resistance
  • very good flexibility

    Additional information

    For use in cable tracks with extremely ambient temperature like for, example, in steel industry!

    Construction

    Conductor

    tinned copper strands acc. to IEC 60228, VDE 0295, class 6

    Insulation

    FEP

    Colour code

    black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

    green-yellow earth wire from 3 cores

    Stranding

    specially adjusted layering with non-woven tape over each layer

    Wrapping

    tape

    Screen

    tinned copper braiding

    Sheath material

    special Besilen ®

    Sheath colour

    grey (similar RAL 7000)

    Conductor

    tinned copper strands acc. to IEC 60228, VDE 0295, class 6

    Insulation

    FEP

    Colour code

    black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

    green-yellow earth wire from 3 cores

    Stranding

    specially adjusted layering with non-woven tape over each layer

    Wrapping

    tape

    Screen

    tinned copper braiding

    Sheath material

    special Besilen ®

    Sheath colour

    grey (similar RAL 7000)

    Technical data

    Nominal voltage

    Uo/U 0,6/1 kV

    Testing voltage

    core/core 4000 V

    core/screen 4000 V

    Min. bending radius

    continuously flexible: 15 x d

    Temperature range

    fixed laying: -25/+180 °C

    flexible application: -25/+180°C

    short-time use: +200°C

    Fire performance

    flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

    Flexibility

    very good

    Absence of harmful substances

    acc. to RoHS directive of the European Union

    Nominal voltage

    Uo/U 0,6/1 kV

    Testing voltage

    core/core 4000 V

    core/screen 4000 V

    Min. bending radius

    continuously flexible: 15 x d

    Temperature range

    fixed laying: -25/+180 °C

    flexible application: -25/+180°C

    short-time use: +200°C

    Fire performance

    flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

    Flexibility

    very good

    Dimensions

    item no. no. of cores x cross section largest single wire-ø outer-ø ± 5% copper figure cable weight ca.
    318503153 x 1,50 mm²0,15 mm8,1 mm63,8 kg/km110 kg/km Send inquiry
    318504154 x 1,50 mm²0,15 mm8,9 mm80,4 kg/km137 kg/km Send inquiry
    318505155 x 1,50 mm²0,15 mm9,6 mm98,3 kg/km166 kg/km Send inquiry
    318507157 x 1,50 mm²0,15 mm11,4 mm147,6 kg/km240 kg/km Send inquiry
    318503253 x 2,50 mm²0,15 mm9,8 mm98,5 kg/km163 kg/km Send inquiry
    318504254 x 2,50 mm²0,15 mm11,1 mm142,1 kg/km221 kg/km Send inquiry
    318505255 x 2,50 mm²0,15 mm12,1 mm171,9 kg/km268 kg/km Send inquiry
    318507257 x 2,50 mm²0,15 mm14 mm229,2 kg/km364 kg/km Send inquiry
    318504404 x 4,00 mm²0,15 mm12,7 mm206,4 kg/km304 kg/km Send inquiry
    318505405 x 4,00 mm²0,15 mm14 mm253,2 kg/km378 kg/km Send inquiry
    318507407 x 4,00 mm²0,15 mm16,7 mm368 kg/km541 kg/km Send inquiry
    318504604 x 6,00 mm²0,2 mm15,2 mm297,9 kg/km457 kg/km Send inquiry
    318505605 x 6,00 mm²0,2 mm17,2 mm388 kg/km568 kg/km Send inquiry
    318507607 x 6,00 mm²0,2 mm20,2 mm519,5 kg/km780 kg/km Send inquiry
    318504614 x 10,0 mm²0,2 mm17,8 mm485,6 kg/km683 kg/km Send inquiry
    318505615 x 10,0 mm²0,2 mm19,7 mm594,9 kg/km828 kg/km Send inquiry
    318504624 x 16,0 mm²0,2 mm21,5 mm747,7 kg/km1007 kg/km Send inquiry
    318505625 x 16,0 mm²0,2 mm24 mm922,4 kg/km1256 kg/km Send inquiry
    318504634 x 25,0 mm²0,2 mm25,2 mm1117,5 kg/km1444 kg/km Send inquiry
    318504644 x 35,0 mm²0,2 mm29 mm1532,5 kg/km1934 kg/km Send inquiry
    item no.
    no. of cores x cross section
    largest single wire-ø
    outer-ø ± 5%
    copper figure
    cable weight ca.
    31850315
    3 x 1,50 mm²
    0,15 mm
    8,1 mm
    63,8 kg/km
    110 kg/km
    31850415
    4 x 1,50 mm²
    0,15 mm
    8,9 mm
    80,4 kg/km
    137 kg/km
    31850515
    5 x 1,50 mm²
    0,15 mm
    9,6 mm
    98,3 kg/km
    166 kg/km
    31850715
    7 x 1,50 mm²
    0,15 mm
    11,4 mm
    147,6 kg/km
    240 kg/km
    31850325
    3 x 2,50 mm²
    0,15 mm
    9,8 mm
    98,5 kg/km
    163 kg/km
    31850425
    4 x 2,50 mm²
    0,15 mm
    11,1 mm
    142,1 kg/km
    221 kg/km
    31850525
    5 x 2,50 mm²
    0,15 mm
    12,1 mm
    171,9 kg/km
    268 kg/km
    31850725
    7 x 2,50 mm²
    0,15 mm
    14 mm
    229,2 kg/km
    364 kg/km
    31850440
    4 x 4,00 mm²
    0,15 mm
    12,7 mm
    206,4 kg/km
    304 kg/km
    31850540
    5 x 4,00 mm²
    0,15 mm
    14 mm
    253,2 kg/km
    378 kg/km
    31850740
    7 x 4,00 mm²
    0,15 mm
    16,7 mm
    368 kg/km
    541 kg/km
    31850460
    4 x 6,00 mm²
    0,2 mm
    15,2 mm
    297,9 kg/km
    457 kg/km
    31850560
    5 x 6,00 mm²
    0,2 mm
    17,2 mm
    388 kg/km
    568 kg/km
    31850760
    7 x 6,00 mm²
    0,2 mm
    20,2 mm
    519,5 kg/km
    780 kg/km
    31850461
    4 x 10,0 mm²
    0,2 mm
    17,8 mm
    485,6 kg/km
    683 kg/km
    31850561
    5 x 10,0 mm²
    0,2 mm
    19,7 mm
    594,9 kg/km
    828 kg/km
    31850462
    4 x 16,0 mm²
    0,2 mm
    21,5 mm
    747,7 kg/km
    1007 kg/km
    31850562
    5 x 16,0 mm²
    0,2 mm
    24 mm
    922,4 kg/km
    1256 kg/km
    31850463
    4 x 25,0 mm²
    0,2 mm
    25,2 mm
    1117,5 kg/km
    1444 kg/km
    31850464
    4 x 35,0 mm²
    0,2 mm
    29 mm
    1532,5 kg/km
    1934 kg/km

    Other dimensions and colours are possible on request.
