S 960 CP

UL/CSA flexible PUR control cable with numbered cores and overall copper screen

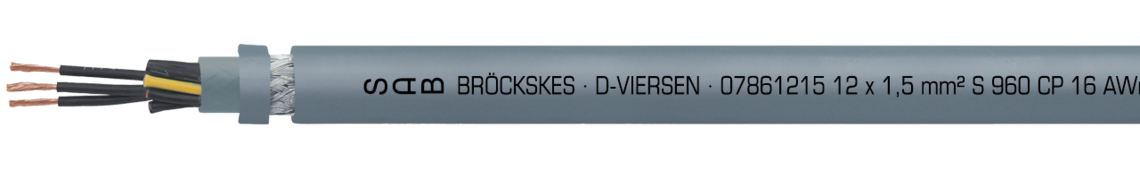

Marking for S 960 CP 07861215: SAB BRÖCKSKES · D-VIERSEN · 07861215 12 x 1,5 mm² S 960 CP 16 AWG/12c 07861612 UL AWM Style 21060 80°C 600V CSA AWM I/II A/B 80°C 600V FT1 FT2 CE

Marking for S 960 CP 07861215: SAB BRÖCKSKES · D-VIERSEN · 07861215 12 x 1,5 mm² S 960 CP 16 AWG/12c 07861612 UL AWM Style 21060 80°C 600V CSA AWM I/II A/B 80°C 600V FT1 FT2 CE

Application

S 960 CP is a continuously flexible PUR control cable with numbered cores and overall copper screen. This UL/CSA approved cable is recommended for use in handling, material handling and automation technologies, wood working and packaging machines, car manufacturing industry, and press manufacturing.

Outstanding features

  • very good EMC characteristics
  • high abrasion resistance
  • very good flexibility

Additional information

Possible on request!

  • with orange outer sheath

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

specially adjusted layering with non-woven tape over each layer

Inner sheath

special PVC

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PU acc. to UL 758 with mat surface

Sheath colour

grey (RAL 7000)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

specially adjusted layering with non-woven tape over each layer

Inner sheath

special PVC

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PU acc. to UL 758 with mat surface

Sheath colour

grey (RAL 7000)

Technical data

Nominal voltage

Uo/U 300/500 V

Voltage UL/CSA

600 V

Testing voltage

core/core 3000 V

core/screen 2000 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -40/+70°C

DIN VDE flexible application: +5/+70°C

UL/CSA: up to +80°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL VW-1, CSA FT1, FT2

Oil resistance

very good - oilrating 60 °C acc. to UL 758

Chem. resistance

good against acids, alkalines, solvents,hydraulic liquids etc.

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Voltage UL/CSA

600 V

Testing voltage

core/core 3000 V

core/screen 2000 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -40/+70°C

DIN VDE flexible application: +5/+70°C

UL/CSA: up to +80°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL VW-1, CSA FT1, FT2

Oil resistance

very good - oilrating 60 °C acc. to UL 758

Chem. resistance

good against acids, alkalines, solvents,hydraulic liquids etc.

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5% Copper figure Cable weight ≈
078602052 x 0,50 mm²0,16 mm8,4 mm31 kg/km86 kg/km Send inquiry
078603053 x 0,50 mm²0,16 mm8,7 mm38,8 kg/km96 kg/km Send inquiry
078604054 x 0,50 mm²0,16 mm9,1 mm43 kg/km108 kg/km Send inquiry
078605055 x 0,50 mm²0,16 mm9,7 mm50,2 kg/km125 kg/km Send inquiry
078607057 x 0,50 mm²0,16 mm10,8 mm62,8 kg/km161 kg/km Send inquiry
0786120512 x 0,50 mm²0,16 mm12,9 mm117,1 kg/km231 kg/km Send inquiry
0786180518 x 0,50 mm²0,16 mm14,6 mm172,4 kg/km314 kg/km Send inquiry
0786250525 x 0,50 mm²0,16 mm16,9 mm230,2 kg/km402 kg/km Send inquiry
0786300530 x 0,50 mm²0,16 mm16,9 mm253,8 kg/km418 kg/km Send inquiry
0786360536 x 0,50 mm²0,16 mm18 mm284 kg/km455 kg/km Send inquiry
078602072 x 0,75 mm²0,16 mm8,8 mm38,1 kg/km97 kg/km Send inquiry
078603073 x 0,75 mm²0,16 mm9,1 mm45,4 kg/km106 kg/km Send inquiry
078604074 x 0,75 mm²0,16 mm9,6 mm55 kg/km121 kg/km Send inquiry
078605075 x 0,75 mm²0,16 mm10,2 mm65 kg/km140 kg/km Send inquiry
078607077 x 0,75 mm²0,16 mm11,6 mm98,3 kg/km182 kg/km Send inquiry
0786120712 x 0,75 mm²0,16 mm13,7 mm146,3 kg/km260 kg/km Send inquiry
0786180718 x 0,75 mm²0,16 mm15,9 mm227,3 kg/km369 kg/km Send inquiry
0786250725 x 0,75 mm²0,16 mm18,6 mm292 kg/km478 kg/km Send inquiry
0786300730 x 0,75 mm²0,16 mm18,7 mm344,5 kg/km558 kg/km Send inquiry
0786360736 x 0,75 mm²0,16 mm20,3 mm385,1 kg/km611 kg/km Send inquiry
078602102 x 1,00 mm²0,16 mm9 mm42,9 kg/km104 kg/km Send inquiry
078603103 x 1,00 mm²0,16 mm9,3 mm52,6 kg/km115 kg/km Send inquiry
078604104 x 1,00 mm²0,16 mm9,8 mm64,7 kg/km133 kg/km Send inquiry
078605105 x 1,00 mm²0,16 mm10,5 mm77,1 kg/km155 kg/km Send inquiry
078607107 x 1,00 mm²0,16 mm12 mm121,3 kg/km206 kg/km Send inquiry
0786121012 x 1,00 mm²0,16 mm14,3 mm200,9 kg/km311 kg/km Send inquiry
0786181018 x 1,00 mm²0,16 mm16,4 mm271,1 kg/km429 kg/km Send inquiry
0786251025 x 1,00 mm²0,16 mm19,2 mm364,1 kg/km553 kg/km Send inquiry
0786301030 x 1,00 mm²0,16 mm19,4 mm418,8 kg/km643 kg/km Send inquiry
0786361036 x 1,00 mm²0,16 mm22,5 mm484,2 kg/km789 kg/km Send inquiry
078602152 x 1,50 mm²0,16 mm9,6 mm55 kg/km122 kg/km Send inquiry
078603153 x 1,50 mm²0,16 mm9,9 mm69,5 kg/km138 kg/km Send inquiry
078604154 x 1,50 mm²0,16 mm10,6 mm86,8 kg/km163 kg/km Send inquiry
078605155 x 1,50 mm²0,16 mm11,5 mm119,8 kg/km202 kg/km Send inquiry
078607157 x 1,50 mm²0,16 mm13,2 mm148,5 kg/km263 kg/km Send inquiry
0786121512 x 1,50 mm²0,16 mm15,8 mm270,4 kg/km399 kg/km Send inquiry
0786181518 x 1,50 mm²0,16 mm17,9 mm370,3 kg/km540 kg/km Send inquiry
0786251525 x 1,50 mm²0,16 mm22,5 mm498,6 kg/km770 kg/km Send inquiry
0786301530 x 1,50 mm²0,16 mm22,7 mm568,9 kg/km892 kg/km Send inquiry
0786361536 x 1,50 mm²0,16 mm24,6 mm684,8 kg/km1012 kg/km Send inquiry
078602252 x 2,50 mm²0,16 mm11,4 mm95,7 kg/km180 kg/km Send inquiry
078603253 x 2,50 mm²0,16 mm11,9 mm126 kg/km211 kg/km Send inquiry
078604254 x 2,50 mm²0,16 mm12,9 mm155,5 kg/km254 kg/km Send inquiry
078605255 x 2,50 mm²0,16 mm14,1 mm205,5 kg/km322 kg/km Send inquiry
078607257 x 2,50 mm²0,16 mm16,4 mm266,3 kg/km426 kg/km Send inquiry
0786122512 x 2,50 mm²0,16 mm19,5 mm412,5 kg/km592 kg/km Send inquiry
0786182518 x 2,50 mm²0,16 mm24,1 mm573,9 kg/km946 kg/km Send inquiry
0786252525 x 2,50 mm²0,16 mm28,1 mm783,5 kg/km1232 kg/km Send inquiry
078603403 x 4,00 mm²0,16 mm13 mm174,7 kg/km276 kg/km Send inquiry
078604404 x 4,00 mm²0,16 mm14,2 mm239,2 kg/km357 kg/km Send inquiry
078605405 x 4,00 mm²0,16 mm15,7 mm289,5 kg/km441 kg/km Send inquiry
078607407 x 4,00 mm²0,16 mm18 mm380 kg/km530 kg/km Send inquiry
078603603 x 6,00 mm²0,21 mm15,9 mm270,5 kg/km411 kg/km Send inquiry
078604604 x 6,00 mm²0,21 mm16,9 mm340,2 kg/km484 kg/km Send inquiry
078605605 x 6,00 mm²0,21 mm18,5 mm399,9 kg/km585 kg/km Send inquiry
078607607 x 6,00 mm²0,21 mm23,3 mm543,7 kg/km834 kg/km Send inquiry
078603613 x 10,0 mm²0,21 mm19,3 mm411,4 kg/km640 kg/km Send inquiry
078604614 x 10,0 mm²0,21 mm20,2 mm509,7 kg/km736 kg/km Send inquiry
078605615 x 10,0 mm²0,21 mm23,5 mm620,5 kg/km941 kg/km Send inquiry
078603623 x 16,0 mm²0,21 mm24,1 mm599,6 kg/km902 kg/km Send inquiry
078604624 x 16,0 mm²0,21 mm24,9 mm781,5 kg/km1155 kg/km Send inquiry
078605625 x 16,0 mm²0,21 mm27 mm940,3 kg/km1297 kg/km Send inquiry
078604634 x 25,0 mm²0,21 mm28,9 mm1137,2 kg/km1580 kg/km Send inquiry
078605635 x 25,0 mm²0,21 mm31,7 mm1402,6 kg/km1876 kg/km Send inquiry
078604644 x 35,0 mm²0,21 mm32,4 mm1549,3 kg/km2031 kg/km Send inquiry
