S 960 CY

Continuously flexible PVC control cable with numbered red cores and overall copper screen

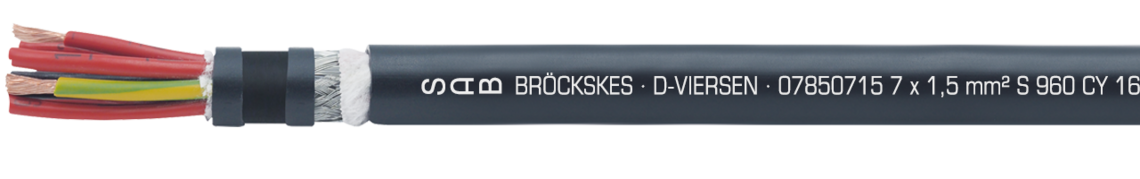

Marking for S 960 CY 07850715: SAB BRÖCKSKES · D-VIERSEN · 07850715 7 x 1,5 mm² S 960 CY 16 AWG/7c 07851607 UL AWM Style 2587 90°C 600V CSA AWM I/II A/B 90°C 600V FT1 FT2 CE

Marking for S 960 CY 07850715: SAB BRÖCKSKES · D-VIERSEN · 07850715 7 x 1,5 mm² S 960 CY 16 AWG/7c 07851607 UL AWM Style 2587 90°C 600V CSA AWM I/II A/B 90°C 600V FT1 FT2 CE

Application

Flexible Control Cable - The screened PVC control cable with numbered red cores is recommended for use in wood working and packaging machines, assembly lines, automation plants, and it is also suitable for the American market.

Outstanding features

  • very good EMC characteristics
  • very good flexibility
  • small bending radius

Additional information

Possible on request!

  • with grey outer sheath and black cores

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

red cores with consecutive numbersacc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

specially adjusted layering with

non-woven tape over each layer

Inner sheath

PVC, TM2 acc. to EN 50363-3 + VDE 0207-363-3

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PVC, TM2 acc. to EN 50363-3 + VDE 0207-363-3

Sheath colour

black (RAL 9005)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

red cores with consecutive numbersacc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

specially adjusted layering with

non-woven tape over each layer

Inner sheath

PVC, TM2 acc. to EN 50363-3 + VDE 0207-363-3

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PVC, TM2 acc. to EN 50363-3 + VDE 0207-363-3

Sheath colour

black (RAL 9005)

Technical data

Nominal voltage

Uo/U 300/500 V

Voltage UL/CSA

600 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

8 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -40/+70°C

DIN VDE flexible application: +5/+70°C

UL/CSA: up to +90°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,
UL VW-1, CSA FT1, FT2

Oil resistance

acc. to internal standard

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Voltage UL/CSA

600 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

8 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -40/+70°C

DIN VDE flexible application: +5/+70°C

UL/CSA: up to +90°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,
UL VW-1, CSA FT1, FT2

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5% Copper figure Cable weight ≈
L078502052 x 0,50 mm²0,16 mm7,9 mm42,5 kg/km79 kg/km Send inquiry
L078503053 x 0,50 mm²0,16 mm8,2 mm48,3 kg/km91 kg/km Send inquiry
L078504054 x 0,50 mm²0,16 mm8,7 mm56 kg/km104 kg/km Send inquiry
L078505055 x 0,50 mm²0,16 mm9,4 mm64,6 kg/km123 kg/km Send inquiry
L078507057 x 0,50 mm²0,16 mm10,7 mm78,7 kg/km164 kg/km Send inquiry
L0785120512 x 0,50 mm²0,16 mm13,1 mm119 kg/km242 kg/km Send inquiry
L0785180518 x 0,50 mm²0,16 mm15,1 mm172,4 kg/km337 kg/km Send inquiry
L0785250525 x 0,50 mm²0,16 mm17,7 mm234,2 kg/km440 kg/km Send inquiry
L078502072 x 0,75 mm²0,16 mm8,3 mm51,7 kg/km89 kg/km Send inquiry
L078503073 x 0,75 mm²0,16 mm8,7 mm59,2 kg/km102 kg/km Send inquiry
L078504074 x 0,75 mm²0,16 mm9,3 mm67,5 kg/km120 kg/km Send inquiry
L078505075 x 0,75 mm²0,16 mm10 mm77 kg/km141 kg/km Send inquiry
L078507077 x 0,75 mm²0,16 mm11,6 mm101,2 kg/km187 kg/km Send inquiry
L0785120712 x 0,75 mm²0,16 mm14 mm146,3 kg/km275 kg/km Send inquiry
L0785180718 x 0,75 mm²0,16 mm16,2 mm227,3 kg/km388 kg/km Send inquiry
L0785250725 x 0,75 mm²0,16 mm19,4 mm292 kg/km521 kg/km Send inquiry
L078502102 x 1,00 mm²0,16 mm8,6 mm56,7 kg/km98 kg/km Send inquiry
L078503103 x 1,00 mm²0,16 mm8,9 mm66,6 kg/km112 kg/km Send inquiry
L078504104 x 1,00 mm²0,16 mm9,5 mm77,3 kg/km131 kg/km Send inquiry
L078505105 x 1,00 mm²0,16 mm10,3 mm89,5 kg/km156 kg/km Send inquiry
L078507107 x 1,00 mm²0,16 mm12,1 mm122 kg/km214 kg/km Send inquiry
L0785121012 x 1,00 mm²0,16 mm14,7 mm200,9 kg/km330 kg/km Send inquiry
L0785181018 x 1,00 mm²0,16 mm16,9 mm271,1 kg/km454 kg/km Send inquiry
L0785251025 x 1,00 mm²0,16 mm20,1 mm368,2 kg/km602 kg/km Send inquiry
L078502152 x 1,50 mm²0,16 mm9,3 mm67 kg/km118 kg/km Send inquiry
L078503153 x 1,50 mm²0,16 mm9,7 mm83,8 kg/km137 kg/km Send inquiry
L078504154 x 1,50 mm²0,16 mm10,4 mm102,5 kg/km163 kg/km Send inquiry
L078505155 x 1,50 mm²0,16 mm11,5 mm123,7 kg/km209 kg/km Send inquiry
L078507157 x 1,50 mm²0,16 mm13,5 mm160,4 kg/km286 kg/km Send inquiry
L0785121512 x 1,50 mm²0,16 mm16,2 mm270,5 kg/km420 kg/km Send inquiry
L0785181518 x 1,50 mm²0,16 mm18,9 mm370,3 kg/km587 kg/km Send inquiry
L0785251525 x 1,50 mm²0,16 mm22,5 mm498,6 kg/km789 kg/km Send inquiry
L078502252 x 2,50 mm²0,16 mm11,4 mm98,7 kg/km182 kg/km Send inquiry
L078503253 x 2,50 mm²0,16 mm12 mm127 kg/km219 kg/km Send inquiry
L078504254 x 2,50 mm²0,16 mm13,1 mm156,3 kg/km266 kg/km Send inquiry
L078505255 x 2,50 mm²0,16 mm14,5 mm205,5 kg/km341 kg/km Send inquiry
L078507257 x 2,50 mm²0,16 mm15,8 mm270,2 kg/km437 kg/km Send inquiry
L078503403 x 4,00 mm²0,16 mm13,7 mm183,2 kg/km301 kg/km Send inquiry
L078504404 x 4,00 mm²0,16 mm14,6 mm239,3 kg/km374 kg/km Send inquiry
L0785122512 x 2,50 mm²0,16 mm20,4 mm419,4 kg/km652 kg/km Send inquiry
L078505405 x 4,00 mm²0,16 mm16 mm296,6 kg/km453 kg/km Send inquiry
L0785182518 x 2,50 mm²0,16 mm23,7 mm573,9 kg/km908 kg/km Send inquiry
L0785252525 x 2,50 mm²0,16 mm28,2 mm783,5 kg/km1213 kg/km Send inquiry
L078503603 x 6,00 mm²0,21 mm16,2 mm243,7 kg/km429 kg/km Send inquiry
L078504604 x 6,00 mm²0,21 mm17,4 mm340,2 kg/km517 kg/km Send inquiry
L078505605 x 6,00 mm²0,21 mm19,3 mm418,1 kg/km619 kg/km Send inquiry
L078504614 x 10,0 mm²0,21 mm21,2 mm524,1 kg/km791 kg/km Send inquiry
L078505615 x 10,0 mm²0,21 mm23,5 mm652,6 kg/km959 kg/km Send inquiry
L078504624 x 16,0 mm²0,21 mm24,9 mm781,5 kg/km1093 kg/km Send inquiry
L078505625 x 16,0 mm²0,21 mm27,4 mm954,2 kg/km1342 kg/km Send inquiry
L078504634 x 25,0 mm²0,21 mm29,6 mm1158,2 kg/km1673 kg/km Send inquiry
L078505635 x 25,0 mm²0,21 mm32,8 mm1429,7 kg/km1978 kg/km Send inquiry
L078504644 x 35,0 mm²0,21 mm33,1 mm1575,3 kg/km2110 kg/km Send inquiry
L078504654 x 50,0 mm²0,21 mm39,8 mm2181,8 kg/km3009 kg/km Send inquiry
item no.
No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5%
Copper figure
Cable weight ≈
L07850205
2 x 0,50 mm²
0,16 mm
7,9 mm
42,5 kg/km
79 kg/km
L07850305
3 x 0,50 mm²
0,16 mm
8,2 mm
48,3 kg/km
91 kg/km
L07850405
4 x 0,50 mm²
0,16 mm
8,7 mm
56 kg/km
104 kg/km
L07850505
5 x 0,50 mm²
0,16 mm
9,4 mm
64,6 kg/km
123 kg/km
L07850705
7 x 0,50 mm²
0,16 mm
10,7 mm
78,7 kg/km
164 kg/km
L07851205
12 x 0,50 mm²
0,16 mm
13,1 mm
119 kg/km
242 kg/km
L07851805
18 x 0,50 mm²
0,16 mm
15,1 mm
172,4 kg/km
337 kg/km
L07852505
25 x 0,50 mm²
0,16 mm
17,7 mm
234,2 kg/km
440 kg/km
L07850207
2 x 0,75 mm²
0,16 mm
8,3 mm
51,7 kg/km
89 kg/km
L07850307
3 x 0,75 mm²
0,16 mm
8,7 mm
59,2 kg/km
102 kg/km
L07850407
4 x 0,75 mm²
0,16 mm
9,3 mm
67,5 kg/km
120 kg/km
L07850507
5 x 0,75 mm²
0,16 mm
10 mm
77 kg/km
141 kg/km
L07850707
7 x 0,75 mm²
0,16 mm
11,6 mm
101,2 kg/km
187 kg/km
L07851207
12 x 0,75 mm²
0,16 mm
14 mm
146,3 kg/km
275 kg/km
L07851807
18 x 0,75 mm²
0,16 mm
16,2 mm
227,3 kg/km
388 kg/km
L07852507
25 x 0,75 mm²
0,16 mm
19,4 mm
292 kg/km
521 kg/km
L07850210
2 x 1,00 mm²
0,16 mm
8,6 mm
56,7 kg/km
98 kg/km
L07850310
3 x 1,00 mm²
0,16 mm
8,9 mm
66,6 kg/km
112 kg/km
L07850410
4 x 1,00 mm²
0,16 mm
9,5 mm
77,3 kg/km
131 kg/km
L07850510
5 x 1,00 mm²
0,16 mm
10,3 mm
89,5 kg/km
156 kg/km
L07850710
7 x 1,00 mm²
0,16 mm
12,1 mm
122 kg/km
214 kg/km
L07851210
12 x 1,00 mm²
0,16 mm
14,7 mm
200,9 kg/km
330 kg/km
L07851810
18 x 1,00 mm²
0,16 mm
16,9 mm
271,1 kg/km
454 kg/km
L07852510
25 x 1,00 mm²
0,16 mm
20,1 mm
368,2 kg/km
602 kg/km
L07850215
2 x 1,50 mm²
0,16 mm
9,3 mm
67 kg/km
118 kg/km
L07850315
3 x 1,50 mm²
0,16 mm
9,7 mm
83,8 kg/km
137 kg/km
L07850415
4 x 1,50 mm²
0,16 mm
10,4 mm
102,5 kg/km
163 kg/km
L07850515
5 x 1,50 mm²
0,16 mm
11,5 mm
123,7 kg/km
209 kg/km
L07850715
7 x 1,50 mm²
0,16 mm
13,5 mm
160,4 kg/km
286 kg/km
L07851215
12 x 1,50 mm²
0,16 mm
16,2 mm
270,5 kg/km
420 kg/km
L07851815
18 x 1,50 mm²
0,16 mm
18,9 mm
370,3 kg/km
587 kg/km
L07852515
25 x 1,50 mm²
0,16 mm
22,5 mm
498,6 kg/km
789 kg/km
L07850225
2 x 2,50 mm²
0,16 mm
11,4 mm
98,7 kg/km
182 kg/km
L07850325
3 x 2,50 mm²
0,16 mm
12 mm
127 kg/km
219 kg/km
L07850425
4 x 2,50 mm²
0,16 mm
13,1 mm
156,3 kg/km
266 kg/km
L07850525
5 x 2,50 mm²
0,16 mm
14,5 mm
205,5 kg/km
341 kg/km
L07850725
7 x 2,50 mm²
0,16 mm
15,8 mm
270,2 kg/km
437 kg/km
L07850340
3 x 4,00 mm²
0,16 mm
13,7 mm
183,2 kg/km
301 kg/km
L07850440
4 x 4,00 mm²
0,16 mm
14,6 mm
239,3 kg/km
374 kg/km
L07851225
12 x 2,50 mm²
0,16 mm
20,4 mm
419,4 kg/km
652 kg/km
L07850540
5 x 4,00 mm²
0,16 mm
16 mm
296,6 kg/km
453 kg/km
L07851825
18 x 2,50 mm²
0,16 mm
23,7 mm
573,9 kg/km
908 kg/km
L07852525
25 x 2,50 mm²
0,16 mm
28,2 mm
783,5 kg/km
1213 kg/km
L07850360
3 x 6,00 mm²
0,21 mm
16,2 mm
243,7 kg/km
429 kg/km
L07850460
4 x 6,00 mm²
0,21 mm
17,4 mm
340,2 kg/km
517 kg/km
L07850560
5 x 6,00 mm²
0,21 mm
19,3 mm
418,1 kg/km
619 kg/km
L07850461
4 x 10,0 mm²
0,21 mm
21,2 mm
524,1 kg/km
791 kg/km
L07850561
5 x 10,0 mm²
0,21 mm
23,5 mm
652,6 kg/km
959 kg/km
L07850462
4 x 16,0 mm²
0,21 mm
24,9 mm
781,5 kg/km
1093 kg/km
L07850562
5 x 16,0 mm²
0,21 mm
27,4 mm
954,2 kg/km
1342 kg/km
L07850463
4 x 25,0 mm²
0,21 mm
29,6 mm
1158,2 kg/km
1673 kg/km
L07850563
5 x 25,0 mm²
0,21 mm
32,8 mm
1429,7 kg/km
1978 kg/km
L07850464
4 x 35,0 mm²
0,21 mm
33,1 mm
1575,3 kg/km
2110 kg/km
L07850465
4 x 50,0 mm²
0,21 mm
39,8 mm
2181,8 kg/km
3009 kg/km

Other dimensions and colours are possible on request.
