S 960 P red

UL/CSA flexible PUR control cable with numbered red cores

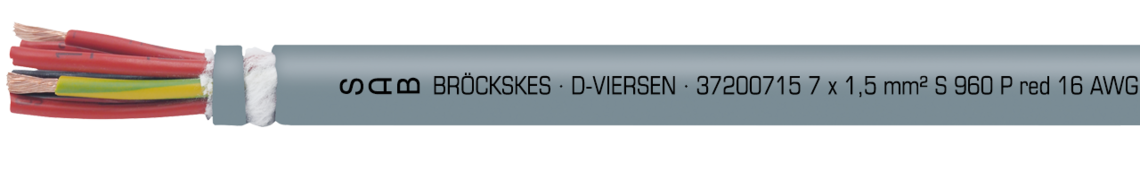

Marking for S 960 P red 37200715: SAB BRÖCKSKES · D-VIERSEN · 37200715 7 x 1,5 mm² S 960 P red 16 AWG/7c 37201607 UL AWM Style 21060 80°C 600V CSA AWM I/II A/B 80°C 600V FT1 FT2 CE

Marking for S 960 P red 37200715: SAB BRÖCKSKES · D-VIERSEN · 37200715 7 x 1,5 mm² S 960 P red 16 AWG/7c 37201607 UL AWM Style 21060 80°C 600V CSA AWM I/II A/B 80°C 600V FT1 FT2 CE

Application

S 960 P red is a continuously flexible PUR control cable with numbered red cores and very good chemical resistance. This UL approved control cable with CSA recognition is recommended for use in handling, material handling and automation technologies, wood working and packaging machines, car manufacturing industry, and press manufacturing.

Outstanding features

  • very good oil resistant
  • very good chemical resistance
  • UL approval, CSA recognition
  • high abrasion resistance
  • very good flexibility

Additional information

Possible on request!

  • with orange outer sheath and black or blue cores

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

red cores with consecutive numbersacc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

specially adjusted layering with non-woven tape over each layer

Sheath material

PU acc. to UL 758 with mat surface

Sheath colour

grey (RAL 7000)

Technical data

Nominal voltage

Uo/U 300/500 V

Voltage UL/CSA

600 V

Testing voltage

core/core 2000 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -40/+70°C

DIN VDE fexible application: +5/+70°C

UL/CSA: up to +80°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL VW-1, CSA FT1, FT2

Oil resistance

very good - oilrating 60°C acc. to UL 758

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc..

Dimensions

item no.no. of cores x cross sectionlargest single wire-øouter-ø ± 5%copper figurecable weight ca.
372002052 x 0,50 mm²0,16 mm6,4 mm10,6 kg/km46 kg/km
372003053 x 0,50 mm²0,16 mm6,7 mm15,8 kg/km54 kg/km
372004054 x 0,50 mm²0,16 mm7,1 mm21,1 kg/km63 kg/km
372005055 x 0,50 mm²0,16 mm7,7 mm26,4 kg/km77 kg/km
372007057 x 0,50 mm²0,16 mm8,8 mm37 kg/km104 kg/km
3720120512 x 0,50 mm²0,16 mm10,5 mm63,4 kg/km145 kg/km
3720180518 x 0,50 mm²0,16 mm12 mm95 kg/km200 kg/km
3720250525 x 0,50 mm²0,16 mm14,3 mm132 kg/km268 kg/km
3720340534 x 0,50 mm²0,16 mm15,2 mm179,5 kg/km349 kg/km
3720500550 x 0,50 mm²0,16 mm18,5 mm264 kg/km364 kg/km
3720610561 x 0,50 mm²0,16 mm20 mm322,1 kg/km443 kg/km
372002072 x 0,75 mm²0,16 mm6,8 mm14,4 kg/km55 kg/km
372003073 x 0,75 mm²0,16 mm7,1 mm21,6 kg/km62 kg/km
372004074 x 0,75 mm²0,16 mm7,6 mm28,8 kg/km74 kg/km
372005075 x 0,75 mm²0,16 mm8,2 mm36 kg/km89 kg/km
372007077 x 0,75 mm²0,16 mm9,5 mm50,4 kg/km121 kg/km
3720120712 x 0,75 mm²0,16 mm11,3 mm86,4 kg/km171 kg/km
3720180718 x 0,75 mm²0,16 mm13,1 mm129,6 kg/km239 kg/km
3720250725 x 0,75 mm²0,16 mm15,8 mm180 kg/km329 kg/km
3720340734 x 0,75 mm²0,16 mm17,5 mm244,8 kg/km335 kg/km
3720500750 x 0,75 mm²0,16 mm20,2 mm360 kg/km596 kg/km
3720610761 x 0,75 mm²0,16 mm23,5 mm439,2 kg/km781 kg/km
372002102 x 1,00 mm²0,16 mm7 mm19,2 kg/km61 kg/km
372003103 x 1,00 mm²0,16 mm7,3 mm28,8 kg/km70 kg/km
372004104 x 1,00 mm²0,16 mm7,9 mm38,4 kg/km85 kg/km
372005105 x 1,00 mm²0,16 mm8,5 mm48 kg/km103 kg/km
372007107 x 1,00 mm²0,16 mm9,8 mm67,2 kg/km131 kg/km
3720121012 x 1,00 mm²0,16 mm11,7 mm115,2 kg/km202 kg/km
3720181018 x 1,00 mm²0,16 mm13,6 mm172,8 kg/km297 kg/km
3720251025 x 1,00 mm²0,16 mm16,4 mm240 kg/km392 kg/km
3720341034 x 1,00 mm²0,16 mm18 mm326,4 kg/km521 kg/km
3720501050 x 1,00 mm²0,16 mm22,3 mm480 kg/km784 kg/km
3720611061 x 1,00 mm²0,16 mm24,4 mm585,6 kg/km965 kg/km
372002152 x 1,50 mm²0,16 mm7,6 mm28,8 kg/km74 kg/km
372003153 x 1,50 mm²0,16 mm8 mm43,2 kg/km90 kg/km
372004154 x 1,50 mm²0,16 mm8,6 mm57,6 kg/km109 kg/km
372005155 x 1,50 mm²0,16 mm9,3 mm72 kg/km134 kg/km
372007157 x 1,50 mm²0,16 mm10,8 mm100,8 kg/km184 kg/km
3720121512 x 1,50 mm²0,16 mm12,9 mm172,8 kg/km269 kg/km
3720181518 x 1,50 mm²0,16 mm15,1 mm259,2 kg/km392 kg/km
3720251525 x 1,50 mm²0,16 mm18,3 mm360 kg/km529 kg/km
3720341534 x 1,50 mm²0,16 mm20,4 mm489,6 kg/km695 kg/km
3720501550 x 1,50 mm²0,16 mm24,8 mm720 kg/km1056 kg/km
3720611561 x 1,50 mm²0,16 mm27,7 mm878,4 kg/km1282 kg/km
372002252 x 2,50 mm²0,16 mm9,2 mm48 kg/km110 kg/km
372003253 x 2,50 mm²0,16 mm9,7 mm72 kg/km136 kg/km
372004254 x 2,50 mm²0,16 mm10,5 mm96 kg/km168 kg/km
372005255 x 2,50 mm²0,16 mm11,5 mm120 kg/km202 kg/km
372007257 x 2,50 mm²0,16 mm13,5 mm168 kg/km269 kg/km
3720122512 x 2,50 mm²0,16 mm16,6 mm288 kg/km436 kg/km
3720182518 x 2,50 mm²0,16 mm19,9 mm432 kg/km637 kg/km
3720252525 x 2,50 mm²0,16 mm25,4 mm600 kg/km922 kg/km
372003403 x 4,00 mm²0,16 mm11,8 mm115,2 kg/km207 kg/km
372004404 x 4,00 mm²0,16 mm11,9 mm153,6 kg/km246 kg/km
372005405 x 4,00 mm²0,16 mm13,1 mm192 kg/km298 kg/km
372007407 x 4,00 mm²0,16 mm16,6 mm268,8 kg/km413 kg/km
372003603 x 6,00 mm²0,21 mm13,4 mm172,8 kg/km302 kg/km
372004604 x 6,00 mm²0,21 mm14,5 mm230,4 kg/km368 kg/km
372005605 x 6,00 mm²0,21 mm16 mm288 kg/km457 kg/km
372004614 x 10,0 mm²0,21 mm17,9 mm384 kg/km600 kg/km
372005615 x 10,0 mm²0,21 mm19,7 mm480 kg/km749 kg/km
372004624 x 16,0 mm²0,21 mm20,9 mm614,4 kg/km856 kg/km
372005625 x 16,0 mm²0,21 mm24,2 mm768 kg/km1093 kg/km
372004634 x 25,0 mm²0,21 mm25,9 mm960 kg/km1328 kg/km
372005635 x 25,0 mm²0,21 mm28,5 mm1200 kg/km1620 kg/km
372004644 x 35,0 mm²0,21 mm29,2 mm1344 kg/km1733 kg/km
372005645 x 35,0 mm²0,21 mm32,3 mm1680 kg/km2113 kg/km
372004654 x 50,0 mm²0,21 mm34,3 mm1920 kg/km2469 kg/km
item no.
no. of cores x cross section
largest single wire-ø
outer-ø ± 5%
copper figure
cable weight ca.
37200205
2 x 0,50 mm²
0,16 mm
6,4 mm
10,6 kg/km
46 kg/km
37200305
3 x 0,50 mm²
0,16 mm
6,7 mm
15,8 kg/km
54 kg/km
37200405
4 x 0,50 mm²
0,16 mm
7,1 mm
21,1 kg/km
63 kg/km
37200505
5 x 0,50 mm²
0,16 mm
7,7 mm
26,4 kg/km
77 kg/km
37200705
7 x 0,50 mm²
0,16 mm
8,8 mm
37 kg/km
104 kg/km
37201205
12 x 0,50 mm²
0,16 mm
10,5 mm
63,4 kg/km
145 kg/km
37201805
18 x 0,50 mm²
0,16 mm
12 mm
95 kg/km
200 kg/km
37202505
25 x 0,50 mm²
0,16 mm
14,3 mm
132 kg/km
268 kg/km
37203405
34 x 0,50 mm²
0,16 mm
15,2 mm
179,5 kg/km
349 kg/km
37205005
50 x 0,50 mm²
0,16 mm
18,5 mm
264 kg/km
364 kg/km
37206105
61 x 0,50 mm²
0,16 mm
20 mm
322,1 kg/km
443 kg/km
37200207
2 x 0,75 mm²
0,16 mm
6,8 mm
14,4 kg/km
55 kg/km
37200307
3 x 0,75 mm²
0,16 mm
7,1 mm
21,6 kg/km
62 kg/km
37200407
4 x 0,75 mm²
0,16 mm
7,6 mm
28,8 kg/km
74 kg/km
37200507
5 x 0,75 mm²
0,16 mm
8,2 mm
36 kg/km
89 kg/km
37200707
7 x 0,75 mm²
0,16 mm
9,5 mm
50,4 kg/km
121 kg/km
37201207
12 x 0,75 mm²
0,16 mm
11,3 mm
86,4 kg/km
171 kg/km
37201807
18 x 0,75 mm²
0,16 mm
13,1 mm
129,6 kg/km
239 kg/km
37202507
25 x 0,75 mm²
0,16 mm
15,8 mm
180 kg/km
329 kg/km
37203407
34 x 0,75 mm²
0,16 mm
17,5 mm
244,8 kg/km
335 kg/km
37205007
50 x 0,75 mm²
0,16 mm
20,2 mm
360 kg/km
596 kg/km
37206107
61 x 0,75 mm²
0,16 mm
23,5 mm
439,2 kg/km
781 kg/km
37200210
2 x 1,00 mm²
0,16 mm
7 mm
19,2 kg/km
61 kg/km
37200310
3 x 1,00 mm²
0,16 mm
7,3 mm
28,8 kg/km
70 kg/km
37200410
4 x 1,00 mm²
0,16 mm
7,9 mm
38,4 kg/km
85 kg/km
37200510
5 x 1,00 mm²
0,16 mm
8,5 mm
48 kg/km
103 kg/km
37200710
7 x 1,00 mm²
0,16 mm
9,8 mm
67,2 kg/km
131 kg/km
37201210
12 x 1,00 mm²
0,16 mm
11,7 mm
115,2 kg/km
202 kg/km
37201810
18 x 1,00 mm²
0,16 mm
13,6 mm
172,8 kg/km
297 kg/km
37202510
25 x 1,00 mm²
0,16 mm
16,4 mm
240 kg/km
392 kg/km
37203410
34 x 1,00 mm²
0,16 mm
18 mm
326,4 kg/km
521 kg/km
37205010
50 x 1,00 mm²
0,16 mm
22,3 mm
480 kg/km
784 kg/km
37206110
61 x 1,00 mm²
0,16 mm
24,4 mm
585,6 kg/km
965 kg/km
37200215
2 x 1,50 mm²
0,16 mm
7,6 mm
28,8 kg/km
74 kg/km
37200315
3 x 1,50 mm²
0,16 mm
8 mm
43,2 kg/km
90 kg/km
37200415
4 x 1,50 mm²
0,16 mm
8,6 mm
57,6 kg/km
109 kg/km
37200515
5 x 1,50 mm²
0,16 mm
9,3 mm
72 kg/km
134 kg/km
37200715
7 x 1,50 mm²
0,16 mm
10,8 mm
100,8 kg/km
184 kg/km
37201215
12 x 1,50 mm²
0,16 mm
12,9 mm
172,8 kg/km
269 kg/km
37201815
18 x 1,50 mm²
0,16 mm
15,1 mm
259,2 kg/km
392 kg/km
37202515
25 x 1,50 mm²
0,16 mm
18,3 mm
360 kg/km
529 kg/km
37203415
34 x 1,50 mm²
0,16 mm
20,4 mm
489,6 kg/km
695 kg/km
37205015
50 x 1,50 mm²
0,16 mm
24,8 mm
720 kg/km
1056 kg/km
37206115
61 x 1,50 mm²
0,16 mm
27,7 mm
878,4 kg/km
1282 kg/km
37200225
2 x 2,50 mm²
0,16 mm
9,2 mm
48 kg/km
110 kg/km
37200325
3 x 2,50 mm²
0,16 mm
9,7 mm
72 kg/km
136 kg/km
37200425
4 x 2,50 mm²
0,16 mm
10,5 mm
96 kg/km
168 kg/km
37200525
5 x 2,50 mm²
0,16 mm
11,5 mm
120 kg/km
202 kg/km
37200725
7 x 2,50 mm²
0,16 mm
13,5 mm
168 kg/km
269 kg/km
37201225
12 x 2,50 mm²
0,16 mm
16,6 mm
288 kg/km
436 kg/km
37201825
18 x 2,50 mm²
0,16 mm
19,9 mm
432 kg/km
637 kg/km
37202525
25 x 2,50 mm²
0,16 mm
25,4 mm
600 kg/km
922 kg/km
37200340
3 x 4,00 mm²
0,16 mm
11,8 mm
115,2 kg/km
207 kg/km
37200440
4 x 4,00 mm²
0,16 mm
11,9 mm
153,6 kg/km
246 kg/km
37200540
5 x 4,00 mm²
0,16 mm
13,1 mm
192 kg/km
298 kg/km
37200740
7 x 4,00 mm²
0,16 mm
16,6 mm
268,8 kg/km
413 kg/km
37200360
3 x 6,00 mm²
0,21 mm
13,4 mm
172,8 kg/km
302 kg/km
37200460
4 x 6,00 mm²
0,21 mm
14,5 mm
230,4 kg/km
368 kg/km
37200560
5 x 6,00 mm²
0,21 mm
16 mm
288 kg/km
457 kg/km
37200461
4 x 10,0 mm²
0,21 mm
17,9 mm
384 kg/km
600 kg/km
37200561
5 x 10,0 mm²
0,21 mm
19,7 mm
480 kg/km
749 kg/km
37200462
4 x 16,0 mm²
0,21 mm
20,9 mm
614,4 kg/km
856 kg/km
37200562
5 x 16,0 mm²
0,21 mm
24,2 mm
768 kg/km
1093 kg/km
37200463
4 x 25,0 mm²
0,21 mm
25,9 mm
960 kg/km
1328 kg/km
37200563
5 x 25,0 mm²
0,21 mm
28,5 mm
1200 kg/km
1620 kg/km
37200464
4 x 35,0 mm²
0,21 mm
29,2 mm
1344 kg/km
1733 kg/km
37200564
5 x 35,0 mm²
0,21 mm
32,3 mm
1680 kg/km
2113 kg/km
37200465
4 x 50,0 mm²
0,21 mm
34,3 mm
1920 kg/km
2469 kg/km
