SAB Kabel

S 960 P

UL/CSA flexible PUR control cable with numbered black cores

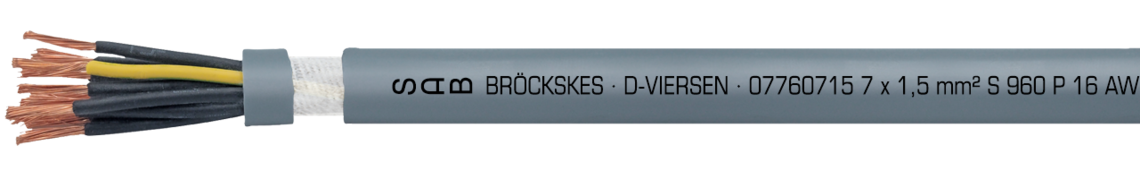

Marking for S 960 P 07760715: SAB BRÖCKSKES · D-VIERSEN · 07760715 7 x 1,5 mm² S 960 P 16 AWG/7c 07761607 UL AWM Style 21060 80°C 600V CSA AWM I/II A/B 80°C 600V FT1 FT2 CE

Marking for S 960 P 07760715: SAB BRÖCKSKES · D-VIERSEN · 07760715 7 x 1,5 mm² S 960 P 16 AWG/7c 07761607 UL AWM Style 21060 80°C 600V CSA AWM I/II A/B 80°C 600V FT1 FT2 CE

Application

S 960 P is a continuously flexible PUR control cable with numbered black cores and very good flexibility. This oil resistant cable is recommended for use in handling, material handling and automation technologies, wood working and packaging machines, car manufacturing industry, and press manufacturing.

Outstanding features

  • very good oil resistant
  • very good chemical resistance
  • high abrasion resistance
  • very good flexibility

Additional information

Possible on request!

  • with orange outer sheath and blue or red cores

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

specially adjusted layering with non-woven tape over each layer

Sheath material

PU acc. to UL 758 with mat surface

Sheath colour

grey (RAL 7000)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

specially adjusted layering with non-woven tape over each layer

Sheath material

PU acc. to UL 758 with mat surface

Sheath colour

grey (RAL 7000)

Technical data

Nominal voltage

Uo/U 300/500 V

Voltage UL/CSA

600 V

Testing voltage

core/core 2000 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -40/+70 °C

DIN VDE flexible application: +5/+70°C

UL/CSA: up to +80°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL VW-1, CSA FT1, FT2

Oil resistance

very good - oilrating 60 °C acc. to UL 758

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc..

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Voltage UL/CSA

600 V

Testing voltage

core/core 2000 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -40/+70 °C

DIN VDE flexible application: +5/+70°C

UL/CSA: up to +80°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL VW-1, CSA FT1, FT2

Oil resistance

very good - oilrating 60 °C acc. to UL 758

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc..

Dimensions

item no.

no. of cores x
cross section

largest single
wire-ø

outer-ø ± 5%

copper figure

cable weight ca.

077602052 x 0,50 mm²0,16 mm6,4 mm10,6 kg/km46 kg/km Send inquiry
077603053 x 0,50 mm²0,16 mm6,7 mm15,8 kg/km54 kg/km Send inquiry
077604054 x 0,50 mm²0,16 mm7,1 mm21,1 kg/km63 kg/km Send inquiry
077605055 x 0,50 mm²0,16 mm7,7 mm26,4 kg/km77 kg/km Send inquiry
077607057 x 0,50 mm²0,16 mm8,8 mm37 kg/km104 kg/km Send inquiry
0776120512 x 0,50 mm²0,16 mm10,5 mm63,4 kg/km145 kg/km Send inquiry
0776180518 x 0,50 mm²0,16 mm12 mm95 kg/km200 kg/km Send inquiry
0776250525 x 0,50 mm²0,16 mm14,3 mm132 kg/km268 kg/km Send inquiry
0776340534 x 0,50 mm²0,16 mm15,2 mm179,5 kg/km349 kg/km Send inquiry
0776500550 x 0,50 mm²0,16 mm18,5 mm264 kg/km364 kg/km Send inquiry
0776610561 x 0,50 mm²0,16 mm20 mm322,1 kg/km443 kg/km Send inquiry
077602072 x 0,75 mm²0,16 mm6,8 mm14,4 kg/km55 kg/km Send inquiry
077603073 x 0,75 mm²0,16 mm7,1 mm21,6 kg/km62 kg/km Send inquiry
077604074 x 0,75 mm²0,16 mm7,6 mm28,8 kg/km74 kg/km Send inquiry
077605075 x 0,75 mm²0,16 mm8,2 mm36 kg/km89 kg/km Send inquiry
077607077 x 0,75 mm²0,16 mm9,5 mm50,4 kg/km121 kg/km Send inquiry
0776120712 x 0,75 mm²0,16 mm11,3 mm86,4 kg/km171 kg/km Send inquiry
0776180718 x 0,75 mm²0,16 mm13,1 mm129,6 kg/km239 kg/km Send inquiry
0776250725 x 0,75 mm²0,16 mm15,8 mm180 kg/km329 kg/km Send inquiry
0776340734 x 0,75 mm²0,16 mm17,5 mm244,8 kg/km335 kg/km Send inquiry
0776500750 x 0,75 mm²0,16 mm20 mm360 kg/km596 kg/km Send inquiry
0776610761 x 0,75 mm²0,16 mm23,5 mm439,2 kg/km781 kg/km Send inquiry
077602102 x 1,00 mm²0,16 mm7 mm19,2 kg/km61 kg/km Send inquiry
077603103 x 1,00 mm²0,16 mm7,3 mm28,8 kg/km70 kg/km Send inquiry
077604104 x 1,00 mm²0,16 mm7,9 mm38,4 kg/km85 kg/km Send inquiry
077605105 x 1,00 mm²0,16 mm8,5 mm48 kg/km103 kg/km Send inquiry
077607107 x 1,00 mm²0,16 mm9,8 mm67,2 kg/km131 kg/km Send inquiry
0776121012 x 1,00 mm²0,16 mm11,7 mm115,2 kg/km202 kg/km Send inquiry
0776181018 x 1,00 mm²0,16 mm13,6 mm172,8 kg/km297 kg/km Send inquiry
0776251025 x 1,00 mm²0,16 mm16,4 mm240 kg/km392 kg/km Send inquiry
0776341034 x 1,00 mm²0,16 mm18 mm326,4 kg/km521 kg/km Send inquiry
0776501050 x 1,00 mm²0,16 mm22,3 mm480 kg/km784 kg/km Send inquiry
0776611061 x 1,00 mm²0,16 mm24,4 mm585,6 kg/km965 kg/km Send inquiry
077602152 x 1,50 mm²0,16 mm7,6 mm28,8 kg/km74 kg/km Send inquiry
077603153 x 1,50 mm²0,16 mm8 mm43,2 kg/km90 kg/km Send inquiry
077604154 x 1,50 mm²0,16 mm8,6 mm57,6 kg/km109 kg/km Send inquiry
077605155 x 1,50 mm²0,16 mm9,3 mm72 kg/km134 kg/km Send inquiry
077607157 x 1,50 mm²0,16 mm10,8 mm100,8 kg/km184 kg/km Send inquiry
0776121512 x 1,50 mm²0,16 mm12,9 mm172,8 kg/km269 kg/km Send inquiry
0776181518 x 1,50 mm²0,16 mm15,1 mm259,2 kg/km392 kg/km Send inquiry
0776251525 x 1,50 mm²0,16 mm18,3 mm360 kg/km529 kg/km Send inquiry
0776341534 x 1,50 mm²0,16 mm20,4 mm489,6 kg/km695 kg/km Send inquiry
0776501550 x 1,50 mm²0,16 mm24,8 mm720 kg/km1056 kg/km Send inquiry
0776611561 x 1,50 mm²0,16 mm27,7 mm878,4 kg/km1282 kg/km Send inquiry
077602252 x 2,50 mm²0,16 mm9,2 mm48 kg/km110 kg/km Send inquiry
077603253 x 2,50 mm²0,16 mm9,7 mm72 kg/km136 kg/km Send inquiry
077604254 x 2,50 mm²0,16 mm10,5 mm96 kg/km168 kg/km Send inquiry
077605255 x 2,50 mm²0,16 mm11,5 mm120 kg/km202 kg/km Send inquiry
077607257 x 2,50 mm²0,16 mm13,5 mm168 kg/km269 kg/km Send inquiry
0776122512 x 2,50 mm²0,16 mm16,6 mm288 kg/km436 kg/km Send inquiry
0776182518 x 2,50 mm²0,16 mm19,9 mm432 kg/km637 kg/km Send inquiry
0776252525 x 2,50 mm²0,16 mm25,4 mm600 kg/km922 kg/km Send inquiry
077603403 x 4,00 mm²0,16 mm11,8 mm115,2 kg/km207 kg/km Send inquiry
077604404 x 4,00 mm²0,16 mm11,9 mm153,6 kg/km246 kg/km Send inquiry
077605405 x 4,00 mm²0,16 mm13,1 mm192 kg/km298 kg/km Send inquiry
077607407 x 4,00 mm²0,16 mm16,6 mm268,8 kg/km413 kg/km Send inquiry
077603603 x 6,00 mm²0,21 mm13,4 mm172,8 kg/km302 kg/km Send inquiry
077604604 x 6,00 mm²0,21 mm14,5 mm230,4 kg/km368 kg/km Send inquiry
077605605 x 6,00 mm²0,21 mm16 mm288 kg/km457 kg/km Send inquiry
077604614 x 10,0 mm²0,21 mm17,9 mm384 kg/km600 kg/km Send inquiry
077605615 x 10,0 mm²0,21 mm19,7 mm480 kg/km749 kg/km Send inquiry
077604624 x 16,0 mm²0,21 mm20,9 mm614,4 kg/km856 kg/km Send inquiry
077605625 x 16,0 mm²0,21 mm24,2 mm768 kg/km1093 kg/km Send inquiry
077604634 x 25,0 mm²0,21 mm25,9 mm960 kg/km1328 kg/km Send inquiry
077605635 x 25,0 mm²0,21 mm28,5 mm1200 kg/km1620 kg/km Send inquiry
077604644 x 35,0 mm²0,21 mm29,2 mm1344 kg/km1733 kg/km Send inquiry
077605645 x 35,0 mm²0,21 mm32,3 mm1680 kg/km2113 kg/km Send inquiry
077604654 x 50,0 mm²0,21 mm34,3 mm1920 kg/km2469 kg/km Send inquiry
