SAB Kabel

S 960

UL/CSA flexible PVC control cable with numbered black cores

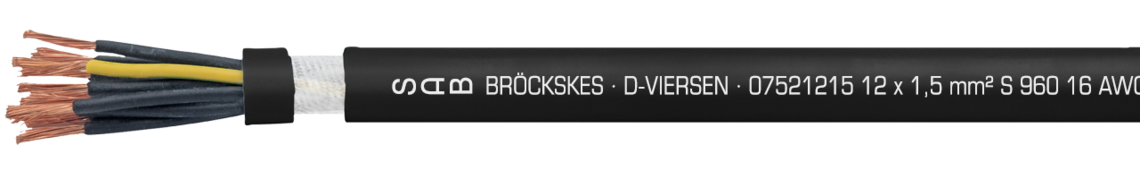

Marking for S 960 07521215: SAB BRÖCKSKES · D-VIERSEN · 07521215 12 x 1,5 mm² S 960 16 AWG/12c 07521612 UL AWM Style 2587 90°C 600V CSA AWM I/II A/B 90°C 600V FT1 FT2 CE

Marking for S 960 07521215: SAB BRÖCKSKES · D-VIERSEN · 07521215 12 x 1,5 mm² S 960 16 AWG/12c 07521612 UL AWM Style 2587 90°C 600V CSA AWM I/II A/B 90°C 600V FT1 FT2 CE

Application

S 960 is a continuously flexible PVC control with numbered black cores. The flexible cable with small bending radius is recommended for use in wood working and packaging machines, assembly lines, automation plants, and it is also suitable for the American market.

Outstanding features

  • very good flexibility
  • small bending radius
  • reinforced outer sheath

Additional information

Possible on request!

  •   with grey outer sheath and blue or red cores

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

specially adjusted layering with non-woven tape over each layer

Sheath material

PVC, TM2 acc. to EN 50363-3 + VDE 0207-363-3

Sheath colour

black (RAL 9005)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

specially adjusted layering with non-woven tape over each layer

Sheath material

PVC, TM2 acc. to EN 50363-3 + VDE 0207-363-3

Sheath colour

black (RAL 9005)

Technical data

Nominal voltage

Uo/U 300/500 V

Voltage UL/CSA

600 V

Testing voltage

core/core 2000 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

8 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -40/+70°C

DIN VDE flexible application: +5/+70°C

UL/CSA: up to + 90°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL VW-1, CSA FT1, FT2

Oil resistance

acc. to internal standard

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Voltage UL/CSA

600 V

Testing voltage

core/core 2000 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

8 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -40/+70°C

DIN VDE flexible application: +5/+70°C

UL/CSA: up to + 90°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL VW-1, CSA FT1, FT2

Dimensions

item no. no. of cores x cross section largest single wire-ø outer-ø ± 5% copper figure cable weight ca.
075202052 x 0,50 mm²0,16 mm5,5 mm10,6 kg/km40 kg/km Send inquiry
075203053 x 0,50 mm²0,16 mm5,8 mm15,8 kg/km47 kg/km Send inquiry
075204054 x 0,50 mm²0,16 mm6,3 mm21,1 kg/km57 kg/km Send inquiry
075205055 x 0,50 mm²0,16 mm7 mm26,4 kg/km71 kg/km Send inquiry
075207057 x 0,50 mm²0,16 mm8,2 mm37 kg/km98 kg/km Send inquiry
0752120512 x 0,50 mm²0,16 mm10,1 mm63,4 kg/km144 kg/km Send inquiry
0752180518 x 0,50 mm²0,16 mm12 mm95 kg/km212 kg/km Send inquiry
0752250525 x 0,50 mm²0,16 mm14,4 mm132 kg/km284 kg/km Send inquiry
0752340534 x 0,50 mm²0,16 mm16,2 mm179,5 kg/km378 kg/km Send inquiry
0752500550 x 0,50 mm²0,16 mm19,1 mm264 kg/km523 kg/km Send inquiry
0752610561 x 0,50 mm²0,16 mm21,1 mm322,1 kg/km655 kg/km Send inquiry
075202072 x 0,75 mm²0,16 mm5,9 mm14,4 kg/km47 kg/km Send inquiry
075203073 x 0,75 mm²0,16 mm6,3 mm21,6 kg/km57 kg/km Send inquiry
075204074 x 0,75 mm²0,16 mm6,8 mm28,8 kg/km68 kg/km Send inquiry
075205075 x 0,75 mm²0,16 mm7,5 mm36 kg/km85 kg/km Send inquiry
075207077 x 0,75 mm²0,16 mm9,1 mm50,4 kg/km122 kg/km Send inquiry
0752120712 x 0,75 mm²0,16 mm11 mm86,4 kg/km177 kg/km Send inquiry
0752180718 x 0,75 mm²0,16 mm13,1 mm129,6 kg/km261 kg/km Send inquiry
0752250725 x 0,75 mm²0,16 mm15,8 mm180 kg/km354 kg/km Send inquiry
0752340734 x 0,75 mm²0,16 mm17,9 mm244,8 kg/km474 kg/km Send inquiry
0752500750 x 0,75 mm²0,16 mm21,1 mm360 kg/km670 kg/km Send inquiry
0752610761 x 0,75 mm²0,16 mm23,5 mm439,2 kg/km831 kg/km Send inquiry
075202102 x 1,00 mm²0,16 mm6,2 mm19,2 kg/km55 kg/km Send inquiry
075203103 x 1,00 mm²0,16 mm6,5 mm28,8 kg/km66 kg/km Send inquiry
075204104 x 1,00 mm²0,16 mm7,2 mm38,4 kg/km82 kg/km Send inquiry
075205105 x 1,00 mm²0,16 mm7,9 mm48 kg/km101 kg/km Send inquiry
075207107 x 1,00 mm²0,16 mm9,4 mm67,2 kg/km142 kg/km Send inquiry
0752121012 x 1,00 mm²0,16 mm11,5 mm115,2 kg/km212 kg/km Send inquiry
0752181018 x 1,00 mm²0,16 mm13,7 mm172,8 kg/km313 kg/km Send inquiry
0752251025 x 1,00 mm²0,16 mm16,5 mm240 kg/km424 kg/km Send inquiry
0752341034 x 1,00 mm²0,16 mm18,7 mm326,4 kg/km569 kg/km Send inquiry
0752501050 x 1,00 mm²0,16 mm22,5 mm480 kg/km826 kg/km Send inquiry
0752611061 x 1,00 mm²0,16 mm24,5 mm585,6 kg/km998 kg/km Send inquiry
075202152 x 1,50 mm²0,16 mm6,8 mm28,8 kg/km70 kg/km Send inquiry
075203153 x 1,50 mm²0,16 mm7,3 mm43,2 kg/km88 kg/km Send inquiry
075204154 x 1,50 mm²0,16 mm8 mm57,6 kg/km109 kg/km Send inquiry
075205155 x 1,50 mm²0,16 mm8,8 mm72 kg/km135 kg/km Send inquiry
075207157 x 1,50 mm²0,16 mm10,6 mm100,8 kg/km192 kg/km Send inquiry
0752121512 x 1,50 mm²0,16 mm13 mm172,8 kg/km288 kg/km Send inquiry
0752181518 x 1,50 mm²0,16 mm15,4 mm259,2 kg/km425 kg/km Send inquiry
0752251525 x 1,50 mm²0,16 mm18,7 mm360 kg/km580 kg/km Send inquiry
0752341534 x 1,50 mm²0,16 mm21,1 mm489,6 kg/km777 kg/km Send inquiry
0752501550 x 1,50 mm²0,16 mm25,1 mm720 kg/km1115 kg/km Send inquiry
0752611561 x 1,50 mm²0,16 mm27,6 mm878,4 kg/km1362 kg/km Send inquiry
075202252 x 2,50 mm²0,16 mm8,9 mm48 kg/km117 kg/km Send inquiry
075203253 x 2,50 mm²0,16 mm9,5 mm72 kg/km144 kg/km Send inquiry
075204254 x 2,50 mm²0,16 mm10,4 mm96 kg/km178 kg/km Send inquiry
075205255 x 2,50 mm²0,16 mm11,6 mm120 kg/km223 kg/km Send inquiry
075207257 x 2,50 mm²0,16 mm14 mm168 kg/km319 kg/km Send inquiry
0752122512 x 2,50 mm²0,16 mm17,3 mm288 kg/km480 kg/km Send inquiry
0752182518 x 2,50 mm²0,16 mm20,7 mm432 kg/km715 kg/km Send inquiry
0752252525 x 2,50 mm²0,16 mm25,1 mm600 kg/km973 kg/km Send inquiry
075203403 x 4,00 mm²0,16 mm11,3 mm115,2 kg/km223 kg/km Send inquiry
075204404 x 4,00 mm²0,16 mm12,4 mm153,6 kg/km267 kg/km Send inquiry
075205405 x 4,00 mm²0,16 mm13,8 mm192 kg/km342 kg/km Send inquiry
075207407 x 4,00 mm²0,16 mm16,7 mm268,8 kg/km493 kg/km Send inquiry
075203603 x 6,00 mm²0,21 mm13,1 mm172,8 kg/km319 kg/km Send inquiry
075204604 x 6,00 mm²0,21 mm14,5 mm230,4 kg/km381 kg/km Send inquiry
075205605 x 6,00 mm²0,21 mm16,2 mm288 kg/km490 kg/km Send inquiry
075207607 x 6,00 mm²0,21 mm19,4 mm403,2 kg/km700 kg/km Send inquiry
075203613 x 10,0 mm²0,21 mm16,2 mm288 kg/km502 kg/km Send inquiry
075204614 x 10,0 mm²0,21 mm18 mm384 kg/km637 kg/km Send inquiry
075205615 x 10,0 mm²0,21 mm20,1 mm480 kg/km787 kg/km Send inquiry
075203623 x 16,0 mm²0,21 mm19,4 mm460,8 kg/km754 kg/km Send inquiry
075204624 x 16,0 mm²0,21 mm21,5 mm614,4 kg/km954 kg/km Send inquiry
075205625 x 16,0 mm²0,21 mm24,1 mm768 kg/km1188 kg/km Send inquiry
075204634 x 25,0 mm²0,21 mm26 mm960 kg/km1391 kg/km Send inquiry
075205635 x 25,0 mm²0,21 mm29 mm1200 kg/km1779 kg/km Send inquiry
075204644 x 35,0 mm²0,21 mm29,8 mm1344 kg/km1911 kg/km Send inquiry
075205645 x 35,0 mm²0,21 mm32,9 mm1680 kg/km2354 kg/km Send inquiry
075204654 x 50,0 mm²0,21 mm34,9 mm1920 kg/km2672 kg/km Send inquiry
