S 965 MTW CY Type MTW

Continuously flexible PVC control cable and Machine-Tool Cable with numbered red cores and overall copper screen

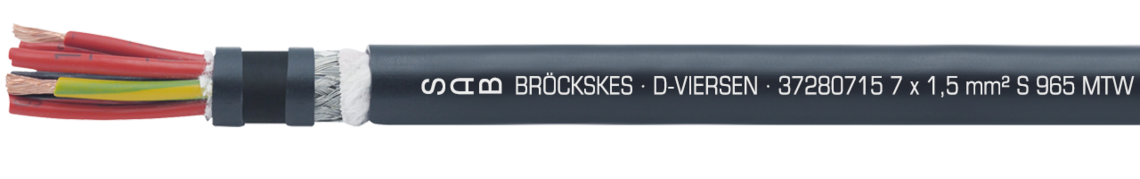

Marking for S 965 MTW CY 37280715: SAB BRÖCKSKES · D-VIERSEN · 37280715 7 x 1,5 mm² S 965 MTW CY 16 AWG/7c 37281607 (UL) Type MTW 600V AWM Style 2587 90°C 600V CE

Marking for S 965 MTW CY 37280715: SAB BRÖCKSKES · D-VIERSEN · 37280715 7 x 1,5 mm² S 965 MTW CY 16 AWG/7c 37281607 (UL) Type MTW 600V AWM Style 2587 90°C 600V CE

Application

S 965 MTW CY Type MTW is a continuously flexible PVC control cable and Machine-Tool Cable with numbered red cores and overall copper screen. It is recommended for use in wood working and packaging machines, assembly lines, automation plants, and it is also suitable for the American market.

Outstanding features

  • screened, very good EMC characteristics
  • very good flexibility
  • oil resistant
  • NFPA 79 for industrial machinery

Additional information

Possible on request!

  • with grey outer sheath and black cores

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

special formulated PVC

Colour code

red cores with consecutive numbersacc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

specially adjusted layering with non-woven tape over each layer

Inner sheath

special formulated PVC

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

special oil resistant PVC

Sheath colour

black (RAL 9005)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

special formulated PVC

Colour code

red cores with consecutive numbersacc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

specially adjusted layering with non-woven tape over each layer

Inner sheath

special formulated PVC

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

special oil resistant PVC

Sheath colour

black (RAL 9005)

Technical data

Nominal voltage

Uo/U 300/500 V

Voltage UL/(UL)

600 V

Testing voltage

core/core 3000 V

core/screen 2000 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

8 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -40/+70°C

DIN VDE flexible application: +5/+70°C

UL/(UL): up to +90°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,
UL VW-1

Oil resistance

very good - TM5 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Voltage UL/(UL)

600 V

Testing voltage

core/core 3000 V

core/screen 2000 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

8 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -40/+70°C

DIN VDE flexible application: +5/+70°C

UL/(UL): up to +90°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,
UL VW-1

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Largest single
wire-ø
Outer-ø Copper figure Cable weight ≈
L372802052 x 0,50 mm²0,16 mm9,9 mm36,2 kg/km122 kg/km Send inquiry
L372803053 x 0,50 mm²0,16 mm10,4 mm60 kg/km149 kg/km Send inquiry
L372804054 x 0,50 mm²0,16 mm11,1 mm65,9 kg/km168 kg/km Send inquiry
L372805055 x 0,50 mm²0,16 mm12 mm76,2 kg/km198 kg/km Send inquiry
L372807057 x 0,50 mm²0,16 mm14,3 mm95,2 kg/km279 kg/km Send inquiry
L3728120512 x 0,50 mm²0,16 mm16,8 mm157,4 kg/km378 kg/km Send inquiry
L3728180518 x 0,50 mm²0,16 mm19,6 mm201,3 kg/km520 kg/km Send inquiry
L3728250525 x 0,50 mm²0,16 mm23,4 mm257,6 kg/km688 kg/km Send inquiry
L372802072 x 0,75 mm²0,16 mm10,5 mm60,2 kg/km146 kg/km Send inquiry
L372803073 x 0,75 mm²0,16 mm10,9 mm68 kg/km162 kg/km Send inquiry
L372804074 x 0,75 mm²0,16 mm11,6 mm80,6 kg/km186 kg/km Send inquiry
L372805075 x 0,75 mm²0,16 mm12,7 mm95,8 kg/km226 kg/km Send inquiry
L372807077 x 0,75 mm²0,16 mm15 mm117,4 kg/km309 kg/km Send inquiry
L3728120712 x 0,75 mm²0,16 mm17,8 mm197,1 kg/km430 kg/km Send inquiry
L3728180718 x 0,75 mm²0,16 mm20,8 mm260,4 kg/km594 kg/km Send inquiry
L3728250725 x 0,75 mm²0,16 mm23,4 mm336,7 kg/km770 kg/km Send inquiry
L372802102 x 1,00 mm²0,16 mm10,7 mm65,3 kg/km154 kg/km Send inquiry
L372803103 x 1,00 mm²0,16 mm11,3 mm75,5 kg/km172 kg/km Send inquiry
L372804104 x 1,00 mm²0,16 mm11,8 mm90,5 kg/km199 kg/km Send inquiry
L372805105 x 1,00 mm²0,16 mm13 mm108,3 kg/km243 kg/km Send inquiry
L372807107 x 1,00 mm²0,16 mm15,3 mm134,7 kg/km331 kg/km Send inquiry
L3728121012 x 1,00 mm²0,16 mm18,3 mm227,2 kg/km468 kg/km Send inquiry
L3728181018 x 1,00 mm²0,16 mm21,3 mm305,2 kg/km650 kg/km Send inquiry
L3728251025 x 1,00 mm²0,16 mm25,5 mm399 kg/km866 kg/km Send inquiry
L372802152 x 1,50 mm²0,16 mm11,3 mm75,8 kg/km173 kg/km Send inquiry
L372803153 x 1,50 mm²0,16 mm11,7 mm95,1 kg/km200 kg/km Send inquiry
L372804154 x 1,50 mm²0,16 mm12,8 mm117,6 kg/km243 kg/km Send inquiry
L372805155 x 1,50 mm²0,16 mm14,4 mm133,7 kg/km302 kg/km Send inquiry
L372807157 x 1,50 mm²0,16 mm16,5 mm199,8 kg/km413 kg/km Send inquiry
L3728121512 x 1,50 mm²0,16 mm19,9 mm288,5 kg/km571 kg/km Send inquiry
L3728181518 x 1,50 mm²0,16 mm23,3 mm396,5 kg/km803 kg/km Send inquiry
L3728251525 x 1,50 mm²0,16 mm27,6 mm526,6 kg/km1053 kg/km Send inquiry
L372802252 x 2,50 mm²0,16 mm12,8 mm108 kg/km228 kg/km Send inquiry
L372803253 x 2,50 mm²0,16 mm13,5 mm132,9 kg/km270 kg/km Send inquiry
L372804254 x 2,50 mm²0,16 mm14,9 mm158,6 kg/km328 kg/km Send inquiry
L372805255 x 2,50 mm²0,16 mm16 mm188,7 kg/km387 kg/km Send inquiry
L372807257 x 2,50 mm²0,16 mm18,9 mm281,6 kg/km549 kg/km Send inquiry
L3728122512 x 2,50 mm²0,16 mm23,1 mm424,6 kg/km791 kg/km Send inquiry
L3728182518 x 2,50 mm²0,16 mm26,8 mm595,4 kg/km1102 kg/km Send inquiry
L3728252525 x 2,50 mm²0,16 mm32,3 mm799,6 kg/km1488 kg/km Send inquiry
L372803403 x 4,00 mm²0,16 mm15,2 mm182,6 kg/km352 kg/km Send inquiry
L372804404 x 4,00 mm²0,16 mm16,4 mm252,3 kg/km434 kg/km Send inquiry
L372805405 x 4,00 mm²0,16 mm18 mm303,2 kg/km526 kg/km Send inquiry
L372803603 x 6,00 mm²0,21 mm17 mm273,1 kg/km459 kg/km Send inquiry
L372804604 x 6,00 mm²0,21 mm18,4 mm342,5 kg/km557 kg/km Send inquiry
L372805605 x 6,00 mm²0,21 mm20,4 mm418,2 kg/km691 kg/km Send inquiry
L372804614 x 10,0 mm²0,21 mm23,5 mm522 kg/km873 kg/km Send inquiry
L372805615 x 10,0 mm²0,21 mm25,8 mm640,2 kg/km1084 kg/km Send inquiry
L372804624 x 16,0 mm²0,21 mm29 mm801,5 kg/km1309 kg/km Send inquiry
L372805625 x 16,0 mm²0,21 mm32,4 mm968,1 kg/km1660 kg/km Send inquiry
L372804634 x 25,0 mm²0,21 mm32,7 mm1161,5 kg/km1745 kg/km Send inquiry
L372805635 x 25,0 mm²0,21 mm36 mm1424,9 kg/km2175 kg/km Send inquiry
L372804644 x 35,0 mm²0,21 mm37 mm1527,6 kg/km2301 kg/km Send inquiry
L372804654 x 50,0 mm²0,21 mm46,3 mm2187,3 kg/km3374 kg/km Send inquiry
item no.
No. of cores x
cross section
Largest single
wire-ø
Outer-ø
Copper figure
Cable weight ≈
L37280205
2 x 0,50 mm²
0,16 mm
9,9 mm
36,2 kg/km
122 kg/km
L37280305
3 x 0,50 mm²
0,16 mm
10,4 mm
60 kg/km
149 kg/km
L37280405
4 x 0,50 mm²
0,16 mm
11,1 mm
65,9 kg/km
168 kg/km
L37280505
5 x 0,50 mm²
0,16 mm
12 mm
76,2 kg/km
198 kg/km
L37280705
7 x 0,50 mm²
0,16 mm
14,3 mm
95,2 kg/km
279 kg/km
L37281205
12 x 0,50 mm²
0,16 mm
16,8 mm
157,4 kg/km
378 kg/km
L37281805
18 x 0,50 mm²
0,16 mm
19,6 mm
201,3 kg/km
520 kg/km
L37282505
25 x 0,50 mm²
0,16 mm
23,4 mm
257,6 kg/km
688 kg/km
L37280207
2 x 0,75 mm²
0,16 mm
10,5 mm
60,2 kg/km
146 kg/km
L37280307
3 x 0,75 mm²
0,16 mm
10,9 mm
68 kg/km
162 kg/km
L37280407
4 x 0,75 mm²
0,16 mm
11,6 mm
80,6 kg/km
186 kg/km
L37280507
5 x 0,75 mm²
0,16 mm
12,7 mm
95,8 kg/km
226 kg/km
L37280707
7 x 0,75 mm²
0,16 mm
15 mm
117,4 kg/km
309 kg/km
L37281207
12 x 0,75 mm²
0,16 mm
17,8 mm
197,1 kg/km
430 kg/km
L37281807
18 x 0,75 mm²
0,16 mm
20,8 mm
260,4 kg/km
594 kg/km
L37282507
25 x 0,75 mm²
0,16 mm
23,4 mm
336,7 kg/km
770 kg/km
L37280210
2 x 1,00 mm²
0,16 mm
10,7 mm
65,3 kg/km
154 kg/km
L37280310
3 x 1,00 mm²
0,16 mm
11,3 mm
75,5 kg/km
172 kg/km
L37280410
4 x 1,00 mm²
0,16 mm
11,8 mm
90,5 kg/km
199 kg/km
L37280510
5 x 1,00 mm²
0,16 mm
13 mm
108,3 kg/km
243 kg/km
L37280710
7 x 1,00 mm²
0,16 mm
15,3 mm
134,7 kg/km
331 kg/km
L37281210
12 x 1,00 mm²
0,16 mm
18,3 mm
227,2 kg/km
468 kg/km
L37281810
18 x 1,00 mm²
0,16 mm
21,3 mm
305,2 kg/km
650 kg/km
L37282510
25 x 1,00 mm²
0,16 mm
25,5 mm
399 kg/km
866 kg/km
L37280215
2 x 1,50 mm²
0,16 mm
11,3 mm
75,8 kg/km
173 kg/km
L37280315
3 x 1,50 mm²
0,16 mm
11,7 mm
95,1 kg/km
200 kg/km
L37280415
4 x 1,50 mm²
0,16 mm
12,8 mm
117,6 kg/km
243 kg/km
L37280515
5 x 1,50 mm²
0,16 mm
14,4 mm
133,7 kg/km
302 kg/km
L37280715
7 x 1,50 mm²
0,16 mm
16,5 mm
199,8 kg/km
413 kg/km
L37281215
12 x 1,50 mm²
0,16 mm
19,9 mm
288,5 kg/km
571 kg/km
L37281815
18 x 1,50 mm²
0,16 mm
23,3 mm
396,5 kg/km
803 kg/km
L37282515
25 x 1,50 mm²
0,16 mm
27,6 mm
526,6 kg/km
1053 kg/km
L37280225
2 x 2,50 mm²
0,16 mm
12,8 mm
108 kg/km
228 kg/km
L37280325
3 x 2,50 mm²
0,16 mm
13,5 mm
132,9 kg/km
270 kg/km
L37280425
4 x 2,50 mm²
0,16 mm
14,9 mm
158,6 kg/km
328 kg/km
L37280525
5 x 2,50 mm²
0,16 mm
16 mm
188,7 kg/km
387 kg/km
L37280725
7 x 2,50 mm²
0,16 mm
18,9 mm
281,6 kg/km
549 kg/km
L37281225
12 x 2,50 mm²
0,16 mm
23,1 mm
424,6 kg/km
791 kg/km
L37281825
18 x 2,50 mm²
0,16 mm
26,8 mm
595,4 kg/km
1102 kg/km
L37282525
25 x 2,50 mm²
0,16 mm
32,3 mm
799,6 kg/km
1488 kg/km
L37280340
3 x 4,00 mm²
0,16 mm
15,2 mm
182,6 kg/km
352 kg/km
L37280440
4 x 4,00 mm²
0,16 mm
16,4 mm
252,3 kg/km
434 kg/km
L37280540
5 x 4,00 mm²
0,16 mm
18 mm
303,2 kg/km
526 kg/km
L37280360
3 x 6,00 mm²
0,21 mm
17 mm
273,1 kg/km
459 kg/km
L37280460
4 x 6,00 mm²
0,21 mm
18,4 mm
342,5 kg/km
557 kg/km
L37280560
5 x 6,00 mm²
0,21 mm
20,4 mm
418,2 kg/km
691 kg/km
L37280461
4 x 10,0 mm²
0,21 mm
23,5 mm
522 kg/km
873 kg/km
L37280561
5 x 10,0 mm²
0,21 mm
25,8 mm
640,2 kg/km
1084 kg/km
L37280462
4 x 16,0 mm²
0,21 mm
29 mm
801,5 kg/km
1309 kg/km
L37280562
5 x 16,0 mm²
0,21 mm
32,4 mm
968,1 kg/km
1660 kg/km
L37280463
4 x 25,0 mm²
0,21 mm
32,7 mm
1161,5 kg/km
1745 kg/km
L37280563
5 x 25,0 mm²
0,21 mm
36 mm
1424,9 kg/km
2175 kg/km
L37280464
4 x 35,0 mm²
0,21 mm
37 mm
1527,6 kg/km
2301 kg/km
L37280465
4 x 50,0 mm²
0,21 mm
46,3 mm
2187,3 kg/km
3374 kg/km

Other dimensions and colours are possible on request.
