S 965 MTW Type MTW

Continuously flexible PVC control cable and Machine-Tool Cable with numbered red cores

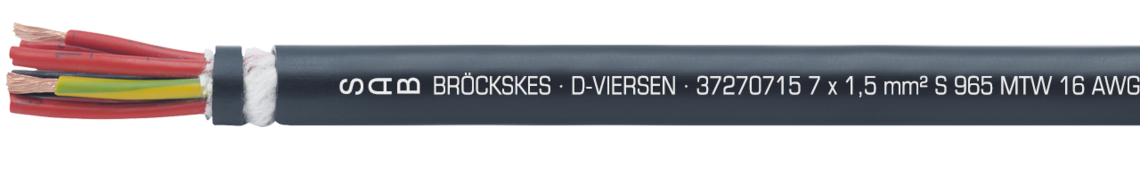

Marking for S 965 MTW 37270715: SAB BRÖCKSKES · D-VIERSEN · 37270715 7 x 1,5 mm² S 965 MTW 16 AWG/7c 37271607 (UL) Type MTW 600V AWM Style 2587 90°C 600V CE

Marking for S 965 MTW 37270715: SAB BRÖCKSKES · D-VIERSEN · 37270715 7 x 1,5 mm² S 965 MTW 16 AWG/7c 37271607 (UL) Type MTW 600V AWM Style 2587 90°C 600V CE

Application

S 965 MTW Type MTW is a continuously flexible PVC control cable and Machine-Tool Cable with numbered red cores. It is recommended for use in wood working and packaging machines, assembly lines, automation plants, and it is also suitable for the American market.

Outstanding features

  • very good flexibility
  • reinforced outer sheath
  • oil resistant
  • NFPA 79 for industrial machinery

Additional information

Possible on request:
●    with grey outer sheath and black cores

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

special formulated PVC

Colour code

red cores with consecutive numbersacc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

specially adjusted layering with non-woven tape over each layer

Sheath material

special oil resistant PVC

Sheath colour

black (RAL 9005)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

special formulated PVC

Colour code

red cores with consecutive numbersacc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

specially adjusted layering with non-woven tape over each layer

Sheath material

special oil resistant PVC

Sheath colour

black (RAL 9005)

Technical data

Nominal voltage

Uo/U 300/500 V

Voltage UL/(UL)

600 V

Testing voltage

core/core 3000 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

8 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -40/+70°C

DIN VDE flexible application: +5/+70°C

UL/(UL): up to +90°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,
UL VW-1

Oil resistance

very good - TM5 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Voltage UL/(UL)

600 V

Testing voltage

core/core 3000 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

8 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -40/+70°C

DIN VDE flexible application: +5/+70°C

UL/(UL): up to +90°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,
UL VW-1

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Largest single
wire-ø
Outer-ø Copper figure Cable weight ≈
L372702052 x 0,50 mm²0,16 mm7,8 mm9,6 kg/km69 kg/km Send inquiry
L372703053 x 0,50 mm²0,16 mm8,1 mm14,4 kg/km81 kg/km Send inquiry
L372704054 x 0,50 mm²0,16 mm8,8 mm19,2 kg/km96 kg/km Send inquiry
L372705055 x 0,50 mm²0,16 mm9,6 mm24 kg/km113 kg/km Send inquiry
L372707057 x 0,50 mm²0,16 mm11,1 mm33,6 kg/km160 kg/km Send inquiry
L3727120512 x 0,50 mm²0,16 mm14,1 mm57,6 kg/km241 kg/km Send inquiry
L3727180518 x 0,50 mm²0,16 mm16,3 mm86,4 kg/km337 kg/km Send inquiry
L3727250525 x 0,50 mm²0,16 mm19,8 mm120 kg/km452 kg/km Send inquiry
L3727340534 x 0,50 mm²0,16 mm22,7 mm163,2 kg/km622 kg/km Send inquiry
L3727500550 x 0,50 mm²0,16 mm26,7 mm240 kg/km857 kg/km Send inquiry
L3727610561 x 0,50 mm²0,16 mm29,4 mm292,8 kg/km1052 kg/km Send inquiry
L372702072 x 0,75 mm²0,16 mm8,2 mm14,4 kg/km77 kg/km Send inquiry
L372703073 x 0,75 mm²0,16 mm8,6 mm21,6 kg/km91 kg/km Send inquiry
L372704074 x 0,75 mm²0,16 mm9,3 mm28,8 kg/km109 kg/km Send inquiry
L372705075 x 0,75 mm²0,16 mm10,1 mm36 kg/km132 kg/km Send inquiry
L372707077 x 0,75 mm²0,16 mm11,8 mm50,4 kg/km182 kg/km Send inquiry
L3727120712 x 0,75 mm²0,16 mm14,9 mm86,4 kg/km273 kg/km Send inquiry
L3727180718 x 0,75 mm²0,16 mm17,3 mm129,6 kg/km384 kg/km Send inquiry
L3727250725 x 0,75 mm²0,16 mm21,2 mm180 kg/km527 kg/km Send inquiry
L3727340734 x 0,75 mm²0,16 mm24,1 mm244,8 kg/km710 kg/km Send inquiry
L3727500750 x 0,75 mm²0,16 mm28,6 mm360 kg/km997 kg/km Send inquiry
L3727610761 x 0,75 mm²0,16 mm31,5 mm439,2 kg/km1223 kg/km Send inquiry
L372702102 x 1,00 mm²0,16 mm8,4 mm19,2 kg/km84 kg/km Send inquiry
L372703103 x 1,00 mm²0,16 mm8,8 mm28,8 kg/km100 kg/km Send inquiry
L372704104 x 1,00 mm²0,16 mm9,5 mm38,4 kg/km121 kg/km Send inquiry
L372705105 x 1,00 mm²0,16 mm10,4 mm48 kg/km147 kg/km Send inquiry
L372707107 x 1,00 mm²0,16 mm12,2 mm67,2 kg/km205 kg/km Send inquiry
L3727121012 x 1,00 mm²0,16 mm15,4 mm115,2 kg/km308 kg/km Send inquiry
L3727181018 x 1,00 mm²0,16 mm18 mm172,8 kg/km444 kg/km Send inquiry
L3727251025 x 1,00 mm²0,16 mm22,3 mm240 kg/km623 kg/km Send inquiry
L3727341034 x 1,00 mm²0,16 mm24,8 mm326,4 kg/km807 kg/km Send inquiry
L3727501050 x 1,00 mm²0,16 mm29,6 mm480 kg/km1149 kg/km Send inquiry
L3727611061 x 1,00 mm²0,16 mm32,6 mm585,6 kg/km1407 kg/km Send inquiry
L372702152 x 1,50 mm²0,16 mm9 mm28,8 kg/km100 kg/km Send inquiry
L372703153 x 1,50 mm²0,16 mm9,4 mm43,2 kg/km122 kg/km Send inquiry
L372704154 x 1,50 mm²0,16 mm10,2 mm57,6 kg/km148 kg/km Send inquiry
L372705155 x 1,50 mm²0,16 mm11,2 mm72 kg/km182 kg/km Send inquiry
L372707157 x 1,50 mm²0,16 mm13,4 mm100,8 kg/km264 kg/km Send inquiry
L3727121512 x 1,50 mm²0,16 mm16,6 mm172,8 kg/km385 kg/km Send inquiry
L3727181518 x 1,50 mm²0,16 mm19,7 mm259,2 kg/km568 kg/km Send inquiry
L3727251525 x 1,50 mm²0,16 mm24,2 mm360 kg/km782 kg/km Send inquiry
L3727341534 x 1,50 mm²0,16 mm27,2 mm489,6 kg/km1038 kg/km Send inquiry
L3727501550 x 1,50 mm²0,16 mm32,5 mm720 kg/km1486 kg/km Send inquiry
L3727611561 x 1,50 mm²0,16 mm35,8 mm878,4 kg/km1820 kg/km Send inquiry
L372702252 x 2,50 mm²0,16 mm10,2 mm48 kg/km133 kg/km Send inquiry
L372703253 x 2,50 mm²0,16 mm10,7 mm72 kg/km166 kg/km Send inquiry
L372704254 x 2,50 mm²0,16 mm11,7 mm96 kg/km204 kg/km Send inquiry
L372705255 x 2,50 mm²0,16 mm12,9 mm120 kg/km255 kg/km Send inquiry
L372707257 x 2,50 mm²0,16 mm15,8 mm168 kg/km378 kg/km Send inquiry
L3727122512 x 2,50 mm²0,16 mm19,5 mm288 kg/km558 kg/km Send inquiry
L3727182518 x 2,50 mm²0,16 mm23,4 mm432 kg/km838 kg/km Send inquiry
L3727252525 x 2,50 mm²0,16 mm28,4 mm600 kg/km1132 kg/km Send inquiry
L372703403 x 4,00 mm²0,16 mm12,1 mm115,2 kg/km227 kg/km Send inquiry
L372704404 x 4,00 mm²0,16 mm13,1 mm153,6 kg/km280 kg/km Send inquiry
L372705405 x 4,00 mm²0,16 mm15,1 mm192 kg/km368 kg/km Send inquiry
L372707407 x 4,00 mm²0,16 mm17,9 mm268,8 kg/km525 kg/km Send inquiry
L372703603 x 6,00 mm²0,21 mm14,3 mm172,8 kg/km320 kg/km Send inquiry
L372704604 x 6,00 mm²0,21 mm15,5 mm230,4 kg/km396 kg/km Send inquiry
L372705605 x 6,00 mm²0,21 mm17,1 mm288 kg/km493 kg/km Send inquiry
L372707607 x 6,00 mm²0,21 mm20,7 mm403,2 kg/km722 kg/km Send inquiry
L372703613 x 10,0 mm²0,21 mm18 mm288 kg/km497 kg/km Send inquiry
L372704614 x 10,0 mm²0,21 mm19,9 mm384 kg/km641 kg/km Send inquiry
L372705615 x 10,0 mm²0,21 mm22,6 mm480 kg/km839 kg/km Send inquiry
L372703623 x 16,0 mm²0,21 mm23,2 mm460,8 kg/km793 kg/km Send inquiry
L372704624 x 16,0 mm²0,21 mm25,5 mm614,4 kg/km1014 kg/km Send inquiry
L372705625 x 16,0 mm²0,21 mm28,5 mm768 kg/km1303 kg/km Send inquiry
L372704634 x 25,0 mm²0,21 mm28,8 mm960 kg/km1390 kg/km Send inquiry
L372705635 x 25,0 mm²0,21 mm32,3 mm1200 kg/km1790 kg/km Send inquiry
L372704644 x 35,0 mm²0,21 mm32,9 mm1334 kg/km1880 kg/km Send inquiry
L372705645 x 35,0 mm²0,21 mm36,9 mm1680 kg/km2416 kg/km Send inquiry
L372704654 x 50,0 mm²0,21 mm42 mm1920 kg/km2835 kg/km Send inquiry
item no.
No. of cores x
cross section
Largest single
wire-ø
Outer-ø
Copper figure
Cable weight ≈
L37270205
2 x 0,50 mm²
0,16 mm
7,8 mm
9,6 kg/km
69 kg/km
L37270305
3 x 0,50 mm²
0,16 mm
8,1 mm
14,4 kg/km
81 kg/km
L37270405
4 x 0,50 mm²
0,16 mm
8,8 mm
19,2 kg/km
96 kg/km
L37270505
5 x 0,50 mm²
0,16 mm
9,6 mm
24 kg/km
113 kg/km
L37270705
7 x 0,50 mm²
0,16 mm
11,1 mm
33,6 kg/km
160 kg/km
L37271205
12 x 0,50 mm²
0,16 mm
14,1 mm
57,6 kg/km
241 kg/km
L37271805
18 x 0,50 mm²
0,16 mm
16,3 mm
86,4 kg/km
337 kg/km
L37272505
25 x 0,50 mm²
0,16 mm
19,8 mm
120 kg/km
452 kg/km
L37273405
34 x 0,50 mm²
0,16 mm
22,7 mm
163,2 kg/km
622 kg/km
L37275005
50 x 0,50 mm²
0,16 mm
26,7 mm
240 kg/km
857 kg/km
L37276105
61 x 0,50 mm²
0,16 mm
29,4 mm
292,8 kg/km
1052 kg/km
L37270207
2 x 0,75 mm²
0,16 mm
8,2 mm
14,4 kg/km
77 kg/km
L37270307
3 x 0,75 mm²
0,16 mm
8,6 mm
21,6 kg/km
91 kg/km
L37270407
4 x 0,75 mm²
0,16 mm
9,3 mm
28,8 kg/km
109 kg/km
L37270507
5 x 0,75 mm²
0,16 mm
10,1 mm
36 kg/km
132 kg/km
L37270707
7 x 0,75 mm²
0,16 mm
11,8 mm
50,4 kg/km
182 kg/km
L37271207
12 x 0,75 mm²
0,16 mm
14,9 mm
86,4 kg/km
273 kg/km
L37271807
18 x 0,75 mm²
0,16 mm
17,3 mm
129,6 kg/km
384 kg/km
L37272507
25 x 0,75 mm²
0,16 mm
21,2 mm
180 kg/km
527 kg/km
L37273407
34 x 0,75 mm²
0,16 mm
24,1 mm
244,8 kg/km
710 kg/km
L37275007
50 x 0,75 mm²
0,16 mm
28,6 mm
360 kg/km
997 kg/km
L37276107
61 x 0,75 mm²
0,16 mm
31,5 mm
439,2 kg/km
1223 kg/km
L37270210
2 x 1,00 mm²
0,16 mm
8,4 mm
19,2 kg/km
84 kg/km
L37270310
3 x 1,00 mm²
0,16 mm
8,8 mm
28,8 kg/km
100 kg/km
L37270410
4 x 1,00 mm²
0,16 mm
9,5 mm
38,4 kg/km
121 kg/km
L37270510
5 x 1,00 mm²
0,16 mm
10,4 mm
48 kg/km
147 kg/km
L37270710
7 x 1,00 mm²
0,16 mm
12,2 mm
67,2 kg/km
205 kg/km
L37271210
12 x 1,00 mm²
0,16 mm
15,4 mm
115,2 kg/km
308 kg/km
L37271810
18 x 1,00 mm²
0,16 mm
18 mm
172,8 kg/km
444 kg/km
L37272510
25 x 1,00 mm²
0,16 mm
22,3 mm
240 kg/km
623 kg/km
L37273410
34 x 1,00 mm²
0,16 mm
24,8 mm
326,4 kg/km
807 kg/km
L37275010
50 x 1,00 mm²
0,16 mm
29,6 mm
480 kg/km
1149 kg/km
L37276110
61 x 1,00 mm²
0,16 mm
32,6 mm
585,6 kg/km
1407 kg/km
L37270215
2 x 1,50 mm²
0,16 mm
9 mm
28,8 kg/km
100 kg/km
L37270315
3 x 1,50 mm²
0,16 mm
9,4 mm
43,2 kg/km
122 kg/km
L37270415
4 x 1,50 mm²
0,16 mm
10,2 mm
57,6 kg/km
148 kg/km
L37270515
5 x 1,50 mm²
0,16 mm
11,2 mm
72 kg/km
182 kg/km
L37270715
7 x 1,50 mm²
0,16 mm
13,4 mm
100,8 kg/km
264 kg/km
L37271215
12 x 1,50 mm²
0,16 mm
16,6 mm
172,8 kg/km
385 kg/km
L37271815
18 x 1,50 mm²
0,16 mm
19,7 mm
259,2 kg/km
568 kg/km
L37272515
25 x 1,50 mm²
0,16 mm
24,2 mm
360 kg/km
782 kg/km
L37273415
34 x 1,50 mm²
0,16 mm
27,2 mm
489,6 kg/km
1038 kg/km
L37275015
50 x 1,50 mm²
0,16 mm
32,5 mm
720 kg/km
1486 kg/km
L37276115
61 x 1,50 mm²
0,16 mm
35,8 mm
878,4 kg/km
1820 kg/km
L37270225
2 x 2,50 mm²
0,16 mm
10,2 mm
48 kg/km
133 kg/km
L37270325
3 x 2,50 mm²
0,16 mm
10,7 mm
72 kg/km
166 kg/km
L37270425
4 x 2,50 mm²
0,16 mm
11,7 mm
96 kg/km
204 kg/km
L37270525
5 x 2,50 mm²
0,16 mm
12,9 mm
120 kg/km
255 kg/km
L37270725
7 x 2,50 mm²
0,16 mm
15,8 mm
168 kg/km
378 kg/km
L37271225
12 x 2,50 mm²
0,16 mm
19,5 mm
288 kg/km
558 kg/km
L37271825
18 x 2,50 mm²
0,16 mm
23,4 mm
432 kg/km
838 kg/km
L37272525
25 x 2,50 mm²
0,16 mm
28,4 mm
600 kg/km
1132 kg/km
L37270340
3 x 4,00 mm²
0,16 mm
12,1 mm
115,2 kg/km
227 kg/km
L37270440
4 x 4,00 mm²
0,16 mm
13,1 mm
153,6 kg/km
280 kg/km
L37270540
5 x 4,00 mm²
0,16 mm
15,1 mm
192 kg/km
368 kg/km
L37270740
7 x 4,00 mm²
0,16 mm
17,9 mm
268,8 kg/km
525 kg/km
L37270360
3 x 6,00 mm²
0,21 mm
14,3 mm
172,8 kg/km
320 kg/km
L37270460
4 x 6,00 mm²
0,21 mm
15,5 mm
230,4 kg/km
396 kg/km
L37270560
5 x 6,00 mm²
0,21 mm
17,1 mm
288 kg/km
493 kg/km
L37270760
7 x 6,00 mm²
0,21 mm
20,7 mm
403,2 kg/km
722 kg/km
L37270361
3 x 10,0 mm²
0,21 mm
18 mm
288 kg/km
497 kg/km
L37270461
4 x 10,0 mm²
0,21 mm
19,9 mm
384 kg/km
641 kg/km
L37270561
5 x 10,0 mm²
0,21 mm
22,6 mm
480 kg/km
839 kg/km
L37270362
3 x 16,0 mm²
0,21 mm
23,2 mm
460,8 kg/km
793 kg/km
L37270462
4 x 16,0 mm²
0,21 mm
25,5 mm
614,4 kg/km
1014 kg/km
L37270562
5 x 16,0 mm²
0,21 mm
28,5 mm
768 kg/km
1303 kg/km
L37270463
4 x 25,0 mm²
0,21 mm
28,8 mm
960 kg/km
1390 kg/km
L37270563
5 x 25,0 mm²
0,21 mm
32,3 mm
1200 kg/km
1790 kg/km
L37270464
4 x 35,0 mm²
0,21 mm
32,9 mm
1334 kg/km
1880 kg/km
L37270564
5 x 35,0 mm²
0,21 mm
36,9 mm
1680 kg/km
2416 kg/km
L37270465
4 x 50,0 mm²
0,21 mm
42 mm
1920 kg/km
2835 kg/km

Other dimensions and colours are possible on request.

Highly flexible cables according to your special requirements

Family business for construction and production since 1947

Please send us your inquiry
+49 (0)2162 898-0
Monday to Thursday, 7.30–16.30
Friday, 07.30–15.00
