SAB Kabel

S 980 CP

UL/CSA flexible TPE/PUR control cable with numbered cores and overall copper screen

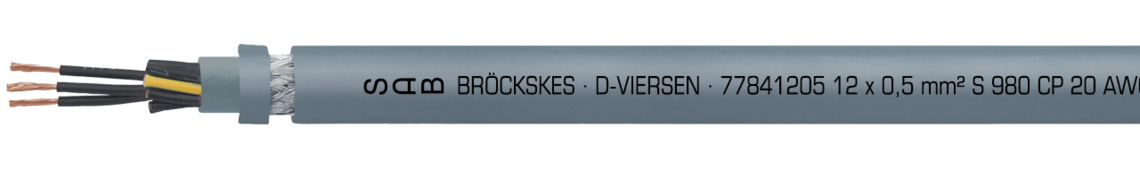

Marking for S 980 CP 77840715: SAB BRÖCKSKES · D-VIERSEN · 77841205 12 x 0,5 mm² S 980 CP 20 AWG/7c 77842012 UL AWM Style 21060 80°C 600V CSA AWM I/II A/B 80°C 600V FT1 FT2 CE

Marking for S 980 CP 77840715: SAB BRÖCKSKES · D-VIERSEN · 77841205 12 x 0,5 mm² S 980 CP 20 AWG/7c 77842012 UL AWM Style 21060 80°C 600V CSA AWM I/II A/B 80°C 600V FT1 FT2 CE

Application

S 980 CP is a continuously flexible TPE/PUR control cable with uncritical PWIS, numbered cores and overall copper screen. This screened drag cable is recommended for use in handling, material handling and automation technologies, wood working and packaging machines, industrial robot construction, car manufacturing industry, and high rack construction.

Outstanding features

●     PWIS uncritical (PWIS= paint-wetting impairment substances)
●     halogen-free
●     flexible at low temperatures
●     travel > 10 m is possible
●     high abrasion resistance
●     small bending radius
●     good EMC characteristics

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

TPE

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

specially adjusted layering with non-woven tape over each layer

Inner sheath

special-SABIX®

Wrapping

netting tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

Sheath colour

grey (RAL 7000)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

TPE

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

specially adjusted layering with non-woven tape over each layer

Inner sheath

special-SABIX®

Wrapping

netting tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

Sheath colour

grey (RAL 7000)

Technical data

Nominal voltage

Uo/U 300/500 V

Voltage UL/CSA

600 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -50/+90°C

DIN VDE flexible application: -40/+90 °C

UL/CSA: up to +80°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

CSA FT1, FT2

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Continuous flexibility

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Voltage UL/CSA

600 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -50/+90°C

DIN VDE flexible application: -40/+90 °C

UL/CSA: up to +80°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

CSA FT1, FT2

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Continuous flexibility

very good

Dimensions

item no. no. of cores x
cross section
largest single
wire-ø
outer-ø ± 5% copper figure cable weight ca.
778403053 x 0,50 mm²0,16 mm8,6 mm35,9 kg/km86 kg/km Send inquiry
778404054 x 0,50 mm²0,16 mm9 mm42,9 kg/km98 kg/km Send inquiry
778405055 x 0,50 mm²0,16 mm9,7 mm50,2 kg/km112 kg/km Send inquiry
778407057 x 0,50 mm²0,16 mm10,8 mm62,8 kg/km137 kg/km Send inquiry
7784120512 x 0,50 mm²0,16 mm12,6 mm112,1 kg/km204 kg/km Send inquiry
7784180518 x 0,50 mm²0,16 mm14,7 mm172,4 kg/km286 kg/km Send inquiry
7784250525 x 0,50 mm²0,16 mm17,1 mm230,2 kg/km380 kg/km Send inquiry
7784300530 x 0,50 mm²0,16 mm18 mm255,2 kg/km434 kg/km Send inquiry
7784360536 x 0,50 mm²0,16 mm19,2 mm296,9 kg/km498 kg/km Send inquiry
778403073 x 0,75 mm²0,16 mm9 mm45,3 kg/km96 kg/km Send inquiry
778404074 x 0,75 mm²0,16 mm9,5 mm55 kg/km110 kg/km Send inquiry
778405075 x 0,75 mm²0,16 mm10,3 mm65 kg/km127 kg/km Send inquiry
778407077 x 0,75 mm²0,16 mm11,7 mm104,3 kg/km172 kg/km Send inquiry
7784120712 x 0,75 mm²0,16 mm13,8 mm146,2 kg/km254 kg/km Send inquiry
7784180718 x 0,75 mm²0,16 mm16 mm227,5 kg/km354 kg/km Send inquiry
7784250725 x 0,75 mm²0,16 mm18,7 mm303,4 kg/km455 kg/km Send inquiry
7784300730 x 0,75 mm²0,16 mm19 mm339,8 kg/km522 kg/km Send inquiry
7784360736 x 0,75 mm²0,16 mm20,4 mm384,9 kg/km599 kg/km Send inquiry
778403103 x 1,00 mm²0,16 mm9,2 mm52,6 kg/km105 kg/km Send inquiry
778404104 x 1,00 mm²0,16 mm9,8 mm64,7 kg/km122 kg/km Send inquiry
778405105 x 1,00 mm²0,16 mm10,5 mm77,1 kg/km141 kg/km Send inquiry
778407107 x 1,00 mm²0,16 mm12,1 mm121,4 kg/km192 kg/km Send inquiry
7784121012 x 1,00 mm²0,16 mm14,2 mm200,8 kg/km299 kg/km Send inquiry
7784181018 x 1,00 mm²0,16 mm16,1 mm270,8 kg/km401 kg/km Send inquiry
7784251025 x 1,00 mm²0,16 mm19,3 mm364,3 kg/km521 kg/km Send inquiry
7784301030 x 1,00 mm²0,16 mm19,7 mm412,9 kg/km603 kg/km Send inquiry
7784361036 x 1,00 mm²0,16 mm22,8 mm484,8 kg/km776 kg/km Send inquiry
778403153 x 1,50 mm²0,16 mm9,5 mm69,4 kg/km119 kg/km Send inquiry
778404154 x 1,50 mm²0,16 mm10,8 mm86,8 kg/km152 kg/km Send inquiry
778405155 x 1,50 mm²0,16 mm11,5 mm119,8 kg/km189 kg/km Send inquiry
778407157 x 1,50 mm²0,16 mm13,2 mm160,4 kg/km250 kg/km Send inquiry
7784121512 x 1,50 mm²0,16 mm15,7 mm270,4 kg/km384 kg/km Send inquiry
7784181518 x 1,50 mm²0,16 mm18 mm370,8 kg/km515 kg/km Send inquiry
7784251525 x 1,50 mm²0,16 mm23,1 mm499,7 kg/km776 kg/km Send inquiry
7784301530 x 1,50 mm²0,16 mm23,5 mm572,5 kg/km865 kg/km Send inquiry
7784361536 x 1,50 mm²0,16 mm24,9 mm685,5 kg/km1004 kg/km Send inquiry
778403253 x 2,50 mm²0,16 mm11,4 mm119,7 kg/km183 kg/km Send inquiry
778404254 x 2,50 mm²0,16 mm12,1 mm150,2 kg/km218 kg/km Send inquiry
778405255 x 2,50 mm²0,16 mm13,4 mm179,7 kg/km260 kg/km Send inquiry
778407257 x 2,50 mm²0,16 mm15,5 mm265,4 kg/km369 kg/km Send inquiry
7784122512 x 2,50 mm²0,16 mm18,7 mm411,4 kg/km559 kg/km Send inquiry
7784182518 x 2,50 mm²0,16 mm23,4 mm572,3 kg/km843 kg/km Send inquiry
7784252525 x 2,50 mm²0,16 mm27,2 mm772,8 kg/km1079 kg/km Send inquiry
778403403 x 4,00 mm²0,16 mm12,6 mm169,7 kg/km249 kg/km Send inquiry
778404404 x 4,00 mm²0,16 mm13,8 mm213,6 kg/km305 kg/km Send inquiry
778405405 x 4,00 mm²0,16 mm15,2 mm289,3 kg/km374 kg/km Send inquiry
778403603 x 6,00 mm²0,21 mm14,7 mm258,8 kg/km349 kg/km Send inquiry
778404604 x 6,00 mm²0,21 mm15,8 mm328,3 kg/km437 kg/km Send inquiry
778405605 x 6,00 mm²0,21 mm17,3 mm398,4 kg/km497 kg/km Send inquiry
778403613 x 10,0 mm²0,21 mm18,8 mm411,5 kg/km553 kg/km Send inquiry
778404614 x 10,0 mm²0,21 mm20,5 mm509,9 kg/km681 kg/km Send inquiry
778405615 x 10,0 mm²0,21 mm24,3 mm645,7 kg/km903 kg/km Send inquiry
778403623 x 16,0 mm²0,21 mm22,3 mm601,1 kg/km786 kg/km Send inquiry
778404624 x 16,0 mm²0,21 mm25,2 mm782,2 kg/km1046 kg/km Send inquiry
778405625 x 16,0 mm²0,21 mm28,2 mm943,3 kg/km1257 kg/km Send inquiry
778404634 x 25,0 mm²0,21 mm29,7 mm1155,1 kg/km1504 kg/km Send inquiry
778405635 x 25,0 mm²0,21 mm32,6 mm1406,1 kg/km1802 kg/km Send inquiry
778404644 x 35,0 mm²0,21 mm33,2 mm1552,5 kg/km1918 kg/km Send inquiry
778405645 x 35,0 mm²0,21 mm36,5 mm1914,1 kg/km2299 kg/km Send inquiry
