S 980 P

UL/CSA flexible TPE/PUR control cable with numbered cores

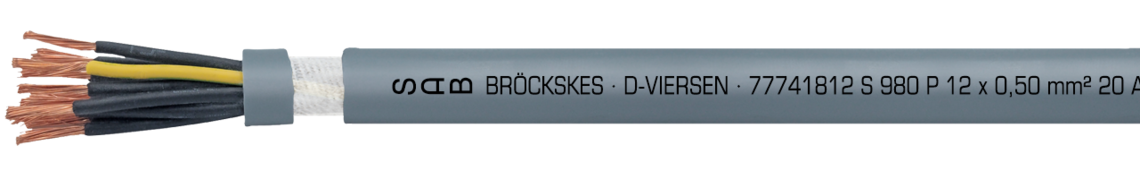

Marking for S 980 P 77741807: SAB BRÖCKSKES · D-VIERSEN · 77741812 S 980 P 12 x 0,50 mm² 20 AWG/12c 77742012 UL AWM Style 21060 80°C 600V CSA AWM I/II A/B 80°C 600V FT1 FT2 CE

Marking for S 980 P 77741807: SAB BRÖCKSKES · D-VIERSEN · 77741812 S 980 P 12 x 0,50 mm² 20 AWG/12c 77742012 UL AWM Style 21060 80°C 600V CSA AWM I/II A/B 80°C 600V FT1 FT2 CE

Application

Flexible control cable (TPE/PUR) with numbered cores and flexibility at low temperatures. It is recommended for use in handling, material handling and automation technologies, wood working and packaging machines, industrial robot construction, car manufacturing industry, and high rack construction.

Outstanding features

  • PWIS uncritical (PWIS= paint-wetting impairment substances)
  • halogen-free
  • flexible at low temperatures
  • travel > 10 m is possible
  • high abrasion resistance
  • small bending radius

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

TPE

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

specially adjusted layering with non-woven tape over each layer and one additional non-woven tape over the outer layer

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

Sheath colour

grey (RAL 7000)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

TPE

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

specially adjusted layering with non-woven tape over each layer and one additional non-woven tape over the outer layer

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

Sheath colour

grey (RAL 7000)

Technical data

Nominal voltage

Uo/U 300/500 V

Voltage UL/CSA

600 V

Testing voltage

core/core 2000 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -50/+90°C

DIN VDE flexible application: -40/+90 °C

UL/CSA: up to +80°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

CSA FT1, FT2

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc..

Continuous flexibility

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Voltage UL/CSA

600 V

Testing voltage

core/core 2000 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -50/+90°C

DIN VDE flexible application: -40/+90 °C

UL/CSA: up to +80°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

CSA FT1, FT2

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc..

Continuous flexibility

very good

Dimensions

item no. no. of cores x
cross section
largest single
wire-ø
outer-ø ± 5% copper figure cable weight ca.
777403053 x 0,50 mm²0,16 mm6,6 mm14,4 kg/km52 kg/km Send inquiry
777404054 x 0,50 mm²0,16 mm7,1 mm19,2 kg/km61 kg/km Send inquiry
777405055 x 0,50 mm²0,16 mm7,8 mm24 kg/km72 kg/km Send inquiry
777407057 x 0,50 mm²0,16 mm8,9 mm33,6 kg/km93 kg/km Send inquiry
7774120512 x 0,50 mm²0,16 mm10,5 mm57,6 kg/km139 kg/km Send inquiry
7774180518 x 0,50 mm²0,16 mm12,1 mm86,4 kg/km192 kg/km Send inquiry
7774250525 x 0,50 mm²0,16 mm14,3 mm120 kg/km255 kg/km Send inquiry
7774340534 x 0,50 mm²0,16 mm16,2 mm163,2 kg/km338 kg/km Send inquiry
7774500550 x 0,50 mm²0,16 mm18,8 mm240 kg/km474 kg/km Send inquiry
7774610561 x 0,50 mm²0,16 mm21 mm292,8 kg/km583 kg/km Send inquiry
777403073 x 0,75 mm²0,16 mm7,1 mm21,6 kg/km60 kg/km Send inquiry
777404074 x 0,75 mm²0,16 mm7,6 mm28,8 kg/km71 kg/km Send inquiry
777405075 x 0,75 mm²0,16 mm8,4 mm36 kg/km85 kg/km Send inquiry
777407077 x 0,75 mm²0,16 mm9,6 mm50,4 kg/km109 kg/km Send inquiry
7774120712 x 0,75 mm²0,16 mm11,2 mm86,4 kg/km164 kg/km Send inquiry
7774180718 x 0,75 mm²0,16 mm13,3 mm129,6 kg/km230 kg/km Send inquiry
7774250725 x 0,75 mm²0,16 mm15,7 mm180 kg/km312 kg/km Send inquiry
7774340734 x 0,75 mm²0,16 mm17,7 mm244,8 kg/km405 kg/km Send inquiry
7774500750 x 0,75 mm²0,16 mm20,7 mm360 kg/km579 kg/km Send inquiry
7774610761 x 0,75 mm²0,16 mm24 mm439,2 kg/km752 kg/km Send inquiry
777403103 x 1,00 mm²0,16 mm7,3 mm28,8 kg/km68 kg/km Send inquiry
777404104 x 1,00 mm²0,16 mm7,9 mm38,4 kg/km83 kg/km Send inquiry
777405105 x 1,00 mm²0,16 mm8,6 mm48 kg/km98 kg/km Send inquiry
777407107 x 1,00 mm²0,16 mm10 mm67,2 kg/km128 kg/km Send inquiry
7774121012 x 1,00 mm²0,16 mm11,7 mm115,2 kg/km195 kg/km Send inquiry
7774181018 x 1,00 mm²0,16 mm13,7 mm172,8 kg/km275 kg/km Send inquiry
7774251025 x 1,00 mm²0,16 mm16,3 mm240 kg/km375 kg/km Send inquiry
7774341034 x 1,00 mm²0,16 mm18,4 mm326,4 kg/km493 kg/km Send inquiry
7774501050 x 1,00 mm²0,16 mm22,9 mm480 kg/km760 kg/km Send inquiry
7774611061 x 1,00 mm²0,16 mm25 mm585,6 kg/km905 kg/km Send inquiry
777403153 x 1,50 mm²0,16 mm8 mm43,2 kg/km87 kg/km Send inquiry
777404154 x 1,50 mm²0,16 mm8,9 mm57,6 kg/km108 kg/km Send inquiry
777405155 x 1,50 mm²0,16 mm9,4 mm72 kg/km131 kg/km Send inquiry
777407157 x 1,50 mm²0,16 mm10,9 mm100,8 kg/km168 kg/km Send inquiry
7774121512 x 1,50 mm²0,16 mm13 mm172,8 kg/km261 kg/km Send inquiry
7774181518 x 1,50 mm²0,16 mm14,3 mm259,2 kg/km367 kg/km Send inquiry
7774251525 x 1,50 mm²0,16 mm18,3 mm360 kg/km512 kg/km Send inquiry
7774341534 x 1,50 mm²0,16 mm20,6 mm489,6 kg/km680 kg/km Send inquiry
7774501550 x 1,50 mm²0,16 mm25,3 mm720 kg/km1026 kg/km Send inquiry
7774611561 x 1,50 mm²0,16 mm27,7 mm878,4 kg/km1228 kg/km Send inquiry
777403253 x 2,50 mm²0,16 mm9,3 mm72 kg/km126 kg/km Send inquiry
777404254 x 2,50 mm²0,16 mm10 mm96 kg/km155 kg/km Send inquiry
777405255 x 2,50 mm²0,16 mm11,1 mm120 kg/km187 kg/km Send inquiry
777407257 x 2,50 mm²0,16 mm12,8 mm168 kg/km249 kg/km Send inquiry
7774122512 x 2,50 mm²0,16 mm15,7 mm288 kg/km400 kg/km Send inquiry
7774182518 x 2,50 mm²0,16 mm18,6 mm432 kg/km577 kg/km Send inquiry
7774252525 x 2,50 mm²0,16 mm23,5 mm600 kg/km847 kg/km Send inquiry
777403403 x 4,00 mm²0,16 mm10,5 mm115,2 kg/km221 kg/km Send inquiry
777404404 x 4,00 mm²0,16 mm11,5 mm153,6 kg/km232 kg/km Send inquiry
777405405 x 4,00 mm²0,16 mm12,6 mm192 kg/km271 kg/km Send inquiry
777403603 x 6,00 mm²0,21 mm12,2 mm172,8 kg/km257 kg/km Send inquiry
777404604 x 6,00 mm²0,21 mm13,3 mm230,4 kg/km323 kg/km Send inquiry
777405605 x 6,00 mm²0,21 mm14,6 mm288 kg/km376 kg/km Send inquiry
777403613 x 10,0 mm²0,21 mm15,8 mm288 kg/km418 kg/km Send inquiry
777404614 x 10,0 mm²0,21 mm17,4 mm384 kg/km536 kg/km Send inquiry
777405615 x 10,0 mm²0,21 mm19,5 mm480 kg/km653 kg/km Send inquiry
777403623 x 16,0 mm²0,21 mm18,6 mm460,8 kg/km594 kg/km Send inquiry
777404624 x 16,0 mm²0,21 mm20,6 mm614,4 kg/km824 kg/km Send inquiry
777405625 x 16,0 mm²0,21 mm24,5 mm768 kg/km1062 kg/km Send inquiry
777404634 x 25,0 mm²0,21 mm26 mm960 kg/km1243 kg/km Send inquiry
777405635 x 25,0 mm²0,21 mm28,9 mm1200 kg/km1512 kg/km Send inquiry
777404644 x 35,0 mm²0,21 mm29,5 mm1344 kg/km1626 kg/km Send inquiry
777405645 x 35,0 mm²0,21 mm32,8 mm1680 kg/km1983 kg/km Send inquiry
777404654 x 50,0 mm²0,31 mm36,2 mm1920 kg/km2331 kg/km Send inquiry
