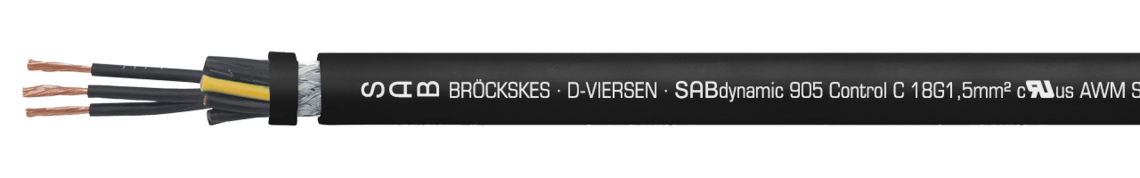

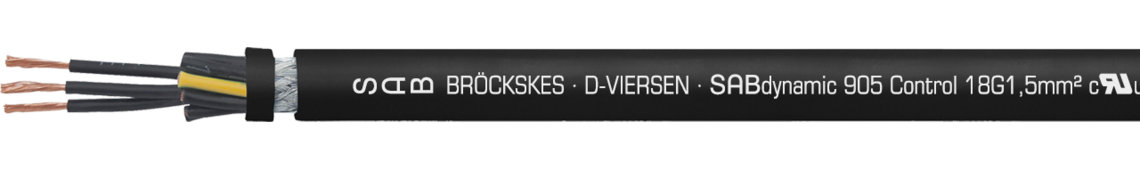

Continuously flexible SABIX®/PUR power cable, robust, oil resistant and flame retardant with numbered cores and overall copper screen

bare copper strands acc. to IEC 60228, VDE 0295, class 6

SABIX®

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

specially adjusted layering with non-woven tape over each layer

tinned copper braiding

non-woven tape

PUR with mat surface

black (RAL 9005)

Uo/U 0,6/1 kV

1000 V

core/core 4000 V

core/screen 4000 V

fixed laying: 3 x d

flexible application: 7,5 x d

bending cycles: > 10 million

DIN VDE

fixed laying: -50/+90 °C

flexible application: -40/+90 °C

cULus: up to +80 °C

acc. to IEC 60754-1 + VDE 0482-754-1

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, cULus FT1, FT2

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

good against acids, alkalines, solvents, hydraulic liquids etc.

very good

acc. to HD 605

acc. to DIN EN 50396

acc. to UL 1309

acc. to RoHS directive of the European Union
