SD 960 CP TP

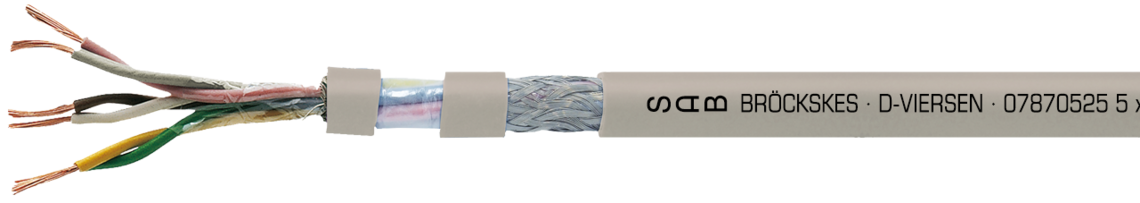

Continuously flexible paired PUR data cable with coloured cores and overall copper screen

Marking for SD 960 CP TP 07870725: SAB BRÖCKSKES · D-VIERSEN · 07870525 5 x 2 x 0,25 mm² SD 960 CP TP 24 AWG/5pr 07872405 UL AWM Style 20549 80°C 300V CSA AWM I/II A/B 80°C 300V FT1 FT2 CE

Marking for SD 960 CP TP 07870725: SAB BRÖCKSKES · D-VIERSEN · 07870525 5 x 2 x 0,25 mm² SD 960 CP TP 24 AWG/5pr 07872405 UL AWM Style 20549 80°C 300V CSA AWM I/II A/B 80°C 300V FT1 FT2 CE

Application

SD 960 CP TP is a continuously flexible paired PUR data cable with coloured cores and overall copper screen as well as high abrasion resistance. This UL/CSA approved cable has a very good EMC protection and It is recommended for use in handling, material handling and automation technologies, wood working and packaging machines, car manufacturing industry, and press manufacturing.

Outstanding features

  • screened, very good EMC characteristics
  • very good flexibility
  • high abrasion resistance

Additional information

Possible on request!

  • with coloured cores
  • with reference to DIN 47100

Construction

Conductor

bare copper strands, extra fine wires

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

acc. to colour code US 3

Stranding

cores twisted to pairs, pairs twisted in specially adjusted layering with one non-woven tape over the outer layer

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PU acc. to UL 758 with mat surface

Sheath colour

grey (RAL 7032)

Conductor

bare copper strands, extra fine wires

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Stranding

cores twisted to pairs, pairs twisted in specially adjusted layering with one non-woven tape over the outer layer

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PU acc. to UL 758 with mat surface

Sheath colour

grey (RAL 7032)

Technical data

Peak operating voltage

max. 350 V

Voltage UL/CSA

300 V

Testing voltage

core/core 1500 V

core/screen 1200 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -30/+70 °C

DIN VDE flexible application: -5/+70°C

UL/CSA: up to +80°C

Fire performance

flame retardant and self-extinguishing acc. to UL FT1, CSA FT1, FT2

Oil resistance

very good - oilrating 60°C acc. to UL 758

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

Voltage UL/CSA

300 V

Testing voltage

core/core 1500 V

core/screen 1200 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -30/+70 °C

DIN VDE flexible application: -5/+70°C

UL/CSA: up to +80°C

Fire performance

flame retardant and self-extinguishing acc. to UL FT1, CSA FT1, FT2

Oil resistance

very good - oilrating 60°C acc. to UL 758

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of pairs x cross section
n x 2 x mm²
Largest single
wire-ø
Outer-ø ± 10% Copper figure Cable weight ≈
L078702142 x 2 x 0,14 mm²0,11 mm6,4 mm19,3 kg/km46 kg/km Send inquiry
L078703143 x 2 x 0,14 mm²0,11 mm6,8 mm25 kg/km52 kg/km Send inquiry
L078704144 x 2 x 0,14 mm²0,11 mm7,9 mm31,2 kg/km64 kg/km Send inquiry
L078705145 x 2 x 0,14 mm²0,11 mm8,5 mm34,1 kg/km75 kg/km Send inquiry
L078707147 x 2 x 0,14 mm²0,11 mm9 mm41,6 kg/km116 kg/km Send inquiry
L0787101410 x 2 x 0,14 mm²0,11 mm10,6 mm68,3 kg/km125 kg/km Send inquiry
L0787141414 x 2 x 0,14 mm²0,11 mm12,6 mm89,3 kg/km169 kg/km Send inquiry
L0787181418 x 2 x 0,14 mm²0,11 mm14,1 mm122,6 kg/km236 kg/km Send inquiry
L0787251425 x 2 x 0,14 mm²0,11 mm16,2 mm152,3 kg/km292 kg/km Send inquiry
L078702252 x 2 x 0,25 mm²0,11 mm6,8 mm25 kg/km52 kg/km Send inquiry
L078703253 x 2 x 0,25 mm²0,11 mm7,5 mm32,9 kg/km63 kg/km Send inquiry
L078704254 x 2 x 0,25 mm²0,11 mm8,4 mm39,8 kg/km76 kg/km Send inquiry
L078705255 x 2 x 0,25 mm²0,11 mm9,2 mm46,8 kg/km93 kg/km Send inquiry
L078707257 x 2 x 0,25 mm²0,11 mm9,8 mm58,9 kg/km121 kg/km Send inquiry
L0787102510 x 2 x 0,25 mm²0,11 mm11,9 mm95,1 kg/km165 kg/km Send inquiry
L0787142514 x 2 x 0,25 mm²0,11 mm14,3 mm141,5 kg/km238 kg/km Send inquiry
L0787182518 x 2 x 0,25 mm²0,11 mm15,6 mm170,9 kg/km301 kg/km Send inquiry
L0787252525 x 2 x 0,25 mm²0,11 mm17,6 mm216 kg/km370 kg/km Send inquiry
L078702342 x 2 x 0,34 mm²0,11 mm7,1 mm30,1 kg/km59 kg/km Send inquiry
L078703343 x 2 x 0,34 mm²0,11 mm7,7 mm38,1 kg/km69 kg/km Send inquiry
L078704344 x 2 x 0,34 mm²0,11 mm8,9 mm48,8 kg/km86 kg/km Send inquiry
L078705345 x 2 x 0,34 mm²0,11 mm9,6 mm57,8 kg/km101 kg/km Send inquiry
L078707347 x 2 x 0,34 mm²0,11 mm10,5 mm87 kg/km150 kg/km Send inquiry
L0787103410 x 2 x 0,34 mm²0,11 mm12,5 mm116,9 kg/km188 kg/km Send inquiry
L0787143414 x 2 x 0,34 mm²0,11 mm15,1 mm175,7 kg/km274 kg/km Send inquiry
L0787183418 x 2 x 0,34 mm²0,11 mm16,4 mm202,8 kg/km329 kg/km Send inquiry
L0787253425 x 2 x 0,34 mm²0,11 mm18,6 mm260,3 kg/km424 kg/km Send inquiry
L078702502 x 2 x 0,50 mm²0,11 mm7,7 mm37,8 kg/km75 kg/km Send inquiry
L078703503 x 2 x 0,50 mm²0,11 mm8,5 mm49,5 kg/km86 kg/km Send inquiry
L078704504 x 2 x 0,50 mm²0,11 mm9,7 mm63,6 kg/km109 kg/km Send inquiry
L078705505 x 2 x 0,50 mm²0,11 mm10,7 mm89,4 kg/km151 kg/km Send inquiry
L078707507 x 2 x 0,50 mm²0,11 mm11,9 mm114,3 kg/km183 kg/km Send inquiry
L0787105010 x 2 x 0,50 mm²0,11 mm14,3 mm170,3 kg/km266 kg/km Send inquiry
L0787145014 x 2 x 0,50 mm²0,11 mm16,7 mm229,5 kg/km357 kg/km Send inquiry
L0787185018 x 2 x 0,50 mm²0,11 mm18,1 mm269,3 kg/km458 kg/km Send inquiry
L0787255025 x 2 x 0,50 mm²0,11 mm20,5 mm349,1 kg/km560 kg/km Send inquiry
L078702752 x 2 x 0,75 mm²0,11 mm8,6 mm51,5 kg/km91 kg/km Send inquiry
L078703753 x 2 x 0,75 mm²0,11 mm9,5 mm68,4 kg/km108 kg/km Send inquiry
L078704754 x 2 x 0,75 mm²0,11 mm11,2 mm104,5 kg/km151 kg/km Send inquiry
L078705755 x 2 x 0,75 mm²0,11 mm12,4 mm123,5 kg/km193 kg/km Send inquiry
L078707757 x 2 x 0,75 mm²0,11 mm14 mm174,9 kg/km278 kg/km Send inquiry
L0787107510 x 2 x 0,75 mm²0,11 mm16,3 mm219,8 kg/km332 kg/km Send inquiry
L0787147514 x 2 x 0,75 mm²0,11 mm19,1 mm309,1 kg/km455 kg/km Send inquiry
L0787187518 x 2 x 0,75 mm²0,11 mm20,8 mm378,7 kg/km572 kg/km Send inquiry
L0787257525 x 2 x 0,75 mm²0,11 mm24,8 mm504,6 kg/km791 kg/km Send inquiry
item no.
No. of pairs x cross section
n x 2 x mm²
Largest single
wire-ø
Outer-ø ± 10%
Copper figure
Cable weight ≈
L07870214
2 x 2 x 0,14 mm²
0,11 mm
6,4 mm
19,3 kg/km
46 kg/km
L07870314
3 x 2 x 0,14 mm²
0,11 mm
6,8 mm
25 kg/km
52 kg/km
L07870414
4 x 2 x 0,14 mm²
0,11 mm
7,9 mm
31,2 kg/km
64 kg/km
L07870514
5 x 2 x 0,14 mm²
0,11 mm
8,5 mm
34,1 kg/km
75 kg/km
L07870714
7 x 2 x 0,14 mm²
0,11 mm
9 mm
41,6 kg/km
116 kg/km
L07871014
10 x 2 x 0,14 mm²
0,11 mm
10,6 mm
68,3 kg/km
125 kg/km
L07871414
14 x 2 x 0,14 mm²
0,11 mm
12,6 mm
89,3 kg/km
169 kg/km
L07871814
18 x 2 x 0,14 mm²
0,11 mm
14,1 mm
122,6 kg/km
236 kg/km
L07872514
25 x 2 x 0,14 mm²
0,11 mm
16,2 mm
152,3 kg/km
292 kg/km
L07870225
2 x 2 x 0,25 mm²
0,11 mm
6,8 mm
25 kg/km
52 kg/km
L07870325
3 x 2 x 0,25 mm²
0,11 mm
7,5 mm
32,9 kg/km
63 kg/km
L07870425
4 x 2 x 0,25 mm²
0,11 mm
8,4 mm
39,8 kg/km
76 kg/km
L07870525
5 x 2 x 0,25 mm²
0,11 mm
9,2 mm
46,8 kg/km
93 kg/km
L07870725
7 x 2 x 0,25 mm²
0,11 mm
9,8 mm
58,9 kg/km
121 kg/km
L07871025
10 x 2 x 0,25 mm²
0,11 mm
11,9 mm
95,1 kg/km
165 kg/km
L07871425
14 x 2 x 0,25 mm²
0,11 mm
14,3 mm
141,5 kg/km
238 kg/km
L07871825
18 x 2 x 0,25 mm²
0,11 mm
15,6 mm
170,9 kg/km
301 kg/km
L07872525
25 x 2 x 0,25 mm²
0,11 mm
17,6 mm
216 kg/km
370 kg/km
L07870234
2 x 2 x 0,34 mm²
0,11 mm
7,1 mm
30,1 kg/km
59 kg/km
L07870334
3 x 2 x 0,34 mm²
0,11 mm
7,7 mm
38,1 kg/km
69 kg/km
L07870434
4 x 2 x 0,34 mm²
0,11 mm
8,9 mm
48,8 kg/km
86 kg/km
L07870534
5 x 2 x 0,34 mm²
0,11 mm
9,6 mm
57,8 kg/km
101 kg/km
L07870734
7 x 2 x 0,34 mm²
0,11 mm
10,5 mm
87 kg/km
150 kg/km
L07871034
10 x 2 x 0,34 mm²
0,11 mm
12,5 mm
116,9 kg/km
188 kg/km
L07871434
14 x 2 x 0,34 mm²
0,11 mm
15,1 mm
175,7 kg/km
274 kg/km
L07871834
18 x 2 x 0,34 mm²
0,11 mm
16,4 mm
202,8 kg/km
329 kg/km
L07872534
25 x 2 x 0,34 mm²
0,11 mm
18,6 mm
260,3 kg/km
424 kg/km
L07870250
2 x 2 x 0,50 mm²
0,11 mm
7,7 mm
37,8 kg/km
75 kg/km
L07870350
3 x 2 x 0,50 mm²
0,11 mm
8,5 mm
49,5 kg/km
86 kg/km
L07870450
4 x 2 x 0,50 mm²
0,11 mm
9,7 mm
63,6 kg/km
109 kg/km
L07870550
5 x 2 x 0,50 mm²
0,11 mm
10,7 mm
89,4 kg/km
151 kg/km
L07870750
7 x 2 x 0,50 mm²
0,11 mm
11,9 mm
114,3 kg/km
183 kg/km
L07871050
10 x 2 x 0,50 mm²
0,11 mm
14,3 mm
170,3 kg/km
266 kg/km
L07871450
14 x 2 x 0,50 mm²
0,11 mm
16,7 mm
229,5 kg/km
357 kg/km
L07871850
18 x 2 x 0,50 mm²
0,11 mm
18,1 mm
269,3 kg/km
458 kg/km
L07872550
25 x 2 x 0,50 mm²
0,11 mm
20,5 mm
349,1 kg/km
560 kg/km
L07870275
2 x 2 x 0,75 mm²
0,11 mm
8,6 mm
51,5 kg/km
91 kg/km
L07870375
3 x 2 x 0,75 mm²
0,11 mm
9,5 mm
68,4 kg/km
108 kg/km
L07870475
4 x 2 x 0,75 mm²
0,11 mm
11,2 mm
104,5 kg/km
151 kg/km
L07870575
5 x 2 x 0,75 mm²
0,11 mm
12,4 mm
123,5 kg/km
193 kg/km
L07870775
7 x 2 x 0,75 mm²
0,11 mm
14 mm
174,9 kg/km
278 kg/km
L07871075
10 x 2 x 0,75 mm²
0,11 mm
16,3 mm
219,8 kg/km
332 kg/km
L07871475
14 x 2 x 0,75 mm²
0,11 mm
19,1 mm
309,1 kg/km
455 kg/km
L07871875
18 x 2 x 0,75 mm²
0,11 mm
20,8 mm
378,7 kg/km
572 kg/km
L07872575
25 x 2 x 0,75 mm²
0,11 mm
24,8 mm
504,6 kg/km
791 kg/km

Other dimensions and colours are possible on request.
