SD 960 CY

Screened flexible PVC data cable with coloured cores, UL, and overall copper screen

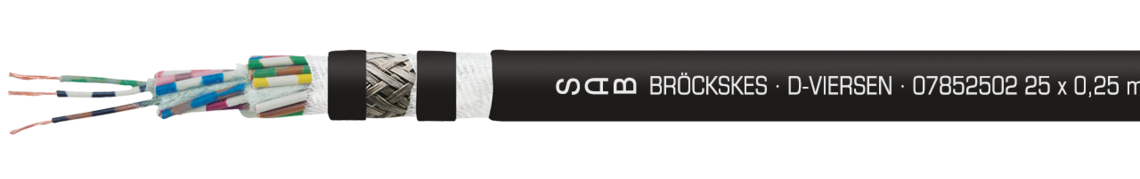

Marking for SD 960 CY 07852502: SAB BRÖCKSKES · D-VIERSEN · 07852502 25 x 0,25 mm² SD 960 CY 24 AWG/25c 07852425 UL AWM Style 21083 80°C 300V CE

Marking for SD 960 CY 07852502: SAB BRÖCKSKES · D-VIERSEN · 07852502 25 x 0,25 mm² SD 960 CY 24 AWG/25c 07852425 UL AWM Style 21083 80°C 300V CE

Application

The screened PVC data cable with coloured cores is recommended for use in wood working and packaging machines, assembly lines, automation plants, and it is also suitable for the American market.

Outstanding features

  • very good EMC characteristics
  • very good flexibility
  • small bending radius

Additional information

Possible on request:

  • in dimensions 0,50 mm² and 0,75 mm²
  • with grey outer sheath and coloured cores acc. to DIN 47100

Construction

Conductor

bare copper strands, extra fine wires

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

acc. to colour code US 2

Stranding

specially adjusted layering with

non-woven tape over each layer

Wrapping

non-woven tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PVC, TM2 acc. to EN 50363-3 + VDE 0207-363-3

Sheath colour

black (RAL 9005)

Conductor

bare copper strands, extra fine wires

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Stranding

specially adjusted layering with

non-woven tape over each layer

Wrapping

non-woven tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PVC, TM2 acc. to EN 50363-3 + VDE 0207-363-3

Sheath colour

black (RAL 9005)

Technical data

Peak operating voltage

max. 350 V

Voltage UL

300 V

Testing voltage

core/core 1500 V

core/screen 1200 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

8 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -30/+70°C

DIN VDE flexible application: -5/+70°C

UL: up to +80°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL VW-1

Oil resistance

acc. to internal standard

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

Voltage UL

300 V

Testing voltage

core/core 1500 V

core/screen 1200 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

8 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -30/+70°C

DIN VDE flexible application: -5/+70°C

UL: up to +80°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL VW-1

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5% Copper figure Cable weight ≈
078502012 x 0,14 mm²0,11 mm4,5 mm13,8 kg/km26 kg/km Send inquiry
078503013 x 0,14 mm²0,11 mm4,7 mm15,7 kg/km30 kg/km Send inquiry
078504014 x 0,14 mm²0,11 mm5,2 mm19,4 kg/km35 kg/km Send inquiry
078505015 x 0,14 mm²0,11 mm5,6 mm22,6 kg/km42 kg/km Send inquiry
078507017 x 0,14 mm²0,11 mm6,4 mm26,1 kg/km56 kg/km Send inquiry
0785100110 x 0,14 mm²0,11 mm7,5 mm45,7 kg/km67 kg/km Send inquiry
0785140114 x 0,14 mm²0,11 mm8,5 mm56,4 kg/km89 kg/km Send inquiry
0785180118 x 0,14 mm²0,11 mm9,3 mm64,7 kg/km109 kg/km Send inquiry
0785250125 x 0,14 mm²0,11 mm11 mm84,4 kg/km149 kg/km Send inquiry
078502022 x 0,25 mm²0,11 mm4,9 mm18 kg/km30 kg/km Send inquiry
078503023 x 0,25 mm²0,11 mm5,2 mm20,7 kg/km36 kg/km Send inquiry
078504024 x 0,25 mm²0,11 mm5,5 mm25,5 kg/km42 kg/km Send inquiry
078505025 x 0,25 mm²0,11 mm6,2 mm28,3 kg/km53 kg/km Send inquiry
078507027 x 0,25 mm²0,11 mm7,1 mm46,3 kg/km64 kg/km Send inquiry
0785100210 x 0,25 mm²0,11 mm8,5 mm61,7 kg/km90 kg/km Send inquiry
0785140214 x 0,25 mm²0,11 mm9,2 mm72,1 kg/km112 kg/km Send inquiry
0785180218 x 0,25 mm²0,11 mm10,1 mm93,2 kg/km137 kg/km Send inquiry
0785250225 x 0,25 mm²0,11 mm12,5 mm115,8 kg/km200 kg/km Send inquiry
078502032 x 0,34 mm²0,11 mm5,1 mm19,9 kg/km33 kg/km Send inquiry
078503033 x 0,34 mm²0,11 mm5,4 mm25,4 kg/km39 kg/km Send inquiry
078504034 x 0,34 mm²0,11 mm5,8 mm29,1 kg/km46 kg/km Send inquiry
078505035 x 0,34 mm²0,11 mm6,4 mm44,5 kg/km59 kg/km Send inquiry
078507037 x 0,34 mm²0,11 mm7,4 mm54,9 kg/km73 kg/km Send inquiry
0785100310 x 0,34 mm²0,11 mm8,8 mm70,9 kg/km102 kg/km Send inquiry
0785140314 x 0,34 mm²0,11 mm9,6 mm86,8 kg/km128 kg/km Send inquiry
0785180318 x 0,34 mm²0,11 mm10,8 mm109,4 kg/km169 kg/km Send inquiry
0785250325 x 0,34 mm²0,11 mm13 mm139,1 kg/km228 kg/km Send inquiry
item no.
No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5%
Copper figure
Cable weight ≈
07850201
2 x 0,14 mm²
0,11 mm
4,5 mm
13,8 kg/km
26 kg/km
07850301
3 x 0,14 mm²
0,11 mm
4,7 mm
15,7 kg/km
30 kg/km
07850401
4 x 0,14 mm²
0,11 mm
5,2 mm
19,4 kg/km
35 kg/km
07850501
5 x 0,14 mm²
0,11 mm
5,6 mm
22,6 kg/km
42 kg/km
07850701
7 x 0,14 mm²
0,11 mm
6,4 mm
26,1 kg/km
56 kg/km
07851001
10 x 0,14 mm²
0,11 mm
7,5 mm
45,7 kg/km
67 kg/km
07851401
14 x 0,14 mm²
0,11 mm
8,5 mm
56,4 kg/km
89 kg/km
07851801
18 x 0,14 mm²
0,11 mm
9,3 mm
64,7 kg/km
109 kg/km
07852501
25 x 0,14 mm²
0,11 mm
11 mm
84,4 kg/km
149 kg/km
07850202
2 x 0,25 mm²
0,11 mm
4,9 mm
18 kg/km
30 kg/km
07850302
3 x 0,25 mm²
0,11 mm
5,2 mm
20,7 kg/km
36 kg/km
07850402
4 x 0,25 mm²
0,11 mm
5,5 mm
25,5 kg/km
42 kg/km
07850502
5 x 0,25 mm²
0,11 mm
6,2 mm
28,3 kg/km
53 kg/km
07850702
7 x 0,25 mm²
0,11 mm
7,1 mm
46,3 kg/km
64 kg/km
07851002
10 x 0,25 mm²
0,11 mm
8,5 mm
61,7 kg/km
90 kg/km
07851402
14 x 0,25 mm²
0,11 mm
9,2 mm
72,1 kg/km
112 kg/km
07851802
18 x 0,25 mm²
0,11 mm
10,1 mm
93,2 kg/km
137 kg/km
07852502
25 x 0,25 mm²
0,11 mm
12,5 mm
115,8 kg/km
200 kg/km
07850203
2 x 0,34 mm²
0,11 mm
5,1 mm
19,9 kg/km
33 kg/km
07850303
3 x 0,34 mm²
0,11 mm
5,4 mm
25,4 kg/km
39 kg/km
07850403
4 x 0,34 mm²
0,11 mm
5,8 mm
29,1 kg/km
46 kg/km
07850503
5 x 0,34 mm²
0,11 mm
6,4 mm
44,5 kg/km
59 kg/km
07850703
7 x 0,34 mm²
0,11 mm
7,4 mm
54,9 kg/km
73 kg/km
07851003
10 x 0,34 mm²
0,11 mm
8,8 mm
70,9 kg/km
102 kg/km
07851403
14 x 0,34 mm²
0,11 mm
9,6 mm
86,8 kg/km
128 kg/km
07851803
18 x 0,34 mm²
0,11 mm
10,8 mm
109,4 kg/km
169 kg/km
07852503
25 x 0,34 mm²
0,11 mm
13 mm
139,1 kg/km
228 kg/km

Other dimensions and colours are possible on request.
