SD 960 P

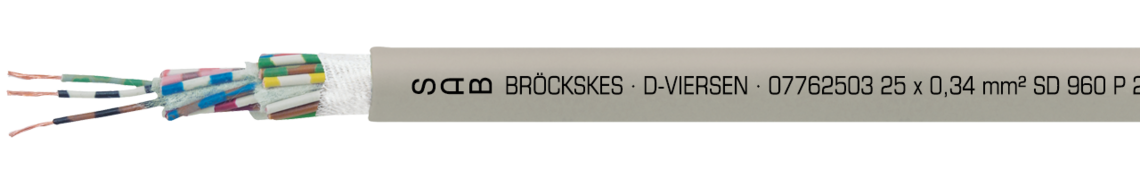

Continuously flexible PUR data cable with coloured cores

Marking for SD 960 P 07762503: SAB BRÖCKSKES · D-VIERSEN · 07762503 25 x 0,34 mm² SD 960 P 22 AWG/25c 07762225 UL AWM Style 20233 80°C 300V CSA AWM I/II A/B 80°C 300V FT1 FT2 CE

Marking for SD 960 P 07762503: SAB BRÖCKSKES · D-VIERSEN · 07762503 25 x 0,34 mm² SD 960 P 22 AWG/25c 07762225 UL AWM Style 20233 80°C 300V CSA AWM I/II A/B 80°C 300V FT1 FT2 CE

Application

SD 960 P is a continuously flexible PUR data cable with coloured cores and very good oil and chemical resistance. This UL/CSA cable is recommended for use in handling, material handling and automation technologies, wood working and packaging machines, car manufacturing industry, and press manufacturing.

Outstanding features

  • very good oil resistant
  • very good chemical resistance
  • high abrasion resistance
  • very good flexibility

Additional information

Possible on request:
●    in dimensions 0,50 mm² and 0,75 mm²
●    with orange outer sheath and coloured cores with reference to DIN 47100

Construction

Conductor

bare copper strands, extra fine wires

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

acc. to colour code US 2

Stranding

specially adjusted layering with non-woven tape over each layer

Sheath material

PU acc. to UL 758 with mat surface

Sheath colour

grey (RAL 7032)

Conductor

bare copper strands, extra fine wires

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Stranding

specially adjusted layering with non-woven tape over each layer

Sheath material

PU acc. to UL 758 with mat surface

Sheath colour

grey (RAL 7032)

Technical data

Peak operating voltage

max. 350

Voltage UL/CSA

300 V

Testing voltage

core/core 1500 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -30/+70 °C

DIN VDE flexible application: -5/+70°C

UL/CSA: up to +80°C

Fire performance

flame retardant and self-extinguishing acc. to UL FT1, CSA FT1, FT2

Oil resistance

very good - oilrating 60°C acc. to UL 758

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc..

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 350

Voltage UL/CSA

300 V

Testing voltage

core/core 1500 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -30/+70 °C

DIN VDE flexible application: -5/+70°C

UL/CSA: up to +80°C

Fire performance

flame retardant and self-extinguishing acc. to UL FT1, CSA FT1, FT2

Oil resistance

very good - oilrating 60°C acc. to UL 758

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc..

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Largest single
wire-ø
Copper figure Cable weight ≈ Outer-ø ± 5%
L077602012 x 0,14 mm²0,11 mm2,7 kg/km20 kg/km4,5 mm Send inquiry
L077603013 x 0,14 mm²0,11 mm4 kg/km24 kg/km4,7 mm Send inquiry
L077604014 x 0,14 mm²0,11 mm5,4 kg/km28 kg/km5,1 mm Send inquiry
L077605015 x 0,14 mm²0,11 mm6,7 kg/km34 kg/km5,5 mm Send inquiry
L077607017 x 0,14 mm²0,11 mm9,4 kg/km45 kg/km6,3 mm Send inquiry
L0776100110 x 0,14 mm²0,11 mm13,4 kg/km54 kg/km7 mm Send inquiry
L0776140114 x 0,14 mm²0,11 mm18,8 kg/km71 kg/km7,5 mm Send inquiry
L0776180118 x 0,14 mm²0,11 mm24,2 kg/km84 kg/km8,6 mm Send inquiry
L0776250125 x 0,14 mm²0,11 mm33,6 kg/km108 kg/km10,1 mm Send inquiry
L077602022 x 0,25 mm²0,11 mm4,8 kg/km24 kg/km4,8 mm Send inquiry
L077603023 x 0,25 mm²0,11 mm7,2 kg/km29 kg/km5,1 mm Send inquiry
L077604024 x 0,25 mm²0,11 mm9,6 kg/km34 kg/km5,4 mm Send inquiry
L077605025 x 0,25 mm²0,11 mm12 kg/km42 kg/km5,9 mm Send inquiry
L077607027 x 0,25 mm²0,11 mm16,8 kg/km52 kg/km6,8 mm Send inquiry
L0776100210 x 0,25 mm²0,11 mm24 kg/km70 kg/km7,6 mm Send inquiry
L0776140214 x 0,25 mm²0,11 mm33,6 kg/km84 kg/km8,2 mm Send inquiry
L0776180218 x 0,25 mm²0,11 mm43,2 kg/km110 kg/km9,3 mm Send inquiry
L0776250225 x 0,25 mm²0,11 mm60 kg/km150 kg/km11,4 mm Send inquiry
L077602032 x 0,34 mm²0,11 mm6,5 kg/km27 kg/km5 mm Send inquiry
L077603033 x 0,34 mm²0,11 mm9,8 kg/km32 kg/km5,3 mm Send inquiry
L077604034 x 0,34 mm²0,11 mm13,1 kg/km39 kg/km5,7 mm Send inquiry
L077605035 x 0,34 mm²0,11 mm16,3 kg/km47 kg/km6,1 mm Send inquiry
L077607037 x 0,34 mm²0,11 mm22,8 kg/km59 kg/km7,1 mm Send inquiry
L0776100310 x 0,34 mm²0,11 mm32,6 kg/km77 kg/km8 mm Send inquiry
L0776140314 x 0,34 mm²0,11 mm45,7 kg/km100 kg/km8,6 mm Send inquiry
L0776180318 x 0,34 mm²0,11 mm58,8 kg/km128 kg/km9,8 mm Send inquiry
L0776250325 x 0,34 mm²0,11 mm81,6 kg/km175 kg/km12,1 mm Send inquiry
item no.
No. of cores x
cross section
Largest single
wire-ø
Copper figure
Cable weight ≈
Outer-ø ± 5%
L07760201
2 x 0,14 mm²
0,11 mm
2,7 kg/km
20 kg/km
4,5 mm
L07760301
3 x 0,14 mm²
0,11 mm
4 kg/km
24 kg/km
4,7 mm
L07760401
4 x 0,14 mm²
0,11 mm
5,4 kg/km
28 kg/km
5,1 mm
L07760501
5 x 0,14 mm²
0,11 mm
6,7 kg/km
34 kg/km
5,5 mm
L07760701
7 x 0,14 mm²
0,11 mm
9,4 kg/km
45 kg/km
6,3 mm
L07761001
10 x 0,14 mm²
0,11 mm
13,4 kg/km
54 kg/km
7 mm
L07761401
14 x 0,14 mm²
0,11 mm
18,8 kg/km
71 kg/km
7,5 mm
L07761801
18 x 0,14 mm²
0,11 mm
24,2 kg/km
84 kg/km
8,6 mm
L07762501
25 x 0,14 mm²
0,11 mm
33,6 kg/km
108 kg/km
10,1 mm
L07760202
2 x 0,25 mm²
0,11 mm
4,8 kg/km
24 kg/km
4,8 mm
L07760302
3 x 0,25 mm²
0,11 mm
7,2 kg/km
29 kg/km
5,1 mm
L07760402
4 x 0,25 mm²
0,11 mm
9,6 kg/km
34 kg/km
5,4 mm
L07760502
5 x 0,25 mm²
0,11 mm
12 kg/km
42 kg/km
5,9 mm
L07760702
7 x 0,25 mm²
0,11 mm
16,8 kg/km
52 kg/km
6,8 mm
L07761002
10 x 0,25 mm²
0,11 mm
24 kg/km
70 kg/km
7,6 mm
L07761402
14 x 0,25 mm²
0,11 mm
33,6 kg/km
84 kg/km
8,2 mm
L07761802
18 x 0,25 mm²
0,11 mm
43,2 kg/km
110 kg/km
9,3 mm
L07762502
25 x 0,25 mm²
0,11 mm
60 kg/km
150 kg/km
11,4 mm
L07760203
2 x 0,34 mm²
0,11 mm
6,5 kg/km
27 kg/km
5 mm
L07760303
3 x 0,34 mm²
0,11 mm
9,8 kg/km
32 kg/km
5,3 mm
L07760403
4 x 0,34 mm²
0,11 mm
13,1 kg/km
39 kg/km
5,7 mm
L07760503
5 x 0,34 mm²
0,11 mm
16,3 kg/km
47 kg/km
6,1 mm
L07760703
7 x 0,34 mm²
0,11 mm
22,8 kg/km
59 kg/km
7,1 mm
L07761003
10 x 0,34 mm²
0,11 mm
32,6 kg/km
77 kg/km
8 mm
L07761403
14 x 0,34 mm²
0,11 mm
45,7 kg/km
100 kg/km
8,6 mm
L07761803
18 x 0,34 mm²
0,11 mm
58,8 kg/km
128 kg/km
9,8 mm
L07762503
25 x 0,34 mm²
0,11 mm
81,6 kg/km
175 kg/km
12,1 mm

Other dimensions and colours are possible on request.
