SD 980 CP

UL/CSA flexible TPE/PUR data cable with coloured cores and overall copper screen

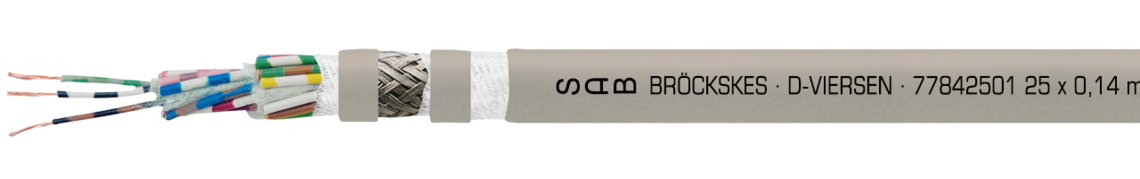

Marking for SD 980 CP 77842501: SAB BRÖCKSKES · D-VIERSEN · 77842501 25 x 0,14 mm² SD 980 CP 26 AWG/25c 77842625 UL AWM Style 21198 80°C 300V CSA AWM I/II A/B 80°C 300V FT1 FT2 CE

Download data sheet for SD 980 CP

Questions about our products?

Application

SD 980 CP is a continuously flexible TPE/PUR data cable with coloured cores and overall copper screen. This multi-core cable is recommended for use in handling, material handling and automation technologies, wood working and packaging machines, industrial robot construction, car manufacturing industry, and high rack construction.

Outstanding features

●   PWIS uncritical (PWIS= paint-wetting impairment substances)
●    halogen-free
●    flexible at low temperatures
●    travel > 10 m is possible
●    high abrasion resistance
●    small bending radius
●    good EMC characteristics

Additional information

Possible on request!

in dimensions 0,50 mm² and 0,75 mm²
with coloured cores acc. to colour code US 2

Construction

Conductor	bare copper strands, extra fine wires
Insulation	TPE
Colour code	with reference to DIN 47100
Stranding	specially adjusted layering with non-woven tape over each layer
Screen	tinned copper braiding
Wrapping	non-woven tape
Sheath material	PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface
Sheath colour	grey (RAL 7032)

Conductor

bare copper strands, extra fine wires

Insulation

TPE

Colour code

with reference to DIN 47100

Stranding

specially adjusted layering with non-woven tape over each layer

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

Sheath colour

grey (RAL 7032)

Technical data

Peak operating voltage	max. 350 V
Voltage UL/CSA	300 V
Testing voltage	core/core 2000 V core/screen 2000 V
Min. bending radius	continuously flexible: 7,5 x d
Radiation resistance	5 x 10⁷ cJ/kg
Temperature range	DIN VDE fixed laying: -50/+90°C DIN VDE flexible application: -40/+90 °C UL/CSA: up to +80°C
Halogen-free	acc. to IEC 60754-1 + VDE 0482-754-1
Fire performance	flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, CSA FT1 (acc. to dimension), FT2
Oil resistance	very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2
Chem. resistance	good against acids, alkalines, solvents, hydraulic liquids etc..
Continuous flexibility	very good
Absence of harmful substances	acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

Voltage UL/CSA

300 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -50/+90°C

DIN VDE flexible application: -40/+90 °C

UL/CSA: up to +80°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

CSA FT1 (acc. to dimension), FT2

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc..

Continuous flexibility

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	no. of cores x cross section	largest single wire-ø	outer-ø ± 5%	copper figure	cable weight ca.
77840301	3 x 0,14 mm²	0,11 mm	4,2 mm	14,3 kg/km	24 kg/km	Send inquiry
77840401	4 x 0,14 mm²	0,11 mm	4,5 mm	15,7 kg/km	27 kg/km	Send inquiry
77840501	5 x 0,14 mm²	0,11 mm	4,9 mm	20,6 kg/km	33 kg/km	Send inquiry
77840701	7 x 0,14 mm²	0,11 mm	5,3 mm	23,4 kg/km	38 kg/km	Send inquiry
77841001	10 x 0,14 mm²	0,11 mm	6 mm	29,4 kg/km	47 kg/km	Send inquiry
77841401	14 x 0,14 mm²	0,11 mm	6,4 mm	34,9 kg/km	55 kg/km	Send inquiry
77841801	18 x 0,14 mm²	0,11 mm	7 mm	43,8 kg/km	68 kg/km	Send inquiry
77842501	25 x 0,14 mm²	0,11 mm	8 mm	57,3 kg/km	88 kg/km	Send inquiry
77840302	3 x 0,25 mm²	0,11 mm	4,6 mm	17,6 kg/km	29 kg/km	Send inquiry
77840402	4 x 0,25 mm²	0,11 mm	4,8 mm	20 kg/km	32 kg/km	Send inquiry
77840502	5 x 0,25 mm²	0,11 mm	5,2 mm	25,9 kg/km	40 kg/km	Send inquiry
77840702	7 x 0,25 mm²	0,11 mm	5,8 mm	30,9 kg/km	47 kg/km	Send inquiry
77841002	10 x 0,25 mm²	0,11 mm	6,6 mm	41,7 kg/km	61 kg/km	Send inquiry
77841402	14 x 0,25 mm²	0,11 mm	7 mm	53,2 kg/km	76 kg/km	Send inquiry
77841802	18 x 0,25 mm²	0,11 mm	7,8 mm	64,7 kg/km	91 kg/km	Send inquiry
77842502	25 x 0,25 mm²	0,11 mm	9 mm	86,3 kg/km	120 kg/km	Send inquiry
77840303	3 x 0,34 mm²	0,11 mm	4,8 mm	20,2 kg/km	32 kg/km	Send inquiry
77840403	4 x 0,34 mm²	0,11 mm	5,1 mm	26,9 kg/km	39 kg/km	Send inquiry
77840503	5 x 0,34 mm²	0,11 mm	5,6 mm	30,4 kg/km	44 kg/km	Send inquiry
77840703	7 x 0,34 mm²	0,11 mm	6,2 mm	38,9 kg/km	55 kg/km	Send inquiry
77841003	10 x 0,34 mm²	0,11 mm	7 mm	52,2 kg/km	72 kg/km	Send inquiry
77841403	14 x 0,34 mm²	0,11 mm	7,5 mm	67 kg/km	89 kg/km	Send inquiry
77841803	18 x 0,34 mm²	0,11 mm	8,2 mm	82,5 kg/km	108 kg/km	Send inquiry
77842503	25 x 0,34 mm²	0,11 mm	9,6 mm	110,7 kg/km	142 kg/km	Send inquiry
