SD 980 P
UL/CSA flexible TPE/PUR data cable with coloured cores

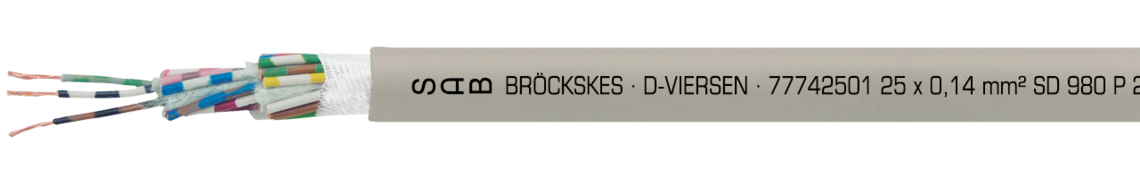

Marking for SD 980 P 77742501: SAB BRÖCKSKES · D-VIERSEN · 77742501 25 x 0,14 mm² SD 980 P 26 AWG/25c 77742625 UL AWM Style 21198 80°C 300V CSA AWM I/II A/B 80°C 300V FT1 FT2 CE
Application
SD 980 P is a continuously flexible TPE/PUR control cable with numbered cores and uncritical PWIS. It is recommended for use in handling, material handling and automation technologies, wood working and packaging machines, industrial robot construction, car manufacturing industry, and high rack construction.
Outstanding features
- PWIS uncritical (PWIS= paint-wetting impairment substances)
- halogen-free
- flexible at low temperatures
- travel > 10 m is possible
- high abrasion resistance
- small bending radius
Additional information
Possible on request!
- in dimensions 0,50 mm² and 0,75 mm²
- with coloured cores acc. to colour code US 2
Construction
| Conductor | bare copper strands, extra fine wires |
|---|---|
| Insulation | TPE |
| Colour code | with reference to DIN 47100 |
| Stranding | specially adjusted layering with non-woven tape over each layer and one additional non-woven tape over the outer layer |
| Sheath material | PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface |
| Sheath colour | grey RAL 7032) |
bare copper strands, extra fine wires
TPE
with reference to DIN 47100
specially adjusted layering with non-woven tape over each layer and one additional non-woven tape over the outer layer
PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface
grey RAL 7032)
Technical data
| Peak operating voltage | max. 350 V |
|---|---|
| Voltage UL/CSA | 300 V |
| Testing voltage | core/core 2000 V |
| Min. bending radius | continuously flexible: 7,5 x d |
| Radiation resistance | 5 x 10⁷ cJ/kg |
| Temperature range | DIN VDE fixed laying: -50/+90 °C DIN VDE flexible application: -40/+90 °C UL/CSA: up to +80°C |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, CSA FT1 (acc. to dimension), FT2 |
| Oil resistance | very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 |
| Chem. resistance | good against acids, alkalines, solvents, hydraulic liquids etc. |
| Continuous flexibility | very good |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
max. 350 V
300 V
core/core 2000 V
continuously flexible: 7,5 x d
5 x 10⁷ cJ/kg
DIN VDE fixed laying: -50/+90 °C
DIN VDE flexible application: -40/+90 °C
UL/CSA: up to +80°C
acc. to IEC 60754-1 + VDE 0482-754-1
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,
CSA FT1 (acc. to dimension), FT2
very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2
good against acids, alkalines, solvents, hydraulic liquids etc.
very good
acc. to RoHS directive of the European Union
Dimensions
| item no. | No. of cores x cross section | Largest single wire-ø | Outer-ø ± 5% | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|---|
| 77740301 | 3 x 0,14 mm² | 0,11 mm | 3,8 mm | 4 kg/km | 16 kg/km | Send inquiry |
| 77740401 | 4 x 0,14 mm² | 0,11 mm | 4,1 mm | 5,4 kg/km | 19 kg/km | Send inquiry |
| 77740501 | 5 x 0,14 mm² | 0,11 mm | 4,5 mm | 6,7 kg/km | 23 kg/km | Send inquiry |
| 77740701 | 7 x 0,14 mm² | 0,11 mm | 4,9 mm | 9,4 kg/km | 28 kg/km | Send inquiry |
| 77741001 | 10 x 0,14 mm² | 0,11 mm | 5,6 mm | 13,4 kg/km | 36 kg/km | Send inquiry |
| 77741401 | 14 x 0,14 mm² | 0,11 mm | 6 mm | 18,8 kg/km | 45 kg/km | Send inquiry |
| 77741801 | 18 x 0,14 mm² | 0,11 mm | 6,6 mm | 24,2 kg/km | 54 kg/km | Send inquiry |
| 77742501 | 25 x 0,14 mm² | 0,11 mm | 7,6 mm | 33,6 kg/km | 71 kg/km | Send inquiry |
| 77740302 | 3 x 0,25 mm² | 0,11 mm | 4,2 mm | 7,2 kg/km | 21 kg/km | Send inquiry |
| 77740402 | 4 x 0,25 mm² | 0,11 mm | 4,4 mm | 9,6 kg/km | 25 kg/km | Send inquiry |
| 77740502 | 5 x 0,25 mm² | 0,11 mm | 4,8 mm | 12 kg/km | 30 kg/km | Send inquiry |
| 77740702 | 7 x 0,25 mm² | 0,11 mm | 5,4 mm | 16,8 kg/km | 37 kg/km | Send inquiry |
| 77741002 | 10 x 0,25 mm² | 0,11 mm | 6,2 mm | 24 kg/km | 49 kg/km | Send inquiry |
| 77741402 | 14 x 0,25 mm² | 0,11 mm | 6,6 mm | 33,6 kg/km | 62 kg/km | Send inquiry |
| 77741802 | 18 x 0,25 mm² | 0,11 mm | 7,3 mm | 43,2 kg/km | 77 kg/km | Send inquiry |
| 77742502 | 25 x 0,25 mm² | 0,11 mm | 8,6 mm | 60 kg/km | 102 kg/km | Send inquiry |
| 77740303 | 3 x 0,34 mm² | 0,11 mm | 4,4 mm | 9,8 kg/km | 24 kg/km | Send inquiry |
| 77740403 | 4 x 0,34 mm² | 0,11 mm | 4,7 mm | 13,1 kg/km | 29 kg/km | Send inquiry |
| 77740503 | 5 x 0,34 mm² | 0,11 mm | 5,2 mm | 16,3 kg/km | 35 kg/km | Send inquiry |
| 77740703 | 7 x 0,34 mm² | 0,11 mm | 5,8 mm | 22,8 kg/km | 44 kg/km | Send inquiry |
| 77741003 | 10 x 0,34 mm² | 0,11 mm | 6,6 mm | 32,6 kg/km | 59 kg/km | Send inquiry |
| 77741403 | 14 x 0,34 mm² | 0,11 mm | 7,1 mm | 45,7 kg/km | 75 kg/km | Send inquiry |
| 77741803 | 18 x 0,34 mm² | 0,11 mm | 7,8 mm | 58,8 kg/km | 93 kg/km | Send inquiry |
| 77742503 | 25 x 0,34 mm² | 0,11 mm | 9,2 mm | 81,6 kg/km | 124 kg/km | Send inquiry |
cross section
wire-ø
Other dimensions and colours are possible on request.
