SAB Kabel

SAB RailLine 560

continuously flexible SAB Rail Cable for outdoor use

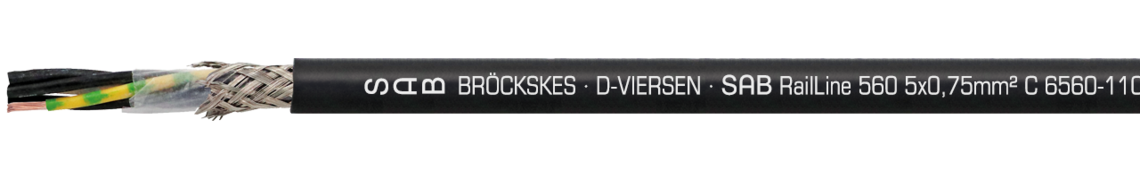

Marking for SAB RailLine 560 65601105:
SAB BRÖCKSKES · D-VIERSEN · SAB RailLine 560  5x0,75mm² C 6560-1105 CE

Marking for SAB RailLine 560 65601105: SAB BRÖCKSKES · D-VIERSEN · SAB RailLine 560 5x0,75mm² C 6560-1105 CE

Application

For flexible outdoor installation, e.g. bogies, railway machines. Also for flexible application inside rolling stock, e.g. door systems.

Outstanding features

  • weather resistant
  •  continuously flexible
  • good ozone and UV resistance
  • good oil and fuel resistance
  • fulfils fire protection requirements R15 (EL1A) and R16 (EL1B) acc. to EN 45545-2 for hazard levels HL1-3

Construction

Conductor

tinned copper strands, extra fine wires

Insulation

SABIX® X

Colour code

black cores with consecutive numbers

acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

in layers resp. pairwise

Screen

tinned copper braiding (if existing)

Wrapping

foil

Sheath material

SABIX® X

Sheath colour

black (RAL 9005)

Conductor

tinned copper strands, extra fine wires

Insulation

SABIX® X

Colour code

black cores with consecutive numbers

acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

in layers resp. pairwise

Screen

tinned copper braiding (if existing)

Wrapping

foil

Sheath material

SABIX® X

Sheath colour

black (RAL 9005)

Technical data

Nominal voltage

Uo/U 300/500 V resp. 0,6/1 kV

Testing voltage

300/500 V

core/core 2000 V

core/screen 2000 V



0,6/1 kV

core/core 4000 V

core/screen 4000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

continuously flexible: 10 x d

Torsion angle

± 15°/1 m

Temperature range

fixed laying: -50/+90 °C

flexible application: -50/+90 °C

Halogen-free

acc. to EN 50306-1 + EN 50264-1 are fulfilled.

Development of HCl is < 0,5%

acc. to IEC 60754-1.

pH-value is > 4,3 acc. to IEC 60754-2.

Conductivity is < 10,0 µS/mm acc. to IEC 60754-2.

Fluoric content < 0,1% acc. to IEC 60684-2.

Fire performance

No flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24 resp. IEC 60332-3-25 + VDE 0482-332-3-25 and EN 50305 + VDE 0260-305 section 9.1.2.

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Toxicity

acc. to EN 50305 + VDE 0260-305

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Weather resistance

very good

Oil and fuel resistance

acc. to EN 50264-1 + VDE 0260-264-1

Flexibility

very good

Absence of harmful substances

gemäß RoHS-Richtlinie der Europäischen Union

Nominal voltage

Uo/U 300/500 V resp. 0,6/1 kV

Testing voltage

300/500 V

core/core 2000 V

core/screen 2000 V



0,6/1 kV

core/core 4000 V

core/screen 4000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

continuously flexible: 10 x d

Torsion angle

± 15°/1 m

Temperature range

fixed laying: -50/+90 °C

flexible application: -50/+90 °C

Halogen-free

acc. to EN 50306-1 + EN 50264-1 are fulfilled.

Development of HCl is < 0,5%

acc. to IEC 60754-1.

pH-value is > 4,3 acc. to IEC 60754-2.

Conductivity is < 10,0 µS/mm acc. to IEC 60754-2.

Fluoric content < 0,1% acc. to IEC 60684-2.

Fire performance

No flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24 resp. IEC 60332-3-25 + VDE 0482-332-3-25 and EN 50305 + VDE 0260-305 section 9.1.2.

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Toxicity

acc. to EN 50305 + VDE 0260-305

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Weather resistance

very good

Oil and fuel resistance

acc. to EN 50264-1 + VDE 0260-264-1

Flexibility

very good

Dimensions

item no.

no. of cores x
cross section

nominal voltage

outer-ø ± 5%

copper figure

cable weight ca.

656000022 x 0,50 mm²300/500 V4,9 mm9,6 kg/km37 kg/km Send inquiry
656001055 x 0,75 mm²300/500 V6,4 mm36,0 kg/km73 kg/km Send inquiry
656002033 x 1,00 mm²300/500 V5,3 mm28,8 kg/km55 kg/km Send inquiry
656002055 x 1,00 mm²300/500 V6,7 mm48,0 kg/km86 kg/km Send inquiry
656002077 x 1,00 mm²300/500 V7,9 mm67,2 kg/km127 kg/km Send inquiry
6560022525 x 1,00 mm²300/500 V13,4 mm240,0 kg/km346 kg/km Send inquiry
656003044 x 1,50 mm²300/500 V6,9 mm57,6 kg/km101 kg/km Send inquiry
656003077 x 1,50 mm²300/500 V9,3 mm100,8 kg/km175 kg/km Send inquiry
656090015 x 35,00 mm²0,6/1 kV33,2 mm1680,0 kg/km2299 kg/km Send inquiry
656010022 x 0,50 mm²300/500 V4,9 mm24,7 kg/km42 kg/km Send inquiry
656010033 x 0,50 mm²300/500 V5,3 mm29,7 kg/km51 kg/km Send inquiry
656010055 x 0,50 mm²300/500 V6,1 mm40,2 kg/km67 kg/km Send inquiry
6560101212 x 0,50 mm²300/500 V8,5 mm85,9 kg/km132 kg/km Send inquiry
656011055 x 0,75 mm²300/500 V6,8 mm53,6 kg/km87 kg/km Send inquiry
656012044 x 1,00 mm²300/500 V6,6 mm57,0 kg/km86 kg/km Send inquiry
6560121313 x 1,00 mm²300/500 V10,8 mm169,2 kg/km235 kg/km Send inquiry
656013033 x 1,50 mm²300/500 V7,3 mm63,4 kg/km99 kg/km Send inquiry
656013055 x 1,50 mm²300/500 V8,3 mm94,6 kg/km152 kg/km Send inquiry
656013077 x 1,50 mm²300/500 V9,7 mm127,4 kg/km195 kg/km Send inquiry
656090025 x 35,00 mm²0,6/1 kV34,1 mm1885,3 kg/km2455 kg/km Send inquiry
656090046 x 2 x 0,25 mm²300/500 V8,0 mm46,3 kg/km98 kg/km Send inquiry
6560900512 x 2 x 0,34 mm²300/500 V11,9 mm131,4 kg/km204 kg/km Send inquiry
656030022 x 2 x 0,50 mm²300/500 V6,7 mm35,5 kg/km69 kg/km Send inquiry
656030044 x 2 x 0,50 mm²300/500 V8,5 mm60,1 kg/km108 kg/km Send inquiry
656030068 x 2 x 0,50 mm²300/500 V12,3 mm129,3 kg/km230 kg/km Send inquiry
656031033 x 2 x 0,75 mm²300/500 V8,4 mm65,9 kg/km124 kg/km Send inquiry
item no.
no. of cores x
cross section
nominal voltage
outer-ø ± 5%
copper figure
cable weight ca.
65600002
2 x 0,50 mm²
300/500 V
4,9 mm
9,6 kg/km
37 kg/km
65600105
5 x 0,75 mm²
300/500 V
6,4 mm
36,0 kg/km
73 kg/km
65600203
3 x 1,00 mm²
300/500 V
5,3 mm
28,8 kg/km
55 kg/km
65600205
5 x 1,00 mm²
300/500 V
6,7 mm
48,0 kg/km
86 kg/km
65600207
7 x 1,00 mm²
300/500 V
7,9 mm
67,2 kg/km
127 kg/km
65600225
25 x 1,00 mm²
300/500 V
13,4 mm
240,0 kg/km
346 kg/km
65600304
4 x 1,50 mm²
300/500 V
6,9 mm
57,6 kg/km
101 kg/km
65600307
7 x 1,50 mm²
300/500 V
9,3 mm
100,8 kg/km
175 kg/km
65609001
5 x 35,00 mm²
0,6/1 kV
33,2 mm
1680,0 kg/km
2299 kg/km
65601002
2 x 0,50 mm²
300/500 V
4,9 mm
24,7 kg/km
42 kg/km
65601003
3 x 0,50 mm²
300/500 V
5,3 mm
29,7 kg/km
51 kg/km
65601005
5 x 0,50 mm²
300/500 V
6,1 mm
40,2 kg/km
67 kg/km
65601012
12 x 0,50 mm²
300/500 V
8,5 mm
85,9 kg/km
132 kg/km
65601105
5 x 0,75 mm²
300/500 V
6,8 mm
53,6 kg/km
87 kg/km
65601204
4 x 1,00 mm²
300/500 V
6,6 mm
57,0 kg/km
86 kg/km
65601213
13 x 1,00 mm²
300/500 V
10,8 mm
169,2 kg/km
235 kg/km
65601303
3 x 1,50 mm²
300/500 V
7,3 mm
63,4 kg/km
99 kg/km
65601305
5 x 1,50 mm²
300/500 V
8,3 mm
94,6 kg/km
152 kg/km
65601307
7 x 1,50 mm²
300/500 V
9,7 mm
127,4 kg/km
195 kg/km
65609002
5 x 35,00 mm²
0,6/1 kV
34,1 mm
1885,3 kg/km
2455 kg/km
65609004
6 x 2 x 0,25 mm²
300/500 V
8,0 mm
46,3 kg/km
98 kg/km
65609005
12 x 2 x 0,34 mm²
300/500 V
11,9 mm
131,4 kg/km
204 kg/km
65603002
2 x 2 x 0,50 mm²
300/500 V
6,7 mm
35,5 kg/km
69 kg/km
65603004
4 x 2 x 0,50 mm²
300/500 V
8,5 mm
60,1 kg/km
108 kg/km
65603006
8 x 2 x 0,50 mm²
300/500 V
12,3 mm
129,3 kg/km
230 kg/km
65603103
3 x 2 x 0,75 mm²
300/500 V
8,4 mm
65,9 kg/km
124 kg/km

Other dimensions and colours are possible on request.
