SABIX® A 100 HT

High temperature resistant single conductor with nickel-plated strands and VDE-Reg.-No. 7088

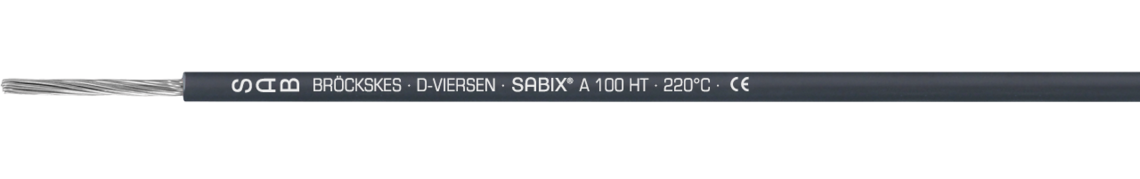

Marking for SABIX A 100 HT 71000150: SAB BRÖCKSKES · D-VIERSEN · SABIX A 100 HT · 220°C · CE

Marking for SABIX A 100 HT 71000150: SAB BRÖCKSKES · D-VIERSEN · SABIX A 100 HT · 220°C · CE

Application

SABIX® A 100 HT is a high temperature cable with nickel-plated strands and VDE-Reg.-No. 7088. This fire retardant cable is recommended for use in internal wiring at high ambient temperatures in protected rooms.

Outstanding features

  • halogen-free
  • high temperature resistant
  • fire retardant and self-extinguishing acc. to IEC 60332-1-2 + DIN EN 60332-1-2
  • flexible
  • VDE-Reg.-No. 7088

Additional information

* Colour code for single conductors:

01 = black

02 = blue
03 = brown
04 = grey
05 = yellow

06 = green
07 = violet
08 = white
16 = gentian blue
27 = green-yellow

Construction

Conductor

nickel-plated copper strands, fine wires acc. to IEC 60228, VDE 0295, class 5

Insulation

SABIX®

Colour code

see table*additional information

Conductor

nickel-plated copper strands, fine wires acc. to IEC 60228, VDE 0295, class 5

Insulation

SABIX®

Colour code

see table*additional information

Technical data

Nominal voltage

Uo/U 300/500 V

Testing voltage

2000 V

Min. bending radius

7,5 x d

For one single bend:

5 x d

Temperature range

fixed laying: -40/+220 °C

flexible application: -25/+220 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Testing voltage

2000 V

Min. bending radius

7,5 x d

For one single bend:

5 x d

Temperature range

fixed laying: -40/+220 °C

flexible application: -25/+220 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Dimensions

item no.

nominal cross
section

largest single
wire-ø

outer-ø ± 5%

copper figure

cable weight ca.

7100 .. 25*0,25 mm²0,16 mm2,3 mm2,4 kg/km7 kg/km Send inquiry
7100 .. 34*0,34 mm²0,16 mm2,4 mm3,3 kg/km8 kg/km Send inquiry
7100 .. 50*0,5 mm²0,21 mm2,5 mm4,8 kg/km10 kg/km Send inquiry
7100 .. 75*0,75 mm²0,21 mm2,8 mm7,2 kg/km13 kg/km Send inquiry
7100 .. 80*1 mm²0,21 mm2,9 mm9,6 kg/km15 kg/km Send inquiry
7100 .. 82*1,5 mm²0,26 mm3,4 mm14,4 kg/km21 kg/km Send inquiry
7100 .. 84*2,5 mm²0,26 mm4 mm24 kg/km32 kg/km Send inquiry
7100 .. 86*4 mm²0,31 mm4,6 mm38,4 kg/km48 kg/km Send inquiry
7100 .. 87*6 mm²0,31 mm5,1 mm57,6 kg/km67 kg/km Send inquiry
7100 .. 88*10 mm²0,41 mm7,4 mm96 kg/km121 kg/km Send inquiry
7100 .. 89*16 mm²0,41 mm8,4 mm153,6 kg/km176 kg/km Send inquiry
7100 .. 90*25 mm²0,41 mm10,3 mm240 kg/km283 kg/km Send inquiry
7100 .. 91*35 mm²0,41 mm11,5 mm336 kg/km385 kg/km Send inquiry
7100 .. 92*50 mm²0,41 mm14,2 mm480 kg/km549 kg/km Send inquiry
7100 .. 93*70 mm²0,41 mm15,2 mm672 kg/km736 kg/km Send inquiry
7100 .. 94*95 mm²0,51 mm18,6 mm912 kg/km1009 kg/km Send inquiry
7100 .. 95*120 mm²0,51 mm20,1 mm1152 kg/km1214 kg/km Send inquiry
7100 .. 96*150 mm²0,51 mm22,2 mm1440 kg/km1511 kg/km Send inquiry
7100 .. 97*185 mm²0,51 mm23,6 mm1776 kg/km1827 kg/km Send inquiry
7100 .. 98*240 mm²0,51 mm27,3 mm2304 kg/km2457 kg/km Send inquiry
7100 .. 99*300 mm²0,51 mm30,4 mm2880 kg/km3062 kg/km Send inquiry
item no.
nominal cross
section
largest single
wire-ø
outer-ø ± 5%
copper figure
cable weight ca.
7100 .. 25*
0,25 mm²
0,16 mm
2,3 mm
2,4 kg/km
7 kg/km
7100 .. 34*
0,34 mm²
0,16 mm
2,4 mm
3,3 kg/km
8 kg/km
7100 .. 50*
0,5 mm²
0,21 mm
2,5 mm
4,8 kg/km
10 kg/km
7100 .. 75*
0,75 mm²
0,21 mm
2,8 mm
7,2 kg/km
13 kg/km
7100 .. 80*
1 mm²
0,21 mm
2,9 mm
9,6 kg/km
15 kg/km
7100 .. 82*
1,5 mm²
0,26 mm
3,4 mm
14,4 kg/km
21 kg/km
7100 .. 84*
2,5 mm²
0,26 mm
4 mm
24 kg/km
32 kg/km
7100 .. 86*
4 mm²
0,31 mm
4,6 mm
38,4 kg/km
48 kg/km
7100 .. 87*
6 mm²
0,31 mm
5,1 mm
57,6 kg/km
67 kg/km
7100 .. 88*
10 mm²
0,41 mm
7,4 mm
96 kg/km
121 kg/km
7100 .. 89*
16 mm²
0,41 mm
8,4 mm
153,6 kg/km
176 kg/km
7100 .. 90*
25 mm²
0,41 mm
10,3 mm
240 kg/km
283 kg/km
7100 .. 91*
35 mm²
0,41 mm
11,5 mm
336 kg/km
385 kg/km
7100 .. 92*
50 mm²
0,41 mm
14,2 mm
480 kg/km
549 kg/km
7100 .. 93*
70 mm²
0,41 mm
15,2 mm
672 kg/km
736 kg/km
7100 .. 94*
95 mm²
0,51 mm
18,6 mm
912 kg/km
1009 kg/km
7100 .. 95*
120 mm²
0,51 mm
20,1 mm
1152 kg/km
1214 kg/km
7100 .. 96*
150 mm²
0,51 mm
22,2 mm
1440 kg/km
1511 kg/km
7100 .. 97*
185 mm²
0,51 mm
23,6 mm
1776 kg/km
1827 kg/km
7100 .. 98*
240 mm²
0,51 mm
27,3 mm
2304 kg/km
2457 kg/km
7100 .. 99*
300 mm²
0,51 mm
30,4 mm
2880 kg/km
3062 kg/km

Other dimensions and colours are possible on request.
