SABIX® A 130 HT

High temperature resistant control cable with numbered or coloured cores

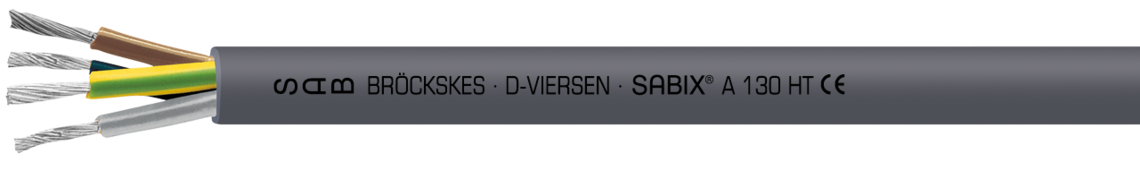

Marking example: SAB BRÖCKSKES · D-VIERSEN · SABIX® A 130 HT CE

Application

SABIX® A 130 HT is a heat resistant wire with coloured or numbered cores. The fire retardant cable is recommended for use in plastics processing, packaging machine construction, smelters, steelworks and hot rolling mills, safety engineering, processing of cement, glass and ceramics, sauna construction, and heat, refrigeration, and climate technologies.

Outstanding features

halogen-free
high temperature resistant
flexible

Questions about our products?

Construction

Conductor	silver-plated copper strands acc. to IEC 60228, VDE 0295, class 5
Insulation	SABIX®
Colour code	coloured acc. to HD 308 (VDE 0293-308), from 6 cores black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, from 3 cores a green-yellow earth wire
Stranding	in layers
Sheath material	SABIX®
Sheath colour	grey (RAL 7015)

Conductor

silver-plated copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

SABIX®

Colour code

coloured acc. to HD 308 (VDE 0293-308), from 6 cores black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, from 3 cores a green-yellow earth wire

Stranding

in layers

Sheath material

SABIX®

Sheath colour

grey (RAL 7015)

Technical data

Nominal voltage	Uo/U 300/500 V
Testing voltage	core/core 2000 V
Min. bending radius	fixed laying: 4 x d flexible application: 6 x d
Temperature range	fixed laying: -40/+220°C flexible application: -25/+220°C
Halogen-free	acc. to IEC 60754-1 + VDE 0482-754-1
Fire performance	flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
Corrosiveness of conflagration gases	in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases
Absence of harmful substances	acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 2000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Temperature range

fixed laying: -40/+220°C

flexible application: -25/+220°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	No. of cores x cross section	Largest single wire-ø	Outer-ø ± 10%	Copper figure	Cable weight ≈
L71300205	2 x 0,50 mm²	0,21 mm	5 mm	9,6 kg/km	30 kg/km	Send inquiry
L71300305	3 x 0,50 mm²	0,21 mm	5,3 mm	14,4 kg/km	36 kg/km	Send inquiry
L71300405	4 x 0,50 mm²	0,21 mm	5,7 mm	19,2 kg/km	44 kg/km	Send inquiry
L71300505	5 x 0,50 mm²	0,21 mm	6,3 mm	24 kg/km	54 kg/km	Send inquiry
L71300705	7 x 0,50 mm²	0,21 mm	6,8 mm	33,6 kg/km	67 kg/km	Send inquiry
L71301005	10 x 0,50 mm²	0,21 mm	8,8 mm	48 kg/km	95 kg/km	Send inquiry
L71301205	12 x 0,50 mm²	0,21 mm	9,1 mm	57,6 kg/km	109 kg/km	Send inquiry
L71301805	18 x 0,50 mm²	0,21 mm	10,8 mm	86,4 kg/km	161 kg/km	Send inquiry
L71300207	2 x 0,75 mm²	0,21 mm	5,6 mm	14,4 kg/km	39 kg/km	Send inquiry
L71300307	3 x 0,75 mm²	0,21 mm	5,9 mm	21,6 kg/km	48 kg/km	Send inquiry
L71300407	4 x 0,75 mm²	0,21 mm	6,4 mm	28,8 kg/km	58 kg/km	Send inquiry
L71300507	5 x 0,75 mm²	0,21 mm	7,1 mm	36 kg/km	73 kg/km	Send inquiry
L71300707	7 x 0,75 mm²	0,21 mm	7,9 mm	50,4 kg/km	93 kg/km	Send inquiry
L71301007	10 x 0,75 mm²	0,21 mm	10,2 mm	72 kg/km	132 kg/km	Send inquiry
L71301207	12 x 0,75 mm²	0,21 mm	10,5 mm	86,4 kg/km	152 kg/km	Send inquiry
L71301807	18 x 0,75 mm²	0,21 mm	12,5 mm	129,6 kg/km	225 kg/km	Send inquiry
L71300210	2 x 1,00 mm²	0,21 mm	5,8 mm	19,2 kg/km	45 kg/km	Send inquiry
L71300310	3 x 1,00 mm²	0,21 mm	6,1 mm	28,8 kg/km	55 kg/km	Send inquiry
L71300410	4 x 1,00 mm²	0,21 mm	6,7 mm	38,4 kg/km	68 kg/km	Send inquiry
L71300510	5 x 1,00 mm²	0,21 mm	7,3 mm	48 kg/km	85 kg/km	Send inquiry
L71300710	7 x 1,00 mm²	0,21 mm	8,2 mm	67,2 kg/km	110 kg/km	Send inquiry
L71301010	10 x 1,00 mm²	0,21 mm	10,6 mm	96 kg/km	162 kg/km	Send inquiry
L71301210	12 x 1,00 mm²	0,21 mm	10,9 mm	115,2 kg/km	180 kg/km	Send inquiry
L71301810	18 x 1,00 mm²	0,21 mm	13 mm	172,8 kg/km	267 kg/km	Send inquiry
L71302510	25 x 1,00 mm²	0,21 mm	15,7 mm	240 kg/km	358 kg/km	Send inquiry
L71300215	2 x 1,50 mm²	0,26 mm	6,7 mm	28,8 kg/km	61 kg/km	Send inquiry
L71300315	3 x 1,50 mm²	0,26 mm	7,1 mm	43,2 kg/km	76 kg/km	Send inquiry
L71300415	4 x 1,50 mm²	0,26 mm	7,9 mm	57,6 kg/km	96 kg/km	Send inquiry
L71300515	5 x 1,50 mm²	0,26 mm	8,8 mm	72 kg/km	123 kg/km	Send inquiry
L71300715	7 x 1,50 mm²	0,26 mm	9,6 mm	100,8 kg/km	155 kg/km	Send inquiry
L71301015	10 x 1,50 mm²	0,26 mm	12,6 mm	144 kg/km	223 kg/km	Send inquiry
L71301215	12 x 1,50 mm²	0,26 mm	13 mm	172,8 kg/km	258 kg/km	Send inquiry
L71301815	18 x 1,50 mm²	0,26 mm	15,6 mm	259,2 kg/km	386 kg/km	Send inquiry
L71302515	25 x 1,50 mm²	0,26 mm	18,8 mm	360 kg/km	523 kg/km	Send inquiry
L71300225	2 x 2,50 mm²	0,26 mm	8,2 mm	48 kg/km	95 kg/km	Send inquiry
L71300325	3 x 2,50 mm²	0,26 mm	8,7 mm	72 kg/km	120 kg/km	Send inquiry
L71300425	4 x 2,50 mm²	0,26 mm	9,5 mm	96 kg/km	149 kg/km	Send inquiry
L71300525	5 x 2,50 mm²	0,26 mm	10,8 mm	120 kg/km	192 kg/km	Send inquiry
L71300725	7 x 2,50 mm²	0,26 mm	11,8 mm	168 kg/km	245 kg/km	Send inquiry
L71301025	10 x 2,50 mm²	0,26 mm	15,4 mm	240 kg/km	350 kg/km	Send inquiry
L71301225	12 x 2,50 mm²	0,26 mm	15,9 mm	288 kg/km	406 kg/km	Send inquiry
L71301825	18 x 2,50 mm²	0,26 mm	18,8 mm	432 kg/km	598 kg/km	Send inquiry
L71300340	3 x 4,00 mm²	0,31 mm	10,4 mm	115,2 kg/km	181 kg/km	Send inquiry
L71300440	4 x 4,00 mm²	0,31 mm	11,3 mm	153,6 kg/km	225 kg/km	Send inquiry
L71300540	5 x 4,00 mm²	0,31 mm	12,7 mm	192 kg/km	285 kg/km	Send inquiry
L71300740	7 x 4,00 mm²	0,31 mm	13,8 mm	268,8 kg/km	365 kg/km	Send inquiry
L71300360	3 x 6,00 mm²	0,31 mm	11,6 mm	172,8 kg/km	249 kg/km	Send inquiry
L71300460	4 x 6,00 mm²	0,31 mm	12,7 mm	230,4 kg/km	312 kg/km	Send inquiry
L71300560	5 x 6,00 mm²	0,31 mm	14 mm	288 kg/km	389 kg/km	Send inquiry
L71300760	7 x 6,00 mm²	0,31 mm	15,7 mm	403,2 kg/km	515 kg/km	Send inquiry
L71300461	4 x 10,0 mm²	0,41 mm	18,8 mm	384 kg/km	595 kg/km	Send inquiry
L71300561	5 x 10,0 mm²	0,41 mm	20,8 mm	480 kg/km	743 kg/km	Send inquiry
L71300761	7 x 10,0 mm²	0,41 mm	23,2 mm	672 kg/km	995 kg/km	Send inquiry
L71300462	4 x 16,0 mm²	0,41 mm	21,6 mm	614,4 kg/km	904 kg/km	Send inquiry
L71300562	5 x 16,0 mm²	0,41 mm	24,3 mm	768 kg/km	1146 kg/km	Send inquiry
L71300762	7 x 16,0 mm²	0,41 mm	26,6 mm	1075,2 kg/km	1486 kg/km	Send inquiry
L71300263	2 x 25,0 mm²	0,41 mm	22,4 mm	480 kg/km	833 kg/km	Send inquiry
L71300463	4 x 25,0 mm²	0,41 mm	26,6 mm	960 kg/km	1384 kg/km	Send inquiry
L71300563	5 x 25,0 mm²	0,41 mm	29,5 mm	1200 kg/km	1726 kg/km	Send inquiry
L71300364	3 x 35,0 mm²	0,41 mm	26,8 mm	1008 kg/km	1436 kg/km	Send inquiry
L71300464	4 x 35,0 mm²	0,41 mm	29,5 mm	1344 kg/km	1819 kg/km	Send inquiry
