SABIX® A 146 FRNC

Halogen-free wiring cable with improved fire performance and extended temperature range 300/500 V

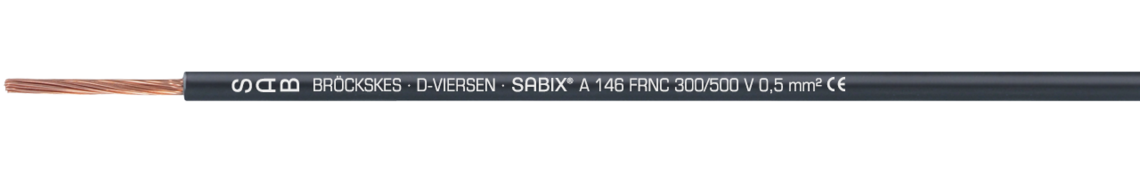

Marking for SABIX® A 146 FRNC 61460150: SAB BRÖCKSKES · D-VIERSEN · SABIX® A 146 FRNC 300/500 V 0,5 mm² CE

Marking for SABIX® A 146 FRNC 61460150: SAB BRÖCKSKES · D-VIERSEN · SABIX® A 146 FRNC 300/500 V 0,5 mm² CE

Application

SABIX® A 146 FRNC is a halogen-free wiring cable with extended temperature range and low smoke density acc. to IEC 61034. This cable is recommended for use in production of control cabinets, appliances and devices for communication technologies, household appliances, construction of generators and transformers, machine construction, and railway technologies: furthermore, the FRNC type is particularly suitable for internal wiring of rail vehicles.

The core cable is also available with tinned copper strands on request.

Outstanding features

  • halogen-free
  • no flame propagation
  • low smoke density acc. to IEC 61034
  • flame retardant and self-extinguishing
  • very good stripping
  • flexible
  • fulfils fire protection requirements R15 (EL1A) acc. to EN 45545-2 for hazard levels HL1-3
  • Flame retardant acc. to UN/ECE R118

Additional information

* Colour code for the single wire/core line can be selected as follows:

Colour codeColour         Colour codeColour
01 =black06 =green
02 =blue07 =purple
03 =brown08 =white
04 =grey16 =gentian blue
05 =yellow27 =green/yellow

Color code for single cores/leads

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

SABIX®

Colour code

see table* additional information

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

SABIX®

Colour code

see table* additional information

Technical data

Nominal voltage

Uo/U 300/500 V

Testing voltage

2000 V

Min. bending radius

7,5 x d



For one single bend:

5 x d

Temperature range

fixed laying: -40/+90 °C

flexible application: -30/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1



complementary for railway technology:

Development of HCl is < 0,5% acc. to IEC 60754-1.

pH-value is > 4,3 acc. to IEC 60754-2.

Conductivity is < 10,0 µS/mm acc. to IEC 60754-2.

Fluoric content < 0,1% acc. to IEC 60684-2

Fire performance

No flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24 resp. IEC 60332-3-25 + VDE 0482-332-3-25 and EN 50305 + VDE 0260-305 section 9.1.2.

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2.

Flame retardant acc. to ISO 6722 (UN/ECE R118)

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Flexibility

good

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Testing voltage

2000 V

Min. bending radius

7,5 x d



For one single bend:

5 x d

Temperature range

fixed laying: -40/+90 °C

flexible application: -30/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1



complementary for railway technology:

Development of HCl is < 0,5% acc. to IEC 60754-1.

pH-value is > 4,3 acc. to IEC 60754-2.

Conductivity is < 10,0 µS/mm acc. to IEC 60754-2.

Fluoric content < 0,1% acc. to IEC 60684-2

Fire performance

No flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24 resp. IEC 60332-3-25 + VDE 0482-332-3-25 and EN 50305 + VDE 0260-305 section 9.1.2.

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2.

Flame retardant acc. to ISO 6722 (UN/ECE R118)

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Flexibility

good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Nominal cross
section
Largest single
wire-ø
Outer-ø ± 5% Copper figure Cable weight ≈
6146 .. 50*0,5 mm²0,21 mm2,1 mm4,8 kg/km9 kg/km Send inquiry
6146 .. 75*0,75 mm²0,21 mm2,4 mm7,2 kg/km12 kg/km Send inquiry
6146 .. 80*1,00 mm²0,21 mm2,5 mm9,6 kg/km14 kg/km Send inquiry
item no.
Nominal cross
section
Largest single
wire-ø
Outer-ø ± 5%
Copper figure
Cable weight ≈
6146 .. 50*
0,5 mm²
0,21 mm
2,1 mm
4,8 kg/km
9 kg/km
6146 .. 75*
0,75 mm²
0,21 mm
2,4 mm
7,2 kg/km
12 kg/km
6146 .. 80*
1,00 mm²
0,21 mm
2,5 mm
9,6 kg/km
14 kg/km

Other dimensions and colours are possible on request.
