SABIX® A 156 FRNC

Halogen-free wiring cable with improved fire performance and extended temperature range 450/750 V

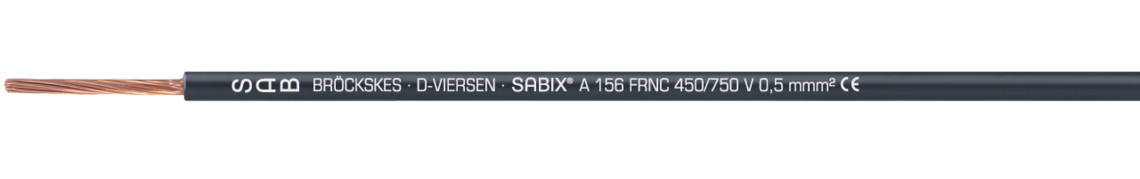

Marking for SABIX® A 156 FRNC 61460150: SAB BRÖCKSKES · D-VIERSEN · SABIX® A 156 FRNC 450/750 V 1,5 mm² CE

Marking for SABIX® A 156 FRNC 61460150: SAB BRÖCKSKES · D-VIERSEN · SABIX® A 156 FRNC 450/750 V 1,5 mm² CE

Application

SABIX® A 156 FRNC is a halogen-free wiring cable with extended temperature range and a voltage of 450/750 V. The single conductor cable with good fire performance is recommended for use in production of control cabinets, appliances and devices for communication technologies, household appliances, construction of generators and transformers, machine construction, and railway technologies: furthermore, the FRNC type is particulary suitable for internal wiring of rail vehicles.

Outstanding features

  • halogen-free
  • no flame propagation
  • low smoke density acc. to IEC 61034
  • flame retardant and self-extinguishing
  • very good stripping
  • flexible

Additional information

On request with tinned copper strands

* Colour code for single conductors:

01 = black

02 = blue
03 = brown
04 = grey
05 = yellow

06 = green
07 = violet
08 = white
16 = gentian blue
27 = green-yellow

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

SABIX®

Colour code

see table*additional information

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

SABIX®

Colour code

see table*additional information

Technical data

Nominal voltage

Uo/U 450/750 V

Testing voltage

2500 V

Min. bending radius

7,5 x d

For one single bend:

5 x d

Temperature range

fixed laying: -40/+90 °C

flexible application: -30/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

No flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24 resp. IEC 60332-3-25 + VDE 0482-332-3-25 and EN 50305 + VDE 0260-305 section 9.1.2.

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Flexibility

good

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 450/750 V

Testing voltage

2500 V

Min. bending radius

7,5 x d

For one single bend:

5 x d

Temperature range

fixed laying: -40/+90 °C

flexible application: -30/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

No flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24 resp. IEC 60332-3-25 + VDE 0482-332-3-25 and EN 50305 + VDE 0260-305 section 9.1.2.

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Flexibility

good

Dimensions

item no.

nominal cross
section

largest single
wire-ø

outer-ø ± 5%

copper figure

cable weight ca.

6156 .. 82*1,5 mm²0,26 mm3 mm14,4 kg/km20 kg/km Send inquiry
6156 .. 84*2,5 mm²0,26 mm3,6 mm24 kg/km32 kg/km Send inquiry
6156 .. 86*4 mm²0,31 mm4,2 mm38,4 kg/km48 kg/km Send inquiry
6156 .. 87*6 mm²0,31 mm4,7 mm57,6 kg/km67 kg/km Send inquiry
6156 .. 88*10 mm²0,41 mm6,3 mm96 kg/km117 kg/km Send inquiry
6156 .. 89*16 mm²0,41 mm8 mm153,6 kg/km181 kg/km Send inquiry
6156 .. 90*25 mm²0,41 mm9,9 mm240 kg/km292 kg/km Send inquiry
6156 .. 91*35 mm²0,41 mm11,1 mm336 kg/km394 kg/km Send inquiry
6156 .. 92*50 mm²0,41 mm12,6 mm480 kg/km563 kg/km Send inquiry
6156 .. 93*70 mm²0,41 mm14,8 mm672 kg/km751 kg/km Send inquiry
6156 .. 94*95 mm²0,51 mm18,2 mm912 kg/km1034 kg/km Send inquiry
6156 .. 95*120 mm²0,51 mm19,7 mm1152 kg/km1241 kg/km Send inquiry
6156 .. 96*150 mm²0,51 mm21,8 mm1440 kg/km1544 kg/km Send inquiry
6156 .. 97*185 mm²0,51 mm23,2 mm1776 kg/km1866 kg/km Send inquiry
6156 .. 98*240 mm²0,51 mm26,9 mm2304 kg/km2507 kg/km Send inquiry
6156 .. 99*300 mm²0,51 mm30 mm2880 kg/km3125 kg/km Send inquiry
item no.
nominal cross
section
largest single
wire-ø
outer-ø ± 5%
copper figure
cable weight ca.
6156 .. 82*
1,5 mm²
0,26 mm
3 mm
14,4 kg/km
20 kg/km
6156 .. 84*
2,5 mm²
0,26 mm
3,6 mm
24 kg/km
32 kg/km
6156 .. 86*
4 mm²
0,31 mm
4,2 mm
38,4 kg/km
48 kg/km
6156 .. 87*
6 mm²
0,31 mm
4,7 mm
57,6 kg/km
67 kg/km
6156 .. 88*
10 mm²
0,41 mm
6,3 mm
96 kg/km
117 kg/km
6156 .. 89*
16 mm²
0,41 mm
8 mm
153,6 kg/km
181 kg/km
6156 .. 90*
25 mm²
0,41 mm
9,9 mm
240 kg/km
292 kg/km
6156 .. 91*
35 mm²
0,41 mm
11,1 mm
336 kg/km
394 kg/km
6156 .. 92*
50 mm²
0,41 mm
12,6 mm
480 kg/km
563 kg/km
6156 .. 93*
70 mm²
0,41 mm
14,8 mm
672 kg/km
751 kg/km
6156 .. 94*
95 mm²
0,51 mm
18,2 mm
912 kg/km
1034 kg/km
6156 .. 95*
120 mm²
0,51 mm
19,7 mm
1152 kg/km
1241 kg/km
6156 .. 96*
150 mm²
0,51 mm
21,8 mm
1440 kg/km
1544 kg/km
6156 .. 97*
185 mm²
0,51 mm
23,2 mm
1776 kg/km
1866 kg/km
6156 .. 98*
240 mm²
0,51 mm
26,9 mm
2304 kg/km
2507 kg/km
6156 .. 99*
300 mm²
0,51 mm
30 mm
2880 kg/km
3125 kg/km

Other dimensions and colours are possible on request.
