SABIX® A 157 FRNC

Halogen-free wiring cable 1000 V acc. to UL

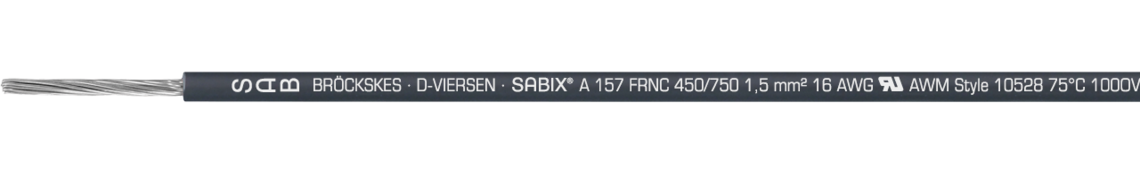

Marking for SABIX® A 157 FRNC 61570182: SAB BRÖCKSKES · D-VIERSEN · SABIX® A 157 FRNC 450/750V 1,5 mm² 16 AWG UL AWM Style 10528 75°C 1000V CE

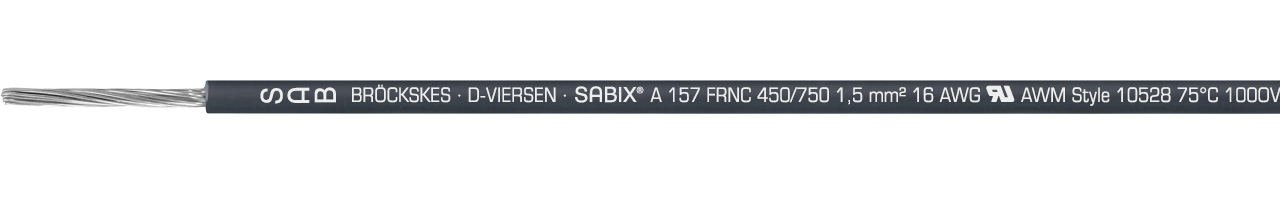

Marking for SABIX® A 157 FRNC 61570182: SAB BRÖCKSKES · D-VIERSEN · SABIX® A 157 FRNC 450/750V 1,5 mm² 16 AWG UL AWM Style 10528 75°C 1000V CE

Application

SABIX® A 157 FRNC is a halogen-free wiring cable with a voltage of 1000 V and it has an approval for the US-market. The electrical wiring cable is recommended for use in production of control cabinets, appliances and devices for communication technologies, household appliances, construction of generators and transformers, machine construction, and railway technologies: furthermore, the FRNC type is particulary suitable for internal wiring of rail vehicles.

Outstanding features

  • halogen-free
  • no flame propagation
  • flame retardant and self-extinguishing
  • UL recognized

Additional information

On request as multi-core cable posssible

* Colour code for single conductors:

01 = black

02 = blue
03 = brown
04 = grey
05 = yellow

06 = green
07 = violet
08 = white
16 = gentian blue
27 = green-yellow

Construction

Conductor

tinned copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

SABIX®

Colour code

see table*additional information

Conductor

tinned copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

SABIX®

Colour code

see table*additional information

Technical data

Nominal voltage

1,50 - 300,0 mm²: Uo/U 450/750 V

Voltage UL

16 AWG - 550 MCM: 1000 V

Testing voltage

2500 V

Min. bending radius

7,5 x d

For one single bend:

5 x d

Temperature range

DIN VDE fixed laying: -40/+90 °C

DIN VDE flexible application: -30/+90 °C

UL: up to + 75°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

no flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24 resp. IEC 60332-3-25 +

VDE 0482-332-3-25 cat. C resp. D, see chapter N „Technical Data“

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Flexibility

good

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

1,50 - 300,0 mm²: Uo/U 450/750 V

Voltage UL

16 AWG - 550 MCM: 1000 V

Testing voltage

2500 V

Min. bending radius

7,5 x d

For one single bend:

5 x d

Temperature range

DIN VDE fixed laying: -40/+90 °C

DIN VDE flexible application: -30/+90 °C

UL: up to + 75°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

no flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24 resp. IEC 60332-3-25 +

VDE 0482-332-3-25 cat. C resp. D, see chapter N „Technical Data“

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Flexibility

good

Dimensions

item no.

nominal cross
section

AWG/ MCM

largest single
wire-ø

outer-ø ± 5%

copper figure

cable weight ca.

6157 .. 82*1,5 mm²16 (27/30)0,26 mm3,2 mm14,4 kg/km22 kg/km Send inquiry
6157 .. 84*2,5 mm²14 (46/30)0,26 mm3,6 mm24 kg/km32 kg/km Send inquiry
6157 .. 86*4 mm²12 (52/28)0,31 mm4,3 mm38,4 kg/km46 kg/km Send inquiry
6157 .. 87*6 mm²10 (70/20)0,31 mm5,5 mm57,6 kg/km75 kg/km Send inquiry
6157 .. 88*10 mm²8 (77/26)0,41 mm6,7 mm96 kg/km117 kg/km Send inquiry
6157 .. 89*16 mm²6 (119/26)0,41 mm8,8 mm153,6 kg/km192 kg/km Send inquiry
6157 .. 90*25 mm²4 (196/26)0,41 mm10,2 mm240 kg/km282 kg/km Send inquiry
6157 .. 91*35 mm²2 (280/26)0,41 mm12,7 mm336 kg/km414 kg/km Send inquiry
6157 .. 92*50 mm²1 (400/26)0,41 mm13,9 mm480 kg/km573 kg/km Send inquiry
6157 .. 93*70 mm²2/0 (554/26)0,41 mm16,3 mm672 kg/km775 kg/km Send inquiry
6157 .. 94*95 mm²3/0 (484/24)0,51 mm18,4 mm912 kg/km1009 kg/km Send inquiry
6157 .. 95*120 mm²4/0 (589/24)0,51 mm20,9 mm1152 kg/km1248 kg/km Send inquiry
6157 .. 96*150 mm²250 MCM (740/24)0,51 mm22,4 mm1440 kg/km1532 kg/km Send inquiry
6157 .. 97*185 mm²350 MCM (899/24)0,51 mm25,0 mm1776 kg/km1889 kg/km Send inquiry
6157 .. 98*240 mm²450 MCM(1220/24)0,51 mm28,3 mm2304 kg/km2474 kg/km Send inquiry
6157 .. 99*300 mm²-0,51 mm31,0 mm2880 kg/km3063 kg/km Send inquiry
item no.
nominal cross
section
AWG/ MCM
largest single
wire-ø
outer-ø ± 5%
copper figure
cable weight ca.
6157 .. 82*
1,5 mm²
16 (27/30)
0,26 mm
3,2 mm
14,4 kg/km
22 kg/km
6157 .. 84*
2,5 mm²
14 (46/30)
0,26 mm
3,6 mm
24 kg/km
32 kg/km
6157 .. 86*
4 mm²
12 (52/28)
0,31 mm
4,3 mm
38,4 kg/km
46 kg/km
6157 .. 87*
6 mm²
10 (70/20)
0,31 mm
5,5 mm
57,6 kg/km
75 kg/km
6157 .. 88*
10 mm²
8 (77/26)
0,41 mm
6,7 mm
96 kg/km
117 kg/km
6157 .. 89*
16 mm²
6 (119/26)
0,41 mm
8,8 mm
153,6 kg/km
192 kg/km
6157 .. 90*
25 mm²
4 (196/26)
0,41 mm
10,2 mm
240 kg/km
282 kg/km
6157 .. 91*
35 mm²
2 (280/26)
0,41 mm
12,7 mm
336 kg/km
414 kg/km
6157 .. 92*
50 mm²
1 (400/26)
0,41 mm
13,9 mm
480 kg/km
573 kg/km
6157 .. 93*
70 mm²
2/0 (554/26)
0,41 mm
16,3 mm
672 kg/km
775 kg/km
6157 .. 94*
95 mm²
3/0 (484/24)
0,51 mm
18,4 mm
912 kg/km
1009 kg/km
6157 .. 95*
120 mm²
4/0 (589/24)
0,51 mm
20,9 mm
1152 kg/km
1248 kg/km
6157 .. 96*
150 mm²
250 MCM (740/24)
0,51 mm
22,4 mm
1440 kg/km
1532 kg/km
6157 .. 97*
185 mm²
350 MCM (899/24)
0,51 mm
25,0 mm
1776 kg/km
1889 kg/km
6157 .. 98*
240 mm²
450 MCM(1220/24)
0,51 mm
28,3 mm
2304 kg/km
2474 kg/km
6157 .. 99*
300 mm²
-
0,51 mm
31,0 mm
2880 kg/km
3063 kg/km

Other dimensions and colours are possible on request.
