SABIX® A 166 FRNC

Halogen-free wiring cable with improved fire performance and extended temperature range 0.6/1 kV

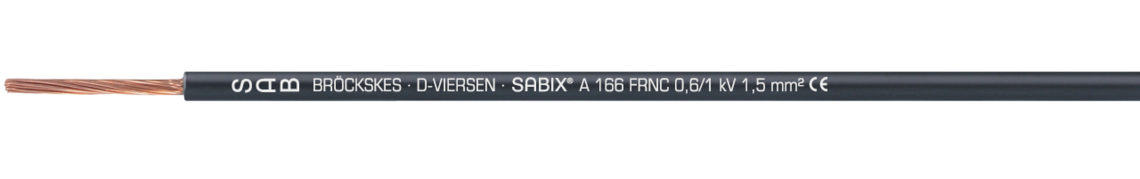

Marking for SABIX A 166 FRNC 61660182: SAB BRÖCKSKES · D-VIERSEN · SABIX A 166 FRNC 0,6/1 kV 1,5 mm² CE

Marking for SABIX A 166 FRNC 61660182: SAB BRÖCKSKES · D-VIERSEN · SABIX A 166 FRNC 0,6/1 kV 1,5 mm² CE

Application

SABIX® A 166 FRNC is a halogen-free wiring cable with extended temperature range, no flame propagation, and a voltage of 0,6/1 kV. This flame retardant cable is recommended for use in production of control cabinets, appliances and devices for communication technologies, household appliances, construction of generators and transformers, machine construction, and railway technologies: furthermore, the FRNC type is particulary suitable for internal wiring of rail vehicles.

The core cable is also available with tinned copper strands on request.

Outstanding features

  • halogen-free
  • no flame propagation
  • low smoke density acc. to IEC 61034
  • flame retardant and self-extinguishing
  • very good stripping
  • flexible

Additional information

* Colour code for the single wire/core line can be selected as follows:

Colour codeColour         Colour codeColour
01 =black06 =green
02 =blue07 =purple
03 =brown08 =white
04 =grey16 =gentian blue
05 =yellow27 =green/yellow

Color code for single cores/leads

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

SABIX®

Colour code

see table*additional information

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

SABIX®

Colour code

see table*additional information

Technical data

Nominal voltage

Uo/U 0,6/1 kV

Testing voltage

3000 V

Min. bending radius

7,5 x d

For one single bend:

5 x d

Temperature range

fixed laying: -40/+90 °C

flexible application: -30/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Flame propagation

no flame propagation
acc. to IEC 60332-3-24 + VDE 0482-332-3-24
resp. IEC 60332-3-25 + VDE 0482-332-3-25 category C resp. D

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Flexibility

good

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 0,6/1 kV

Testing voltage

3000 V

Min. bending radius

7,5 x d

For one single bend:

5 x d

Temperature range

fixed laying: -40/+90 °C

flexible application: -30/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Flame propagation

no flame propagation
acc. to IEC 60332-3-24 + VDE 0482-332-3-24
resp. IEC 60332-3-25 + VDE 0482-332-3-25 category C resp. D

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Flexibility

good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Nominal cross
section
Largest single
wire-ø
Outer-ø ± 5% Copper figure Cable weight ≈
L6166 .. 82*1,5 mm²0,26 mm3,2 mm14,4 kg/km23 kg/km Send inquiry
L6166 .. 84*2,5 mm²0,26 mm3,9 mm24 kg/km35 kg/km Send inquiry
L6166 .. 86*4 mm²0,31 mm4,5 mm38,4 kg/km51 kg/km Send inquiry
L6166 .. 87*6 mm²0,31 mm5 mm57,6 kg/km71 kg/km Send inquiry
L6166 .. 88*10 mm²0,41 mm7,3 mm96 kg/km131 kg/km Send inquiry
L6166 .. 89*16 mm²0,41 mm8,3 mm153,6 kg/km199 kg/km Send inquiry
L6166 .. 90*25 mm²0,41 mm10,2 mm240 kg/km305 kg/km Send inquiry
L6166 .. 91*35 mm²0,41 mm11,4 mm336 kg/km404 kg/km Send inquiry
L6166 .. 92*50 mm²0,41 mm14,1 mm480 kg/km576 kg/km Send inquiry
L6166 .. 93*70 mm²0,41 mm15,1 mm672 kg/km765 kg/km Send inquiry
L6166 .. 94*95 mm²0,51 mm18,5 mm912 kg/km1052 kg/km Send inquiry
L6166 .. 95*120 mm²0,51 mm20 mm1152 kg/km1261 kg/km Send inquiry
L6166 .. 96*150 mm²0,51 mm22,1 mm1440 kg/km1567 kg/km Send inquiry
L6166 .. 97*185 mm²0,51 mm23,5 mm1776 kg/km1892 kg/km Send inquiry
L6166 .. 98*240 mm²0,51 mm27,2 mm2304 kg/km2538 kg/km Send inquiry
item no.
Nominal cross
section
Largest single
wire-ø
Outer-ø ± 5%
Copper figure
Cable weight ≈
L6166 .. 82*
1,5 mm²
0,26 mm
3,2 mm
14,4 kg/km
23 kg/km
L6166 .. 84*
2,5 mm²
0,26 mm
3,9 mm
24 kg/km
35 kg/km
L6166 .. 86*
4 mm²
0,31 mm
4,5 mm
38,4 kg/km
51 kg/km
L6166 .. 87*
6 mm²
0,31 mm
5 mm
57,6 kg/km
71 kg/km
L6166 .. 88*
10 mm²
0,41 mm
7,3 mm
96 kg/km
131 kg/km
L6166 .. 89*
16 mm²
0,41 mm
8,3 mm
153,6 kg/km
199 kg/km
L6166 .. 90*
25 mm²
0,41 mm
10,2 mm
240 kg/km
305 kg/km
L6166 .. 91*
35 mm²
0,41 mm
11,4 mm
336 kg/km
404 kg/km
L6166 .. 92*
50 mm²
0,41 mm
14,1 mm
480 kg/km
576 kg/km
L6166 .. 93*
70 mm²
0,41 mm
15,1 mm
672 kg/km
765 kg/km
L6166 .. 94*
95 mm²
0,51 mm
18,5 mm
912 kg/km
1052 kg/km
L6166 .. 95*
120 mm²
0,51 mm
20 mm
1152 kg/km
1261 kg/km
L6166 .. 96*
150 mm²
0,51 mm
22,1 mm
1440 kg/km
1567 kg/km
L6166 .. 97*
185 mm²
0,51 mm
23,5 mm
1776 kg/km
1892 kg/km
L6166 .. 98*
240 mm²
0,51 mm
27,2 mm
2304 kg/km
2538 kg/km

Other dimensions and colours are possible on request.
