SABIX® A 205 FRNC
Halogen-free control cable with coloured cores and improved fire performance

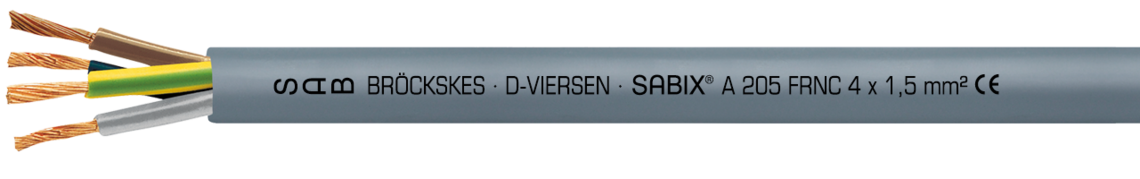

Marking for SABIX® A 205 FRNC 62050515: SAB BRÖCKSKES · D-VIERSEN · SABIX® A 205 FRNC 4 x 1,5 mm² CE
Application
SABIX® A 205 S is a halogen-free, fire retardant control cable with coloured cores and improved fire performance. This flame & fire resistant cable is recommended for use in automation systems, car manufacturing industry, machine construction, and railway technologies.
Outstanding features
- halogen-free
- no flame propagation
- flame & fire retardant
- self-extinguishing
- flexible
- colour coded
- very good stripping
Additional information
with extended temperature range
Construction
| Conductor | bare copper strands acc. to IEC 60228, VDE 0295, class 5 |
|---|---|
| Insulation | SABIX® |
| Colour code | coloured acc. to HD 308 (VDE 0293-308), green-yellow earth wire from 3 cores |
| Stranding | in layers |
| Sheath material | SABIX® |
| Sheath colour | grey (RAL 7000) |
bare copper strands acc. to IEC 60228, VDE 0295, class 5
SABIX®
coloured acc. to HD 308 (VDE 0293-308), green-yellow earth wire from 3 cores
in layers
SABIX®
grey (RAL 7000)
Technical data
| Nominal voltage | Uo/U 300/500 V |
|---|---|
| Testing voltage | core/core 3000 V |
| Min. bending radius | fixed laying: 4 x d flexible application: 6 x d |
| Temperature range | fixed laying: -40/+85 °C flexible application: -30/+85 °C |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Flame propagation | no flame propagation |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Corrosiveness of conflagration gases | in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases |
| Smoke density | acc. to IEC 61034 + VDE 0482-1034 |
| Flexibility | good |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
Uo/U 300/500 V
core/core 3000 V
fixed laying: 4 x d
flexible application: 6 x d
fixed laying: -40/+85 °C
flexible application: -30/+85 °C
acc. to IEC 60754-1 + VDE 0482-754-1
no flame propagation
acc. to IEC 60332-3-24 + VDE 0482-332-3-24
resp. IEC 60332-3-25 + VDE 0482-332-3-25 category C resp. D
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases
acc. to IEC 61034 + VDE 0482-1034
good
acc. to RoHS directive of the European Union
Dimensions
| item no. |
No. of cores x cross section |
Largest single wire-ø | Outer-ø ± 5% | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|---|
| L62050205 | 2 x 0,50 mm² | 0,21 mm | 5 mm | 9,6 kg/km | 37 kg/km | Send inquiry |
| L62050305 | 3 x 0,50 mm² | 0,21 mm | 5,3 mm | 14,4 kg/km | 43 kg/km | Send inquiry |
| L62050405 | 4 x 0,50 mm² | 0,21 mm | 5,7 mm | 19,2 kg/km | 51 kg/km | Send inquiry |
| L62050505 | 5 x 0,50 mm² | 0,21 mm | 6 mm | 24 kg/km | 63 kg/km | Send inquiry |
| L62050705 | 7 x 0,50 mm² | 0,21 mm | 6,9 mm | 33,6 kg/km | 77 kg/km | Send inquiry |
| L62050207 | 2 x 0,75 mm² | 0,21 mm | 5,6 mm | 14,4 kg/km | 48 kg/km | Send inquiry |
| L62050307 | 3 x 0,75 mm² | 0,21 mm | 5,9 mm | 21,6 kg/km | 56 kg/km | Send inquiry |
| L62050407 | 4 x 0,75 mm² | 0,21 mm | 6,6 mm | 28,8 kg/km | 70 kg/km | Send inquiry |
| L62050507 | 5 x 0,75 mm² | 0,21 mm | 7,2 mm | 36 kg/km | 83 kg/km | Send inquiry |
| L62050707 | 7 x 0,75 mm² | 0,21 mm | 8 mm | 50,4 kg/km | 106 kg/km | Send inquiry |
| L62050210 | 2 x 1,00 mm² | 0,21 mm | 5,8 mm | 19,2 kg/km | 54 kg/km | Send inquiry |
| L62050310 | 3 x 1,00 mm² | 0,21 mm | 6,3 mm | 28,8 kg/km | 67 kg/km | Send inquiry |
| L62050410 | 4 x 1,00 mm² | 0,21 mm | 6,8 mm | 38,4 kg/km | 80 kg/km | Send inquiry |
| L62050510 | 5 x 1,00 mm² | 0,21 mm | 7,7 mm | 48 kg/km | 100 kg/km | Send inquiry |
| L62050710 | 7 x 1,00 mm² | 0,21 mm | 8,3 mm | 67,2 kg/km | 123 kg/km | Send inquiry |
| L62050215 | 2 x 1,50 mm² | 0,26 mm | 6,6 mm | 28,8 kg/km | 72 kg/km | Send inquiry |
| L62050315 | 3 x 1,50 mm² | 0,26 mm | 7 mm | 43,2 kg/km | 86 kg/km | Send inquiry |
| L62050415 | 4 x 1,50 mm² | 0,26 mm | 7,8 mm | 57,6 kg/km | 108 kg/km | Send inquiry |
| L62050515 | 5 x 1,50 mm² | 0,26 mm | 8,5 mm | 72 kg/km | 129 kg/km | Send inquiry |
| L62050715 | 7 x 1,50 mm² | 0,26 mm | 9,4 mm | 100,8 kg/km | 166 kg/km | Send inquiry |
| L62050225 | 2 x 2,50 mm² | 0,26 mm | 8 mm | 48 kg/km | 109 kg/km | Send inquiry |
| L62050325 | 3 x 2,50 mm² | 0,26 mm | 8,5 mm | 72 kg/km | 131 kg/km | Send inquiry |
| L62050425 | 4 x 2,50 mm² | 0,26 mm | 9,4 mm | 96 kg/km | 164 kg/km | Send inquiry |
| L62050525 | 5 x 2,50 mm² | 0,26 mm | 10,5 mm | 120 kg/km | 196 kg/km | Send inquiry |
| L62050725 | 7 x 2,50 mm² | 0,26 mm | 11,4 mm | 168 kg/km | 255 kg/km | Send inquiry |
| L62050340 | 3 x 4,00 mm² | 0,31 mm | 9,9 mm | 115,2 kg/km | 192 kg/km | Send inquiry |
| L62050440 | 4 x 4,00 mm² | 0,31 mm | 11 mm | 153,6 kg/km | 240 kg/km | Send inquiry |
| L62050540 | 5 x 4,00 mm² | 0,31 mm | 12,3 mm | 192 kg/km | 296 kg/km | Send inquiry |
| L62050360 | 3 x 6,00 mm² | 0,31 mm | 11,6 mm | 172,8 kg/km | 274 kg/km | Send inquiry |
| L62050460 | 4 x 6,00 mm² | 0,31 mm | 12,4 mm | 230,4 kg/km | 343 kg/km | Send inquiry |
| L62050560 | 5 x 6,00 mm² | 0,31 mm | 14,4 mm | 288 kg/km | 422 kg/km | Send inquiry |
| L62050361 | 3 x 10,00 mm² | 0,41 mm | 15,3 mm | 288 kg/km | 470 kg/km | Send inquiry |
| L62050461 | 4 x 10,00 mm² | 0,41 mm | 16,9 mm | 384 kg/km | 587 kg/km | Send inquiry |
| L62050561 | 5 x 10,00 mm² | 0,41 mm | 18,8 mm | 480 kg/km | 716 kg/km | Send inquiry |
| L62050462 | 4 x 16,00 mm² | 0,41 mm | 20,8 mm | 614,4 kg/km | 895 kg/km | Send inquiry |
| L62050463 | 4 x 25,00 mm² | 0,41 mm | 24,9 mm | 960 kg/km | 1388 kg/km | Send inquiry |
| L62050464 | 4 x 35,00 mm² | 0,41 mm | 28,8 mm | 1334 kg/km | 1927 kg/km | Send inquiry |
cross section
wire-ø
Other dimensions and colours are possible on request.
