SABIX® A 238 FRNC
Halogen-free control cable with numbered cores, overall copper screen, and improved fire performance

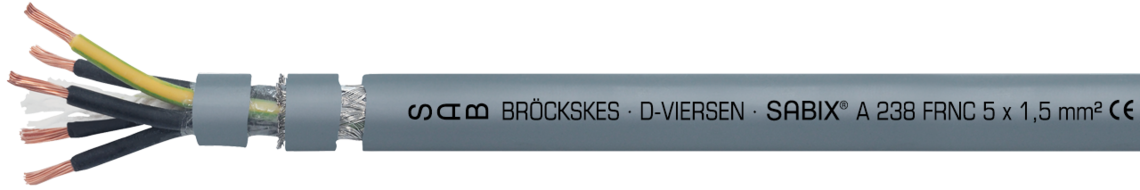

Marking for SABIX® A 238 FRNC 62380515: SAB BRÖCKSKES · D-VIERSEN · SABIX® A 238 FRNC 5 x 1,5 mm² CE
Application
SABIX® A 238 FRNC is a halogen-free fire & flame retardant cable with numbered cores, improved fire performance, and overall copper screen. This low smoke zero halogen wire is recommended for use in transporting systems, construction of industrial plants, and automation technologies.
Outstanding features
- halogen-free
- screened, good EMC characteristics
- no flame propagation
- LSZH - Low Smoke Zero Halogen
- flame & fire retardant
- self-extinguishing
- very good stripping
Construction
| Conductor | bare copper strands acc. to IEC 60228, VDE 0295, class 5 |
|---|---|
| Insulation | SABIX® |
| Colour code | black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores |
| Stranding | in layers |
| Wrapping | foil |
| Screen | tinned copper braiding |
| Sheath material | SABIX® |
| Sheath colour | grey (RAL 7000) |
bare copper strands acc. to IEC 60228, VDE 0295, class 5
SABIX®
black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,
green-yellow earth wire from 3 cores
in layers
foil
tinned copper braiding
SABIX®
grey (RAL 7000)
Technical data
| Nominal voltage | Uo/U 300/500 V |
|---|---|
| Testing voltage | core/core 3000 V core/screen 2000 V |
| Min. bending radius | fixed laying: 5 x d flexible application: 10 x d |
| Temperature range | fixed laying: -40/+85°C flexible application: -30/+85°C |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Flame propagation | no flame propagation |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Corrosiveness of conflagration gases | in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases |
| Smoke density | acc. to IEC 61034 + VDE 0482-1034 |
| Flexibility | good |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
Uo/U 300/500 V
core/core 3000 V
core/screen 2000 V
fixed laying: 5 x d
flexible application: 10 x d
fixed laying: -40/+85°C
flexible application: -30/+85°C
acc. to IEC 60754-1 + VDE 0482-754-1
no flame propagation
acc. to IEC 60332-3-24 + VDE 0482-332-3-24
resp. IEC 60332-3-25 + VDE 0482-332-3-25 category C resp. D
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases
acc. to IEC 61034 + VDE 0482-1034
good
acc. to RoHS directive of the European Union
Dimensions
| item no. |
No. of cores x cross section |
Largest single wire-ø | Outer-ø ± 5% | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|---|
| L62380205 | 2 x 0,50 mm² | 0,21 mm | 5,5 mm | 25,5 kg/km | 42 kg/km | Send inquiry |
| L62380305 | 3 x 0,50 mm² | 0,21 mm | 5,8 mm | 30,7 kg/km | 51 kg/km | Send inquiry |
| L62380405 | 4 x 0,50 mm² | 0,21 mm | 6,4 mm | 35,3 kg/km | 62 kg/km | Send inquiry |
| L62380505 | 5 x 0,50 mm² | 0,21 mm | 6,5 mm | 43,5 kg/km | 74 kg/km | Send inquiry |
| L62380705 | 7 x 0,50 mm² | 0,21 mm | 7,4 mm | 53,4 kg/km | 87 kg/km | Send inquiry |
| L62381205 | 12 x 0,50 mm² | 0,21 mm | 9,8 mm | 86,6 kg/km | 143 kg/km | Send inquiry |
| L62381805 | 18 x 0,50 mm² | 0,21 mm | 11,6 mm | 140,4 kg/km | 214 kg/km | Send inquiry |
| L62382505 | 25 x 0,50 mm² | 0,21 mm | 14,8 mm | 18 kg/km | 285 kg/km | Send inquiry |
| L62380207 | 2 x 0,75 mm² | 0,21 mm | 6,3 mm | 30,5 kg/km | 55 kg/km | Send inquiry |
| L62380307 | 3 x 0,75 mm² | 0,21 mm | 6,6 mm | 39,3 kg/km | 66 kg/km | Send inquiry |
| L62380407 | 4 x 0,75 mm² | 0,21 mm | 7,1 mm | 48,4 kg/km | 78 kg/km | Send inquiry |
| L62380507 | 5 x 0,75 mm² | 0,21 mm | 7,9 mm | 57,4 kg/km | 97 kg/km | Send inquiry |
| L62380707 | 7 x 0,75 mm² | 0,21 mm | 8,5 mm | 74,2 kg/km | 117 kg/km | Send inquiry |
| L62381207 | 12 x 0,75 mm² | 0,21 mm | 11,4 mm | 134,3 kg/km | 202 kg/km | Send inquiry |
| L62381807 | 18 x 0,75 mm² | 0,21 mm | 13,5 mm | 189,3 kg/km | 290 kg/km | Send inquiry |
| L62382507 | 25 x 0,75 mm² | 0,21 mm | 16,4 mm | 277,9 kg/km | 409 kg/km | Send inquiry |
| L62380210 | 2 x 1,00 mm² | 0,21 mm | 6,5 mm | 36,8 kg/km | 61 kg/km | Send inquiry |
| L62380310 | 3 x 1,00 mm² | 0,21 mm | 6,8 mm | 46,5 kg/km | 73 kg/km | Send inquiry |
| L62380410 | 4 x 1,00 mm² | 0,21 mm | 7,3 mm | 58,1 kg/km | 88 kg/km | Send inquiry |
| L62380510 | 5 x 1,00 mm² | 0,21 mm | 8,2 mm | 71,7 kg/km | 111 kg/km | Send inquiry |
| L62380710 | 7 x 1,00 mm² | 0,21 mm | 8,8 mm | 93,3 kg/km | 135 kg/km | Send inquiry |
| L62381210 | 12 x 1,00 mm² | 0,21 mm | 12 mm | 169,3 kg/km | 240 kg/km | Send inquiry |
| L62381810 | 18 x 1,00 mm² | 0,21 mm | 14 mm | 232,8 kg/km | 332 kg/km | Send inquiry |
| L62382510 | 25 x 1,00 mm² | 0,21 mm | 17 mm | 338,6 kg/km | 467 kg/km | Send inquiry |
| L62380215 | 2 x 1,50 mm² | 0,26 mm | 7,1 mm | 60,7 kg/km | 74 kg/km | Send inquiry |
| L62380315 | 3 x 1,50 mm² | 0,26 mm | 7,7 mm | 69,5 kg/km | 96 kg/km | Send inquiry |
| L62380415 | 4 x 1,50 mm² | 0,26 mm | 8,3 mm | 81,3 kg/km | 116 kg/km | Send inquiry |
| L62380515 | 5 x 1,50 mm² | 0,26 mm | 9,2 mm | 98,2 kg/km | 143 kg/km | Send inquiry |
| L62380715 | 7 x 1,50 mm² | 0,26 mm | 9,9 mm | 129,8 kg/km | 177 kg/km | Send inquiry |
| L62381215 | 12 x 1,50 mm² | 0,26 mm | 13,5 mm | 232,5 kg/km | 312 kg/km | Send inquiry |
| L62381815 | 18 x 1,50 mm² | 0,26 mm | 15,9 mm | 356,8 kg/km | 455 kg/km | Send inquiry |
| L62382515 | 25 x 1,50 mm² | 0,26 mm | 19,3 mm | 472 kg/km | 626 kg/km | Send inquiry |
| L62380225 | 2 x 2,50 mm² | 0,26 mm | 8,5 mm | 71,8 kg/km | 106 kg/km | Send inquiry |
| L62380325 | 3 x 2,50 mm² | 0,26 mm | 9,2 mm | 98,2 kg/km | 139 kg/km | Send inquiry |
| L62380425 | 4 x 2,50 mm² | 0,26 mm | 9,9 mm | 132 kg/km | 170 kg/km | Send inquiry |
| L62380525 | 5 x 2,50 mm² | 0,26 mm | 11,2 mm | 167,7 kg/km | 222 kg/km | Send inquiry |
| L62380725 | 7 x 2,50 mm² | 0,26 mm | 12,3 mm | 222,3 kg/km | 285 kg/km | Send inquiry |
| L62381225 | 12 x 2,50 mm² | 0,26 mm | 16,6 mm | 386,1 kg/km | 488 kg/km | Send inquiry |
| L62381825 | 18 x 2,50 mm² | 0,26 mm | 19,5 mm | 564,1 kg/km | 550 kg/km | Send inquiry |
| L62382525 | 25 x 2,50 mm² | 0,26 mm | 23,6 mm | 741,1 kg/km | 948 kg/km | Send inquiry |
| L62380440 | 4 x 4,00 mm² | 0,31 mm | 11,7 mm | 207,6 kg/km | 257 kg/km | Send inquiry |
| L62380540 | 5 x 4,00 mm² | 0,31 mm | 13 mm | 251,5 kg/km | 316 kg/km | Send inquiry |
| L62380460 | 4 x 6,00 mm² | 0,31 mm | 13,8 mm | 290,2 kg/km | 362 kg/km | Send inquiry |
| L62380560 | 5 x 6,00 mm² | 0,31 mm | 15,5 mm | 385,2 kg/km | 466 kg/km | Send inquiry |
| L62380461 | 4 x 10,00 mm² | 0,41 mm | 18 mm | 499,6 kg/km | 629 kg/km | Send inquiry |
| L62380462 | 4 x 16,00 mm² | 0,41 mm | 21,7 mm | 752,6 kg/km | 919 kg/km | Send inquiry |
cross section
wire-ø
Other dimensions and colours are possible on request.
