SABIX® A 260 PUR

Halogen-free, cold-flexible, oil resistant control cable with numbered cores

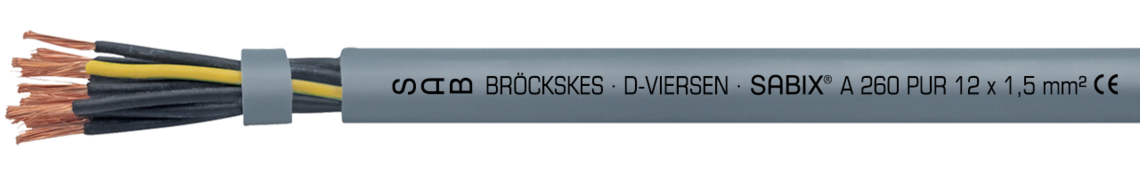

Marking for SABIX® A 260 PUR 52600715: SAB BRÖCKSKES · D-VIERSEN · SABIX® A 260 PUR 12 x 1,5 mm² CE

Download data sheet for SABIX® A 260 PUR

Application

SABIX® A 260 PUR is a cold resistant, flexible control cable with numbered cores. This oil resistant cable is weather resistant and is recommended for use in automation technologies, steel and iron industries, car manufacturing industry, machine construction, refrigeration and climate technologies, car wash, and rising platforms for trucks.

Outstanding features

halogen-free
oil resistant
cold resistant
flexible
weather resistant

Construction

Conductor	bare copper strands acc. to IEC 60228, VDE 0295, class 5
Insulation	SABIX®
Colour code	black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores
Stranding	in layers
Inner sheath	SABIX® - from 4,0 mm²
Sheath material	PUR, TMPU acc. to EN 50363-10-2 + DIN VDE 0207-363-10-2
Sheath colour	grey (RAL 7000)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

SABIX®

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores

Stranding

in layers

Inner sheath

SABIX® - from 4,0 mm²

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + DIN VDE 0207-363-10-2

Sheath colour

grey (RAL 7000)

Technical data

Nominal voltage	Uo/U 300/500 V
Testing voltage	core/core 3000 V
Min. bending radius	fixed laying: 4 x d flexible application: 6 x d
Radiation resistance	5 x 10⁷ cJ/kg
Temperature range	fixed laying: -50/+90°C flexible application: -40/+90°C
Halogen-free	acc. to IEC 60754-1 + VDE 0482-754-1
Oil resistance	very good - TMPU acc. to EN 50363-10-2 + DIN VDE 0207-363-10-2
Chem. resistance	good against acids, alkalines, solvents, hydraulic liquids etc.
Flexibility	very good
Weather resistance	good
Absence of harmful substances	acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 3000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

fixed laying: -50/+90°C

flexible application: -40/+90°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + DIN VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Flexibility

very good

Weather resistance

good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	No. of cores x cross section	Largest single wire-ø	Outer-ø ± 5%	Copper figure	Cable weight ≈
L52600207	2 x 0,75 mm²	0,21 mm	5,6 mm	14,4 kg/km	39 kg/km	Send inquiry
L52600307	3 x 0,75 mm²	0,21 mm	5,9 mm	21,6 kg/km	47 kg/km	Send inquiry
L52600407	4 x 0,75 mm²	0,21 mm	6,4 mm	28,8 kg/km	57 kg/km	Send inquiry
L52600507	5 x 0,75 mm²	0,21 mm	7 mm	36 kg/km	68 kg/km	Send inquiry
L52600707	7 x 0,75 mm²	0,21 mm	7,6 mm	50,4 kg/km	87 kg/km	Send inquiry
L52601007	10 x 0,75 mm²	0,21 mm	9,6 mm	72 kg/km	119 kg/km	Send inquiry
L52601207	12 x 0,75 mm²	0,21 mm	10,3 mm	86,4 kg/km	145 kg/km	Send inquiry
L52601807	18 x 0,75 mm²	0,21 mm	12 mm	129,6 kg/km	206 kg/km	Send inquiry
L52602507	25 x 0,75 mm²	0,21 mm	14,7 mm	180 kg/km	284 kg/km	Send inquiry
L52600210	2 x 1,00 mm²	0,21 mm	5,8 mm	19,2 kg/km	44 kg/km	Send inquiry
L52600310	3 x 1,00 mm²	0,21 mm	6,1 mm	28,8 kg/km	54 kg/km	Send inquiry
L52600410	4 x 1,00 mm²	0,21 mm	6,6 mm	38,4 kg/km	66 kg/km	Send inquiry
L52600510	5 x 1,00 mm²	0,21 mm	7,3 mm	48 kg/km	81 kg/km	Send inquiry
L52600710	7 x 1,00 mm²	0,21 mm	7,9 mm	67,2 kg/km	103 kg/km	Send inquiry
L52601010	10 x 1,00 mm²	0,21 mm	10,4 mm	96 kg/km	143 kg/km	Send inquiry
L52601210	12 x 1,00 mm²	0,21 mm	10,7 mm	115,2 kg/km	173 kg/km	Send inquiry
L52601810	18 x 1,00 mm²	0,21 mm	12,5 mm	172,8 kg/km	247 kg/km	Send inquiry
L52602510	25 x 1,00 mm²	0,21 mm	15,3 mm	240 kg/km	341 kg/km	Send inquiry
L52600215	2 x 1,50 mm²	0,26 mm	6,4 mm	28,8 kg/km	57 kg/km	Send inquiry
L52600315	3 x 1,50 mm²	0,26 mm	6,8 mm	43,2 kg/km	72 kg/km	Send inquiry
L52600415	4 x 1,50 mm²	0,26 mm	7,4 mm	57,6 kg/km	88 kg/km	Send inquiry
L52600515	5 x 1,50 mm²	0,26 mm	8,1 mm	72 kg/km	107 kg/km	Send inquiry
L52600715	7 x 1,50 mm²	0,26 mm	8,8 mm	100,8 kg/km	139 kg/km	Send inquiry
L52601015	10 x 1,50 mm²	0,26 mm	11,6 mm	144 kg/km	191 kg/km	Send inquiry
L52601215	12 x 1,50 mm²	0,26 mm	12 mm	172,8 kg/km	233 kg/km	Send inquiry
L52601815	18 x 1,50 mm²	0,26 mm	14 mm	259,2 kg/km	336 kg/km	Send inquiry
L52602515	25 x 1,50 mm²	0,26 mm	17 mm	360 kg/km	451 kg/km	Send inquiry
L52600225	2 x 2,50 mm²	0,26 mm	7,6 mm	48 kg/km	86 kg/km	Send inquiry
L52600325	3 x 2,50 mm²	0,26 mm	8,5 mm	72 kg/km	114 kg/km	Send inquiry
L52600425	4 x 2,50 mm²	0,26 mm	8,8 mm	96 kg/km	135 kg/km	Send inquiry
L52600525	5 x 2,50 mm²	0,26 mm	10,1 mm	120 kg/km	172 kg/km	Send inquiry
L52600725	7 x 2,50 mm²	0,26 mm	11 mm	168 kg/km	224 kg/km	Send inquiry
L52601025	10 x 2,50 mm²	0,26 mm	14 mm	240 kg/km	311 kg/km	Send inquiry
L52601225	12 x 2,50 mm²	0,26 mm	14,9 mm	288 kg/km	373 kg/km	Send inquiry
L52601825	18 x 2,50 mm²	0,26 mm	17,4 mm	432 kg/km	539 kg/km	Send inquiry
L52602525	25 x 2,50 mm²	0,26 mm	21,7 mm	600 kg/km	755 kg/km	Send inquiry
L52600340	3 x 4,00 mm²	0,31 mm	11,7 mm	115,2 kg/km	198 kg/km	Send inquiry
L52600440	4 x 4,00 mm²	0,31 mm	12,6 mm	153,6 kg/km	243 kg/km	Send inquiry
L52600540	5 x 4,00 mm²	0,31 mm	13,7 mm	192 kg/km	293 kg/km	Send inquiry
L52600360	3 x 6,00 mm²	0,31 mm	14 mm	172,8 kg/km	290 kg/km	Send inquiry
L52600460	4 x 6,00 mm²	0,31 mm	15,1 mm	230,4 kg/km	357 kg/km	Send inquiry
L52600560	5 x 6,00 mm²	0,31 mm	16,4 mm	288 kg/km	431 kg/km	Send inquiry
L52600461	4 x 10,0 mm²	0,41 mm	18,9 mm	384 kg/km	582 kg/km	Send inquiry
L52600561	5 x 10,0 mm²	0,41 mm	20,6 mm	480 kg/km	709 kg/km	Send inquiry
L52600462	4 x 16,0 mm²	0,41 mm	22,2 mm	614,4 kg/km	851 kg/km	Send inquiry
L52600562	5 x 16,0 mm²	0,41 mm	24,4 mm	768 kg/km	1041 kg/km	Send inquiry
