SABIX® A 280 FRNC X

wiring cable / control cable, cross linked type

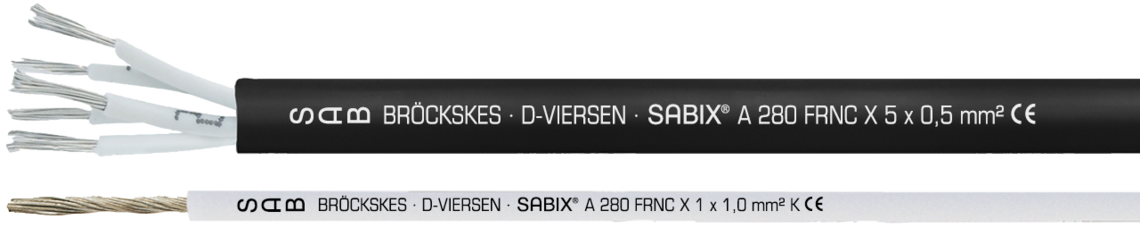

Marking for SABIX® A 280 FRNC X 62800505:
SAB BRÖCKSKES • D-VIERSEN • SABIX® A 280 FRNC X 5 x 0,5 mm² CE
Marking for SABIX® A 280 FRNC X 62800110:
SAB BRÖCKSKES • D-VIERSEN • SABIX® A 280 FRNC X 1 x 1,0 mm² CE

Marking for SABIX® A 280 FRNC X 62800505: SAB BRÖCKSKES • D-VIERSEN • SABIX® A 280 FRNC X 5 x 0,5 mm² CE Marking for SABIX® A 280 FRNC X 62800110: SAB BRÖCKSKES • D-VIERSEN • SABIX® A 280 FRNC X 1 x 1,0 mm² CE

Application

SABIX® A 280 FRNC X is a wiring and control cable with good ozone, oil, and chemical resistance. The flame retardant cable is recommended for the internal wiring of rail vehicles acc. to EN 45545-2.

Outstanding features

  • halogen-free
  • no flame propagation
  • flame retardant and self-extinguishing
  • good ozone resistance
  • good oil and chemical resistance
  • fulfils fire protection requirements R15 (EL1A) acc. to EN 45545-2 for hazard levels HL1-3

Additional information

Especially for use in rail vehicles

Construction

Conductor

tinned copper strands fine wires acc. to IEC 60228, VDE 0295, class 5

Insulation

special SABIX®

Colour code

Single conductor: white (similar RAL 9010)

Multi-core cable: white cores with consecutive numbers acc. to EN 50334 + VDE 0293-334

Stranding

Multi-core cable: in layers

Sheath material

Multi-core cable: special SABIX®

Sheath colour

Multi-core cable: black (RAL 9005)

Conductor

tinned copper strands fine wires acc. to IEC 60228, VDE 0295, class 5

Insulation

special SABIX®

Colour code

Single conductor: white (similar RAL 9010)

Multi-core cable: white cores with consecutive numbers acc. to EN 50334 + VDE 0293-334

Stranding

Multi-core cable: in layers

Sheath material

Multi-core cable: special SABIX®

Sheath colour

Multi-core cable: black (RAL 9005)

Technical data

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 2000 V

Min. bending radius

5 x d

Temperature range

during protected, fixed laying:

-40/+125 °C (single conductor)

-50/+125 °C (multi-core cable)

Halogen-free

acc. to EN 50306-1 + EN 50264-1 are fulfilled.

Development of HCl is < 0,5% acc. to IEC 60754-1.

pH-value is > 4,3 acc. to IEC 60754-2.

Conductivity is < 10,0 µS/mm acc. to IEC 60754-2.

Fluoric content < 0,1% acc. to IEC 60684-2

Fire performance

No flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24 resp. IEC 60332-3-25 + VDE 0482-332-3-25 and EN 50305 + VDE 0260-305 section 9.1.2.

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Toxicity

acc. to EN 50305 + VDE 0260-305

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 2000 V

Min. bending radius

5 x d

Temperature range

during protected, fixed laying:

-40/+125 °C (single conductor)

-50/+125 °C (multi-core cable)

Halogen-free

acc. to EN 50306-1 + EN 50264-1 are fulfilled.

Development of HCl is < 0,5% acc. to IEC 60754-1.

pH-value is > 4,3 acc. to IEC 60754-2.

Conductivity is < 10,0 µS/mm acc. to IEC 60754-2.

Fluoric content < 0,1% acc. to IEC 60684-2

Fire performance

No flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24 resp. IEC 60332-3-25 + VDE 0482-332-3-25 and EN 50305 + VDE 0260-305 section 9.1.2.

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Toxicity

acc. to EN 50305 + VDE 0260-305

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5% Copper figure Cable weight ≈ Ohmic resistance
at 20°C max.
Heating value approx.
628003053 x 0,50 mm²0,21 mm4,7 mm14,4 kg/km35 kg/km40,1 Ω/km115 kWh/km Send inquiry
628005055 x 0,50 mm²0,21 mm5,8 mm24 kg/km50 kg/km40,1 Ω/km170 kWh/km Send inquiry
628008058 x 0,50 mm²0,21 mm7,3 mm38,4 kg/km83 kg/km40,1 Ω/km246 kWh/km Send inquiry
6280100510 x 0,50 mm²0,21 mm8,1 mm48 kg/km97 kg/km40,1 Ω/km275 kWh/km Send inquiry
6280120512 x 0,50 mm²0,21 mm8,4 mm57,6 kg/km112 kg/km40,1 Ω/km306 kWh/km Send inquiry
628006076 x 0,75 mm²0,21 mm7,2 mm43,2 kg/km86 kg/km26,7 Ω/km237 kWh/km Send inquiry
628008078 x 0,75 mm²0,21 mm7,3 mm57,6 kg/km101 kg/km26,7 Ω/km245 kWh/km Send inquiry
6280100710 x 0,75 mm²0,21 mm9,4 mm72 kg/km133 kg/km26,7 Ω/km345 kWh/km Send inquiry
628001101 x 1,00 mm²0,21 mm2,1 mm9,6 kg/km12 kg/km20 Ω/km16 kWh/km Send inquiry
628003103 x 1,00 mm²0,21 mm5,5 mm28,8 kg/km55 kg/km20 Ω/km162 kWh/km Send inquiry
628004104 x 1,00 mm²0,21 mm6,2 mm38,4 kg/km71 kg/km20 Ω/km186 kWh/km Send inquiry
628006106 x 1,00 mm²0,21 mm7,5 mm57,6 kg/km101 kg/km20 Ω/km252 kWh/km Send inquiry
628008108 x 1,00 mm²0,21 mm9 mm76,8 kg/km135 kg/km20 Ω/km338 kWh/km Send inquiry
6280101010 x 1,00 mm²0,21 mm10,1 mm96 kg/km164 kg/km20 Ω/km402 kWh/km Send inquiry
628001151 x 1,50 mm²0,21 mm2,5 mm14,4 kg/km17 kg/km13,7 Ω/km22,5 kWh/km Send inquiry
628003153 x 1,50 mm²0,21 mm6,6 mm43,2 kg/km68 kg/km13,7 Ω/km210 kWh/km Send inquiry
628001251 x 2,50 mm²0,26 mm3,1 mm24 kg/km27 kg/km8,21 Ω/km34 kWh/km Send inquiry
Send inquiry
item no.
No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5%
Copper figure
Cable weight ≈
Ohmic resistance
at 20°C max.
Heating value approx.
62800305
3 x 0,50 mm²
0,21 mm
4,7 mm
14,4 kg/km
35 kg/km
40,1 Ω/km
115 kWh/km
62800505
5 x 0,50 mm²
0,21 mm
5,8 mm
24 kg/km
50 kg/km
40,1 Ω/km
170 kWh/km
62800805
8 x 0,50 mm²
0,21 mm
7,3 mm
38,4 kg/km
83 kg/km
40,1 Ω/km
246 kWh/km
62801005
10 x 0,50 mm²
0,21 mm
8,1 mm
48 kg/km
97 kg/km
40,1 Ω/km
275 kWh/km
62801205
12 x 0,50 mm²
0,21 mm
8,4 mm
57,6 kg/km
112 kg/km
40,1 Ω/km
306 kWh/km
62800607
6 x 0,75 mm²
0,21 mm
7,2 mm
43,2 kg/km
86 kg/km
26,7 Ω/km
237 kWh/km
62800807
8 x 0,75 mm²
0,21 mm
7,3 mm
57,6 kg/km
101 kg/km
26,7 Ω/km
245 kWh/km
62801007
10 x 0,75 mm²
0,21 mm
9,4 mm
72 kg/km
133 kg/km
26,7 Ω/km
345 kWh/km
62800110
1 x 1,00 mm²
0,21 mm
2,1 mm
9,6 kg/km
12 kg/km
20 Ω/km
16 kWh/km
62800310
3 x 1,00 mm²
0,21 mm
5,5 mm
28,8 kg/km
55 kg/km
20 Ω/km
162 kWh/km
62800410
4 x 1,00 mm²
0,21 mm
6,2 mm
38,4 kg/km
71 kg/km
20 Ω/km
186 kWh/km
62800610
6 x 1,00 mm²
0,21 mm
7,5 mm
57,6 kg/km
101 kg/km
20 Ω/km
252 kWh/km
62800810
8 x 1,00 mm²
0,21 mm
9 mm
76,8 kg/km
135 kg/km
20 Ω/km
338 kWh/km
62801010
10 x 1,00 mm²
0,21 mm
10,1 mm
96 kg/km
164 kg/km
20 Ω/km
402 kWh/km
62800115
1 x 1,50 mm²
0,21 mm
2,5 mm
14,4 kg/km
17 kg/km
13,7 Ω/km
22,5 kWh/km
62800315
3 x 1,50 mm²
0,21 mm
6,6 mm
43,2 kg/km
68 kg/km
13,7 Ω/km
210 kWh/km
62800125
1 x 2,50 mm²
0,26 mm
3,1 mm
24 kg/km
27 kg/km
8,21 Ω/km
34 kWh/km

Other dimensions and colours are possible on request.
