SABIX® A 810 FRNC

Motor connection cable with numbered cores, improved fire performance, and extended temperature range

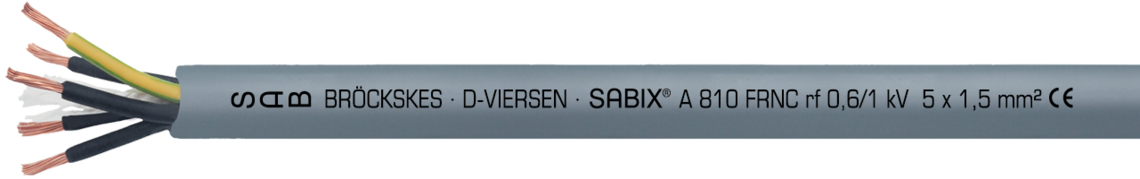

Marking for SABIX® A 810 FRNC 68100515: SAB BRÖCKSKES • D-VIERSEN • SABIX® A 810 FRNC rf 0,6/1 kV  5 x 1,5 mm² CE

Marking for SABIX® A 810 FRNC 68100515: SAB BRÖCKSKES • D-VIERSEN • SABIX® A 810 FRNC rf 0,6/1 kV 5 x 1,5 mm² CE

Application

SABIX® A 810 FRNC is a halogen-free motor connection cable with extended temperature range, improved fire performance, and numbered cores. It is recommended for use in automation technologies, car manufacturing industry, machine construction, and power supplay cable between frequency converter and servo motor.

Outstanding features

  • halogen-free
  • no flame propagation
  • flame retardant and self-extinguishing

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

SABIX®

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

in layers

Sheath material

SABIX®

Sheath colour

grey (RAL 7000)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

SABIX®

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

in layers

Sheath material

SABIX®

Sheath colour

grey (RAL 7000)

Technical data

Nominal voltage

Uo/U 0,6/1,0 kV

Testing voltage

core/core 4000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Temperature range

fixed laying: -40/+85°C

flexible application: -30/+85°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Flame propagation

no flame propagation
acc. to IEC 60332-3-24 + VDE 0482-332-3-24
resp. IEC 60332-3-25 + VDE 0482-332-3-25 category C resp. D

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Flexibility

good

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 0,6/1,0 kV

Testing voltage

core/core 4000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Temperature range

fixed laying: -40/+85°C

flexible application: -30/+85°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Flame propagation

no flame propagation
acc. to IEC 60332-3-24 + VDE 0482-332-3-24
resp. IEC 60332-3-25 + VDE 0482-332-3-25 category C resp. D

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Flexibility

good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5% Copper figure Cable weight ≈
L681003153 x 1,50 mm²0,26 mm9,4 mm43,2 kg/km127 kg/km Send inquiry
L681004154 x 1,50 mm²0,26 mm10,1 mm57,6 kg/km149 kg/km Send inquiry
L681005155 x 1,50 mm²0,26 mm11 mm72 kg/km176 kg/km Send inquiry
L681007157 x 1,50 mm²0,26 mm11,9 mm100,8 kg/km215 kg/km Send inquiry
L681003253 x 2,50 mm²0,26 mm10,6 mm72 kg/km173 kg/km Send inquiry
L681004254 x 2,50 mm²0,26 mm11,5 mm96 kg/km206 kg/km Send inquiry
L681005255 x 2,50 mm²0,26 mm12,6 mm120 kg/km245 kg/km Send inquiry
L681007257 x 2,50 mm²0,26 mm13,8 mm168 kg/km309 kg/km Send inquiry
L681003403 x 4,00 mm²0,31 mm11,9 mm115,2 kg/km234 kg/km Send inquiry
L681004404 x 4,00 mm²0,31 mm13,2 mm153,6 kg/km286 kg/km Send inquiry
L681005405 x 4,00 mm²0,31 mm14,3 mm192 kg/km337 kg/km Send inquiry
L681007407 x 4,00 mm²0,31 mm15,7 mm268,8 kg/km435 kg/km Send inquiry
L681003603 x 6,00 mm²0,31 mm13,3 mm172,8 kg/km308 kg/km Send inquiry
L681004604 x 6,00 mm²0,31 mm14,3 mm230,4 kg/km373 kg/km Send inquiry
L681005605 x 6,00 mm²0,31 mm15,8 mm288 kg/km448 kg/km Send inquiry
L681007607 x 6,00 mm²0,31 mm17,2 mm403,2 kg/km579 kg/km Send inquiry
L681003703 x 10,0 mm²0,41 mm18,3 mm288 kg/km583 kg/km Send inquiry
L681004704 x 10,0 mm²0,41 mm20 mm384 kg/km709 kg/km Send inquiry
L681005705 x 10,0 mm²0,41 mm21,9 mm480 kg/km846 kg/km Send inquiry
L681007707 x 10,0 mm²0,41 mm23,9 mm672 kg/km1082 kg/km Send inquiry
L681003803 x 16,0 mm²0,41 mm21,5 mm460,8 kg/km823 kg/km Send inquiry
L681004804 x 16,0 mm²0,41 mm23,5 mm614,4 kg/km1007 kg/km Send inquiry
L681005805 x 16,0 mm²0,41 mm25,9 mm768 kg/km1232 kg/km Send inquiry
L681007807 x 16,0 mm²0,41 mm28,3 mm1075,2 kg/km1585 kg/km Send inquiry
L681003903 x 25,0 mm²0,41 mm25,9 mm720 kg/km1265 kg/km Send inquiry
L681004904 x 25,0 mm²0,41 mm28,4 mm960 kg/km1557 kg/km Send inquiry
L681005905 x 25,0 mm²0,41 mm31,4 mm1200 kg/km1878 kg/km Send inquiry
L681007907 x 25,0 mm²0,41 mm34,4 mm1680 kg/km2445 kg/km Send inquiry
item no.
No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5%
Copper figure
Cable weight ≈
L68100315
3 x 1,50 mm²
0,26 mm
9,4 mm
43,2 kg/km
127 kg/km
L68100415
4 x 1,50 mm²
0,26 mm
10,1 mm
57,6 kg/km
149 kg/km
L68100515
5 x 1,50 mm²
0,26 mm
11 mm
72 kg/km
176 kg/km
L68100715
7 x 1,50 mm²
0,26 mm
11,9 mm
100,8 kg/km
215 kg/km
L68100325
3 x 2,50 mm²
0,26 mm
10,6 mm
72 kg/km
173 kg/km
L68100425
4 x 2,50 mm²
0,26 mm
11,5 mm
96 kg/km
206 kg/km
L68100525
5 x 2,50 mm²
0,26 mm
12,6 mm
120 kg/km
245 kg/km
L68100725
7 x 2,50 mm²
0,26 mm
13,8 mm
168 kg/km
309 kg/km
L68100340
3 x 4,00 mm²
0,31 mm
11,9 mm
115,2 kg/km
234 kg/km
L68100440
4 x 4,00 mm²
0,31 mm
13,2 mm
153,6 kg/km
286 kg/km
L68100540
5 x 4,00 mm²
0,31 mm
14,3 mm
192 kg/km
337 kg/km
L68100740
7 x 4,00 mm²
0,31 mm
15,7 mm
268,8 kg/km
435 kg/km
L68100360
3 x 6,00 mm²
0,31 mm
13,3 mm
172,8 kg/km
308 kg/km
L68100460
4 x 6,00 mm²
0,31 mm
14,3 mm
230,4 kg/km
373 kg/km
L68100560
5 x 6,00 mm²
0,31 mm
15,8 mm
288 kg/km
448 kg/km
L68100760
7 x 6,00 mm²
0,31 mm
17,2 mm
403,2 kg/km
579 kg/km
L68100370
3 x 10,0 mm²
0,41 mm
18,3 mm
288 kg/km
583 kg/km
L68100470
4 x 10,0 mm²
0,41 mm
20 mm
384 kg/km
709 kg/km
L68100570
5 x 10,0 mm²
0,41 mm
21,9 mm
480 kg/km
846 kg/km
L68100770
7 x 10,0 mm²
0,41 mm
23,9 mm
672 kg/km
1082 kg/km
L68100380
3 x 16,0 mm²
0,41 mm
21,5 mm
460,8 kg/km
823 kg/km
L68100480
4 x 16,0 mm²
0,41 mm
23,5 mm
614,4 kg/km
1007 kg/km
L68100580
5 x 16,0 mm²
0,41 mm
25,9 mm
768 kg/km
1232 kg/km
L68100780
7 x 16,0 mm²
0,41 mm
28,3 mm
1075,2 kg/km
1585 kg/km
L68100390
3 x 25,0 mm²
0,41 mm
25,9 mm
720 kg/km
1265 kg/km
L68100490
4 x 25,0 mm²
0,41 mm
28,4 mm
960 kg/km
1557 kg/km
L68100590
5 x 25,0 mm²
0,41 mm
31,4 mm
1200 kg/km
1878 kg/km
L68100790
7 x 25,0 mm²
0,41 mm
34,4 mm
1680 kg/km
2445 kg/km

Other dimensions and colours are possible on request.
