SABIX® A 812 C FRNC

Motor connection cable with numbered cores, improved fire performance, inner sheath, overall copper screen, and extended temperature range

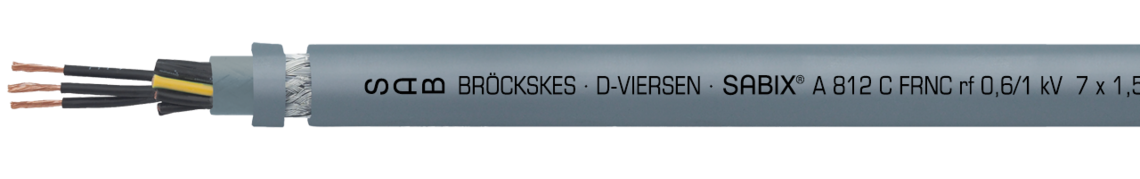

Marking for SABIX A 812 C FRNC 68120715: SAB BRÖCKSKES · D-VIERSEN · SABIX A 812 C FRNC rf 0,6/1 kV 7 x 1,5 mm2 CE

Marking for SABIX A 812 C FRNC 68120715: SAB BRÖCKSKES · D-VIERSEN · SABIX A 812 C FRNC rf 0,6/1 kV 7 x 1,5 mm2 CE

Application

SABIX® A 812 C FRNC is a halogen-free motor connection cable with inner sheath, extended temperature range, overall copper screen, improved fire performance, and numbered cores. It is recommended for use in automation technologies, car manufacturing industry, machine construction, and power supplay cable between frequency converter and servo motor.

Outstanding features

    • halogen-free
    • screened, good EMC characteristics
    • no flame propagation
    • flame retardant and self-extinguishing

    Construction

    Conductor

    bare copper strands acc. to IEC 60228, VDE 0295, class 5

    Insulation

    SABIX®

    Colour code

    black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

    green-yellow earth wire from 3 cores

    Stranding

    in layers

    Inner sheath

    SABIX®

    Screen

    tinned copper braiding

    Sheath material

    SABIX®

    Sheath colour

    grey (RAL 7000)

    Conductor

    bare copper strands acc. to IEC 60228, VDE 0295, class 5

    Insulation

    SABIX®

    Colour code

    black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

    green-yellow earth wire from 3 cores

    Stranding

    in layers

    Inner sheath

    SABIX®

    Screen

    tinned copper braiding

    Sheath material

    SABIX®

    Sheath colour

    grey (RAL 7000)

    Technical data

    Nominal voltage

    Uo/U 0,6/1,0 kV

    Testing voltage

    core/core 4000 V

    core/screen 4000 V

    Min. bending radius

    fixed laying: 5 x d

    flexible application: 10 x d

    Temperature range

    fixed laying: -40/+85°C

    flexible application: -30/+85°C

    Halogen-free

    acc. to IEC 60754-1 + VDE 0482-754-1

    Fire performance

    no flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24 resp. IEC 60332-3-25 +

    VDE 0482-332-3-25 cat. C resp. D, see chapter N „Technical Data“

    Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

    Corrosiveness of conflagration gases

    in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

    Smoke density

    acc. to IEC 61034 + VDE 0482-1034

    Flexibility

    good

    Absence of harmful substances

    acc. to RoHS directive of the European Union

    Nominal voltage

    Uo/U 0,6/1,0 kV

    Testing voltage

    core/core 4000 V

    core/screen 4000 V

    Min. bending radius

    fixed laying: 5 x d

    flexible application: 10 x d

    Temperature range

    fixed laying: -40/+85°C

    flexible application: -30/+85°C

    Halogen-free

    acc. to IEC 60754-1 + VDE 0482-754-1

    Fire performance

    no flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24 resp. IEC 60332-3-25 +

    VDE 0482-332-3-25 cat. C resp. D, see chapter N „Technical Data“

    Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

    Corrosiveness of conflagration gases

    in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

    Smoke density

    acc. to IEC 61034 + VDE 0482-1034

    Flexibility

    good

    Dimensions

    item no. no. of cores x cross section largest single wire-ø outer-ø ± 5% copper figure cable weight ca.
    681203153 x 1,50 mm²0,26 mm11,3 mm90,9 kg/km202 kg/km Send inquiry
    681204154 x 1,50 mm²0,26 mm12 mm111,7 kg/km226 kg/km Send inquiry
    681207157 x 1,50 mm²0,26 mm13,8 mm160,8 kg/km312 kg/km Send inquiry
    681203253 x 2,50 mm²0,26 mm12,6 mm126,5 kg/km258 kg/km Send inquiry
    681204254 x 2,50 mm²0,26 mm13,5 mm155,8 kg/km298 kg/km Send inquiry
    681205255 x 2,50 mm²0,26 mm15 mm216,9 kg/km373 kg/km Send inquiry
    681207257 x 2,50 mm²0,26 mm16,2 mm266,9 kg/km437 kg/km Send inquiry
    681204404 x 4,00 mm²0,31 mm16,3 mm251,6 kg/km454 kg/km Send inquiry
    681207407 x 4,00 mm²0,31 mm18 mm379,9 kg/km589 kg/km Send inquiry
    681203603 x 6,00 mm²0,31 mm15,1 mm270 kg/km426 kg/km Send inquiry
    681204604 x 6,00 mm²0,31 mm16,7 mm328,8 kg/km516 kg/km Send inquiry
    681207607 x 6,00 mm²0,31 mm19,9 mm528,3 kg/km777 kg/km Send inquiry
    681203703 x 10,0 mm²0,41 mm19,4 mm412,3 kg/km614 kg/km Send inquiry
    681204704 x 10,0 mm²0,41 mm21 mm522,4 kg/km746 kg/km Send inquiry
    681205705 x 10,0 mm²0,41 mm22,8 mm645,5 kg/km916 kg/km Send inquiry
    681207707 x 10,0 mm²0,41 mm25,1 mm842 kg/km1154 kg/km Send inquiry
    681203803 x 16,0 mm²0,41 mm22,4 mm601,9 kg/km827 kg/km Send inquiry
    681204804 x 16,0 mm²0,41 mm24,7 mm783,4 kg/km1055 kg/km Send inquiry
    681205805 x 16,0 mm²0,41 mm27 mm942,8 kg/km1291 kg/km Send inquiry
    681207807 x 16,0 mm²0,41 mm29,7 mm1274 kg/km1661 kg/km Send inquiry
    681203903 x 25,0 mm²0,41 mm26,7 mm894 kg/km1188 kg/km Send inquiry
    681204904 x 25,0 mm²0,41 mm29,4 mm1157,7 kg/km1510 kg/km Send inquiry
    681205905 x 25,0 mm²0,41 mm32,3 mm1413,6 kg/km1862 kg/km Send inquiry
    item no.
    no. of cores x cross section
    largest single wire-ø
    outer-ø ± 5%
    copper figure
    cable weight ca.
    68120315
    3 x 1,50 mm²
    0,26 mm
    11,3 mm
    90,9 kg/km
    202 kg/km
    68120415
    4 x 1,50 mm²
    0,26 mm
    12 mm
    111,7 kg/km
    226 kg/km
    68120715
    7 x 1,50 mm²
    0,26 mm
    13,8 mm
    160,8 kg/km
    312 kg/km
    68120325
    3 x 2,50 mm²
    0,26 mm
    12,6 mm
    126,5 kg/km
    258 kg/km
    68120425
    4 x 2,50 mm²
    0,26 mm
    13,5 mm
    155,8 kg/km
    298 kg/km
    68120525
    5 x 2,50 mm²
    0,26 mm
    15 mm
    216,9 kg/km
    373 kg/km
    68120725
    7 x 2,50 mm²
    0,26 mm
    16,2 mm
    266,9 kg/km
    437 kg/km
    68120440
    4 x 4,00 mm²
    0,31 mm
    16,3 mm
    251,6 kg/km
    454 kg/km
    68120740
    7 x 4,00 mm²
    0,31 mm
    18 mm
    379,9 kg/km
    589 kg/km
    68120360
    3 x 6,00 mm²
    0,31 mm
    15,1 mm
    270 kg/km
    426 kg/km
    68120460
    4 x 6,00 mm²
    0,31 mm
    16,7 mm
    328,8 kg/km
    516 kg/km
    68120760
    7 x 6,00 mm²
    0,31 mm
    19,9 mm
    528,3 kg/km
    777 kg/km
    68120370
    3 x 10,0 mm²
    0,41 mm
    19,4 mm
    412,3 kg/km
    614 kg/km
    68120470
    4 x 10,0 mm²
    0,41 mm
    21 mm
    522,4 kg/km
    746 kg/km
    68120570
    5 x 10,0 mm²
    0,41 mm
    22,8 mm
    645,5 kg/km
    916 kg/km
    68120770
    7 x 10,0 mm²
    0,41 mm
    25,1 mm
    842 kg/km
    1154 kg/km
    68120380
    3 x 16,0 mm²
    0,41 mm
    22,4 mm
    601,9 kg/km
    827 kg/km
    68120480
    4 x 16,0 mm²
    0,41 mm
    24,7 mm
    783,4 kg/km
    1055 kg/km
    68120580
    5 x 16,0 mm²
    0,41 mm
    27 mm
    942,8 kg/km
    1291 kg/km
    68120780
    7 x 16,0 mm²
    0,41 mm
    29,7 mm
    1274 kg/km
    1661 kg/km
    68120390
    3 x 25,0 mm²
    0,41 mm
    26,7 mm
    894 kg/km
    1188 kg/km
    68120490
    4 x 25,0 mm²
    0,41 mm
    29,4 mm
    1157,7 kg/km
    1510 kg/km
    68120590
    5 x 25,0 mm²
    0,41 mm
    32,3 mm
    1413,6 kg/km
    1862 kg/km

    Other dimensions and colours are possible on request.
