SABIX® BL 412 C FRNC

Halogen-free flexible power cable with overall copper screen 0,6/1 kV

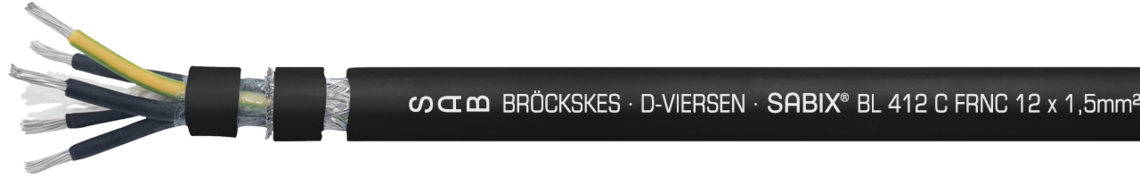

Marking for SABIX® BL 412 C FRNC 64121215: SAB BRÖCKSKES · D-VIERSEN ·
SABIX® BL 412 C FRNC 12 x 1,5mm² - IEC 60332-3-22 - 0,6/1kV DNV+GL ABS Assessed Lloyd’s Register CE and current meter marking

Marking for SABIX® BL 412 C FRNC 64121215: SAB BRÖCKSKES · D-VIERSEN · SABIX® BL 412 C FRNC 12 x 1,5mm² - IEC 60332-3-22 - 0,6/1kV DNV+GL ABS Assessed Lloyd’s Register CE and current meter marking

Application

SABIX® BL 412 C FRNC is a halogen-free flexible power cable with overall copper screen and 0,6/1 kV. Furthermore, it is asbestos free and has good EMC characteristics. This cable is made for flexible use below deck as well as on deck of ships with protected laying without being in permanent contact with oils and fuels. The flexible construction and small diameter enables a comfortable laying even in narrow spaces.

Outstanding features

  • halogen-free
  • asbestos-free
  • screened, good EMC characteristics
  • no flame propagation
  • flame retardant and self-extinguishing
  • flexible
  • for applications acc. to Hong Kong Convention ingredients tested acc. to the requirements of the Hong Kong Convention (2009) of the IMO
  • approvals: DNV•GL, Russian Maritime Register of Shipping

Additional information

Especially for use in shipbuilding industry !

Possible on request:

  • bare copper strands
  • alternative colour code and sheath colour

Construction

Conductor

tinned copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

special SABIX®

Colour code

black conductors with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 conductors

Stranding

in layers

Screen

tinned copper braiding

Sheath material

special SABIX®

SHF 1 compound acc. to IEC 60092-360

Sheath colour

black (RAL 9005)

Technical data

Nominal voltage

Uo/U 0,6/1 kV

Testing voltage

core/core 4000 V

core/screen 4000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Temperature range

fixed laying: -40/+90 °C

flexible application: -30/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

no flame propagation acc. to IEC 60332-3-22 + DIN EN 60332-3-22 cat. A.

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + DIN EN 60332-1-2

Corrosiveness of conflagration gases

no flame propagation acc. to IEC 60332-3-22 + VDE 0482-332-3-22 cat. A.

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Flexibility

very good

Dimensions

item no.no. of cores x cross sectionouter-ø ± 5%copper figurecable weight ca.
641202152 x 1,50 mm²9,4 mm55 kg/km123 kg/km
641203153 x 1,50 mm²9,9 mm72,2 kg/km140 kg/km
641204154 x 1,50 mm²10,9 mm105,2 kg/km181 kg/km
641205155 x 1,50 mm²12,1 mm126,2 kg/km226 kg/km
641207157 x 1,50 mm²13,1 mm160,4 kg/km275 kg/km
6412101510 x 1,50 mm²17 mm253,8 kg/km417 kg/km
6412121512 x 1,50 mm²17,5 mm283,2 kg/km465 kg/km
6412141514 x 1,50 mm²18,3 mm313,1 kg/km516 kg/km
6412181518 x 1,50 mm²20,4 mm384,8 kg/km654 kg/km
641202252 x 2,50 mm²10,2 mm77,1 kg/km155 kg/km
641203253 x 2,50 mm²11 mm119,6 kg/km190 kg/km
641204254 x 2,50 mm²12,1 mm150,2 kg/km236 kg/km
641205255 x 2,50 mm²13,2 mm179,6 kg/km286 kg/km
641207257 x 2,50 mm²14,7 mm253,9 kg/km376 kg/km
6412102510 x 2,50 mm²18,6 mm351,9 kg/km525 kg/km
6412122512 x 2,50 mm²19,1 mm411,8 kg/km600 kg/km
6412142514 x 2,50 mm²20,2 mm461,2 kg/km683 kg/km
6412182518 x 2,50 mm²22,6 mm572,7 kg/km865 kg/km
641202402 x 4,00 mm²12,6 mm131,3 kg/km238 kg/km
641203403 x 4,00 mm²13,3 mm174,9 kg/km277 kg/km
641204404 x 4,00 mm²14,9 mm239,6 kg/km361 kg/km
641205405 x 4,00 mm²16,3 mm290,3 kg/km443 kg/km
641207407 x 4,00 mm²17,9 mm379,7 kg/km566 kg/km
641202602 x 6,00 mm²13,8 mm175 kg/km303 kg/km
641203603 x 6,00 mm²14,8 mm258,8 kg/km368 kg/km
641204604 x 6,00 mm²16,1 mm328,4 kg/km466 kg/km
641205605 x 6,00 mm²17,9 mm398,9 kg/km567 kg/km
641207607 x 6,00 mm²19,6 mm527,5 kg/km723 kg/km
641203613 x 10,0 mm²17,7 mm398,7 kg/km542 kg/km
641204614 x 10,0 mm²19,5 mm508,1 kg/km732 kg/km
641205615 x 10,0 mm²21,4 mm618,8 kg/km853 kg/km
641203623 x 16,0 mm²20,9 mm598,7 kg/km768 kg/km
641204624 x 16,0 mm²23 mm755,9 kg/km992 kg/km
641205625 x 16,0 mm²25,6 mm938,8 kg/km1231 kg/km
641203633 x 25,0 mm²25,2 mm889,8 kg/km1126 kg/km
641204634 x 25,0 mm²27,8 mm1135,9 kg/km1465 kg/km
641205635 x 25,0 mm²30,8 mm1400,7 kg/km1805 kg/km
641203643 x 35,0 mm²28,4 mm1185,4 kg/km1508 kg/km
641204644 x 35,0 mm²31,3 mm1546,6 kg/km1978 kg/km
641203653 x 50,0 mm²32 mm1645,3 kg/km2039 kg/km
641204654 x 50,0 mm²35,2 mm2149,1 kg/km2678 kg/km
item no.
no. of cores x cross section
outer-ø ± 5%
copper figure
cable weight ca.
64120215
2 x 1,50 mm²
9,4 mm
55 kg/km
123 kg/km
64120315
3 x 1,50 mm²
9,9 mm
72,2 kg/km
140 kg/km
64120415
4 x 1,50 mm²
10,9 mm
105,2 kg/km
181 kg/km
64120515
5 x 1,50 mm²
12,1 mm
126,2 kg/km
226 kg/km
64120715
7 x 1,50 mm²
13,1 mm
160,4 kg/km
275 kg/km
64121015
10 x 1,50 mm²
17 mm
253,8 kg/km
417 kg/km
64121215
12 x 1,50 mm²
17,5 mm
283,2 kg/km
465 kg/km
64121415
14 x 1,50 mm²
18,3 mm
313,1 kg/km
516 kg/km
64121815
18 x 1,50 mm²
20,4 mm
384,8 kg/km
654 kg/km
64120225
2 x 2,50 mm²
10,2 mm
77,1 kg/km
155 kg/km
64120325
3 x 2,50 mm²
11 mm
119,6 kg/km
190 kg/km
64120425
4 x 2,50 mm²
12,1 mm
150,2 kg/km
236 kg/km
64120525
5 x 2,50 mm²
13,2 mm
179,6 kg/km
286 kg/km
64120725
7 x 2,50 mm²
14,7 mm
253,9 kg/km
376 kg/km
64121025
10 x 2,50 mm²
18,6 mm
351,9 kg/km
525 kg/km
64121225
12 x 2,50 mm²
19,1 mm
411,8 kg/km
600 kg/km
64121425
14 x 2,50 mm²
20,2 mm
461,2 kg/km
683 kg/km
64121825
18 x 2,50 mm²
22,6 mm
572,7 kg/km
865 kg/km
64120240
2 x 4,00 mm²
12,6 mm
131,3 kg/km
238 kg/km
64120340
3 x 4,00 mm²
13,3 mm
174,9 kg/km
277 kg/km
64120440
4 x 4,00 mm²
14,9 mm
239,6 kg/km
361 kg/km
64120540
5 x 4,00 mm²
16,3 mm
290,3 kg/km
443 kg/km
64120740
7 x 4,00 mm²
17,9 mm
379,7 kg/km
566 kg/km
64120260
2 x 6,00 mm²
13,8 mm
175 kg/km
303 kg/km
64120360
3 x 6,00 mm²
14,8 mm
258,8 kg/km
368 kg/km
64120460
4 x 6,00 mm²
16,1 mm
328,4 kg/km
466 kg/km
64120560
5 x 6,00 mm²
17,9 mm
398,9 kg/km
567 kg/km
64120760
7 x 6,00 mm²
19,6 mm
527,5 kg/km
723 kg/km
64120361
3 x 10,0 mm²
17,7 mm
398,7 kg/km
542 kg/km
64120461
4 x 10,0 mm²
19,5 mm
508,1 kg/km
732 kg/km
64120561
5 x 10,0 mm²
21,4 mm
618,8 kg/km
853 kg/km
64120362
3 x 16,0 mm²
20,9 mm
598,7 kg/km
768 kg/km
64120462
4 x 16,0 mm²
23 mm
755,9 kg/km
992 kg/km
64120562
5 x 16,0 mm²
25,6 mm
938,8 kg/km
1231 kg/km
64120363
3 x 25,0 mm²
25,2 mm
889,8 kg/km
1126 kg/km
64120463
4 x 25,0 mm²
27,8 mm
1135,9 kg/km
1465 kg/km
64120563
5 x 25,0 mm²
30,8 mm
1400,7 kg/km
1805 kg/km
64120364
3 x 35,0 mm²
28,4 mm
1185,4 kg/km
1508 kg/km
64120464
4 x 35,0 mm²
31,3 mm
1546,6 kg/km
1978 kg/km
64120365
3 x 50,0 mm²
32 mm
1645,3 kg/km
2039 kg/km
64120465
4 x 50,0 mm²
35,2 mm
2149,1 kg/km
2678 kg/km
