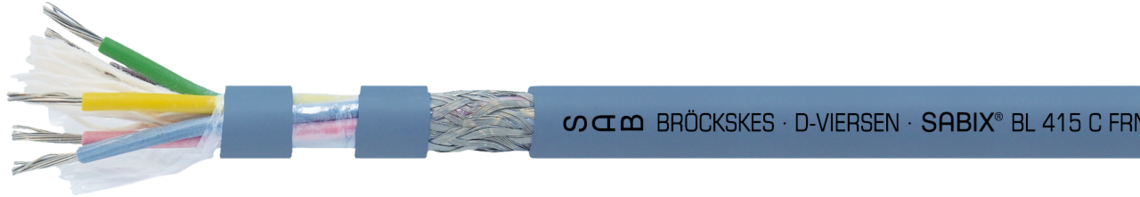

SABIX® BL 415 C FRNC

Halogen-free flexible data cable with overall copper screen

Marking for SABIX® BL 415 C FRNC 64150750: SAB BRÖCKSKES · D-VIERSEN ·
SABIX® BL 415 C FRNC 5 x 0,5mm² - IEC 60332-3-22 - 350V DNV·GL ABS Assessed Lloyd’s Register CE and current meter marking

Marking for SABIX® BL 415 C FRNC 64150750: SAB BRÖCKSKES · D-VIERSEN · SABIX® BL 415 C FRNC 5 x 0,5mm² - IEC 60332-3-22 - 350V DNV·GL ABS Assessed Lloyd’s Register CE and current meter marking

Application

SABIX® BL 415 C FRNC is a halogen-free flexible data cable with overall copper screen. Furthermore, it has approvals of DNV·GL and RMRS. This cable is appropriate for flexible use below deck as well as on deck of ships with protected laying without being in permanent contact with oils and fuels. The flexible construction and small diameter enables a comfortable laying even in narrow spaces.

Outstanding features

  • halogen-free
  • asbestos-free
  • screened, good EMC characteristics
  • no flame propagation
  • flame retardant and self-extinguishing
  • flexible
  • for applications acc. to Hong Kong Convention ingredients tested acc. to the requirements of the Hong Kong Convention (2009) of the IMO
  • approvals: DNV·GL, Russian Maritime Register of Shipping

Additional information

Especially for use in shipbuilding industry

Possible on request:

  • bare copper strands
  • alternative colour code and sheath colour

Construction

Conductor

tinned copper strands with reference to VDE 0812 resp. IEC 60228, VDE 0295, class 5

Insulation

special SABIX®

Colour code

with reference to DIN 47100

Stranding

in layers

Wrapping

foil

Screen

tinned copper braiding

Sheath material

special SABIX®

SHF 1 compound acc. to IEC 60092-360

Sheath colour

pigeon blue (RAL 5014)

Conductor

tinned copper strands with reference to VDE 0812 resp. IEC 60228, VDE 0295, class 5

Insulation

special SABIX®

Colour code

with reference to DIN 47100

Stranding

in layers

Wrapping

foil

Screen

tinned copper braiding

Sheath material

special SABIX®

SHF 1 compound acc. to IEC 60092-360

Sheath colour

pigeon blue (RAL 5014)

Technical data

Peak operating voltage

max. 350 V

Testing voltage

core/core 1500 V

core/screen 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

fixed laying: -40/+90 °C

flexible application: -30/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

no flame propagation acc. to IEC 60332-3-22 + VDE 0482-332-3-22 cat. A.

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Flexibility

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

Testing voltage

core/core 1500 V

core/screen 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

fixed laying: -40/+90 °C

flexible application: -30/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

no flame propagation acc. to IEC 60332-3-22 + VDE 0482-332-3-22 cat. A.

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Flexibility

very good

Dimensions

item no.

no. of cores x
cross section

outer-ø ± 5%

copper figure

cable weight ca.

641502142 x 0,14 mm²4,1 mm13 kg/km25 kg/km Send inquiry
641503143 x 0,14 mm²4,3 mm14,4 kg/km29 kg/km Send inquiry
641504144 x 0,14 mm²4,6 mm19,3 kg/km35 kg/km Send inquiry
641505145 x 0,14 mm²5 mm20,7 kg/km40 kg/km Send inquiry
641506146 x 0,14 mm²5,3 mm22,2 kg/km43 kg/km Send inquiry
641507147 x 0,14 mm²5,3 mm23,5 kg/km45 kg/km Send inquiry
641508148 x 0,14 mm²6,2 mm28,4 kg/km57 kg/km Send inquiry
6415121412 x 0,14 mm²6,8 mm35,8 kg/km70 kg/km Send inquiry
6415161416 x 0,14 mm²7,5 mm43 kg/km85 kg/km Send inquiry
641502252 x 0,25 mm²4,4 mm18,6 kg/km32 kg/km Send inquiry
641503253 x 0,25 mm²4,6 mm21,1 kg/km36 kg/km Send inquiry
641504254 x 0,25 mm²5 mm23,6 kg/km41 kg/km Send inquiry
641505255 x 0,25 mm²5,4 mm27,9 kg/km49 kg/km Send inquiry
641506256 x 0,25 mm²5,8 mm30,5 kg/km54 kg/km Send inquiry
641507257 x 0,25 mm²5,8 mm32,9 kg/km57 kg/km Send inquiry
641508258 x 0,25 mm²6,7 mm38,8 kg/km71 kg/km Send inquiry
6415122512 x 0,25 mm²7,5 mm50,3 kg/km89 kg/km Send inquiry
6415162516 x 0,25 mm²8,6 mm62,2 kg/km118 kg/km Send inquiry
641502342 x 0,34 mm²4,8 mm20,5 kg/km37 kg/km Send inquiry
641503343 x 0,34 mm²5,1 mm23,8 kg/km42 kg/km Send inquiry
641504344 x 0,34 mm²5,5 mm29 kg/km50 kg/km Send inquiry
641505345 x 0,34 mm²6,1 mm32,4 kg/km61 kg/km Send inquiry
641506346 x 0,34 mm²6,6 mm39,1 kg/km71 kg/km Send inquiry
641507347 x 0,34 mm²6,6 mm42,4 kg/km75 kg/km Send inquiry
641508348 x 0,34 mm²7,5 mm47,6 kg/km88 kg/km Send inquiry
6415123412 x 0,34 mm²8,7 mm65,3 kg/km121 kg/km Send inquiry
6415163416 x 0,34 mm²9,5 mm81,2 kg/km149 kg/km Send inquiry
641502502 x 0,50 mm²5,2 mm23,7 kg/km43 kg/km Send inquiry
641503503 x 0,50 mm²5,5 mm30,3 kg/km52 kg/km Send inquiry
641504504 x 0,50 mm²6,1 mm35,3 kg/km64 kg/km Send inquiry
641505505 x 0,50 mm²6,6 mm43,5 kg/km77 kg/km Send inquiry
641506506 x 0,50 mm²7,2 mm50,1 kg/km85 kg/km Send inquiry
641507507 x 0,50 mm²7,2 mm54,9 kg/km90 kg/km Send inquiry
641508508 x 0,50 mm²8,6 mm62,2 kg/km116 kg/km Send inquiry
6415125012 x 0,50 mm²9,5 mm86,6 kg/km152 kg/km Send inquiry
6415165016 x 0,50 mm²10,7 mm124,5 kg/km201 kg/km Send inquiry
641502752 x 0,75 mm²5,7 mm30,4 kg/km52 kg/km Send inquiry
641503753 x 0,75 mm²6,2 mm39,2 kg/km65 kg/km Send inquiry
641504754 x 0,75 mm²6,7 mm48,4 kg/km78 kg/km Send inquiry
641505755 x 0,75 mm²7,3 mm57,4 kg/km93 kg/km Send inquiry
641506756 x 0,75 mm²7,9 mm66,9 kg/km106 kg/km Send inquiry
641507757 x 0,75 mm²7,9 mm74,1 kg/km114 kg/km Send inquiry
641508758 x 0,75 mm²9,3 mm83,9 kg/km142 kg/km Send inquiry
6415127512 x 0,75 mm²10,8 mm134,2 kg/km194 kg/km Send inquiry
6415167516 x 0,75 mm²11,8 mm169,6 kg/km247 kg/km Send inquiry
item no.
no. of cores x
cross section
outer-ø ± 5%
copper figure
cable weight ca.
64150214
2 x 0,14 mm²
4,1 mm
13 kg/km
25 kg/km
64150314
3 x 0,14 mm²
4,3 mm
14,4 kg/km
29 kg/km
64150414
4 x 0,14 mm²
4,6 mm
19,3 kg/km
35 kg/km
64150514
5 x 0,14 mm²
5 mm
20,7 kg/km
40 kg/km
64150614
6 x 0,14 mm²
5,3 mm
22,2 kg/km
43 kg/km
64150714
7 x 0,14 mm²
5,3 mm
23,5 kg/km
45 kg/km
64150814
8 x 0,14 mm²
6,2 mm
28,4 kg/km
57 kg/km
64151214
12 x 0,14 mm²
6,8 mm
35,8 kg/km
70 kg/km
64151614
16 x 0,14 mm²
7,5 mm
43 kg/km
85 kg/km
64150225
2 x 0,25 mm²
4,4 mm
18,6 kg/km
32 kg/km
64150325
3 x 0,25 mm²
4,6 mm
21,1 kg/km
36 kg/km
64150425
4 x 0,25 mm²
5 mm
23,6 kg/km
41 kg/km
64150525
5 x 0,25 mm²
5,4 mm
27,9 kg/km
49 kg/km
64150625
6 x 0,25 mm²
5,8 mm
30,5 kg/km
54 kg/km
64150725
7 x 0,25 mm²
5,8 mm
32,9 kg/km
57 kg/km
64150825
8 x 0,25 mm²
6,7 mm
38,8 kg/km
71 kg/km
64151225
12 x 0,25 mm²
7,5 mm
50,3 kg/km
89 kg/km
64151625
16 x 0,25 mm²
8,6 mm
62,2 kg/km
118 kg/km
64150234
2 x 0,34 mm²
4,8 mm
20,5 kg/km
37 kg/km
64150334
3 x 0,34 mm²
5,1 mm
23,8 kg/km
42 kg/km
64150434
4 x 0,34 mm²
5,5 mm
29 kg/km
50 kg/km
64150534
5 x 0,34 mm²
6,1 mm
32,4 kg/km
61 kg/km
64150634
6 x 0,34 mm²
6,6 mm
39,1 kg/km
71 kg/km
64150734
7 x 0,34 mm²
6,6 mm
42,4 kg/km
75 kg/km
64150834
8 x 0,34 mm²
7,5 mm
47,6 kg/km
88 kg/km
64151234
12 x 0,34 mm²
8,7 mm
65,3 kg/km
121 kg/km
64151634
16 x 0,34 mm²
9,5 mm
81,2 kg/km
149 kg/km
64150250
2 x 0,50 mm²
5,2 mm
23,7 kg/km
43 kg/km
64150350
3 x 0,50 mm²
5,5 mm
30,3 kg/km
52 kg/km
64150450
4 x 0,50 mm²
6,1 mm
35,3 kg/km
64 kg/km
64150550
5 x 0,50 mm²
6,6 mm
43,5 kg/km
77 kg/km
64150650
6 x 0,50 mm²
7,2 mm
50,1 kg/km
85 kg/km
64150750
7 x 0,50 mm²
7,2 mm
54,9 kg/km
90 kg/km
64150850
8 x 0,50 mm²
8,6 mm
62,2 kg/km
116 kg/km
64151250
12 x 0,50 mm²
9,5 mm
86,6 kg/km
152 kg/km
64151650
16 x 0,50 mm²
10,7 mm
124,5 kg/km
201 kg/km
64150275
2 x 0,75 mm²
5,7 mm
30,4 kg/km
52 kg/km
64150375
3 x 0,75 mm²
6,2 mm
39,2 kg/km
65 kg/km
64150475
4 x 0,75 mm²
6,7 mm
48,4 kg/km
78 kg/km
64150575
5 x 0,75 mm²
7,3 mm
57,4 kg/km
93 kg/km
64150675
6 x 0,75 mm²
7,9 mm
66,9 kg/km
106 kg/km
64150775
7 x 0,75 mm²
7,9 mm
74,1 kg/km
114 kg/km
64150875
8 x 0,75 mm²
9,3 mm
83,9 kg/km
142 kg/km
64151275
12 x 0,75 mm²
10,8 mm
134,2 kg/km
194 kg/km
64151675
16 x 0,75 mm²
11,8 mm
169,6 kg/km
247 kg/km

Other dimensions and colours are possible on request.
