SABIX® BL 438 C FRNC

Halogen-free flexible control cable with overall copper screen 300/500 V

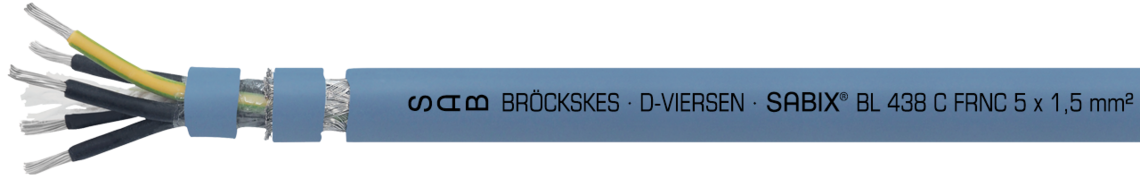

Marking for SABIX® BL 438 C FRNC 64380515: SAB BRÖCKSKES · D-VIERSEN ·
SABIX® BL 438 C FRNC 5 x 1,5mm² - IEC 60332-3-22 - 300/500V DNV CE and current meter marking

Marking for SABIX® BL 438 C FRNC 64380515: SAB BRÖCKSKES · D-VIERSEN · SABIX® BL 438 C FRNC 5 x 1,5mm² - IEC 60332-3-22 - 300/500V DNV CE and current meter marking

Application

SABIX® BL 438 C FRNC is a halogen-free flexible control cable with overall copper screen and 300/500 V. Furthermore, it has good EMC characteristics and does not cause flame propagation. This cable is made for flexible use below and on deck of ships with protected laying without being in permanent contact with oils and fuels. The flexible construction and small diameter enables a comfortable laying even in narrow spaces.

Outstanding features

  • halogen-free
  • asbestos-free
  • screened, good EMC characteristics
  • no flame propagation
  • flame retardant and self-extinguishing
  • flexible
  • for applications acc. to Hong Kong Convention ingredients tested acc. to the requirements of the Hong Kong Convention (2009) of the IMO
  • approvals: DNV

Additional information

Especially for use in shipbuilding industry !

Possible on request:

  • bare copper strands
  • alternative colour code and sheath colour

Construction

Conductor

tinned copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

special SABIX®

Colour code

black conductors with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 conductors

Stranding

in layers

Wrapping

foil

Screen

tinned copper braiding

Sheath material

special SABIX®

SHF 1 compound acc. to IEC 60092-360

Sheath colour

pigeon blue (RAL 5014)

Conductor

tinned copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

special SABIX®

Colour code

black conductors with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 conductors

Stranding

in layers

Wrapping

foil

Screen

tinned copper braiding

Sheath material

special SABIX®

SHF 1 compound acc. to IEC 60092-360

Sheath colour

pigeon blue (RAL 5014)

Technical data

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

fixed laying: -40/+90 °C

flexible application: -30/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

no flame propagation acc. to IEC 60332-3-22 + VDE 0482-332-3-22 cat. A.

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Flexibility

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

fixed laying: -40/+90 °C

flexible application: -30/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

no flame propagation acc. to IEC 60332-3-22 + VDE 0482-332-3-22 cat. A.

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Flexibility

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Outer-ø ± 5% Copper figure Cable weight ≈
643802052 x 0,50 mm²5,8 mm25,5 kg/km50 kg/km Send inquiry
643803053 x 0,50 mm²6,1 mm30,4 kg/km57 kg/km Send inquiry
643804054 x 0,50 mm²6,6 mm36,9 kg/km69 kg/km Send inquiry
643805055 x 0,50 mm²7,1 mm43,6 kg/km82 kg/km Send inquiry
643807057 x 0,50 mm²7,9 mm55 kg/km104 kg/km Send inquiry
6438120512 x 0,50 mm²10,2 mm86,7 kg/km165 kg/km Send inquiry
6438180518 x 0,50 mm²12,3 mm140,7 kg/km251 kg/km Send inquiry
643802072 x 0,75 mm²6,4 mm30,5 kg/km58 kg/km Send inquiry
643803073 x 0,75 mm²6,1 mm39,3 kg/km66 kg/km Send inquiry
643804074 x 0,75 mm²7,3 mm48,5 kg/km84 kg/km Send inquiry
643805075 x 0,75 mm²8 mm57,5 kg/km102 kg/km Send inquiry
643807077 x 0,75 mm²8,7 mm74,2 kg/km126 kg/km Send inquiry
6438120712 x 0,75 mm²11,7 mm140,4 kg/km221 kg/km Send inquiry
6438180718 x 0,75 mm²13,7 mm189,4 kg/km311 kg/km Send inquiry
643802102 x 1,00 mm²6,6 mm36,9 kg/km65 kg/km Send inquiry
643803103 x 1,00 mm²6,9 mm48,3 kg/km77 kg/km Send inquiry
643804104 x 1,00 mm²7,5 mm59,7 kg/km93 kg/km Send inquiry
643805105 x 1,00 mm²8,4 mm71,7 kg/km118 kg/km Send inquiry
643807107 x 1,00 mm²9 mm93,4 kg/km145 kg/km Send inquiry
6438121012 x 1,00 mm²12,1 mm169,4 kg/km250 kg/km Send inquiry
6438181018 x 1,00 mm²14,6 mm258,5 kg/km378 kg/km Send inquiry
643802152 x 1,50 mm²7,3 mm48,5 kg/km80 kg/km Send inquiry
643803153 x 1,50 mm²7,6 mm64,5 kg/km97 kg/km Send inquiry
643804154 x 1,50 mm²8,4 mm81,3 kg/km120 kg/km Send inquiry
643805155 x 1,50 mm²9,3 mm98,2 kg/km150 kg/km Send inquiry
643807157 x 1,50 mm²10,1 mm129,9 kg/km188 kg/km Send inquiry
6438121512 x 1,50 mm²13,5 mm232,5 kg/km323 kg/km Send inquiry
6438181518 x 1,50 mm²16,3 mm357,1 kg/km488 kg/km Send inquiry
643802252 x 2,50 mm²8,7 mm71,8 kg/km115 kg/km Send inquiry
643803253 x 2,50 mm²9,3 mm98,2 kg/km145 kg/km Send inquiry
643804254 x 2,50 mm²10,1 mm125,1 kg/km180 kg/km Send inquiry
643805255 x 2,50 mm²11,5 mm167,9 kg/km237 kg/km Send inquiry
643807257 x 2,50 mm²12,5 mm222,4 kg/km299 kg/km Send inquiry
6438122512 x 2,50 mm²16,8 mm386,4 kg/km513 kg/km Send inquiry
6438182518 x 2,50 mm²20,1 mm556,3 kg/km753 kg/km Send inquiry
item no.
No. of cores x
cross section
Outer-ø ± 5%
Copper figure
Cable weight ≈
64380205
2 x 0,50 mm²
5,8 mm
25,5 kg/km
50 kg/km
64380305
3 x 0,50 mm²
6,1 mm
30,4 kg/km
57 kg/km
64380405
4 x 0,50 mm²
6,6 mm
36,9 kg/km
69 kg/km
64380505
5 x 0,50 mm²
7,1 mm
43,6 kg/km
82 kg/km
64380705
7 x 0,50 mm²
7,9 mm
55 kg/km
104 kg/km
64381205
12 x 0,50 mm²
10,2 mm
86,7 kg/km
165 kg/km
64381805
18 x 0,50 mm²
12,3 mm
140,7 kg/km
251 kg/km
64380207
2 x 0,75 mm²
6,4 mm
30,5 kg/km
58 kg/km
64380307
3 x 0,75 mm²
6,1 mm
39,3 kg/km
66 kg/km
64380407
4 x 0,75 mm²
7,3 mm
48,5 kg/km
84 kg/km
64380507
5 x 0,75 mm²
8 mm
57,5 kg/km
102 kg/km
64380707
7 x 0,75 mm²
8,7 mm
74,2 kg/km
126 kg/km
64381207
12 x 0,75 mm²
11,7 mm
140,4 kg/km
221 kg/km
64381807
18 x 0,75 mm²
13,7 mm
189,4 kg/km
311 kg/km
64380210
2 x 1,00 mm²
6,6 mm
36,9 kg/km
65 kg/km
64380310
3 x 1,00 mm²
6,9 mm
48,3 kg/km
77 kg/km
64380410
4 x 1,00 mm²
7,5 mm
59,7 kg/km
93 kg/km
64380510
5 x 1,00 mm²
8,4 mm
71,7 kg/km
118 kg/km
64380710
7 x 1,00 mm²
9 mm
93,4 kg/km
145 kg/km
64381210
12 x 1,00 mm²
12,1 mm
169,4 kg/km
250 kg/km
64381810
18 x 1,00 mm²
14,6 mm
258,5 kg/km
378 kg/km
64380215
2 x 1,50 mm²
7,3 mm
48,5 kg/km
80 kg/km
64380315
3 x 1,50 mm²
7,6 mm
64,5 kg/km
97 kg/km
64380415
4 x 1,50 mm²
8,4 mm
81,3 kg/km
120 kg/km
64380515
5 x 1,50 mm²
9,3 mm
98,2 kg/km
150 kg/km
64380715
7 x 1,50 mm²
10,1 mm
129,9 kg/km
188 kg/km
64381215
12 x 1,50 mm²
13,5 mm
232,5 kg/km
323 kg/km
64381815
18 x 1,50 mm²
16,3 mm
357,1 kg/km
488 kg/km
64380225
2 x 2,50 mm²
8,7 mm
71,8 kg/km
115 kg/km
64380325
3 x 2,50 mm²
9,3 mm
98,2 kg/km
145 kg/km
64380425
4 x 2,50 mm²
10,1 mm
125,1 kg/km
180 kg/km
64380525
5 x 2,50 mm²
11,5 mm
167,9 kg/km
237 kg/km
64380725
7 x 2,50 mm²
12,5 mm
222,4 kg/km
299 kg/km
64381225
12 x 2,50 mm²
16,8 mm
386,4 kg/km
513 kg/km
64381825
18 x 2,50 mm²
20,1 mm
556,3 kg/km
753 kg/km

Other dimensions and colours are possible on request.
