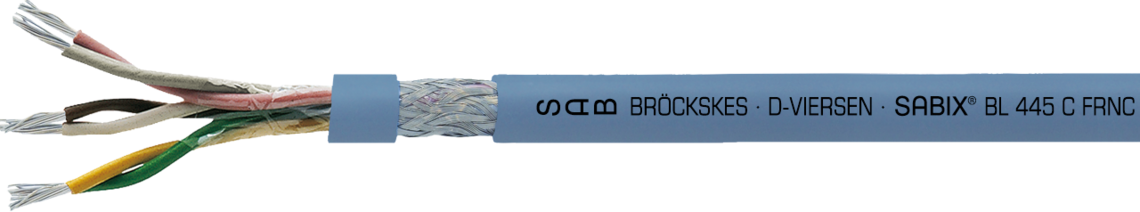

SABIX® BL 445 C FRNC TP

Halogen-free flexible paired data cable with overall copper screen

Marking for SABIX® BL 415 C FRNC 64150750: SAB BRÖCKSKES · D-VIERSEN · SABIX® BL 415 C FRNC 7 x 0,5mm² - IEC 60332-3-22 - 350V DNV CE and current meter marking

Marking for SABIX® BL 415 C FRNC 64150750: SAB BRÖCKSKES · D-VIERSEN · SABIX® BL 415 C FRNC 7 x 0,5mm² - IEC 60332-3-22 - 350V DNV CE and current meter marking

Download data sheet for SABIX® BL 445 C FRNC TP
Questions about our products?

Application

SABIX® BL 445 C FRNC is a halogen-free flexible paired data cable with overall copper screen. Furthermore, it has approvals of DNV and RMRS. This cable is appropriate for flexible use below deck as well as on deck of ships with protected laying without being in permanent contact with oils and fuels. The flexible construction and small diameter enables a comfortable laying even in narrow spaces.

Outstanding features

  • halogen-free
  • asbestos-free
  • screened, good EMC characteristics
  • good transmission rates
  • crosstalk attenuation
  • no flame propagation
  • flame retardant and self-extinguishing
  • flexible
  • for applications acc. to Hong Kong Convention ingredients tested acc. to the requirements of the Hong Kong Convention (2009) of the IMO
  • approvals: DNV

Additional information

Especially for use in shipbuilding industry !

Possible on request:

  • bare copper strands
  • alternative colour code and sheath colour

Construction

Conductor

tinned copper strands with reference to VDE 0812 resp. IEC 60228, VDE 0295, class 5

Insulation

special SABIX®

Colour code

with reference to DIN 47100

Stranding

pairwise, pairs in layers

Wrapping

foil

Screen

tinned copper braiding

Sheath material

special SABIX®

SHF 1 compound acc. to IEC 60092-360

Sheath colour

pigeon blue (RAL 5014)

Conductor

tinned copper strands with reference to VDE 0812 resp. IEC 60228, VDE 0295, class 5

Insulation

special SABIX®

Colour code

with reference to DIN 47100

Stranding

pairwise, pairs in layers

Wrapping

foil

Screen

tinned copper braiding

Sheath material

special SABIX®

SHF 1 compound acc. to IEC 60092-360

Sheath colour

pigeon blue (RAL 5014)

Technical data

Peak operating voltage

max. 350 V

Testing voltage

core/core 1500 V

core/screen 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

fixed laying: -40/+90 °C

flexible application: -30/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

no flame propagation acc. to IEC 60332-3-22 + VDE 0482-332-3-22 cat. A.

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Flexibility

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

Testing voltage

core/core 1500 V

core/screen 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

fixed laying: -40/+90 °C

flexible application: -30/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

no flame propagation acc. to IEC 60332-3-22 + VDE 0482-332-3-22 cat. A.

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Flexibility

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section 		Outer-ø ± 10% Copper figure Cable weight ≈
L644502142 x 2 x 0,14 mm²5,3 mm19,5 kg/km37 kg/km Send inquiry
L644503143 x 2 x 0,14 mm²5,8 mm21,4 kg/km44 kg/km Send inquiry
L644504144 x 2 x 0,14 mm²6,8 mm30,4 kg/km58 kg/km Send inquiry
L644505145 x 2 x 0,14 mm²7,4 mm34,9 kg/km68 kg/km Send inquiry
L644506146 x 2 x 0,14 mm²7,6 mm39,8 kg/km76 kg/km Send inquiry
L644508148 x 2 x 0,14 mm²8,7 mm47,6 kg/km98 kg/km Send inquiry
L6445101410 x 2 x 0,14 mm²9,5 mm55,9 kg/km114 kg/km Send inquiry
L6445121412 x 2 x 0,14 mm²10,6 mm79,9 kg/km142 kg/km Send inquiry
L6445181418 x 2 x 0,14 mm²12,4 mm102,9 kg/km200 kg/km Send inquiry
L644502252 x 2 x 0,25 mm²5,8 mm25,7 kg/km44 kg/km Send inquiry
L644503253 x 2 x 0,25 mm²6,5 mm32,1 kg/km57 kg/km Send inquiry
L644504254 x 2 x 0,25 mm²7,4 mm40,6 kg/km71 kg/km Send inquiry
L644505255 x 2 x 0,25 mm²8,7 mm50,1 kg/km96 kg/km Send inquiry
L644506256 x 2 x 0,25 mm²8,7 mm54,9 kg/km104 kg/km Send inquiry
L644508258 x 2 x 0,25 mm²9,1 mm67,4 kg/km121 kg/km Send inquiry
L6445102510 x 2 x 0,25 mm²10,6 mm95,7 kg/km156 kg/km Send inquiry
L6445122512 x 2 x 0,25 mm²11,6 mm111,9 kg/km180 kg/km Send inquiry
L6445182518 x 2 x 0,25 mm²13,8 mm171,9 kg/km272 kg/km Send inquiry
L6445262526 x 2 x 0,25 mm²16,3 mm223,2 kg/km368 kg/km Send inquiry
L644502342 x 2 x 0,34 mm²6,4 mm30,7 kg/km56 kg/km Send inquiry
L644503343 x 2 x 0,34 mm²7,2 mm40,9 kg/km71 kg/km Send inquiry
L644504344 x 2 x 0,34 mm²8,7 mm52,3 kg/km97 kg/km Send inquiry
L644505345 x 2 x 0,34 mm²9,4 mm61,6 kg/km115 kg/km Send inquiry
L644506346 x 2 x 0,34 mm²9,6 mm68,2 kg/km128 kg/km Send inquiry
L644507347 x 2 x 0,34 mm²10,1 mm93,6 kg/km151 kg/km Send inquiry
L6445123412 x 2 x 0,34 mm²13,4 mm138,2 kg/km238 kg/km Send inquiry
L6445183418 x 2 x 0,34 mm²15,8 mm215,3 kg/km357 kg/km Send inquiry
L644508348 x 2 x 0,34 mm²10,8 mm100 kg/km164 kg/km Send inquiry
L6445193419 x 2 x 0,34 mm²15,8 mm223,2 kg/km367 kg/km Send inquiry
L6445103410 x 2 x 0,34 mm²11,8 mm119,7 kg/km194 kg/km Send inquiry
L6445273427 x 2 x 0,34 mm²18,2 mm289,0 kg/km478 kg/km Send inquiry
L644502502 x 2 x 0,50 mm²7,2 mm40,5 kg/km70 kg/km Send inquiry
L644503503 x 2 x 0,50 mm²7,9 mm52,5 kg/km88 kg/km Send inquiry
L644504504 x 2 x 0,50 mm²9,5 mm67,4 kg/km120 kg/km Send inquiry
L644505505 x 2 x 0,50 mm²10,5 mm95,6 kg/km154 kg/km Send inquiry
L644506506 x 2 x 0,50 mm²10,8 mm105,4 kg/km171 kg/km Send inquiry
L644508508 x 2 x 0,50 mm²11,9 mm131,3 kg/km207 kg/km Send inquiry
L6445105010 x 2 x 0,50 mm²13,4 mm155,9 kg/km259 kg/km Send inquiry
L6445125012 x 2 x 0,50 mm²15 mm212,6 kg/km322 kg/km Send inquiry
L6445185018 x 2 x 0,50 mm²17,4 mm283,5 kg/km451 kg/km Send inquiry
L644502752 x 2 x 0,75 mm²7,9 mm52,5 kg/km87 kg/km Send inquiry
L644503753 x 2 x 0,75 mm²9,2 mm69,5 kg/km115 kg/km Send inquiry
L644504754 x 2 x 0,75 mm²10,7 mm105,3 kg/km156 kg/km Send inquiry
L644505755 x 2 x 0,75 mm²11,6 mm126,3 kg/km186 kg/km Send inquiry
L644506756 x 2 x 0,75 mm²12,4 mm141 kg/km221 kg/km Send inquiry
L644508758 x 2 x 0,75 mm²13,8 mm200,7 kg/km284 kg/km Send inquiry
L6445107510 x 2 x 0,75 mm²15,2 mm241,6 kg/km338 kg/km Send inquiry
L6445127512 x 2 x 0,75 mm²17,2 mm283,2 kg/km411 kg/km Send inquiry
L6445187518 x 2 x 0,75 mm²19,4 mm384 kg/km553 kg/km Send inquiry
item no.
No. of cores x
cross section
Outer-ø ± 10%
Copper figure
Cable weight ≈
L64450214
2 x 2 x 0,14 mm²
5,3 mm
19,5 kg/km
37 kg/km
L64450314
3 x 2 x 0,14 mm²
5,8 mm
21,4 kg/km
44 kg/km
L64450414
4 x 2 x 0,14 mm²
6,8 mm
30,4 kg/km
58 kg/km
L64450514
5 x 2 x 0,14 mm²
7,4 mm
34,9 kg/km
68 kg/km
L64450614
6 x 2 x 0,14 mm²
7,6 mm
39,8 kg/km
76 kg/km
L64450814
8 x 2 x 0,14 mm²
8,7 mm
47,6 kg/km
98 kg/km
L64451014
10 x 2 x 0,14 mm²
9,5 mm
55,9 kg/km
114 kg/km
L64451214
12 x 2 x 0,14 mm²
10,6 mm
79,9 kg/km
142 kg/km
L64451814
18 x 2 x 0,14 mm²
12,4 mm
102,9 kg/km
200 kg/km
L64450225
2 x 2 x 0,25 mm²
5,8 mm
25,7 kg/km
44 kg/km
L64450325
3 x 2 x 0,25 mm²
6,5 mm
32,1 kg/km
57 kg/km
L64450425
4 x 2 x 0,25 mm²
7,4 mm
40,6 kg/km
71 kg/km
L64450525
5 x 2 x 0,25 mm²
8,7 mm
50,1 kg/km
96 kg/km
L64450625
6 x 2 x 0,25 mm²
8,7 mm
54,9 kg/km
104 kg/km
L64450825
8 x 2 x 0,25 mm²
9,1 mm
67,4 kg/km
121 kg/km
L64451025
10 x 2 x 0,25 mm²
10,6 mm
95,7 kg/km
156 kg/km
L64451225
12 x 2 x 0,25 mm²
11,6 mm
111,9 kg/km
180 kg/km
L64451825
18 x 2 x 0,25 mm²
13,8 mm
171,9 kg/km
272 kg/km
L64452625
26 x 2 x 0,25 mm²
16,3 mm
223,2 kg/km
368 kg/km
L64450234
2 x 2 x 0,34 mm²
6,4 mm
30,7 kg/km
56 kg/km
L64450334
3 x 2 x 0,34 mm²
7,2 mm
40,9 kg/km
71 kg/km
L64450434
4 x 2 x 0,34 mm²
8,7 mm
52,3 kg/km
97 kg/km
L64450534
5 x 2 x 0,34 mm²
9,4 mm
61,6 kg/km
115 kg/km
L64450634
6 x 2 x 0,34 mm²
9,6 mm
68,2 kg/km
128 kg/km
L64450734
7 x 2 x 0,34 mm²
10,1 mm
93,6 kg/km
151 kg/km
L64451234
12 x 2 x 0,34 mm²
13,4 mm
138,2 kg/km
238 kg/km
L64451834
18 x 2 x 0,34 mm²
15,8 mm
215,3 kg/km
357 kg/km
L64450834
8 x 2 x 0,34 mm²
10,8 mm
100 kg/km
164 kg/km
L64451934
19 x 2 x 0,34 mm²
15,8 mm
223,2 kg/km
367 kg/km
L64451034
10 x 2 x 0,34 mm²
11,8 mm
119,7 kg/km
194 kg/km
L64452734
27 x 2 x 0,34 mm²
18,2 mm
289,0 kg/km
478 kg/km
L64450250
2 x 2 x 0,50 mm²
7,2 mm
40,5 kg/km
70 kg/km
L64450350
3 x 2 x 0,50 mm²
7,9 mm
52,5 kg/km
88 kg/km
L64450450
4 x 2 x 0,50 mm²
9,5 mm
67,4 kg/km
120 kg/km
L64450550
5 x 2 x 0,50 mm²
10,5 mm
95,6 kg/km
154 kg/km
L64450650
6 x 2 x 0,50 mm²
10,8 mm
105,4 kg/km
171 kg/km
L64450850
8 x 2 x 0,50 mm²
11,9 mm
131,3 kg/km
207 kg/km
L64451050
10 x 2 x 0,50 mm²
13,4 mm
155,9 kg/km
259 kg/km
L64451250
12 x 2 x 0,50 mm²
15 mm
212,6 kg/km
322 kg/km
L64451850
18 x 2 x 0,50 mm²
17,4 mm
283,5 kg/km
451 kg/km
L64450275
2 x 2 x 0,75 mm²
7,9 mm
52,5 kg/km
87 kg/km
L64450375
3 x 2 x 0,75 mm²
9,2 mm
69,5 kg/km
115 kg/km
L64450475
4 x 2 x 0,75 mm²
10,7 mm
105,3 kg/km
156 kg/km
L64450575
5 x 2 x 0,75 mm²
11,6 mm
126,3 kg/km
186 kg/km
L64450675
6 x 2 x 0,75 mm²
12,4 mm
141 kg/km
221 kg/km
L64450875
8 x 2 x 0,75 mm²
13,8 mm
200,7 kg/km
284 kg/km
L64451075
10 x 2 x 0,75 mm²
15,2 mm
241,6 kg/km
338 kg/km
L64451275
12 x 2 x 0,75 mm²
17,2 mm
283,2 kg/km
411 kg/km
L64451875
18 x 2 x 0,75 mm²
19,4 mm
384 kg/km
553 kg/km

Other dimensions and colours are possible on request.
