SABIX® CC 625 SH FRNC M

Halogen-free UL/CSA control cable with numbered cores, inner sheath, and overall copper screen

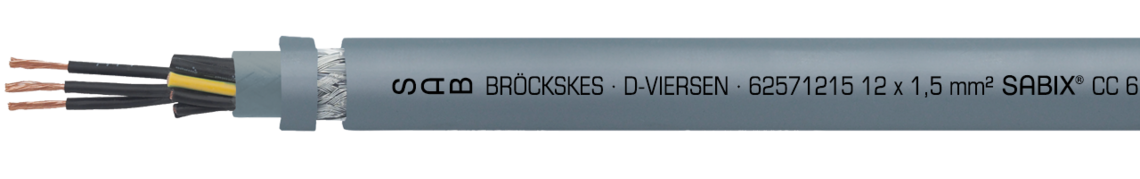

Marking example: SAB BRÖCKSKES · D-VIERSEN · 62571215 12 x 1,5 mm² SABIX® CC 625 SH FRNC M 16AWG/12c 62571612 UL AWM Style 21089 75°C 60OV CSA AWM I/II A/B 80°C 600V FT1 CE

Questions about our products?

Application

SABIX® CC 625 SH FRNC M is a halogen-free control cable with inner sheath, overall copper screen, and numbered cores. It is recommended for use in transporting systems, construction of industrial plants, and automation technologies.

Outstanding features

halogen-free
UL recognized, CSA approved
no flame propagation
screened, good EMC characteristics
flame retardant and self-extinguishing
flexible
PFAS-free

Questions about our products?

Construction

Conductor	bare copper strands acc. to IEC 60228, VDE 0295, class 5
Insulation	SABIX®
Colour code	black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores
Stranding	in layers
Inner sheath	SABIX®
Screen	tinned copper braiding
Sheath material	SABIX®
Sheath colour	grey (RAL 7000)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

SABIX®

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

in layers

Inner sheath

SABIX®

Screen

tinned copper braiding

Sheath material

SABIX®

Sheath colour

grey (RAL 7000)

Technical data

Nominal voltage	Uo/U 300/500 V
Voltage UL/CSA	600 V
Testing voltage	core/core 3000 V core/screen 2000 V
Min. bending radius	fixed laying: 5 x d flexible application: 10 x d
Temperature range	DIN VDE fixed laying: -40/+90 °C DIN VDE flexible application: -30/+90 °C UL: up to +75°C CSA: up to +80°C
Halogen-free	acc. to IEC 60754-1 + VDE 0482-754-1
Flame propagation	no flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24 resp. IEC 60332-3-25 + VDE 0482-332-3-25 category C resp. D
Fire performance	flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, CSA FT1
Corrosiveness of conflagration gases	in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases
Smoke density	acc. to IEC 61034 + VDE 0482-1034
Flexibility	good
Absence of harmful substances	acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Voltage UL/CSA

600 V

Testing voltage

core/core 3000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

DIN VDE fixed laying: -40/+90 °C

DIN VDE flexible application: -30/+90 °C

UL: up to +75°C

CSA: up to +80°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Flame propagation

no flame propagation
acc. to IEC 60332-3-24 + VDE 0482-332-3-24
resp. IEC 60332-3-25 + VDE 0482-332-3-25 category C resp. D

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, CSA FT1

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Flexibility

good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	No. of cores x cross section	Largest single wire-ø	Outer-ø ± 10%	Copper figure	Cable weight ≈
L62570205	2 x 0,50 mm²	0,21 mm	7 mm	23,3 kg/km	74 kg/km	Send inquiry
L62570305	3 x 0,50 mm²	0,21 mm	7,3 mm	28,5 kg/km	82 kg/km	Send inquiry
L62570405	4 x 0,50 mm²	0,21 mm	7,8 mm	34,9 kg/km	95 kg/km	Send inquiry
L62570505	5 x 0,50 mm²	0,21 mm	8,4 mm	41,5 kg/km	110 kg/km	Send inquiry
L62570705	7 x 0,50 mm²	0,21 mm	9,1 mm	53,3 kg/km	134 kg/km	Send inquiry
L62570805	8 x 0,50 mm²	0,21 mm	10,4 mm	60,5 kg/km	164 kg/km	Send inquiry
L62570905	9 x 0,50 mm²	0,21 mm	11,1 mm	77,9 kg/km	189 kg/km	Send inquiry
L62571205	12 x 0,50 mm²	0,21 mm	11,5 mm	97,4 kg/km	213 kg/km	Send inquiry
L62571605	16 x 0,50 mm²	0,21 mm	12,9 mm	121,6 kg/km	268 kg/km	Send inquiry
L62571805	18 x 0,50 mm²	0,21 mm	13,7 mm	132,1 kg/km	296 kg/km	Send inquiry
L62572505	25 x 0,50 mm²	0,21 mm	16,3 mm	193,3 kg/km	409 kg/km	Send inquiry
L62570207	2 x 0,75 mm²	0,21 mm	7,6 mm	28,8 kg/km	87 kg/km	Send inquiry
L62570307	3 x 0,75 mm²	0,21 mm	7,9 mm	36,1 kg/km	97 kg/km	Send inquiry
L62570407	4 x 0,75 mm²	0,21 mm	8,4 mm	46,2 kg/km	113 kg/km	Send inquiry
L62570507	5 x 0,75 mm²	0,21 mm	9,3 mm	53,5 kg/km	134 kg/km	Send inquiry
L62570707	7 x 0,75 mm²	0,21 mm	9,9 mm	69,8 kg/km	160 kg/km	Send inquiry
L62570807	8 x 0,75 mm²	0,21 mm	11,5 mm	93,5 kg/km	209 kg/km	Send inquiry
L62570907	9 x 0,75 mm²	0,21 mm	12,3 mm	100,9 kg/km	230 kg/km	Send inquiry
L62571207	12 x 0,75 mm²	0,21 mm	13 mm	126 kg/km	267 kg/km	Send inquiry
L62571607	16 x 0,75 mm²	0,21 mm	14,3 mm	159,3 kg/km	328 kg/km	Send inquiry
L62571807	18 x 0,75 mm²	0,21 mm	15,1 mm	173,9 kg/km	361 kg/km	Send inquiry
L62572507	25 x 0,75 mm²	0,21 mm	18 mm	253,5 kg/km	499 kg/km	Send inquiry
L62570210	2 x 1,00 mm²	0,21 mm	7,8 mm	33,6 kg/km	94 kg/km	Send inquiry
L62570310	3 x 1,00 mm²	0,21 mm	8,2 mm	44,6 kg/km	108 kg/km	Send inquiry
L62570410	4 x 1,00 mm²	0,21 mm	8,9 mm	55,8 kg/km	129 kg/km	Send inquiry
L62570510	5 x 1,00 mm²	0,21 mm	9,5 mm	67,3 kg/km	149 kg/km	Send inquiry
L62570710	7 x 1,00 mm²	0,21 mm	10,4 mm	86,6 kg/km	183 kg/km	Send inquiry
L62570810	8 x 1,00 mm²	0,21 mm	12,2 mm	112,9 kg/km	241 kg/km	Send inquiry
L62570910	9 x 1,00 mm²	0,21 mm	12,9 mm	126 kg/km	264 kg/km	Send inquiry
L62571210	12 x 1,00 mm²	0,21 mm	13,6 mm	155 kg/km	304 kg/km	Send inquiry
L62571810	18 x 1,00 mm²	0,21 mm	15,8 mm	237,7 kg/km	430 kg/km	Send inquiry
L62572510	25 x 1,00 mm²	0,21 mm	18,8 mm	314,2 kg/km	572 kg/km	Send inquiry
L62570215	2 x 1,50 mm²	0,26 mm	8,4 mm	44,6 kg/km	112 kg/km	Send inquiry
L62570315	3 x 1,50 mm²	0,26 mm	9 mm	60,6 kg/km	135 kg/km	Send inquiry
L62570415	4 x 1,50 mm²	0,26 mm	9,6 mm	76,9 kg/km	158 kg/km	Send inquiry
L62570515	5 x 1,50 mm²	0,26 mm	10,7 mm	103,6 kg/km	199 kg/km	Send inquiry
L62570715	7 x 1,50 mm²	0,26 mm	11,5 mm	136,7 kg/km	243 kg/km	Send inquiry
L62570815	8 x 1,50 mm²	0,26 mm	13,5 mm	154,9 kg/km	301 kg/km	Send inquiry
L62570915	9 x 1,50 mm²	0,26 mm	14,2 mm	173,6 kg/km	330 kg/km	Send inquiry
L62571215	12 x 1,50 mm²	0,26 mm	15 mm	217,1 kg/km	385 kg/km	Send inquiry
L62571815	18 x 1,50 mm²	0,26 mm	17,7 mm	332,5 kg/km	557 kg/km	Send inquiry
L62572515	25 x 1,50 mm²	0,26 mm	21,1 mm	443,6 kg/km	748 kg/km	Send inquiry
L62570225	2 x 2,50 mm²	0,26 mm	9,8 mm	67,3 kg/km	157 kg/km	Send inquiry
L62570325	3 x 2,50 mm²	0,26 mm	10,7 mm	103,6 kg/km	202 kg/km	Send inquiry
L62570425	4 x 2,50 mm²	0,26 mm	11,4 mm	131,8 kg/km	238 kg/km	Send inquiry
L62570525	5 x 2,50 mm²	0,26 mm	12,7 mm	159,5 kg/km	290 kg/km	Send inquiry
L62570725	7 x 2,50 mm²	0,26 mm	13,8 mm	207,9 kg/km	357 kg/km	Send inquiry
L62570825	8 x 2,50 mm²	0,26 mm	16,2 mm	257 kg/km	454 kg/km	Send inquiry
L62570925	9 x 2,50 mm²	0,26 mm	17,1 mm	288,9 kg/km	498 kg/km	Send inquiry
L62571225	12 x 2,50 mm²	0,26 mm	18,3 mm	361,8 kg/km	596 kg/km	Send inquiry
L62571825	18 x 2,50 mm²	0,26 mm	21,2 mm	515,7 kg/km	822 kg/km	Send inquiry
L62572525	25 x 2,50 mm²	0,26 mm	25,5 mm	704 kg/km	1115 kg/km	Send inquiry
L62570340	3 x 4,00 mm²	0,31 mm	12,3 mm	151,3 kg/km	228 kg/km	Send inquiry
L62570440	4 x 4,00 mm²	0,31 mm	13,4 mm	193,3 kg/km	337 kg/km	Send inquiry
L62570540	5 x 4,00 mm²	0,31 mm	14,7 mm	236,1 kg/km	405 kg/km	Send inquiry
L62570740	7 x 4,00 mm²	0,31 mm	16,2 mm	333,8 kg/km	526 kg/km	Send inquiry
L62570360	3 x 6,00 mm²	0,31 mm	14 mm	216,7 kg/km	377 kg/km	Send inquiry
L62570460	4 x 6,00 mm²	0,31 mm	15,5 mm	295,1 kg/km	477 kg/km	Send inquiry
L62570560	5 x 6,00 mm²	0,31 mm	17 mm	360,9 kg/km	575 kg/km	Send inquiry
L62570461	4 x 10,0 mm²	0,41 mm	20,2 mm	466,9 kg/km	791 kg/km	Send inquiry
L62570561	5 x 10,0 mm²	0,41 mm	22,3 mm	572,4 kg/km	960 kg/km	Send inquiry
L62570462	4 x 16,0 mm²	0,41 mm	24,3 mm	717 kg/km	1144 kg/km	Send inquiry
L62570463	4 x 25,0 mm²	0,41 mm	29,7 mm	1079 kg/km	1758 kg/km	Send inquiry
L62570464	4 x 35,0 mm²	0,41 mm	33,8 mm	1480,9 kg/km	2358 kg/km	Send inquiry
