SABIX® R flex

Continuously flexible SABIX® Rail cable with numbered cores

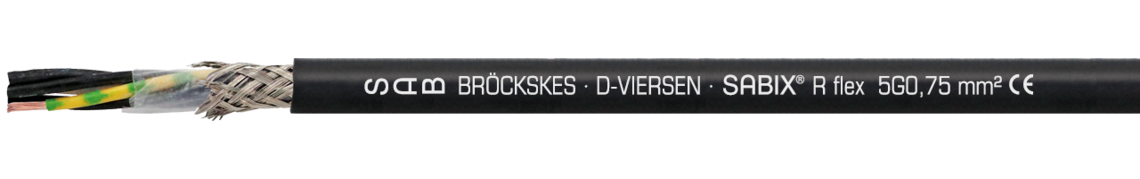

Marking for SABIX® R flex FRNC 6670-0105: SAB BRÖCKSKES · D-VIERSEN · SABIX® R flex FRNC 5G0,75 mm² CE

Marking for SABIX® R flex FRNC 6670-0105: SAB BRÖCKSKES · D-VIERSEN · SABIX® R flex FRNC 5G0,75 mm² CE

Application

Halogen-free, flexible cable, suitable for flexible and protected installation in the interior for door control or in protecting tubes for outdoor laying at the bogie, railway machines or as connection cable between the waggons. Appropriate for light and medium mechanical stress.

Outstanding features

  • halogen-free
  • continuously flexible
  • screened, good EMC characteristics
  • no flame propagation
  • flame retardant and self-extinguishing
  • good ozone, UV and weather resistance
  • good oil and fuel resistance
  • good acid and alkalines resistance
  • fulfils fire protection requirements R15 (EL1A) and R16 (EL1B) acc. to EN 45545-2 for hazard levels HL1-2
  • flame retardant acc. to UN/ECE R118



Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

special Polymer

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores.

Twisted pairs type without green-yellow earth wire.

Stranding

in layers resp. pairwise

Wrapping:

foil

Screen

tinned copper braiding (if existing)

Sheath material

SABIX® Ultra

Sheath colour

black (RAL 9005)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

special Polymer

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores.

Twisted pairs type without green-yellow earth wire.

Stranding

in layers resp. pairwise

Wrapping:

foil

Screen

tinned copper braiding (if existing)

Sheath material

SABIX® Ultra

Sheath colour

black (RAL 9005)

Technical data

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Min. bending radius

fixed laying unshielded 4 x d

fixed laying shielded 5 x d



flexible application unshielded 6 x d

flexible application shielded 10 x d



continuously flexible unshielded: 12 x d

continuously flexible shielded 15 x d

Temperature range

fixed laying: -50/+90 °C

flexible application: -40/+90 °C

Halogen-free

acc. to EN 50306-1 + EN 50264-1 are fulfilled.

Development of HCl is < 0,5% acc. to IEC 60754-1.

pH-value is > 4,3 acc. to IEC 60754-2.

Conductivity is < 10,0 µS/mm acc. to IEC 60754-2.

Fluoric content < 0,1% acc. to IEC 60684-2.

Fire performance

No flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24 resp. IEC 60332-3-25 + VDE 0482-332-3-25 and EN 50305 + VDE 0260-305 section 9.1.2.

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2.

Flame retardant acc. to ISO 6722 (UN/ECE R118)

Toxicity

acc. to EN 50305 + VDE 0260-305

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Oil and fuel resistance

acc. to EN 50264-1 + VDE 0260-264-1

Flexibility

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Min. bending radius

fixed laying unshielded 4 x d

fixed laying shielded 5 x d



flexible application unshielded 6 x d

flexible application shielded 10 x d



continuously flexible unshielded: 12 x d

continuously flexible shielded 15 x d

Temperature range

fixed laying: -50/+90 °C

flexible application: -40/+90 °C

Halogen-free

acc. to EN 50306-1 + EN 50264-1 are fulfilled.

Development of HCl is < 0,5% acc. to IEC 60754-1.

pH-value is > 4,3 acc. to IEC 60754-2.

Conductivity is < 10,0 µS/mm acc. to IEC 60754-2.

Fluoric content < 0,1% acc. to IEC 60684-2.

Fire performance

No flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24 resp. IEC 60332-3-25 + VDE 0482-332-3-25 and EN 50305 + VDE 0260-305 section 9.1.2.

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2.

Flame retardant acc. to ISO 6722 (UN/ECE R118)

Toxicity

acc. to EN 50305 + VDE 0260-305

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Oil and fuel resistance

acc. to EN 50264-1 + VDE 0260-264-1

Flexibility

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Description No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5% Copper figure Cable weight ≈
66700002multi-core cable unscreened2 x 0,50 mm²0,16 mm4,6 mm9,6 kg/km31 kg/km Send inquiry
66700004multi-core cable unscreened4 x 0,50 mm²0,16 mm5,4 mm19,2 kg/km47 kg/km Send inquiry
66700007multi-core cable unscreened7 x 0,50 mm²0,16 mm6,9 mm33,6 kg/km76 kg/km Send inquiry
66700012multi-core cable unscreened12 x 0,50 mm²0,16 mm8,4 mm57,6 kg/km113 kg/km Send inquiry
66700018multi-core cable unscreened18 x 0,50 mm²0,16 mm9,9 mm86,4 kg/km160 kg/km Send inquiry
66700032multi-core cable unscreened32 x 0,50 mm²0,16 mm12,8 mm153,6 kg/km267 kg/km Send inquiry
66700103multi-core cable unscreened3 x 0,75 mm²0,16 mm5,6 mm21,6 kg/km51 kg/km Send inquiry
66700105multi-core cable unscreened5 x 0,75 mm²0,16 mm6,7 mm36 kg/km75 kg/km Send inquiry
66700125multi-core cable unscreened25 x 0,75 mm²0,16 mm13,8 mm180 kg/km303 kg/km Send inquiry
66700202multi-core cable unscreened2 x 1,00 mm²0,16 mm5,7 mm19,2 kg/km49 kg/km Send inquiry
66700273multi-core cable unscreened73 x 1,00 mm²0,16 mm23 mm700,8 kg/km989 kg/km Send inquiry
66700303multi-core cable unscreened3 x 1,50 mm²0,16 mm6,6 mm43,2 kg/km81 kg/km Send inquiry
66700307multi-core cable unscreened7 x 1,50 mm²0,16 mm9,4 mm100,8 kg/km167 kg/km Send inquiry
66700318multi-core cable unscreened18 x 1,50 mm²0,16 mm13,7 mm259,2 kg/km376 kg/km Send inquiry
66703002multi-core cable screened2 x 2 x 0,50 mm²0,16 mm7 mm36,9 kg/km69 kg/km Send inquiry
66703003multi-core cable screened3 x 2 x 0,50 mm²0,16 mm8 mm49,4 kg/km90 kg/km Send inquiry
66703004multi-core cable screened4 x 2 x 0,50 mm²0,16 mm10 mm65,3 kg/km121 kg/km Send inquiry
66703006multi-core cable screened6 x 2 x 0,50 mm²0,16 mm10,4 mm103,4 kg/km161 kg/km Send inquiry
66703008multi-core cable screened8 x 2 x 0,50 mm²0,16 mm12,5 mm129,4 kg/km229 kg/km Send inquiry
66703012multi-core cable screened12 x 2 x 0,50 mm²0,16 mm14,3 mm177,1 kg/km278 kg/km Send inquiry
66703103multi-core cable screened3 x 2 x 0,75 mm²0,16 mm8,9 mm69,2 kg/km113 kg/km Send inquiry
66703108multi-core cable screened8 x 2 x 0,75 mm²0,16 mm14,6 mm177,6 kg/km306 kg/km Send inquiry
66703202multi-core cable screened2 x 2 x 1,00 mm²0,16 mm8,9 mm64,4 kg/km111 kg/km Send inquiry
66703203multi-core cable screened3 x 2 x 1,00 mm²0,16 mm9,5 mm83,9 kg/km135 kg/km Send inquiry
66703206multi-core cable screened6 x 2 x 1,00 mm²0,16 mm12,6 mm168 kg/km249 kg/km Send inquiry
66703208multi-core cable screened8 x 2 x 1,00 mm²0,16 mm15,1 mm220,8 kg/km357 kg/km Send inquiry
66703302multi-core cable screened2 x 2 x 1,50 mm²0,16 mm10,3 mm103,2 kg/km157 kg/km Send inquiry
66703304multi-core cable screened4 x 2 x 1,50 mm²0,16 mm12,7 mm168,1 kg/km243 kg/km Send inquiry
66703306multi-core cable screened6 x 2 x 1,50 mm²0,16 mm14,3 mm234,7 kg/km345 kg/km Send inquiry
66701002multi-core cable screened2 x 0,50 mm²0,16 mm5,3 mm24,8 kg/km46 kg/km Send inquiry
66701003multi-core cable screened3 x 0,50 mm²0,16 mm5,5 mm29,8 kg/km51 kg/km Send inquiry
66701005multi-core cable screened5 x 0,50 mm²0,16 mm6,5 mm40,3 kg/km71 kg/km Send inquiry
66701007multi-core cable screened7 x 0,50 mm²0,16 mm7,4 mm53,8 kg/km91 kg/km Send inquiry
66701018multi-core cable screened18 x 0,50 mm²0,16 mm10,8 mm132,5 kg/km200 kg/km Send inquiry
66701032multi-core cable screened32 x 0,50 mm²0,16 mm13,7 mm214,5 kg/km317 kg/km Send inquiry
66701103multi-core cable screened3 x 0,75 mm²0,16 mm6,1 mm37,7 kg/km62 kg/km Send inquiry
66701104multi-core cable screened4 x 0,75 mm²0,16 mm6,7 mm46,2 kg/km76 kg/km Send inquiry
66701105multi-core cable screened5 x 0,75 mm²0,16 mm7,2 mm55,9 kg/km90 kg/km Send inquiry
66701125multi-core cable screened25 x 0,75 mm²0,16 mm14,5 mm242,3 kg/km351 kg/km Send inquiry
66701204multi-core cable screened4 x 1,00 mm²0,16 mm6,9 mm56 kg/km87 kg/km Send inquiry
66701207multi-core cable screened7 x 1,00 mm²0,16 mm8,7 mm90,1 kg/km137 kg/km Send inquiry
66701212multi-core cable screened12 x 1,00 mm²0,16 mm11 mm161,6 kg/km224 kg/km Send inquiry
66701303multi-core cable screened3 x 1,50 mm²0,16 mm7,1 mm61 kg/km92 kg/km Send inquiry
66701304multi-core cable screened4 x 1,50 mm²0,16 mm7,6 mm78 kg/km111 kg/km Send inquiry
66701305multi-core cable screened5 x 1,50 mm²0,16 mm8,5 mm94,8 kg/km137 kg/km Send inquiry
66701318multi-core cable screened18 x 1,50 mm²0,16 mm14,4 mm321,3 kg/km417 kg/km Send inquiry
66701404multi-core cable screened4 x 2,50 mm²0,16 mm9,7 mm122,5 kg/km174 kg/km Send inquiry
66701405multi-core cable screened5 x 2,50 mm²0,16 mm11 mm166,4 kg/km235 kg/km Send inquiry
66701407multi-core cable screened7 x 2,50 mm²0,16 mm13,2 mm288,3 kg/km324 kg/km Send inquiry
66701412multi-core cable screened12 x 2,50 mm²0,16 mm15,7 mm356,2 kg/km465 kg/km Send inquiry
66701504multi-core cable screened4 x 4,00 mm²0,16 mm11,4 mm200,6 kg/km260 kg/km Send inquiry
66701604multi-core cable screened4 x 6,00 mm²0,21 mm13,9 mm291,6 kg/km380 kg/km Send inquiry
66701704multi-core cable screened4 x 10,00 mm²0,21 mm16,8 mm483,2 kg/km605 kg/km Send inquiry
66701804multi-core cable screened4 x 16,00 mm²0,21 mm20,2 mm730,4 kg/km885 kg/km Send inquiry
66701904multi-core cable screened4 x 25,00 mm²0,21 mm24,1 mm1113,6 kg/km1293 kg/km Send inquiry
