SABIX® BL 443 C FRNC TT

halogen-free flexible data cable, twisted triple with overall copper screen

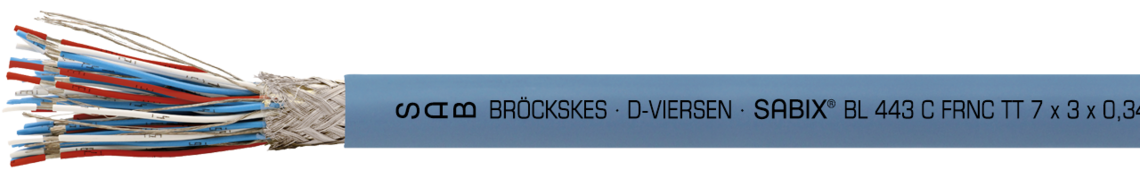

Marking for SABIX® BL 443 C FRNC TT 64430734: SAB BRÖCKSKES · D-VIERSEN ·  SABIX® BL 443 C FRNC TT 7 x 3 x 0,34 mm² - IEC 60332-3-22 - 300V DNV CE and current meter marking

Marking for SABIX® BL 443 C FRNC TT 64430734: SAB BRÖCKSKES · D-VIERSEN · SABIX® BL 443 C FRNC TT 7 x 3 x 0,34 mm² - IEC 60332-3-22 - 300V DNV CE and current meter marking

Application

Halogen-free flexible data cable, twisted triple with overall copper screen especially for use in shipbuilding industry. This cable with DNV approval is flame retardant and self-extinguishing.

Outstanding features

  • halogen-free
  • asbestos-free
  • screened, good EMC characteristics
  • no flame propagation
  • flame retardant and self-extinguishing
  • flexible
  • for applications acc. to Hong Kong Convention ingredients tested acc. to the requirements of the Hong Kong Convention (2009) of the IMO
  • approvals: DNV

Additional information

Possible on request:

  • bare copper strands
  • alternative colour code and sheath colour

Construction

Conductor

tinned copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

spezial SABIX®

Colour code

≤ 0,25 mm2 = DIN 47100

≥ 0,34 mm2 = white, blue, red with printed triple number

Stranding

cores white, blue, red twisted to triples, triples twisted in layers

Wrapping

PETP-Foil

Screen

tinned copper braiding

Sheath material

special SABIX®

SHF 1 compound acc. to IEC 60092-360

Sheath colour

pigeon blue (RAL 5014)

Conductor

tinned copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

spezial SABIX®

Colour code

≤ 0,25 mm2 = DIN 47100

≥ 0,34 mm2 = white, blue, red with printed triple number

Stranding

cores white, blue, red twisted to triples, triples twisted in layers

Wrapping

PETP-Foil

Screen

tinned copper braiding

Sheath material

special SABIX®

SHF 1 compound acc. to IEC 60092-360

Sheath colour

pigeon blue (RAL 5014)

Technical data

Peak operating voltage

max. 300 V

Testing voltage

core/core 1500 V

core/screen 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

fixed laying: -40/+90 °C

flexible application: -30/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Flame propagation

no flame propagation acc. to IEC 60332-3-22 + VDE 0482-332-3-22 category A

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

acc. to IEC 61034 + EN 61034

Flexibility

very good

Schadstofffrei

acc. to RoHS directive of the European Union

Peak operating voltage

max. 300 V

Testing voltage

core/core 1500 V

core/screen 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

fixed laying: -40/+90 °C

flexible application: -30/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Flame propagation

no flame propagation acc. to IEC 60332-3-22 + VDE 0482-332-3-22 category A

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

acc. to IEC 61034 + EN 61034

Flexibility

very good

Schadstofffrei

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Outer-ø ± 10% Copper figure Cable weight ≈
L644302252 x 3 x 0,25 mm²7,2 mm35,7 kg/km68 kg/km Send inquiry
L644304254 x 3 x 0,25 mm²8,8 mm55 kg/km103 kg/km Send inquiry
L644307257 x 3 x 0,25 mm²10,6 mm98,1 kg/km161 kg/km Send inquiry
L6443102510 x 3 x 0,25 mm²13,4 mm131,9 kg/km235 kg/km Send inquiry
L644302342 x 3 x 0,34 mm²8 mm43,4 kg/km82 kg/km Send inquiry
L644304344 x 3 x 0,34 mm²9,8 mm68,3 kg/km127 kg/km Send inquiry
L644307347 x 3 x 0,34 mm²11,9 mm123 kg/km202 kg/km Send inquiry
L6443103410 x 3 x 0,34 mm²15,2 mm195,5 kg/km313 kg/km Send inquiry
L644302502 x 3 x 0,50 mm²9 mm55 kg/km105 kg/km Send inquiry
L644304504 x 3 x 0,50 mm²10,7 mm105,3 kg/km161 kg/km Send inquiry
L644307507 x 3 x 0,50 mm²13,2 mm160,6 kg/km254 kg/km Send inquiry
L6443105010 x 3 x 0,50 mm²16,9 mm254 kg/km391 kg/km Send inquiry
L644302752 x 3 x 0,75 mm²10,4 mm90,8 kg/km144 kg/km Send inquiry
L644304754 x 3 x 0,75 mm²12,6 mm145,9 kg/km223 kg/km Send inquiry
L644307757 x 3 x 0,75 mm²15,2 mm248,8 kg/km350 kg/km Send inquiry
L6443107510 x 3 x 0,75 mm²19,3 mm340,6 kg/km504 kg/km Send inquiry
item no.
No. of cores x
cross section
Outer-ø ± 10%
Copper figure
Cable weight ≈
L64430225
2 x 3 x 0,25 mm²
7,2 mm
35,7 kg/km
68 kg/km
L64430425
4 x 3 x 0,25 mm²
8,8 mm
55 kg/km
103 kg/km
L64430725
7 x 3 x 0,25 mm²
10,6 mm
98,1 kg/km
161 kg/km
L64431025
10 x 3 x 0,25 mm²
13,4 mm
131,9 kg/km
235 kg/km
L64430234
2 x 3 x 0,34 mm²
8 mm
43,4 kg/km
82 kg/km
L64430434
4 x 3 x 0,34 mm²
9,8 mm
68,3 kg/km
127 kg/km
L64430734
7 x 3 x 0,34 mm²
11,9 mm
123 kg/km
202 kg/km
L64431034
10 x 3 x 0,34 mm²
15,2 mm
195,5 kg/km
313 kg/km
L64430250
2 x 3 x 0,50 mm²
9 mm
55 kg/km
105 kg/km
L64430450
4 x 3 x 0,50 mm²
10,7 mm
105,3 kg/km
161 kg/km
L64430750
7 x 3 x 0,50 mm²
13,2 mm
160,6 kg/km
254 kg/km
L64431050
10 x 3 x 0,50 mm²
16,9 mm
254 kg/km
391 kg/km
L64430275
2 x 3 x 0,75 mm²
10,4 mm
90,8 kg/km
144 kg/km
L64430475
4 x 3 x 0,75 mm²
12,6 mm
145,9 kg/km
223 kg/km
L64430775
7 x 3 x 0,75 mm²
15,2 mm
248,8 kg/km
350 kg/km
L64431075
10 x 3 x 0,75 mm²
19,3 mm
340,6 kg/km
504 kg/km

Other dimensions and colours are possible on request.
