SABIX® BL 446 C FRNC FTP

halogen-free flexible paired data cable with aluminum pair screen and overall copper screen

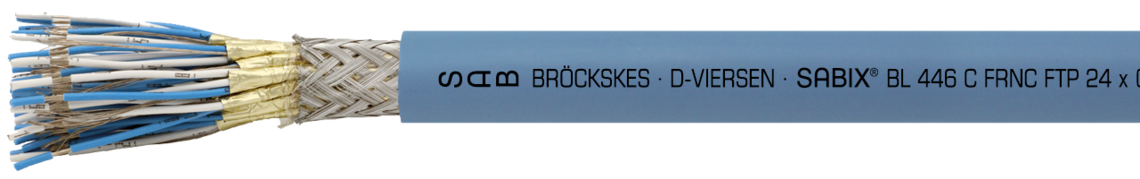

Marking for SABIX BL 446 C FRNC FTP 64462475: SAB BRÖCKSKES · D-VIERSEN ·
SABIX® BL 446 C FRNC FTP 24x(2x0,75mm²)ST - IEC 60332-3-22 - 300V DNV CE and current meter marking

Marking for SABIX BL 446 C FRNC FTP 64462475: SAB BRÖCKSKES · D-VIERSEN · SABIX® BL 446 C FRNC FTP 24x(2x0,75mm²)ST - IEC 60332-3-22 - 300V DNV CE and current meter marking

Application

Halogen-free flexible paired data cable with aluminum pair screen and overall copper screen especially for use in shipbuilding industry. The flexible & flame retardant cable is suitable for applications acc. to Hong Kong Convention.

Outstanding features

  • halogen-free
  • asbestos-free
  • screened, good EMC characteristics
  • good transmission rates and crosstalk attenuation
  • no flame propagation
  • flame retardant and self-extinguishing
  • flexible
  • for applications acc. to Hong Kong Convention ingredients tested acc. to the requirements of the Hong Kong Convention (2009) of the IMO
  • approvals: DNV

Additional information

Possible on request

  • bare copper strands
  • alternative colour code and sheath colour

Construction

Conductor

tinned copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

special SABIX®

Colour code

≤ 0,25 mm2 = DIN 47100

≥ 0,34 mm2 = white, blue with marking, pairnumber

Stranding

cores white, blue twisted to pairs

Pairscreen

alu foi

Stranding

pairs together in layers

Wrapping

PETP-foil

Screen

tinned copper braiding

Wrapping

PETP-foil

Sheath material

special SABIX® SHF 1 compound acc. to IEC 60092-360

Sheath colour:

pigeon blue (RAL 5014)

Conductor

tinned copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

special SABIX®

Colour code

≤ 0,25 mm2 = DIN 47100

≥ 0,34 mm2 = white, blue with marking, pairnumber

Stranding

cores white, blue twisted to pairs

Pairscreen

alu foi

Stranding

pairs together in layers

Wrapping

PETP-foil

Screen

tinned copper braiding

Wrapping

PETP-foil

Sheath material

special SABIX® SHF 1 compound acc. to IEC 60092-360

Sheath colour:

pigeon blue (RAL 5014)

Technical data

Peak operating voltage

max. 300 V

Testing voltage

core/core: 1500 V

core/screen: 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

fixed laying: -40/+90 °C

flexible application: -30/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Flame propagation

no flame propagation acc. to IEC 60332-3-22 + VDE 0482-332-3-22 category A

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Flexibility

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 300 V

Testing voltage

core/core: 1500 V

core/screen: 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

fixed laying: -40/+90 °C

flexible application: -30/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Flame propagation

no flame propagation acc. to IEC 60332-3-22 + VDE 0482-332-3-22 category A

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Flexibility

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Outer-ø ± 10% Copper figure Cable weight ≈
L644602252 x (2 x 0,25)ST mm²6,2 mm27,8 kg/km53 kg/km Send inquiry
L644608258 x (2 x 0,25)ST mm²10,1 mm84,5 kg/km150 kg/km Send inquiry
L6446122512 x (2 x 0,25)ST mm²12,7 mm142,4 kg/km236 kg/km Send inquiry
L644602342 x (2 x 0,34)ST mm²7,7 mm41,0 kg/km73 kg/km Send inquiry
L644604344 x (2 x 0,34) ST mm²9,2 mm61,5 kg/km122 kg/km Send inquiry
L644608348 x (2 x 0,34)ST mm²11,4 mm123,2 kg/km196 kg/km Send inquiry
L6446123412 x (2 x 0,34)ST mm²14,9 mm190,8 kg/km303 kg/km Send inquiry
L644604754 x (2 x 0,75)ST mm²11,3 mm124,7 kg/km182 kg/km Send inquiry
L6446247524 x (2 x 0,75)ST mm²23,7 mm591,1 kg/km854 kg/km Send inquiry
L6446198019 x (2 x 1,50)ST mm²25,1 mm779,7 kg/km1031 kg/km Send inquiry
item no.
No. of cores x
cross section
Outer-ø ± 10%
Copper figure
Cable weight ≈
L64460225
2 x (2 x 0,25)ST mm²
6,2 mm
27,8 kg/km
53 kg/km
L64460825
8 x (2 x 0,25)ST mm²
10,1 mm
84,5 kg/km
150 kg/km
L64461225
12 x (2 x 0,25)ST mm²
12,7 mm
142,4 kg/km
236 kg/km
L64460234
2 x (2 x 0,34)ST mm²
7,7 mm
41,0 kg/km
73 kg/km
L64460434
4 x (2 x 0,34) ST mm²
9,2 mm
61,5 kg/km
122 kg/km
L64460834
8 x (2 x 0,34)ST mm²
11,4 mm
123,2 kg/km
196 kg/km
L64461234
12 x (2 x 0,34)ST mm²
14,9 mm
190,8 kg/km
303 kg/km
L64460475
4 x (2 x 0,75)ST mm²
11,3 mm
124,7 kg/km
182 kg/km
L64462475
24 x (2 x 0,75)ST mm²
23,7 mm
591,1 kg/km
854 kg/km
L64461980
19 x (2 x 1,50)ST mm²
25,1 mm
779,7 kg/km
1031 kg/km

Other dimensions and colours are possible on request.
