S 90 C

Continuously flexible PVC/PUR control cable with numbered cores and overall copper screen

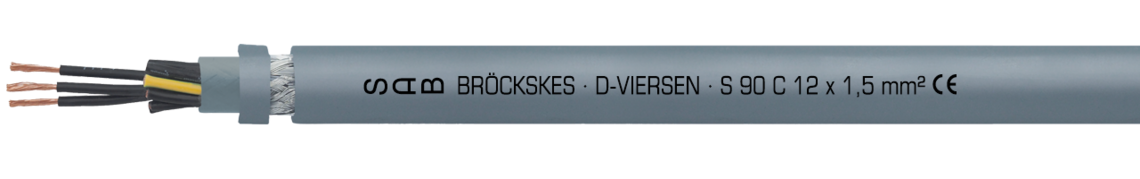

Marking for S 90 C 07881215: SAB BRÖCKSKES · D-VIERSEN · S 90 C 12 x 1,5 mm² CE

Marking for S 90 C 07881215: SAB BRÖCKSKES · D-VIERSEN · S 90 C 12 x 1,5 mm² CE

Application

S 90 C is a high flexible cable with overall copper screen and numbered cores as well as increased efficiency. The oil resistant cable is recommended for use in handling, material handling and automation technologies, wood working and packaging machines, welding machine and cutting systems.

Outstanding features

  • screened, very good EMC characteristics
  • high flexible
  • oil resistant
  • improved abrasion resistance
  • high tear resistance
  • good chemical resistance
  • increased efficiency

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

specially adjusted layering with non-woven tape over each layer

Inner sheath

PVC, TM2 acc. to EN 50363-3 + VDE 0207-363-3

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

Sheath colour

grey (RAL 7000)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

specially adjusted layering with non-woven tape over each layer

Inner sheath

PVC, TM2 acc. to EN 50363-3 + VDE 0207-363-3

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

Sheath colour

grey (RAL 7000)

Technical data

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 3000 V

core/screen 2000 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

fixed laying: -40/+70°C

flexible application: +5/+70°C

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Flexibility

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 3000 V

core/screen 2000 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

fixed laying: -40/+70°C

flexible application: +5/+70°C

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Flexibility

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5% Copper figure Cable weight ≈
L078802052 x 0,50 mm²0,16 mm7,6 mm41,5 kg/km85 kg/km Send inquiry
L078803053 x 0,50 mm²0,16 mm7,9 mm46,8 kg/km91 kg/km Send inquiry
L078804054 x 0,50 mm²0,16 mm8,3 mm56,9 kg/km103 kg/km Send inquiry
L078805055 x 0,50 mm²0,16 mm8,9 mm62,4 kg/km117 kg/km Send inquiry
L078807057 x 0,50 mm²0,16 mm10,3 mm83,6 kg/km157 kg/km Send inquiry
L0788120512 x 0,50 mm²0,16 mm12,1 mm114 kg/km207 kg/km Send inquiry
L0788180518 x 0,50 mm²0,16 mm13,6 mm154,4 kg/km274 kg/km Send inquiry
L0788250525 x 0,50 mm²0,16 mm16,3 mm222,8 kg/km273 kg/km Send inquiry
L0788360536 x 0,50 mm²0,16 mm18,4 mm300,3 kg/km507 kg/km Send inquiry
L0788440544 x 0,50 mm²0,16 mm20,2 mm344,6 kg/km583 kg/km Send inquiry
L0788520552 x 0,50 mm²0,16 mm20,9 mm385,5 kg/km650 kg/km Send inquiry
L0788650565 x 0,50 mm²0,16 mm23,5 mm466,4 kg/km805 kg/km Send inquiry
L078802072 x 0,75 mm²0,16 mm8,1 mm51,4 kg/km101 kg/km Send inquiry
L078803073 x 0,75 mm²0,16 mm8,4 mm59,4 kg/km108 kg/km Send inquiry
L078804074 x 0,75 mm²0,16 mm8,9 mm67,2 kg/km120 kg/km Send inquiry
L078805075 x 0,75 mm²0,16 mm9,5 mm77,3 kg/km138 kg/km Send inquiry
L078807077 x 0,75 mm²0,16 mm11,2 mm101,5 kg/km188 kg/km Send inquiry
L0788120712 x 0,75 mm²0,16 mm13,1 mm145 kg/km251 kg/km Send inquiry
L0788180718 x 0,75 mm²0,16 mm14,9 mm200,1 kg/km340 kg/km Send inquiry
L0788250725 x 0,75 mm²0,16 mm18,4 mm294,8 kg/km486 kg/km Send inquiry
L0788360736 x 0,75 mm²0,16 mm20,2 mm392,6 kg/km632 kg/km Send inquiry
L0788440744 x 0,75 mm²0,16 mm22,2 mm457,3 kg/km731 kg/km Send inquiry
L0788520752 x 0,75 mm²0,16 mm23,4 mm528,4 kg/km845 kg/km Send inquiry
L0788650765 x 0,75 mm²0,16 mm26,1 mm632,6 kg/km1032 kg/km Send inquiry
L078802102 x 1,00 mm²0,16 mm8,1 mm56,9 kg/km108 kg/km Send inquiry
L078803103 x 1,00 mm²0,16 mm8,6 mm66,9 kg/km118 kg/km Send inquiry
L078804104 x 1,00 mm²0,16 mm9,2 mm79,2 kg/km135 kg/km Send inquiry
L078805105 x 1,00 mm²0,16 mm10,2 mm97,9 kg/km167 kg/km Send inquiry
L078807107 x 1,00 mm²0,16 mm11,5 mm118,7 kg/km208 kg/km Send inquiry
L0788121012 x 1,00 mm²0,16 mm13,5 mm183 kg/km291 kg/km Send inquiry
L0788181018 x 1,00 mm²0,16 mm15,8 mm244,3 kg/km401 kg/km Send inquiry
L0788251025 x 1,00 mm²0,16 mm19 mm356,5 kg/km556 kg/km Send inquiry
L0788361036 x 1,00 mm²0,16 mm20,9 mm481,5 kg/km731 kg/km Send inquiry
L0788441044 x 1,00 mm²0,16 mm23,4 mm565,8 kg/km868 kg/km Send inquiry
L0788521052 x 1,00 mm²0,16 mm24,5 mm657,4 kg/km998 kg/km Send inquiry
L0788651065 x 1,00 mm²0,16 mm26,4 mm807,5 kg/km1216 kg/km Send inquiry
L078802152 x 1,50 mm²0,16 mm8,9 mm67,2 kg/km129 kg/km Send inquiry
L078803153 x 1,50 mm²0,16 mm9,3 mm84,2 kg/km144 kg/km Send inquiry
L078804154 x 1,50 mm²0,16 mm10,3 mm107,6 kg/km177 kg/km Send inquiry
L078805155 x 1,50 mm²0,16 mm11 mm122,8 kg/km203 kg/km Send inquiry
L078807157 x 1,50 mm²0,16 mm12,7 mm158,5 kg/km267 kg/km Send inquiry
L0788121512 x 1,50 mm²0,16 mm14,8 mm243,1 kg/km368 kg/km Send inquiry
L0788181518 x 1,50 mm²0,16 mm17,9 mm365,7 kg/km548 kg/km Send inquiry
L0788251525 x 1,50 mm²0,16 mm20,9 mm495,9 kg/km719 kg/km Send inquiry
L0788361536 x 1,50 mm²0,16 mm23,4 mm672,4 kg/km976 kg/km Send inquiry
L0788441544 x 1,50 mm²0,16 mm26 mm827,6 kg/km1167 kg/km Send inquiry
L0788521552 x 1,50 mm²0,16 mm27 mm947,6 kg/km1323 kg/km Send inquiry
L0788651565 x 1,50 mm²0,16 mm30,5 mm1133,7 kg/km1637 kg/km Send inquiry
L078802252 x 2,50 mm²0,16 mm11,1 mm99 kg/km199 kg/km Send inquiry
L078803253 x 2,50 mm²0,16 mm11,6 mm127,4 kg/km223 kg/km Send inquiry
L078804254 x 2,50 mm²0,16 mm12,6 mm153,5 kg/km261 kg/km Send inquiry
L078805255 x 2,50 mm²0,16 mm13,6 mm188 kg/km309 kg/km Send inquiry
L078807257 x 2,50 mm²0,16 mm16,3 mm270,8 kg/km437 kg/km Send inquiry
L0788122512 x 2,50 mm²0,16 mm20,1 mm419,8 kg/km640 kg/km Send inquiry
L0788182518 x 2,50 mm²0,16 mm22,6 mm573,9 kg/km852 kg/km Send inquiry
L0788252525 x 2,50 mm²0,16 mm27 mm783,5 kg/km1141 kg/km Send inquiry
L0788362536 x 2,50 mm²0,16 mm30,5 mm1061,7 kg/km1556 kg/km Send inquiry
L078802402 x 4,00 mm²0,16 mm12,7 mm133,7 kg/km242 kg/km Send inquiry
L078803403 x 4,00 mm²0,16 mm13,3 mm173,3 kg/km289 kg/km Send inquiry
L078804404 x 4,00 mm²0,16 mm14,2 mm221,9 kg/km345 kg/km Send inquiry
L078805405 x 4,00 mm²0,16 mm15,4 mm262,7 kg/km428 kg/km Send inquiry
L078807407 x 4,00 mm²0,16 mm18,5 mm383,8 kg/km613 kg/km Send inquiry
L078802602 x 6,00 mm²0,21 mm15,6 mm184,3 kg/km340 kg/km Send inquiry
L078803603 x 6,00 mm²0,21 mm15,7 mm243,3 kg/km408 kg/km Send inquiry
L078804604 x 6,00 mm²0,21 mm17,1 mm334,4 kg/km506 kg/km Send inquiry
L078805605 x 6,00 mm²0,21 mm18,8 mm403,9 kg/km643 kg/km Send inquiry
L078807607 x 6,00 mm²0,21 mm21,6 mm541,5 kg/km850 kg/km Send inquiry
L078804614 x 10,0 mm²0,21 mm20,2 mm516,1 kg/km756 kg/km Send inquiry
L078805615 x 10,0 mm²0,21 mm22 mm618,3 kg/km948 kg/km Send inquiry
L078804624 x 16,0 mm²0,21 mm23,2 mm757,1 kg/km1065 kg/km Send inquiry
L078805625 x 16,0 mm²0,21 mm25,6 mm945,3 kg/km1376 kg/km Send inquiry
L078804634 x 25,0 mm²0,21 mm27,2 mm1142,6 kg/km1534 kg/km Send inquiry
L078804644 x 35,0 mm²0,21 mm30,8 mm1543,1 kg/km2006 kg/km Send inquiry
