S 910 P

UL/CSA flexible TPE/PUR single conductor

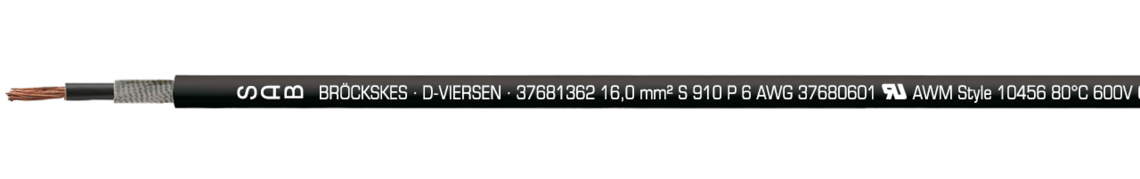

Marking for S 910 P 37681362: SAB BRÖCKSKES · D-VIERSEN · 37681362 16,0 mm² S 910 P 6 AWG 37680601 UL AWM Style 10456 80°C 600V CSA AWM I/II A/B 80°C 1000V FT1 FT2 CE

Marking for S 910 P 37681362: SAB BRÖCKSKES · D-VIERSEN · 37681362 16,0 mm² S 910 P 6 AWG 37680601 UL AWM Style 10456 80°C 600V CSA AWM I/II A/B 80°C 1000V FT1 FT2 CE

Application

S 910 P is a continuously flexible power supply cable with good chemical and high abrasion resistance. This single conductor with UL/CSA approval is recommended for use in handling, material handling and automation technologies, wood working and packaging machines, car manufacturing industry, and press manufacturing.

Outstanding features

  • highly flexible single conductor for use in cable tracks
  • good chemical resistance
  • high abrasion resistance
  • halogen-free
  • UL/CSA approval

Additional information

On request with green-yellow insulation

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

TPE, black

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

Sheath colour

black (RAL 9005)

Technical data

Nominal voltage

Uo/U 0,6/1 kV

Voltage

UL: 600 V

CSA: 1000 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

1 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -50/+90 °C

DIN VDE flexible application: -40/+90 °C

UL/CSA: up to +80°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL/CSA FT1, FT2

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc..

Continuous flexibility

very good

Dimensions

item no.
no. of cores x cross section
largest single wire-ø
AWG/ MCM
outer-ø ± 5%
copper figure
cable weight ca.
37681340
1 x 4,00 mm²
0,16 mm
12 (224/34)
6,6 mm
38,4 kg/km
69 kg/km
37681360
1 x 6,00 mm²
0,21 mm
10 (186/32)
7,5 mm
57,6 kg/km
94 kg/km
37681361
1 x 10,00 mm²
0,21 mm
8 (320/32)
8,4 mm
96 kg/km
138 kg/km
37681362
1 x 16,00 mm²
0,21 mm
6 (512/32)
9,9 mm
153,6 kg/km
206 kg/km
37681363
1 x 25,00 mm²
0,21 mm
4 (798/32)
11,1 mm
240 kg/km
296 kg/km
37681364
1 x 35,00 mm²
0,21 mm
2 (1083/32)
12,6 mm
336 kg/km
390 kg/km
37681365
1 x 50,00 mm²
0,31 mm
1 (703/28)
14,7 mm
480 kg/km
554 kg/km
37681366
1 x 70,00 mm²
0,31 mm
2/0 (988/28)
17 mm
672 kg/km
771 kg/km
37681367
1 x 95,00 mm²
0,31 mm
3/0 (1340/28)
20,4 mm
912 kg/km
1024 kg/km
37681368
1 x 120,00 mm²
0,31 mm
4/0 (1680/28)
23 mm
1152 kg/km
1318 kg/km
37681369
1 x 150,00 mm²
0,31 mm
250 MCM (2122/28)
25,7 mm
1440 kg/km
1649 kg/km
