SD 90 C

Continuously flexible PUR data cable with coloured cores and overall copper screen

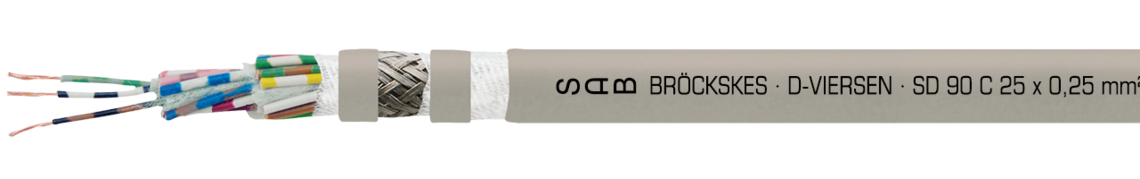

Marking for SD 90 C 07882502: SAB BRÖCKSKES · D-VIERSEN · SD 90 C 25 x 0,25 mm² CE

Marking for SD 90 C 07882502: SAB BRÖCKSKES · D-VIERSEN · SD 90 C 25 x 0,25 mm² CE

Application

SD 90 C is a continuously flexible data cable with overall copper screen and coloured cores as well as improved abrasion resistance. The oil resistant & high flexible cable is recommended for use in handling, material handling and automation technologies, wood working and packaging machines, welding machine and cutting systems.

Outstanding features

  • screened, very good EMC characteristics
  • improved abrasion resistance
  • high flexible
  • oil resistant
  • high tear resistance
  • chemical resistant, acid resistant
  • increased efficiency

Construction

Conductor

bare copper strands, extra fine wires

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

with reference to DIN 47100

Stranding

specially adjusted layering with non-woven tape over each layer

Wrapping

non-woven tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

Sheath colour

grey (RAL 7032)

Conductor

bare copper strands, extra fine wires

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

with reference to DIN 47100

Stranding

specially adjusted layering with non-woven tape over each layer

Wrapping

non-woven tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

Sheath colour

grey (RAL 7032)

Technical data

Peak operating voltage

max. 350 V acc. to VDE 0812

Testing voltage

core/core 1500 V

core/screen 1200 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

fixed laying: -30/+70°C

flexible application: -5/+70°C

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc..

Flexibility

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V acc. to VDE 0812

Testing voltage

core/core 1500 V

core/screen 1200 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

fixed laying: -30/+70°C

flexible application: -5/+70°C

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc..

Flexibility

very good

Dimensions

item no.

no. of cores x
cross section

largest single
wire-ø

outer-ø ± 5%

copper figure

cable weight ca.

078802012 x 0,14 mm²0,11 mm3,9 mm11,3 kg/km20 kg/km Send inquiry
078803013 x 0,14 mm²0,11 mm4,1 mm14,4 kg/km23 kg/km Send inquiry
078804014 x 0,14 mm²0,11 mm4,3 mm15,7 kg/km25 kg/km Send inquiry
078805015 x 0,14 mm²0,11 mm4,6 mm18,8 kg/km31 kg/km Send inquiry
078807017 x 0,14 mm²0,11 mm5,2 mm23,4 kg/km39 kg/km Send inquiry
0788120112 x 0,14 mm²0,11 mm6,1 mm33,7 kg/km52 kg/km Send inquiry
0788180118 x 0,14 mm²0,11 mm6,9 mm43,9 kg/km70 kg/km Send inquiry
0788250125 x 0,14 mm²0,11 mm8,1 mm57,4 kg/km89 kg/km Send inquiry
078802022 x 0,25 mm²0,11 mm4,2 mm15,1 kg/km25 kg/km Send inquiry
078803023 x 0,25 mm²0,11 mm4,4 mm17,6 kg/km28 kg/km Send inquiry
078804024 x 0,25 mm²0,11 mm4,7 mm21,7 kg/km33 kg/km Send inquiry
078805025 x 0,25 mm²0,11 mm5 mm25,9 kg/km39 kg/km Send inquiry
078807027 x 0,25 mm²0,11 mm5,7 mm32,7 kg/km51 kg/km Send inquiry
0788120212 x 0,25 mm²0,11 mm6,7 mm48,4 kg/km69 kg/km Send inquiry
0788180218 x 0,25 mm²0,11 mm7,7 mm66,9 kg/km97 kg/km Send inquiry
0788250225 x 0,25 mm²0,11 mm9,2 mm89 kg/km128 kg/km Send inquiry
078802032 x 0,34 mm²0,11 mm4,8 mm18,7 kg/km32 kg/km Send inquiry
078803033 x 0,34 mm²0,11 mm5 mm23,2 kg/km36 kg/km Send inquiry
078804034 x 0,34 mm²0,11 mm5,4 mm27,1 kg/km42 kg/km Send inquiry
078805035 x 0,34 mm²0,11 mm5,8 mm32,3 kg/km51 kg/km Send inquiry
078807037 x 0,34 mm²0,11 mm6,7 mm42,4 kg/km68 kg/km Send inquiry
0788120312 x 0,34 mm²0,11 mm7,9 mm62,9 kg/km93 kg/km Send inquiry
0788180318 x 0,34 mm²0,11 mm9,4 mm87,8 kg/km135 kg/km Send inquiry
0788250325 x 0,34 mm²0,11 mm11,6 mm135,7 kg/km195 kg/km Send inquiry
078802502 x 0,50 mm²0,11 mm5,2 mm23,2 kg/km38 kg/km Send inquiry
078803503 x 0,50 mm²0,11 mm5,4 mm30,1 kg/km45 kg/km Send inquiry
078804504 x 0,50 mm²0,11 mm5,9 mm35,5 kg/km53 kg/km Send inquiry
078805505 x 0,50 mm²0,11 mm6,6 mm52,8 kg/km74 kg/km Send inquiry
078807507 x 0,50 mm²0,11 mm7,5 mm66 kg/km93 kg/km Send inquiry
0788125012 x 0,50 mm²0,11 mm9,1 mm99,6 kg/km133 kg/km Send inquiry
0788185018 x 0,50 mm²0,11 mm11 mm137,5 kg/km195 kg/km Send inquiry
0788255025 x 0,50 mm²0,11 mm12,8 mm179,4 kg/km249 kg/km Send inquiry
078802752 x 0,75 mm²0,11 mm5,8 mm30,6 kg/km49 kg/km Send inquiry
078803753 x 0,75 mm²0,11 mm6,3 mm49,8 kg/km66 kg/km Send inquiry
078804754 x 0,75 mm²0,11 mm6,8 mm58 kg/km77 kg/km Send inquiry
078805755 x 0,75 mm²0,11 mm7,4 mm68,3 kg/km92 kg/km Send inquiry
078807757 x 0,75 mm²0,11 mm8,7 mm89,8 kg/km126 kg/km Send inquiry
0788127512 x 0,75 mm²0,11 mm10,4 mm137,2 kg/km180 kg/km Send inquiry
0788187518 x 0,75 mm²0,11 mm12,5 mm187,3 kg/km256 kg/km Send inquiry
0788257525 x 0,75 mm²0,11 mm15,1 mm250,5 kg/km351 kg/km Send inquiry
item no.
no. of cores x
cross section
largest single
wire-ø
outer-ø ± 5%
copper figure
cable weight ca.
07880201
2 x 0,14 mm²
0,11 mm
3,9 mm
11,3 kg/km
20 kg/km
07880301
3 x 0,14 mm²
0,11 mm
4,1 mm
14,4 kg/km
23 kg/km
07880401
4 x 0,14 mm²
0,11 mm
4,3 mm
15,7 kg/km
25 kg/km
07880501
5 x 0,14 mm²
0,11 mm
4,6 mm
18,8 kg/km
31 kg/km
07880701
7 x 0,14 mm²
0,11 mm
5,2 mm
23,4 kg/km
39 kg/km
07881201
12 x 0,14 mm²
0,11 mm
6,1 mm
33,7 kg/km
52 kg/km
07881801
18 x 0,14 mm²
0,11 mm
6,9 mm
43,9 kg/km
70 kg/km
07882501
25 x 0,14 mm²
0,11 mm
8,1 mm
57,4 kg/km
89 kg/km
07880202
2 x 0,25 mm²
0,11 mm
4,2 mm
15,1 kg/km
25 kg/km
07880302
3 x 0,25 mm²
0,11 mm
4,4 mm
17,6 kg/km
28 kg/km
07880402
4 x 0,25 mm²
0,11 mm
4,7 mm
21,7 kg/km
33 kg/km
07880502
5 x 0,25 mm²
0,11 mm
5 mm
25,9 kg/km
39 kg/km
07880702
7 x 0,25 mm²
0,11 mm
5,7 mm
32,7 kg/km
51 kg/km
07881202
12 x 0,25 mm²
0,11 mm
6,7 mm
48,4 kg/km
69 kg/km
07881802
18 x 0,25 mm²
0,11 mm
7,7 mm
66,9 kg/km
97 kg/km
07882502
25 x 0,25 mm²
0,11 mm
9,2 mm
89 kg/km
128 kg/km
07880203
2 x 0,34 mm²
0,11 mm
4,8 mm
18,7 kg/km
32 kg/km
07880303
3 x 0,34 mm²
0,11 mm
5 mm
23,2 kg/km
36 kg/km
07880403
4 x 0,34 mm²
0,11 mm
5,4 mm
27,1 kg/km
42 kg/km
07880503
5 x 0,34 mm²
0,11 mm
5,8 mm
32,3 kg/km
51 kg/km
07880703
7 x 0,34 mm²
0,11 mm
6,7 mm
42,4 kg/km
68 kg/km
07881203
12 x 0,34 mm²
0,11 mm
7,9 mm
62,9 kg/km
93 kg/km
07881803
18 x 0,34 mm²
0,11 mm
9,4 mm
87,8 kg/km
135 kg/km
07882503
25 x 0,34 mm²
0,11 mm
11,6 mm
135,7 kg/km
195 kg/km
07880250
2 x 0,50 mm²
0,11 mm
5,2 mm
23,2 kg/km
38 kg/km
07880350
3 x 0,50 mm²
0,11 mm
5,4 mm
30,1 kg/km
45 kg/km
07880450
4 x 0,50 mm²
0,11 mm
5,9 mm
35,5 kg/km
53 kg/km
07880550
5 x 0,50 mm²
0,11 mm
6,6 mm
52,8 kg/km
74 kg/km
07880750
7 x 0,50 mm²
0,11 mm
7,5 mm
66 kg/km
93 kg/km
07881250
12 x 0,50 mm²
0,11 mm
9,1 mm
99,6 kg/km
133 kg/km
07881850
18 x 0,50 mm²
0,11 mm
11 mm
137,5 kg/km
195 kg/km
07882550
25 x 0,50 mm²
0,11 mm
12,8 mm
179,4 kg/km
249 kg/km
07880275
2 x 0,75 mm²
0,11 mm
5,8 mm
30,6 kg/km
49 kg/km
07880375
3 x 0,75 mm²
0,11 mm
6,3 mm
49,8 kg/km
66 kg/km
07880475
4 x 0,75 mm²
0,11 mm
6,8 mm
58 kg/km
77 kg/km
07880575
5 x 0,75 mm²
0,11 mm
7,4 mm
68,3 kg/km
92 kg/km
07880775
7 x 0,75 mm²
0,11 mm
8,7 mm
89,8 kg/km
126 kg/km
07881275
12 x 0,75 mm²
0,11 mm
10,4 mm
137,2 kg/km
180 kg/km
07881875
18 x 0,75 mm²
0,11 mm
12,5 mm
187,3 kg/km
256 kg/km
07882575
25 x 0,75 mm²
0,11 mm
15,1 mm
250,5 kg/km
351 kg/km

Other dimensions and colours are possible on request.
